Page 3225 of 4378

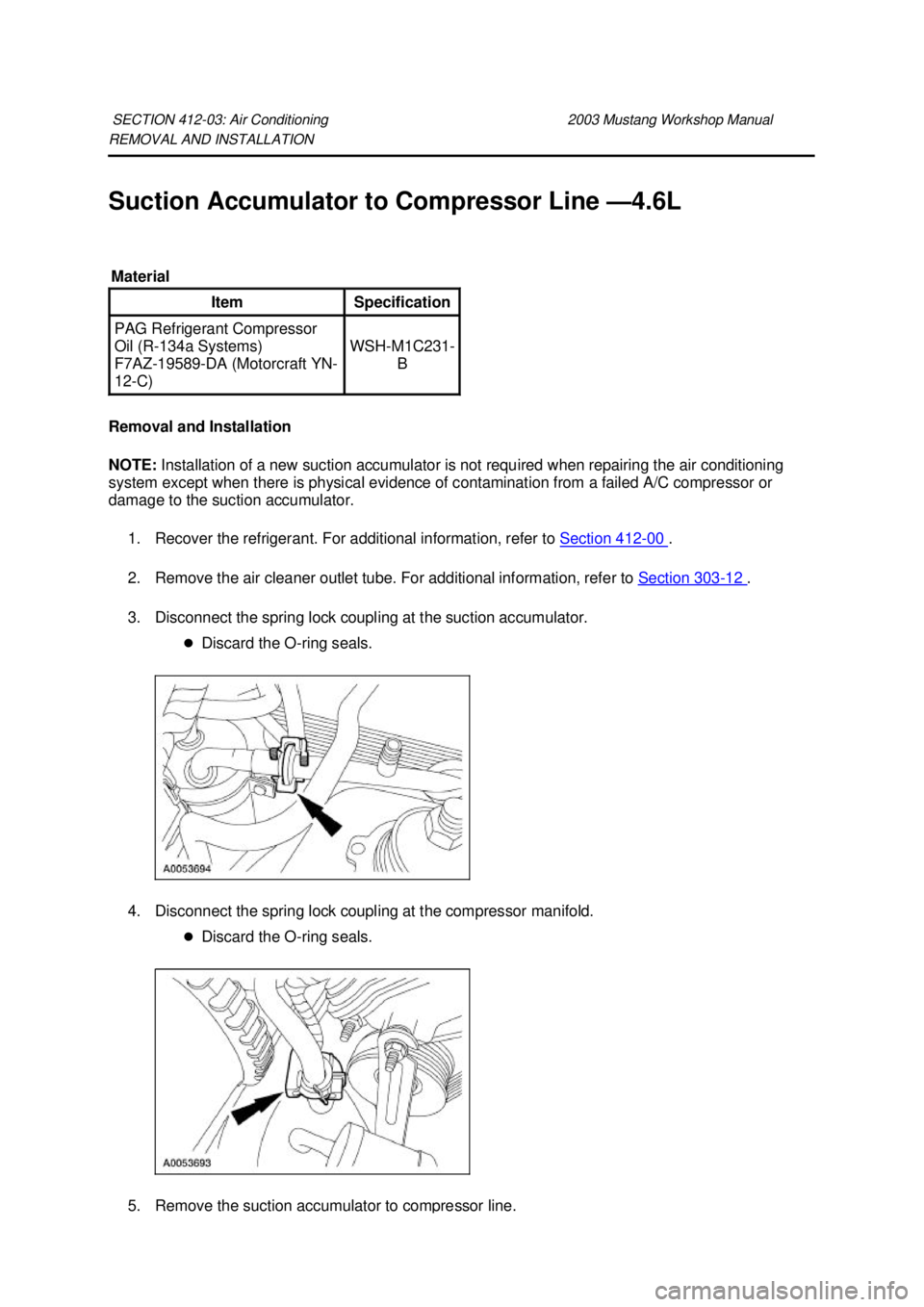

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Suction Accumulator to Compressor Line — 4.6L Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air conditionin

Page 3226 of 4378

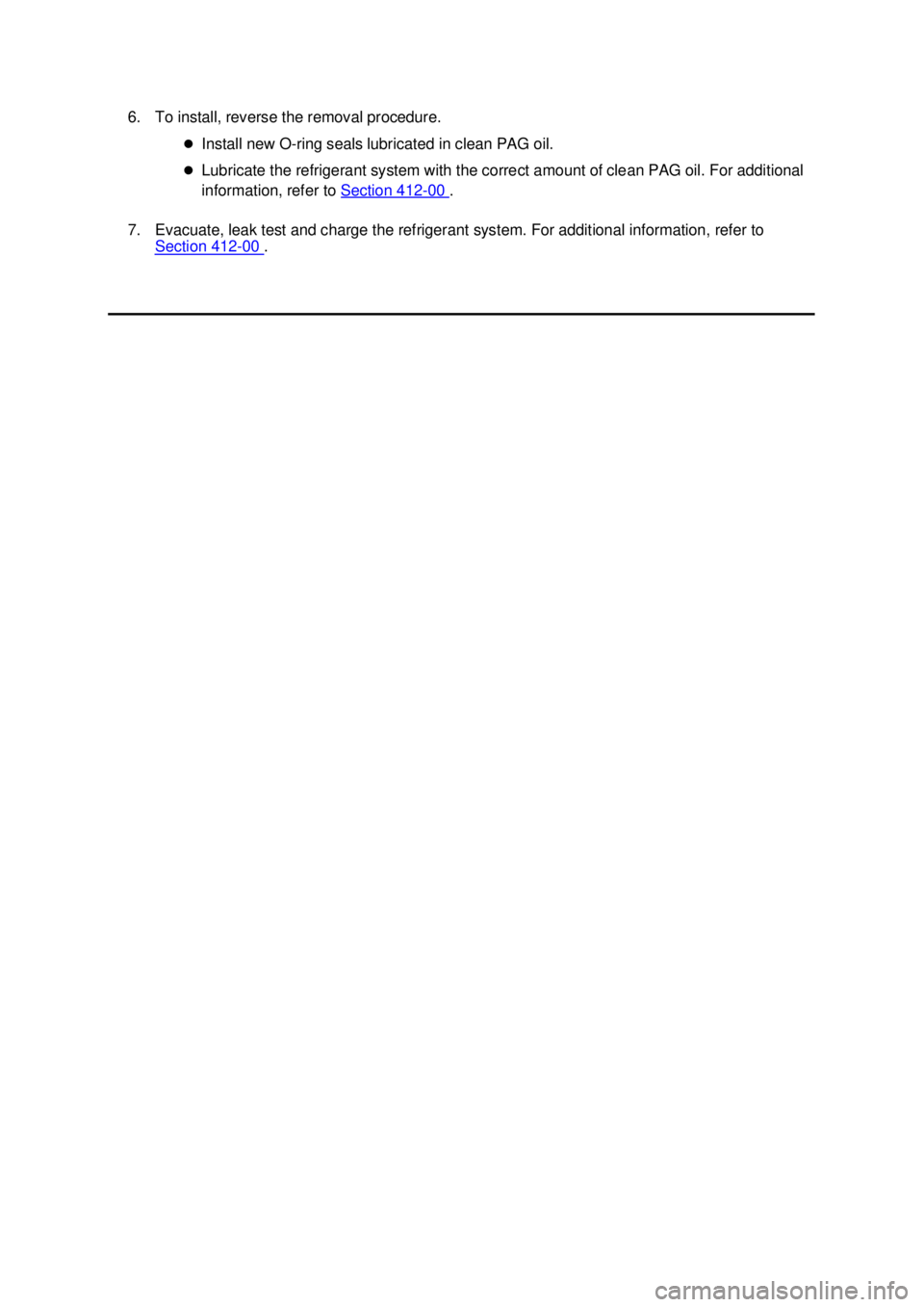

FORD MUSTANG 2003 Workshop Manual 6. To install, reverse the removal procedure. �zInstall new O- ring seals lubricated in clean PAG oil. �z Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional i

Page 3227 of 4378

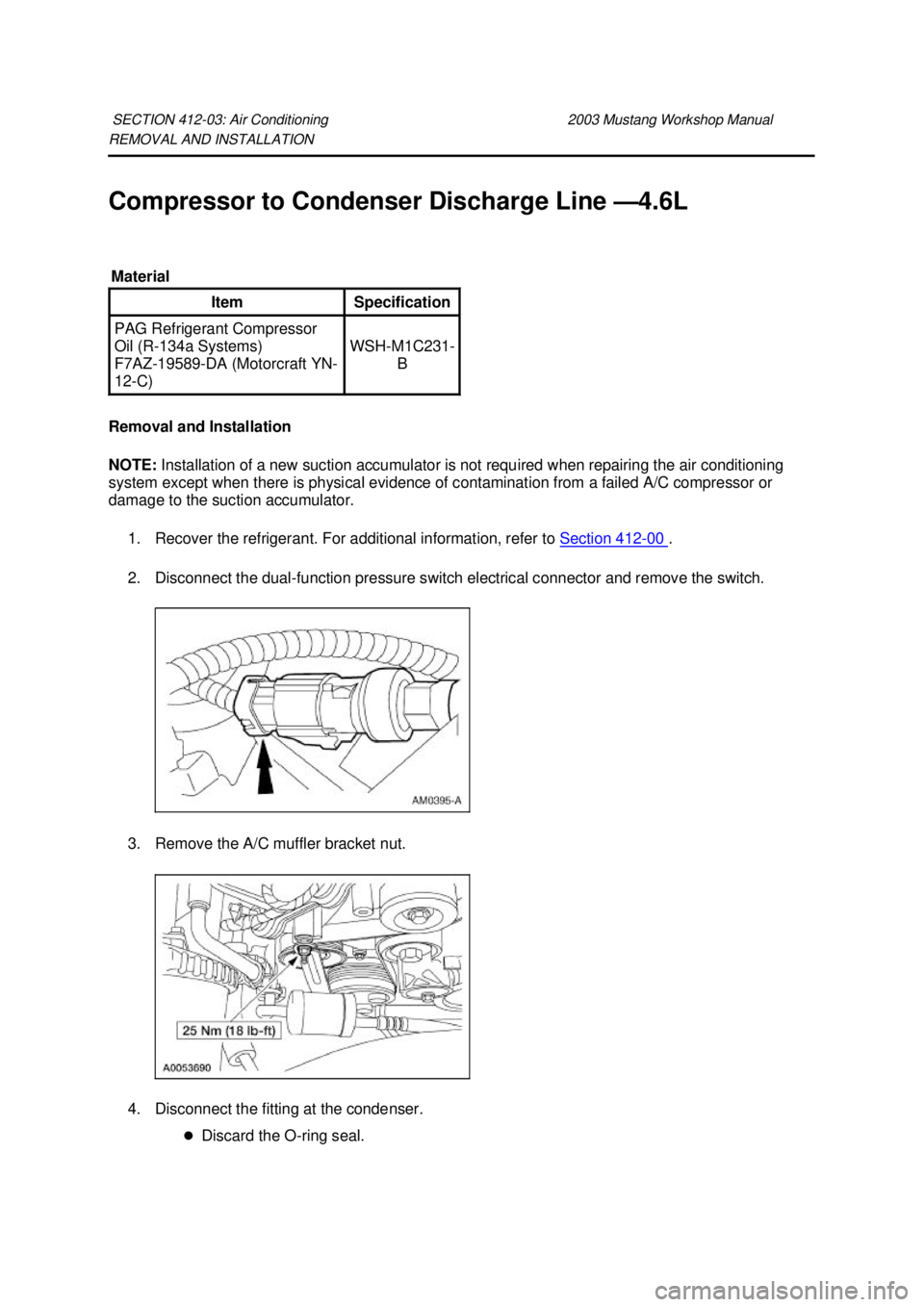

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Compressor to Condenser Discharge Line — 4.6L Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air conditionin

Page 3228 of 4378

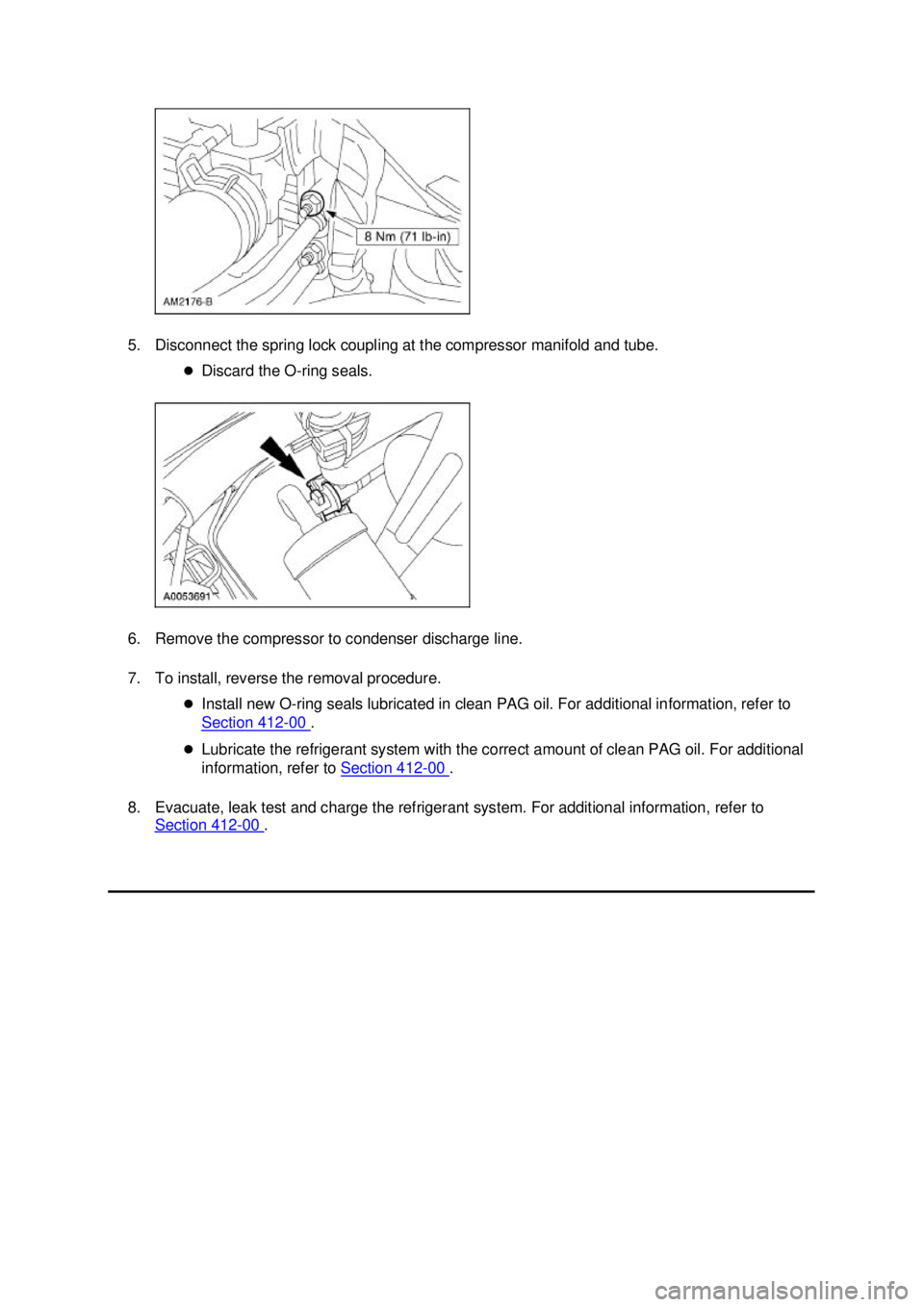

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the spring lock coupling at the compressor manifold and tube. �zDiscard the O- ring seals. 6. Remove the compressor to condenser discharge line. 7. To install, reverse the removal pro

Page 3229 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3230 of 4378

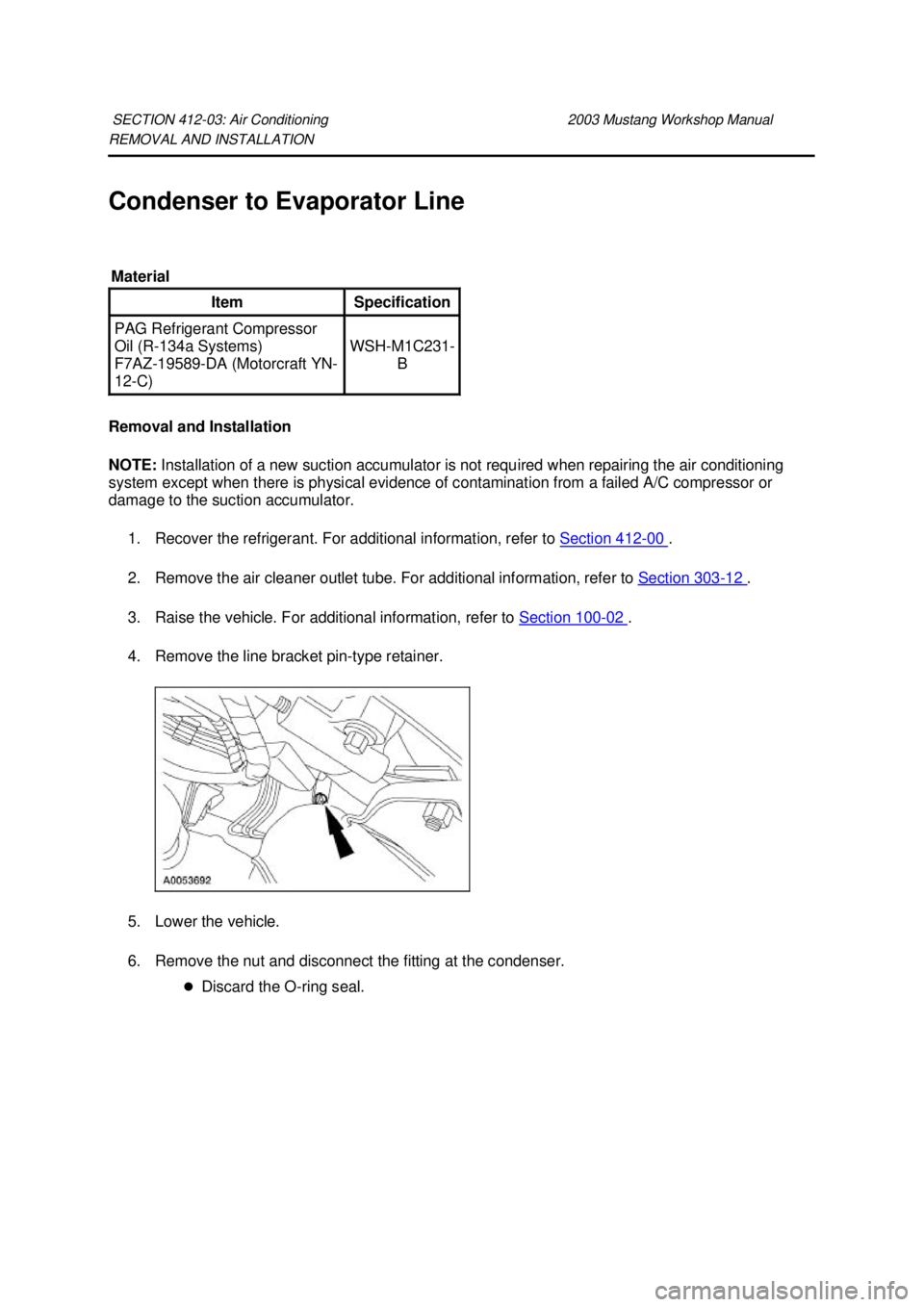

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Condenser to Evaporator Line Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except wh

Page 3231 of 4378

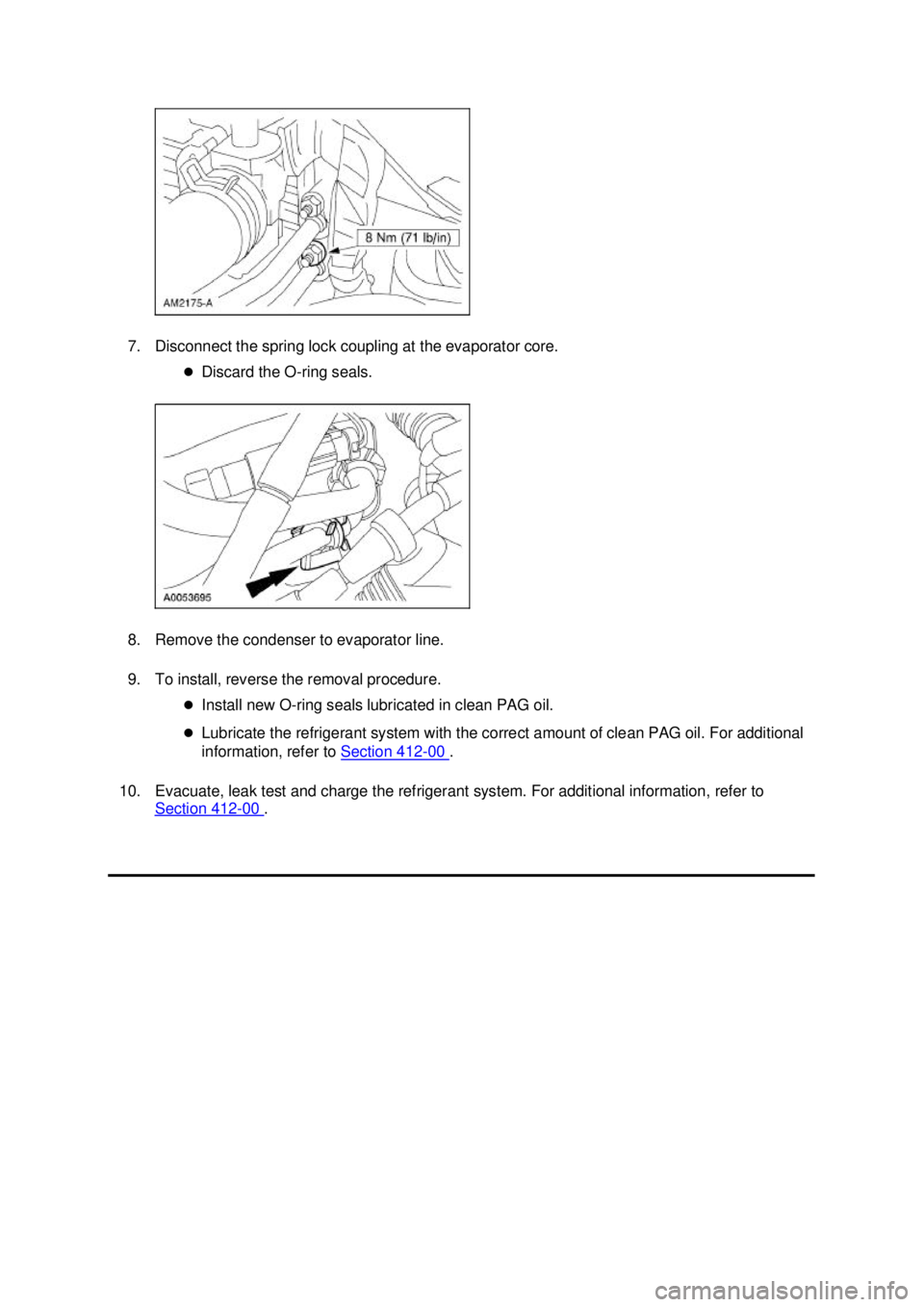

FORD MUSTANG 2003 Workshop Manual 7. Disconnect the spring lock coupling at the evaporator core. �zDiscard the O- ring seals. 8. Remove the condenser to evaporator line. 9. To install, reverse the removal procedure. �zInstall new

Page 3232 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
