Page 1945 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Raise the vehicle. For additional information, refer to Section 100 - 02 . 10. Disconnect the crankshaft position (CKP) sensor electrical connector. 11. Disconnect the A/C compressor clutch ele

Page 1946 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Lower the vehicle. 15. Disconnect the coolant reservoir electrical connector. 16. Disconnect the following connectors: �zCamshaft position (CMP) sensor �z LH radio ignition interference capaci

Page 1947 of 4378

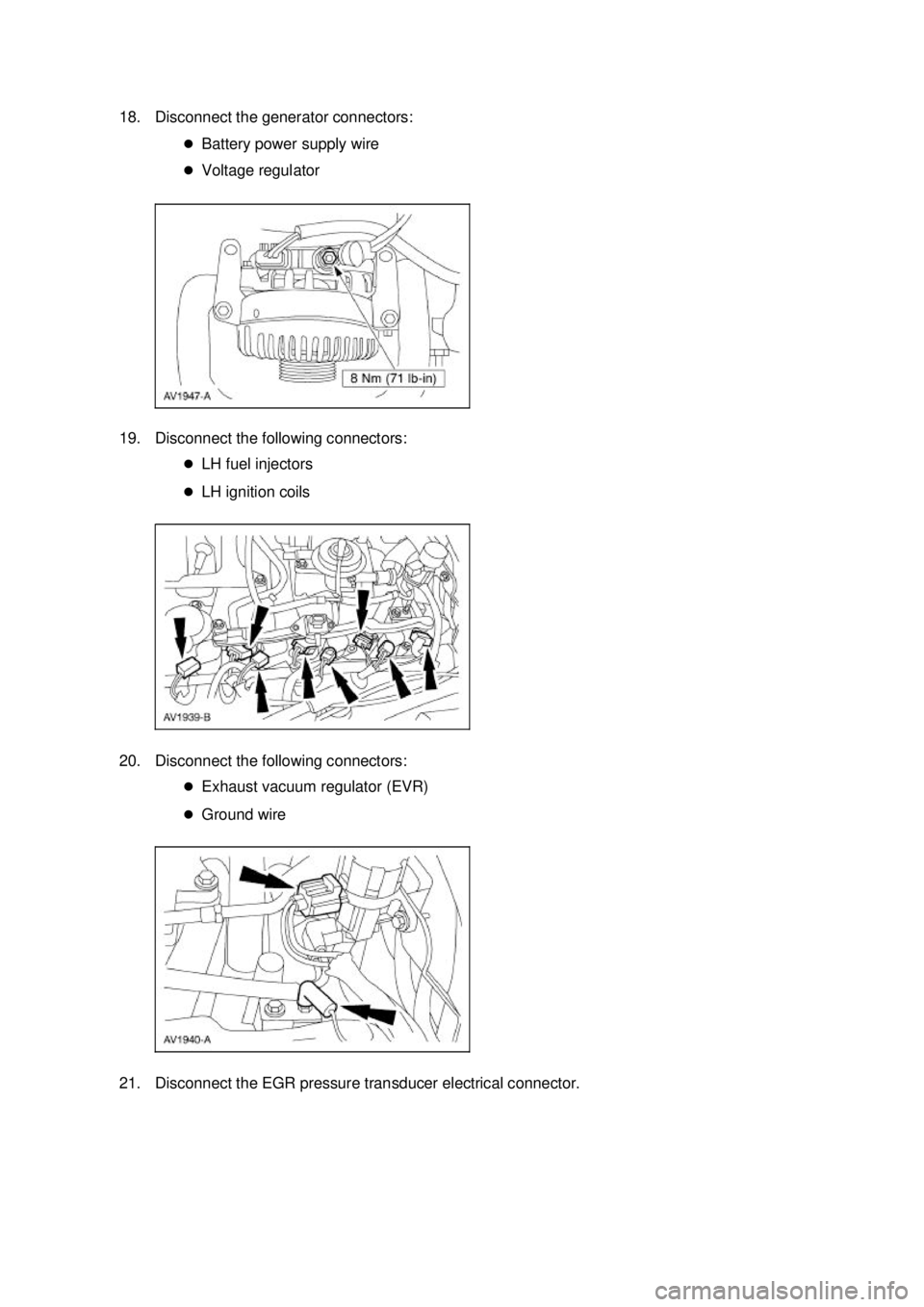

FORD MUSTANG 2003 Workshop Manual 18. Disconnect the generator connectors: �zBattery power supply wire �z Voltage regulator 19. Disconnect the following connectors: �zLH fuel injectors �z LH ignition coils 20. Disconnect the fol

Page 1948 of 4378

FORD MUSTANG 2003 Workshop Manual 22. Disconnect the fuel pressure sensor electrical connector and the vacuum hose. 23. Slide cover up and remove the nut and the power distribution box battery supply wire. 24. NOTE: These two conne

Page 1949 of 4378

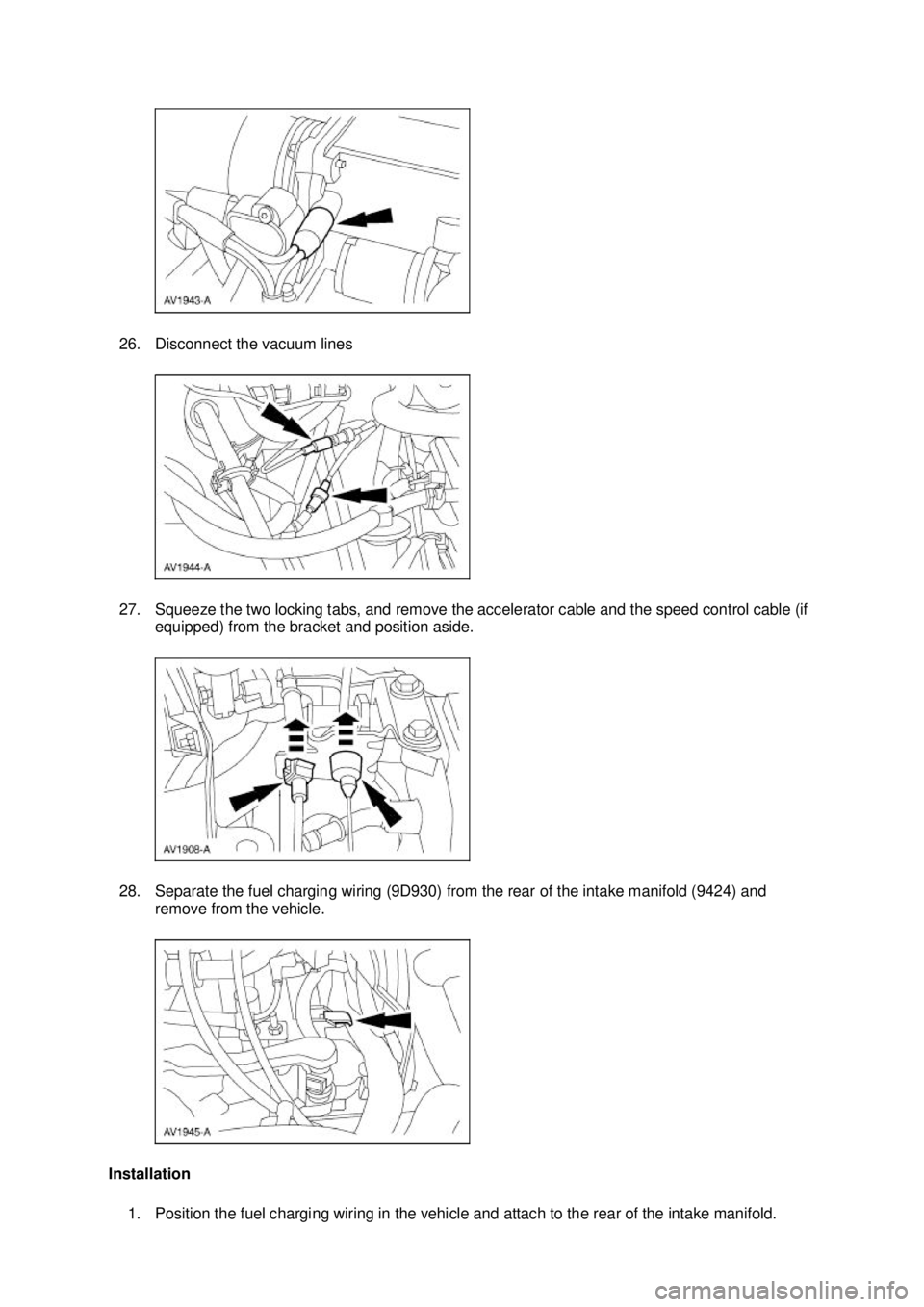

FORD MUSTANG 2003 Workshop Manual 26. Disconnect the vacuum lines 27. Squeeze the two locking tabs, and remove the accelerator cable and the speed control cable (if equipped) from the bracket and position aside. 28. Separate the fu

Page 1950 of 4378

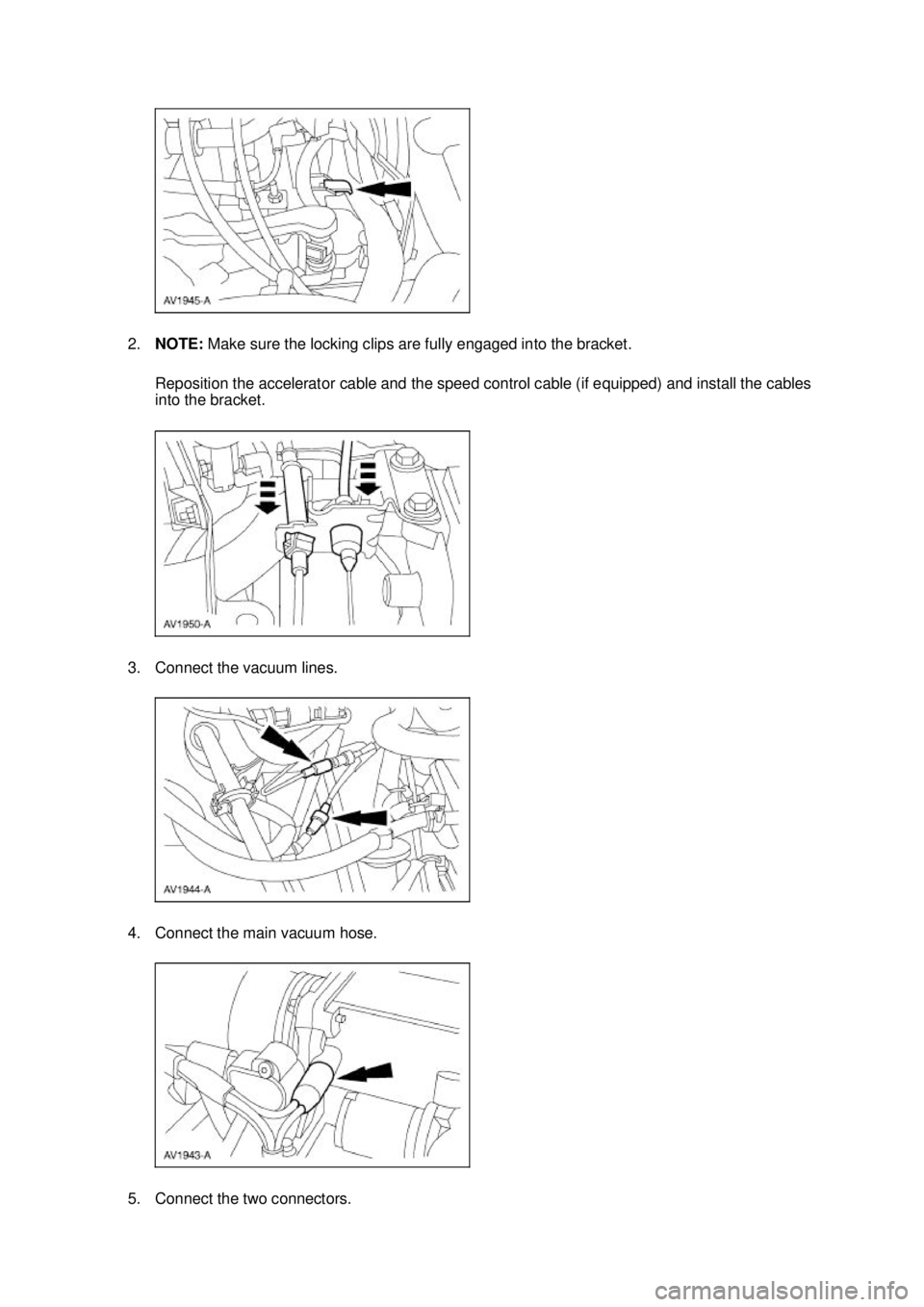

FORD MUSTANG 2003 Workshop Manual 2. NOTE: Make sure the locking clips are fully engaged into the bracket. Reposition the accelerator cable and the speed control cable (if equipped) and install the cables into the bracket. 3. Conn

Page 1951 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Install the battery supply wire, tighten the nut and close the cover. 7. Connect the fuel pressure sensor and the vacuum hose. 8. Connect the EGR pressure transducer electrical connector. 9. Con

Page 1952 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Connect the following connectors: �zLH fuel injectors �z LH ignition coils 11. Connect the following generator connectors: �zVoltage regulator �z Battery supply 12. Install the wiring harnes
