Page 1785 of 4378

FORD MUSTANG 2003 Workshop Manual Install the tensioner. 11. CAUTION: Timing marks must be at 12 oclock and indexed at 6 oclock. Install the camshaft sprockets and the chain as an assembly. 12. Install the special tool. 13. Ins

Page 1786 of 4378

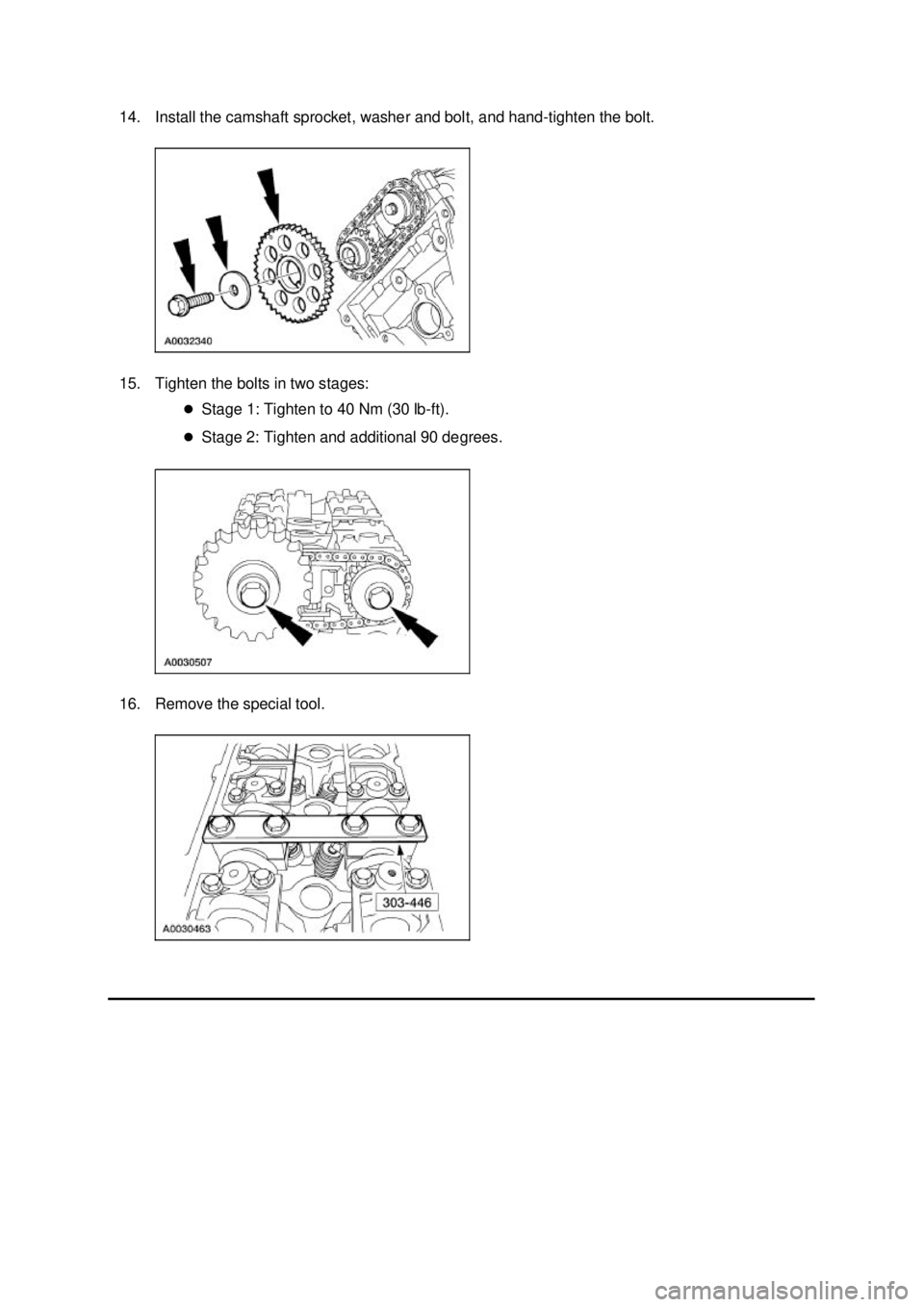

FORD MUSTANG 2003 Workshop Manual 14. Install the camshaft sprocket, washer and bolt, and hand- tighten the bolt. 15. Tighten the bolts in two stages: �zStage 1: Tighten to 40 Nm (30 lb- ft). �z Stage 2: Tighten and additional 90 d

Page 1787 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1788 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Piston — Pin Connecting Rod, Floating Pin Disassembly 1. Remove the clips. 2. Remove the piston pin from the piston and connecting rod assembly. 3. Rem

Page 1789 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Clean and inspect the piston and connecting rod. For additional information, refer to Section 303 - 00 . Assembly 1. NOTE: Connecting rod must be installed into piston with identification mark

Page 1790 of 4378

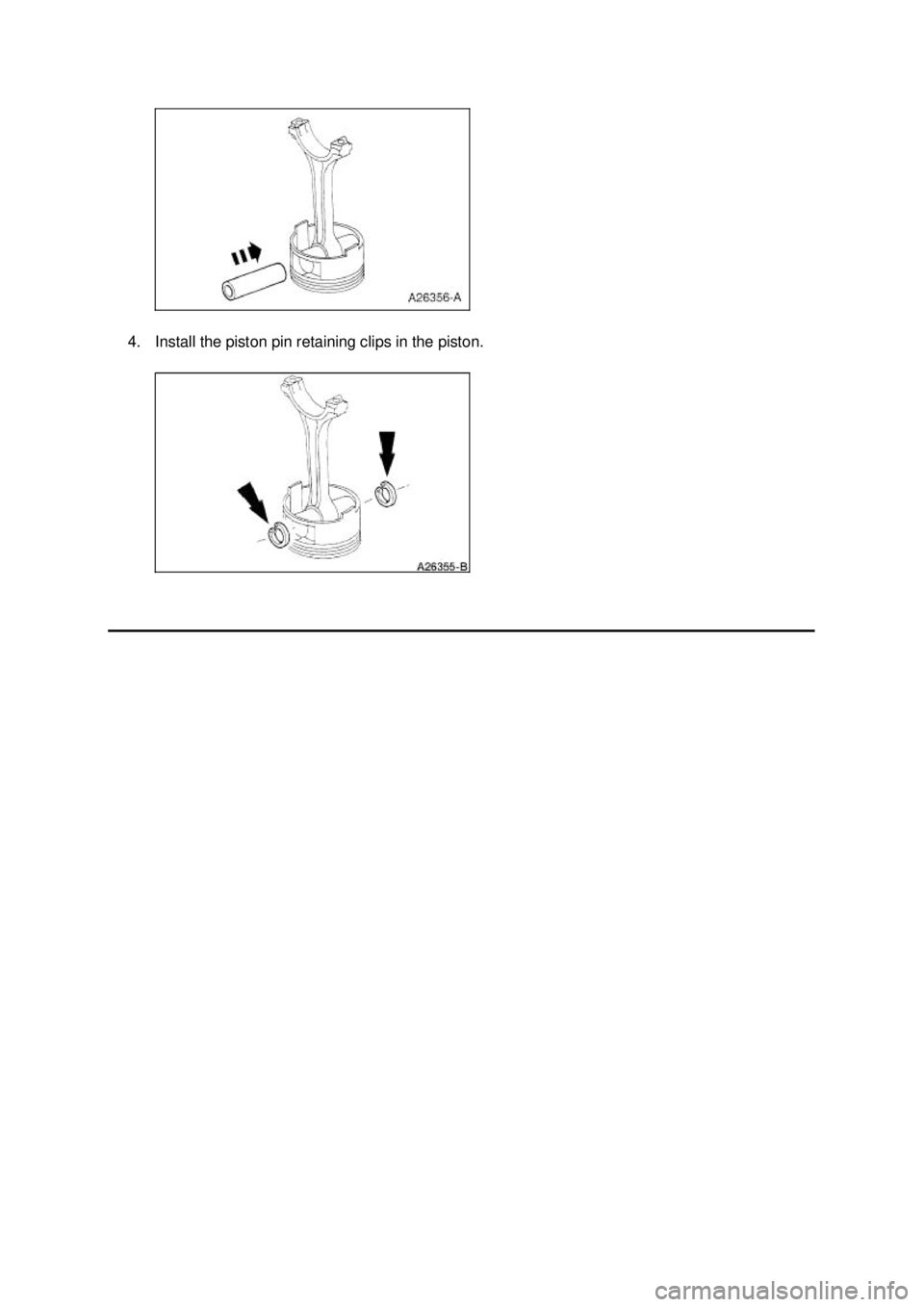

FORD MUSTANG 2003 Workshop Manual 4. Install the piston pin retaining clips in the piston. Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1791 of 4378

FORD MUSTANG 2003 Workshop Manual ASSEMBLY Engine SECTION 303- 01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s) Guides, Connecting Rod 303- 442 (T93P-6136- A) Installer, Crankshaft Vibration Damper

Page 1792 of 4378

FORD MUSTANG 2003 Workshop Manual Assembly All vehicles 1. Record the main bearing code found on the front of the engine block. 2. Record the main bearing code found on the back of the crankshaft. 303- 516 (T95P-6701- BH) Compres
