Page 2857 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 10. If the change of the fluid level is 5 mm (0.2 inch) or more, the air has not been completely bled from the system. The air bleeding procedure must be repeated. Fig. 24: Identifying Fluid Level

Page 2858 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Bleed air, then turn the steering wheel several times while the vehicle is not moving so that the temperature of the fluid rises to approximately 50 - 60°C (122 - 140°F). 3. Start the engine

Page 2859 of 3870

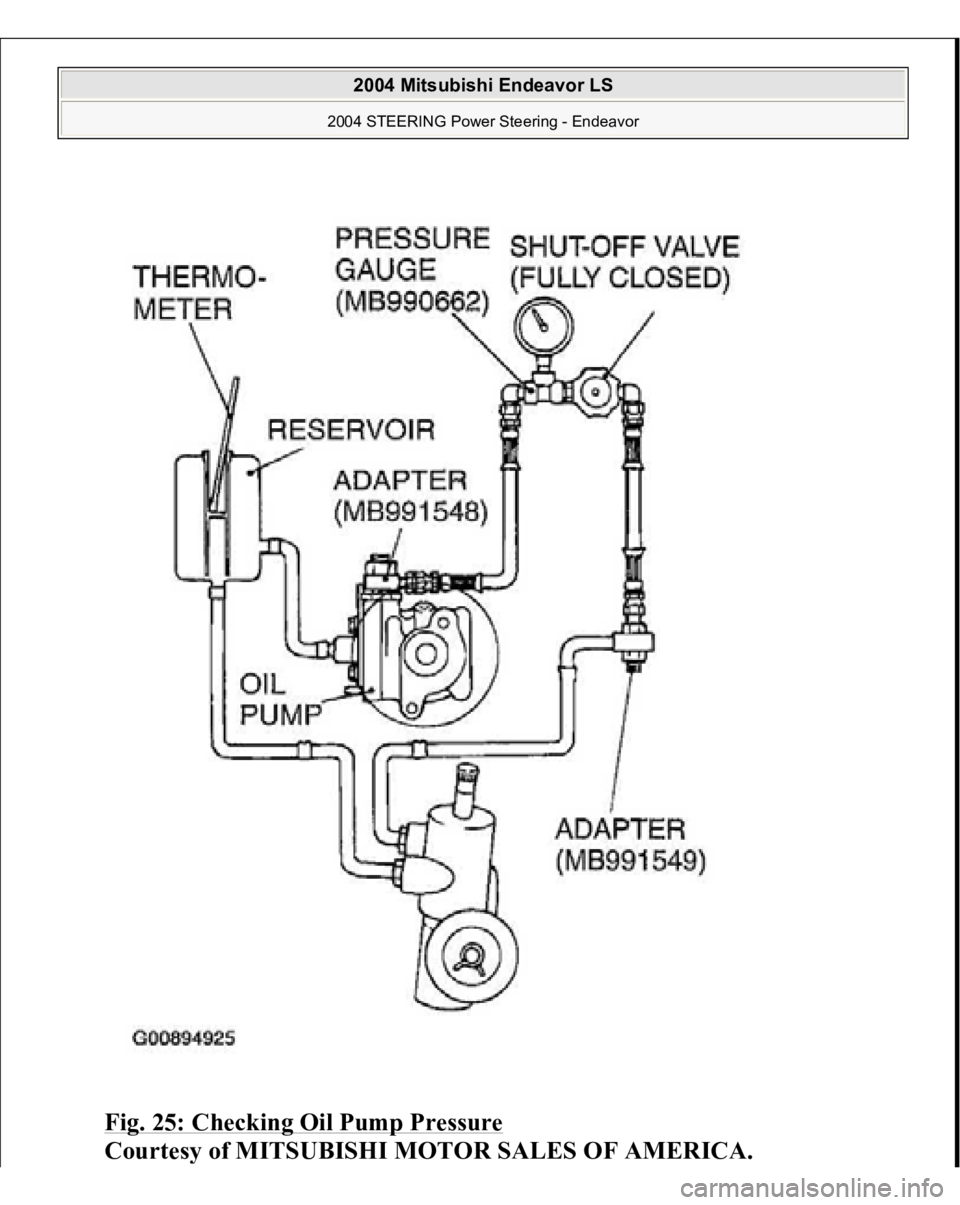

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Checking Oil Pump Pressure Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2860 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. If it is not within the standard value, replace the oil pump. 6. Check whether or not the hydraulic pressure is the standard value when no- load conditions are created by fully opening the shut-o

Page 2861 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual C (122 - 140°F). 3. The engine should be idling. 4. Disconnect the connector for the oil pressure switch, and place an ohmmeter at the switch. 5. Gradually close the shut-off valve of the pres

Page 2862 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 26: Checking Power Steering Pressure Switch Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2863 of 3870

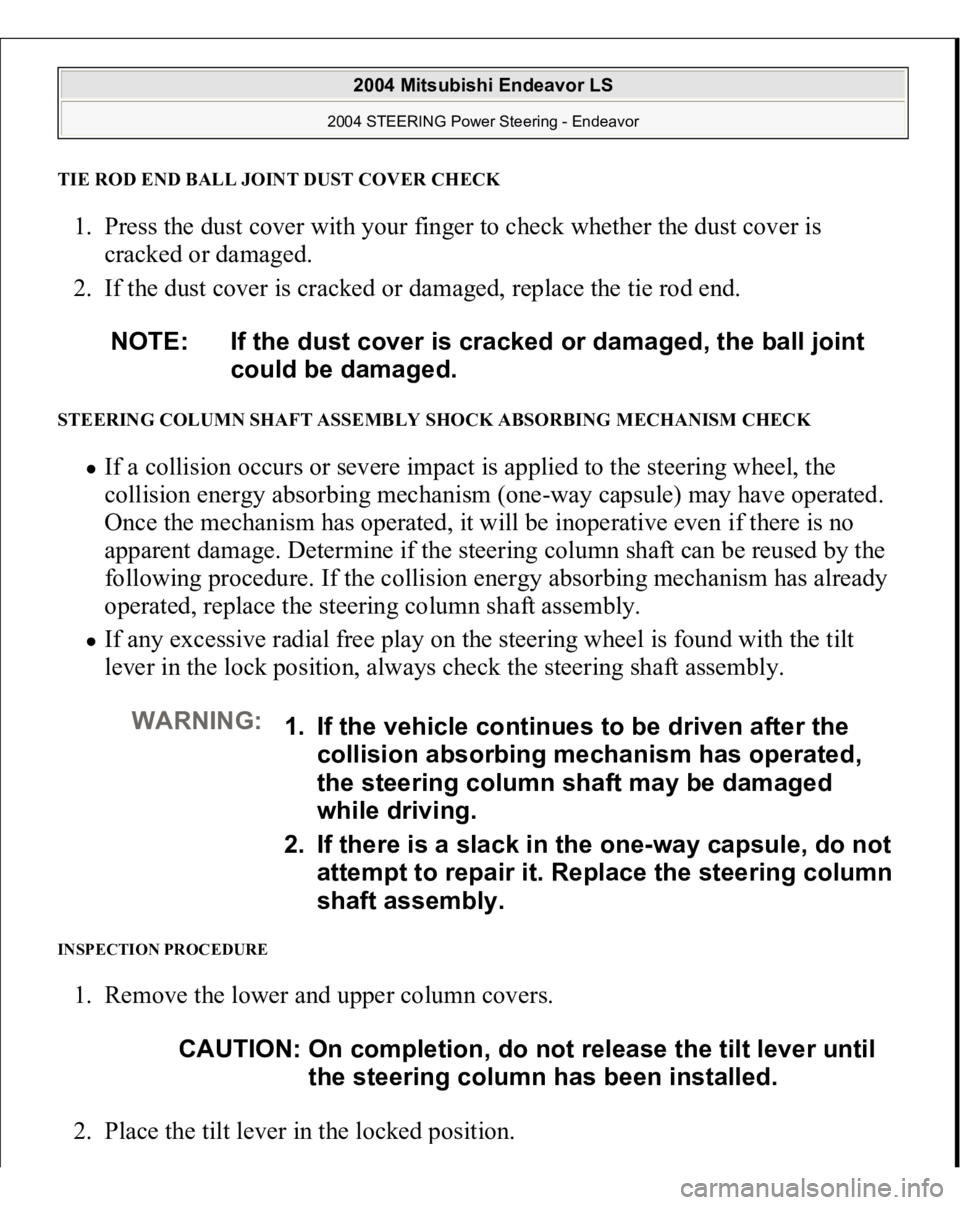

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TIE ROD END BALL JOINT DUST COVER CHEC K 1. Press the dust cover with your finger to check whether the dust cover is cracked or damaged. 2. If the dust cover is cracked or damaged, replace the tie

Page 2864 of 3870

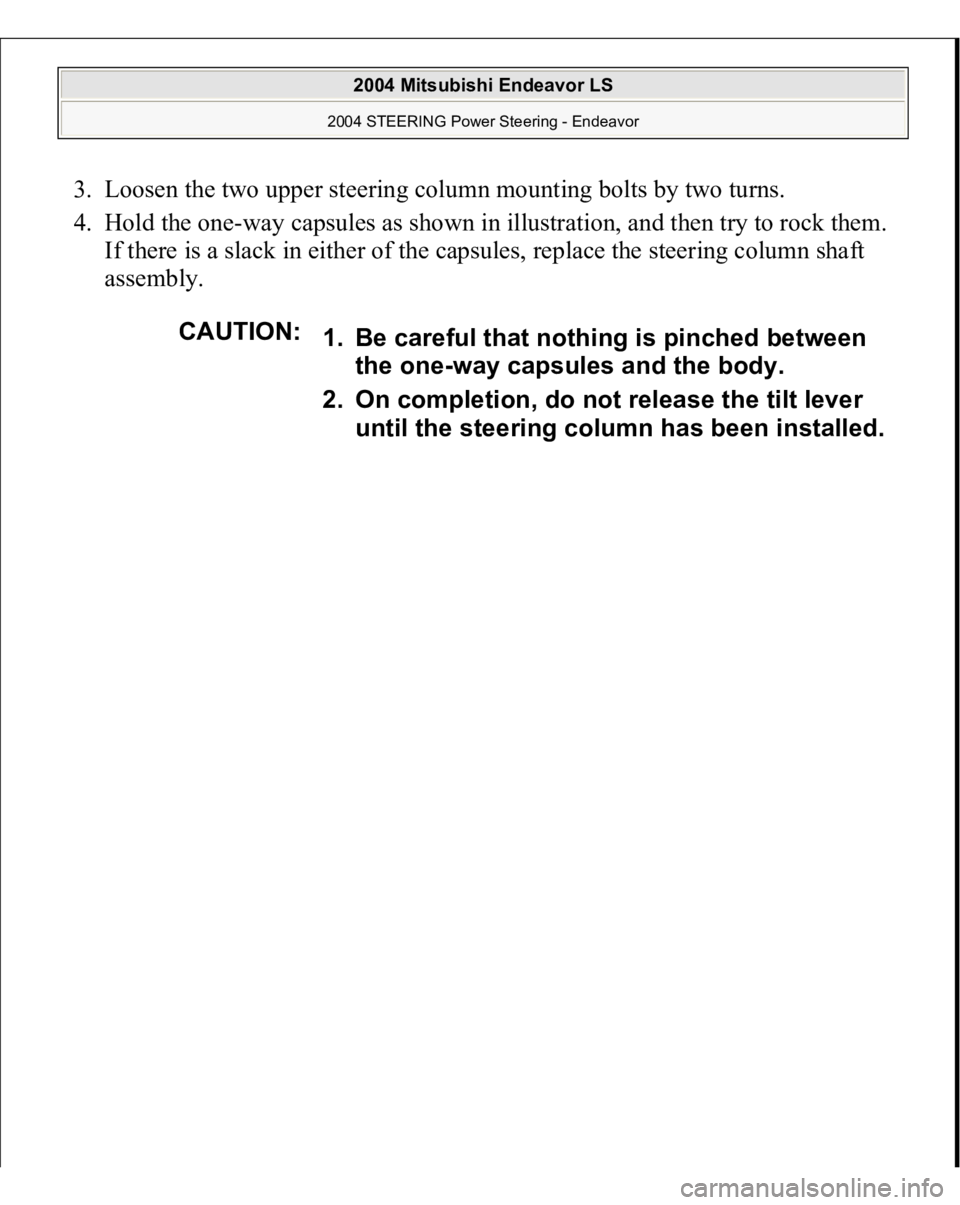

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Loosen the two upper steering column mounting bolts by two turns. 4. Hold the one-way capsules as shown in illustration, and then try to rock them. If there is a slack in either of the capsules,
