Page 697 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Remove the battery from the vehicle. 3. Inspect battery carrier for damage caused by loss of acid from the battery. If acid damage is present, it is necessary to clean area with a solution of cl

Page 698 of 3870

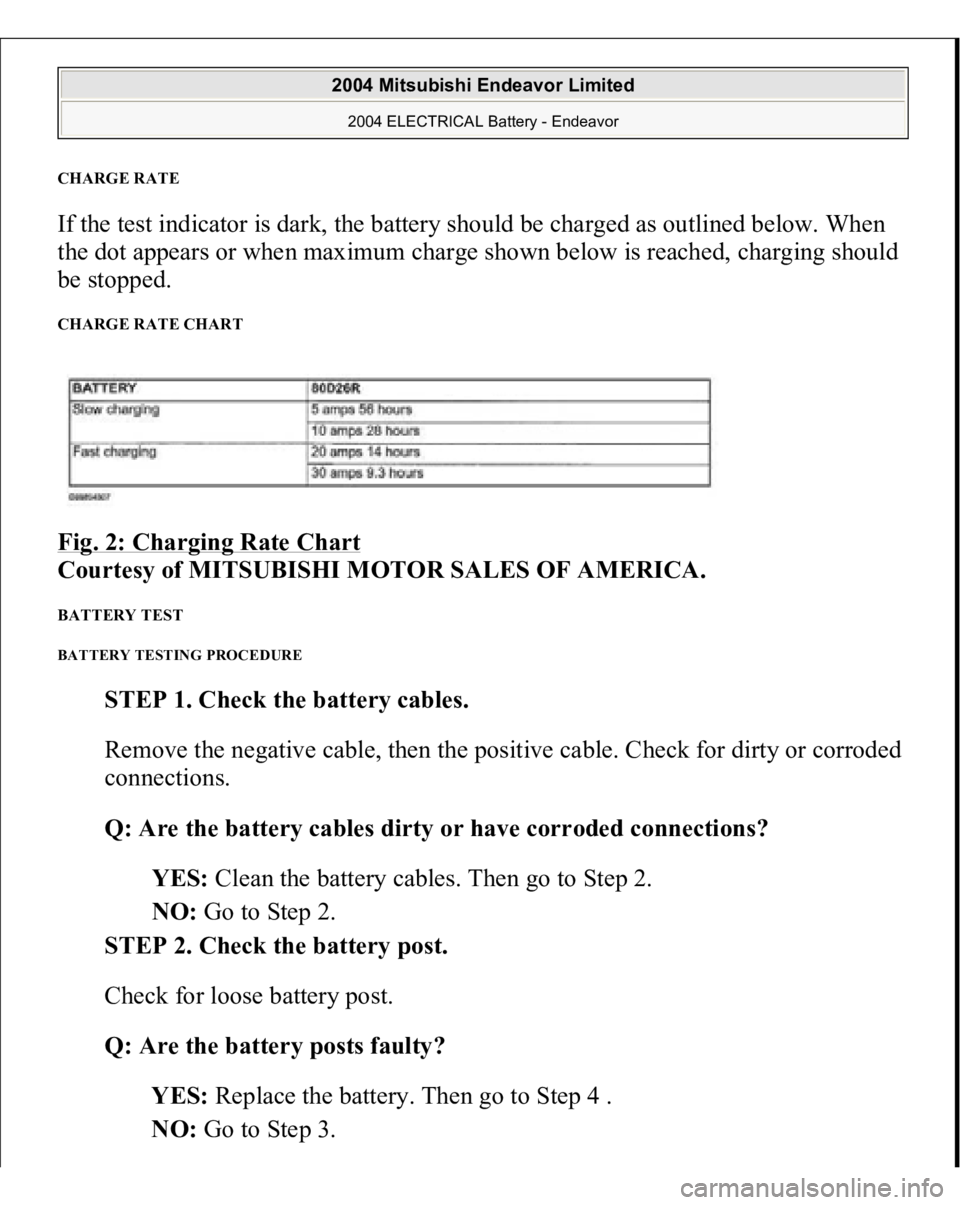

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CHARGE RATE If the test indicator is dark, the battery should be charged as outlined below. When the dot appears or when maximum charge shown below is reached, charging should be stopped. CHARGE RAT

Page 699 of 3870

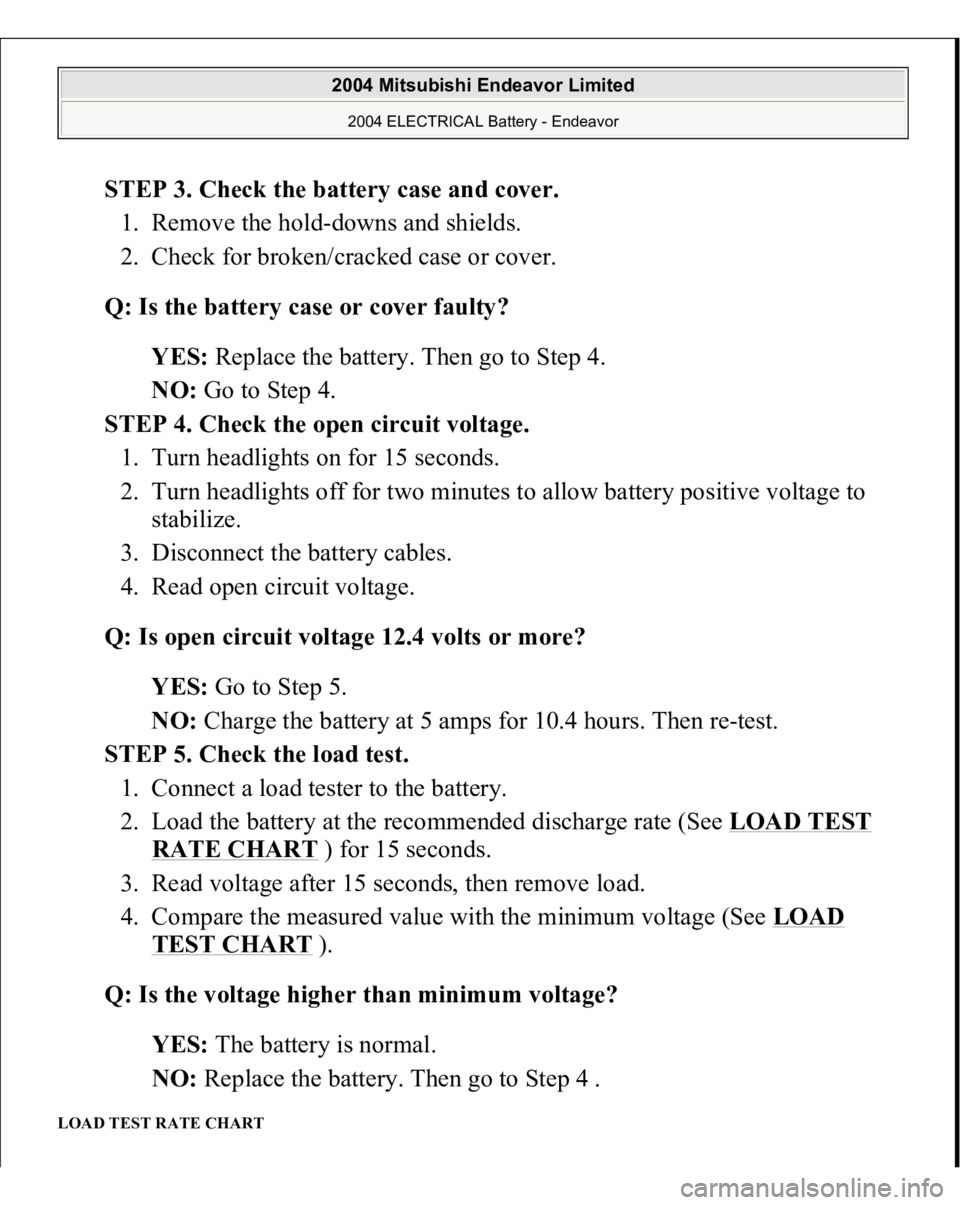

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 3. Check the battery case and cover. 1. Remove the hold-downs and shields. 2. Check for broken/cracked case or cover. Q: Is the battery case or cover faulty? YES: Replace the battery. Then

Page 700 of 3870

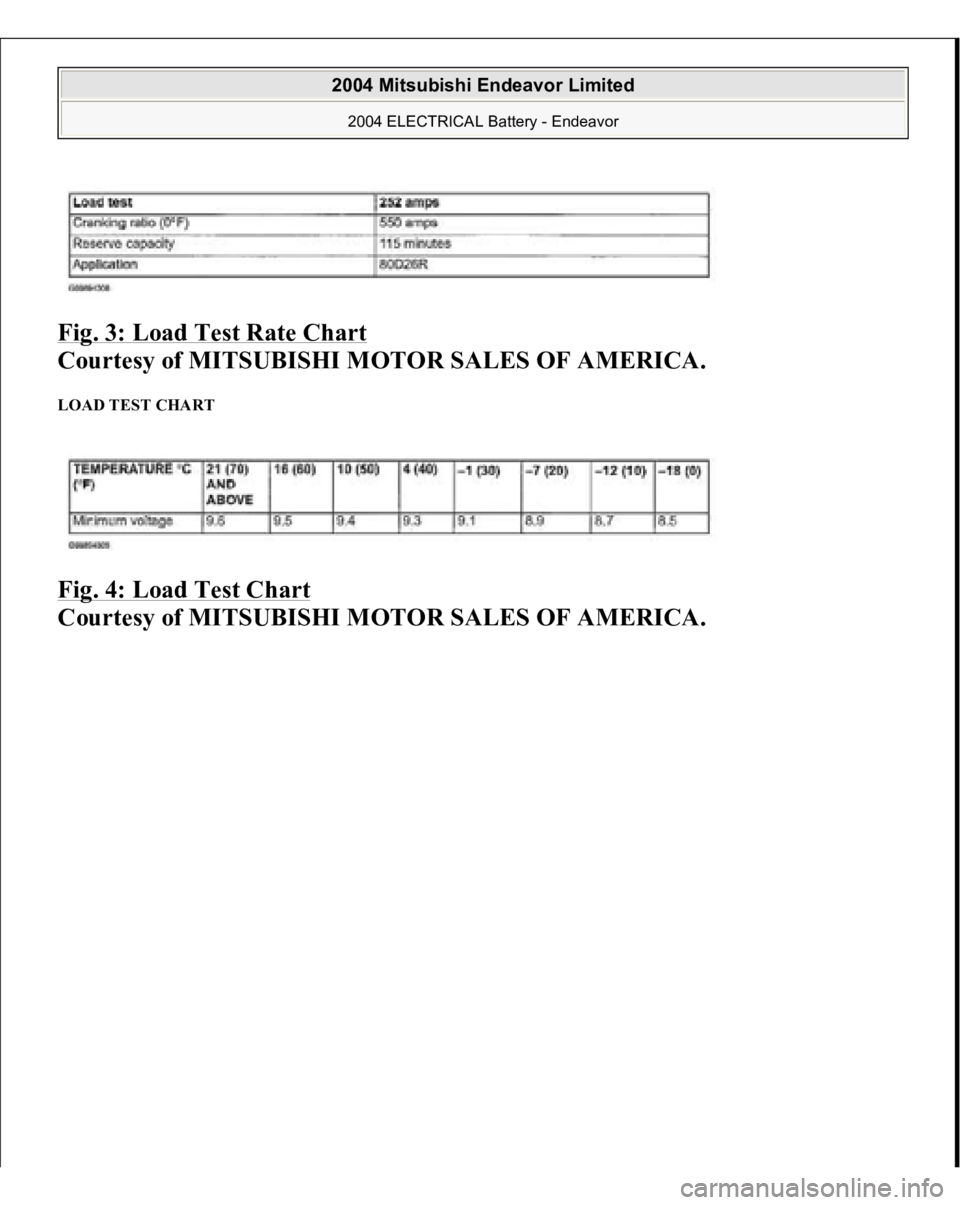

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Load Test Rate Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LOAD TEST CHART Fig. 4: Load Test Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limit

Page 701 of 3870

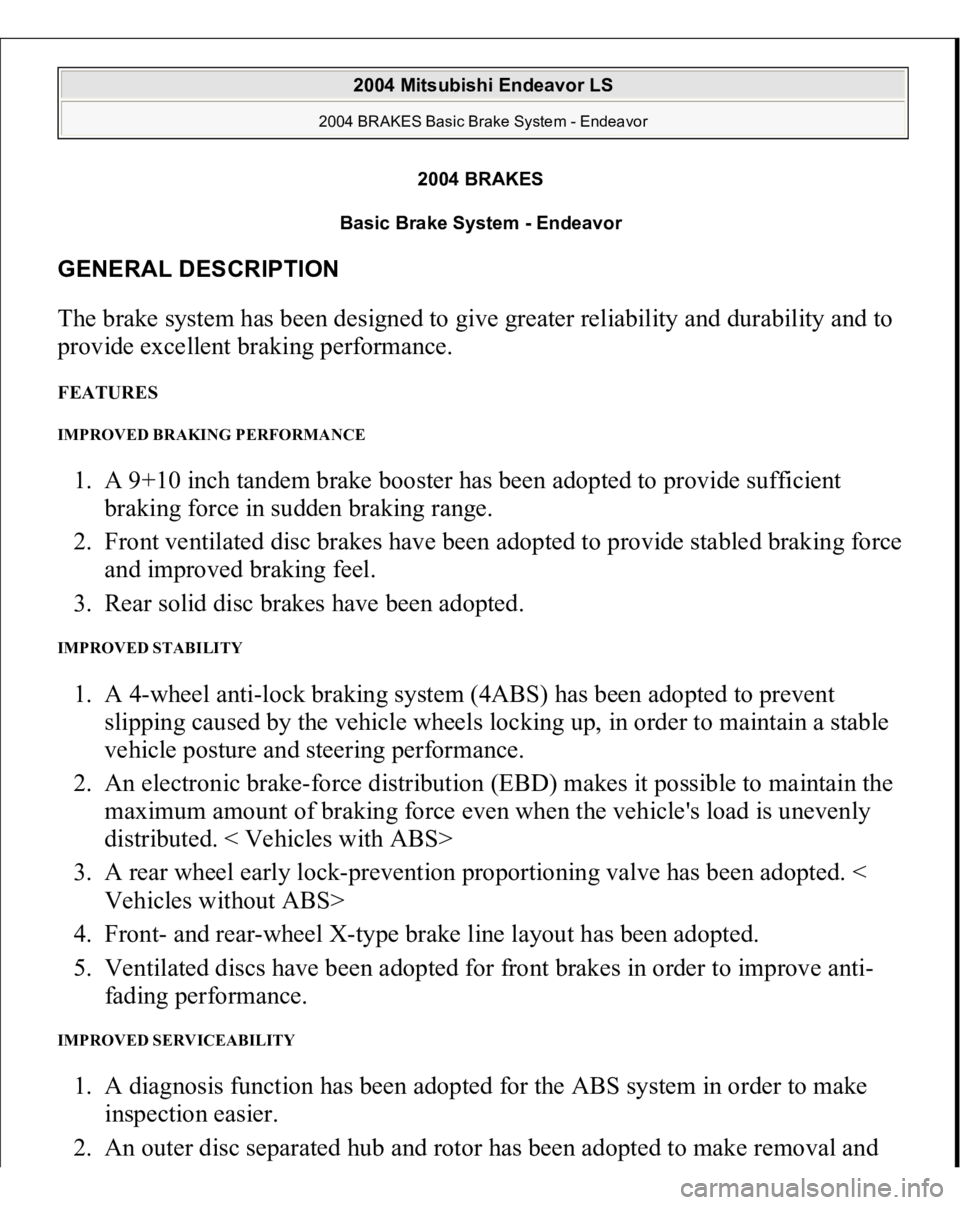

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BRAKES Basic Brake System - Endeavor GENERAL DESCRIPTION The brake system has been designed to give greater reliability and durability and to provide excellent braking performance. FEATURES IMP

Page 702 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual installation easier. 3. The master cylinder reservoir tank cap has been colored white to make identification easier. 4. The ABS-ECU and hydraulic unit have been integrated to make them more comp

Page 703 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Identifying Vehicle Without ABS Brake Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. BASIC BRAKE SYSTEM DIAGNOSIS INTRODUCTION TO BASIC BRAKE SYSTEM DIAGNOSIS Hydraulic brakes are composed

Page 704 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SYMPTOM CHART Fig. 3: Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: VEHICLE PULLS TO ONE SIDE WHEN BRAKES ARE APPLIED DIAGNOSIS STEP 1. Ch
