Page 2313 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between defogger relay connector C-201 (terminal 5) and the fusible link (1) in good condition? YES: Check that the defogger system works normally. NO: Repair the wiri

Page 2314 of 3870

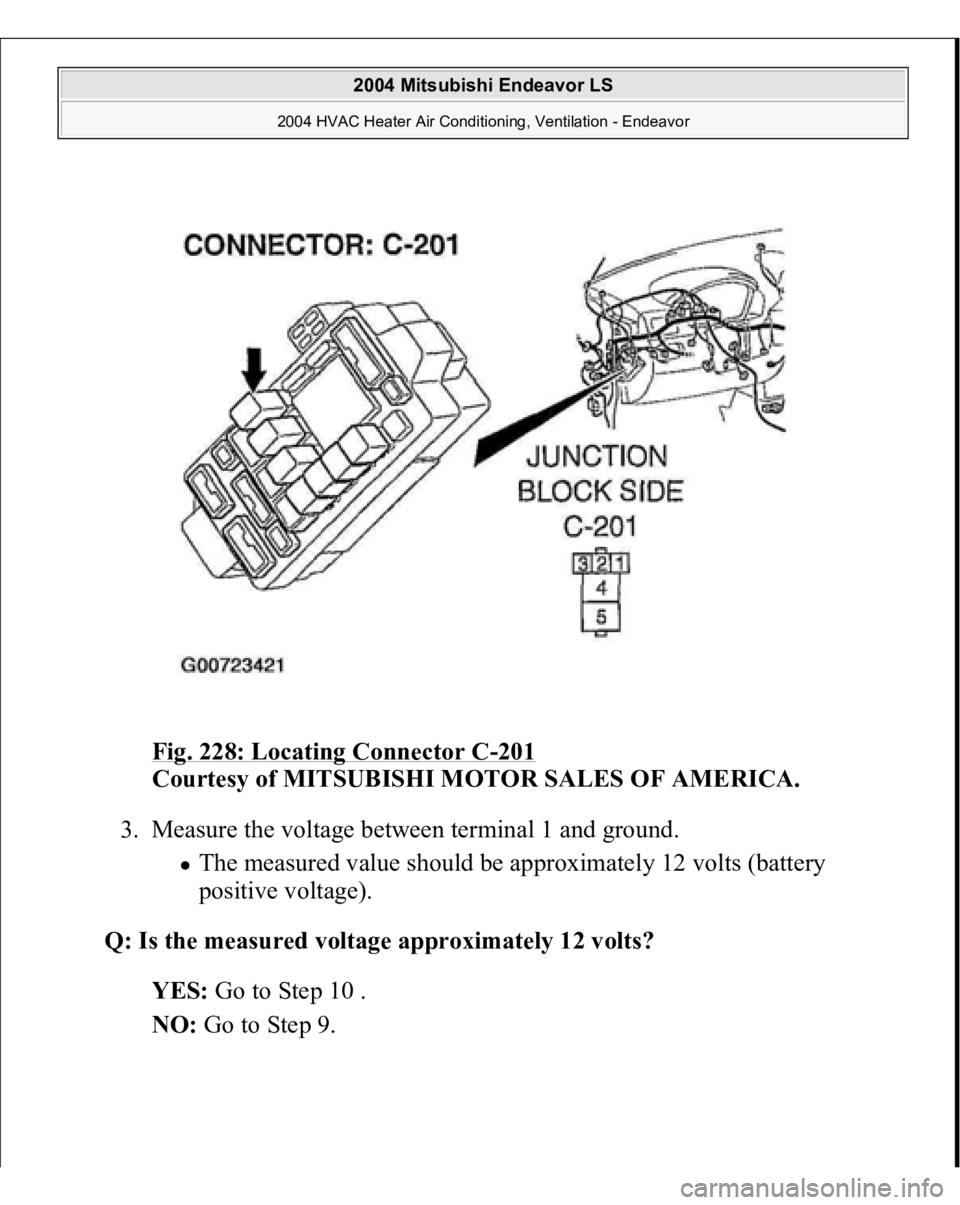

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 228: Locating Connector C -201 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Measure the voltage between terminal 1 and ground. The measured value should be approximately 12 volts (batte

Page 2315 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 229: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 9. Check the wiring harness between defogger relay connector C- 201 (terminal 1) and i

Page 2316 of 3870

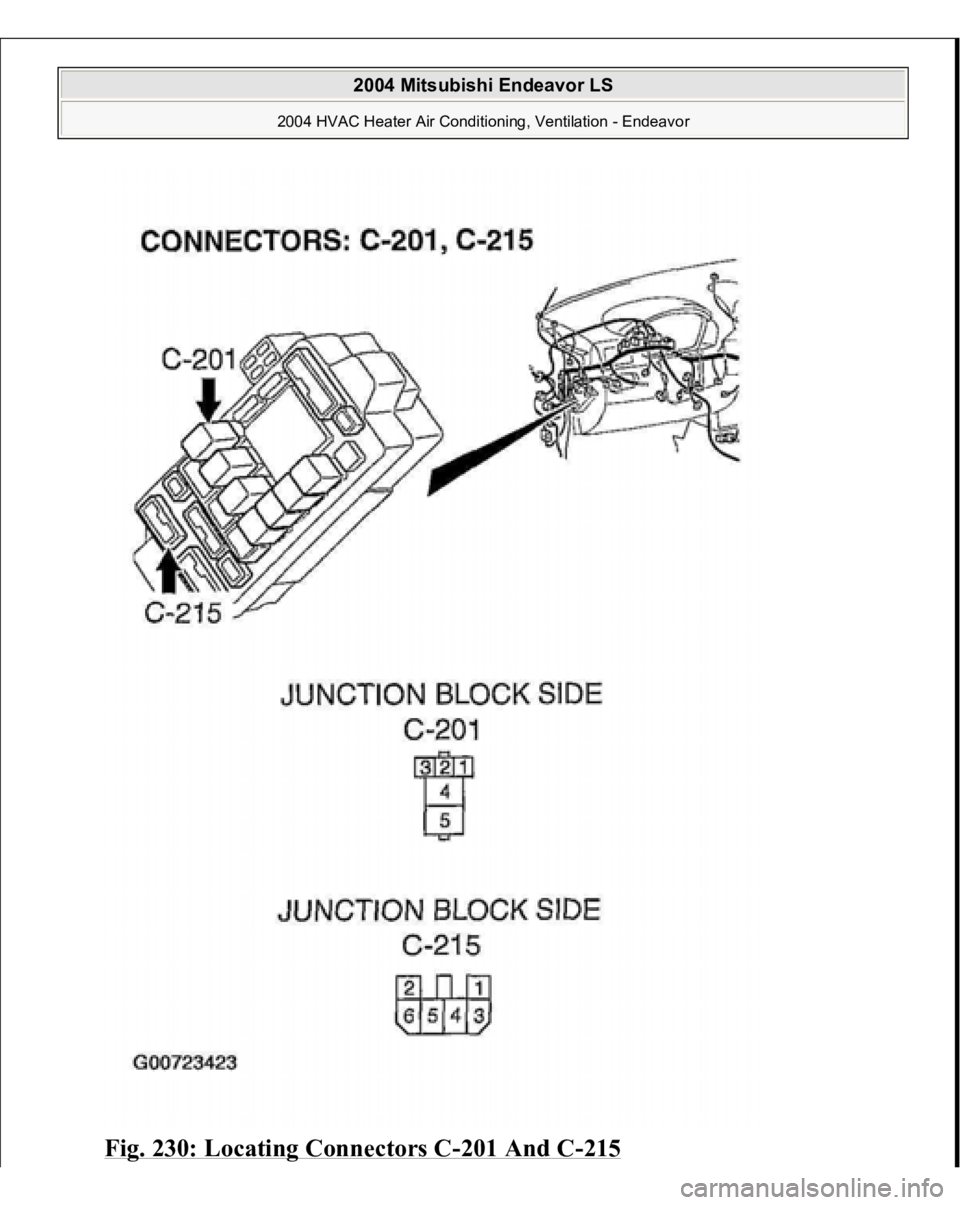

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 230: Locating Connectors C -201 And C -215 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2317 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Q: Is the wiring harness between defogger relay connector C-201 (terminal 1) and ignition switch (IG2) in good condition? YES: Check that the defo

Page 2318 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 231: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 11. Check the wiring harness between defogger relay connector C- 201 (terminal 3) and A/C-ECU connector C-16 (

Page 2319 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 232: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between defogger relay connector C-201 (terminal 3) and A/C-ECU connector C-16 (terminal

Page 2320 of 3870

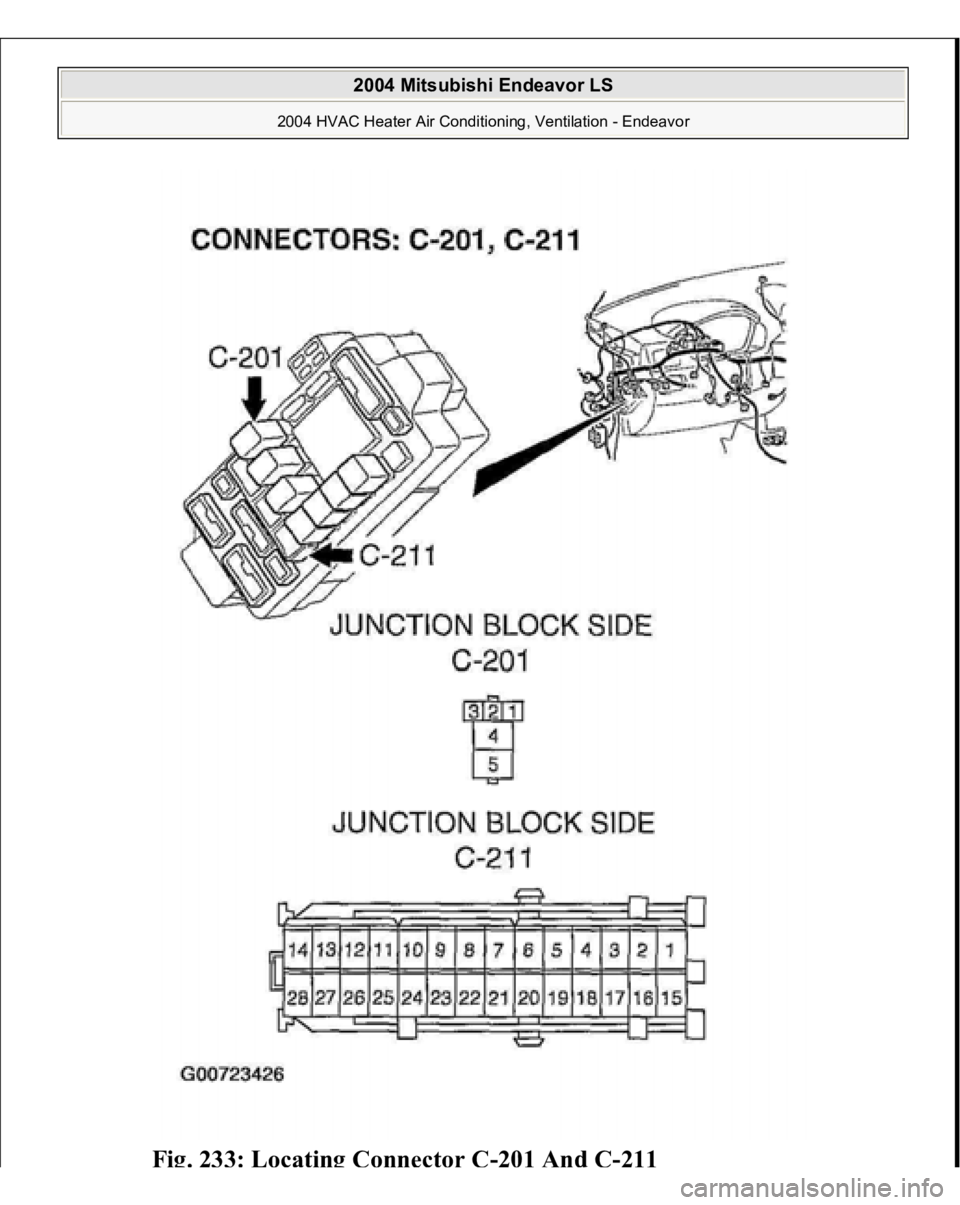

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 233: Locating Connector C -201 And C -211 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
