MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Checking Clearance Between Stop Light Switch And Stopper Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Check that the clearance between the stop light switch and the stopper is as sho

Page 730 of 3870

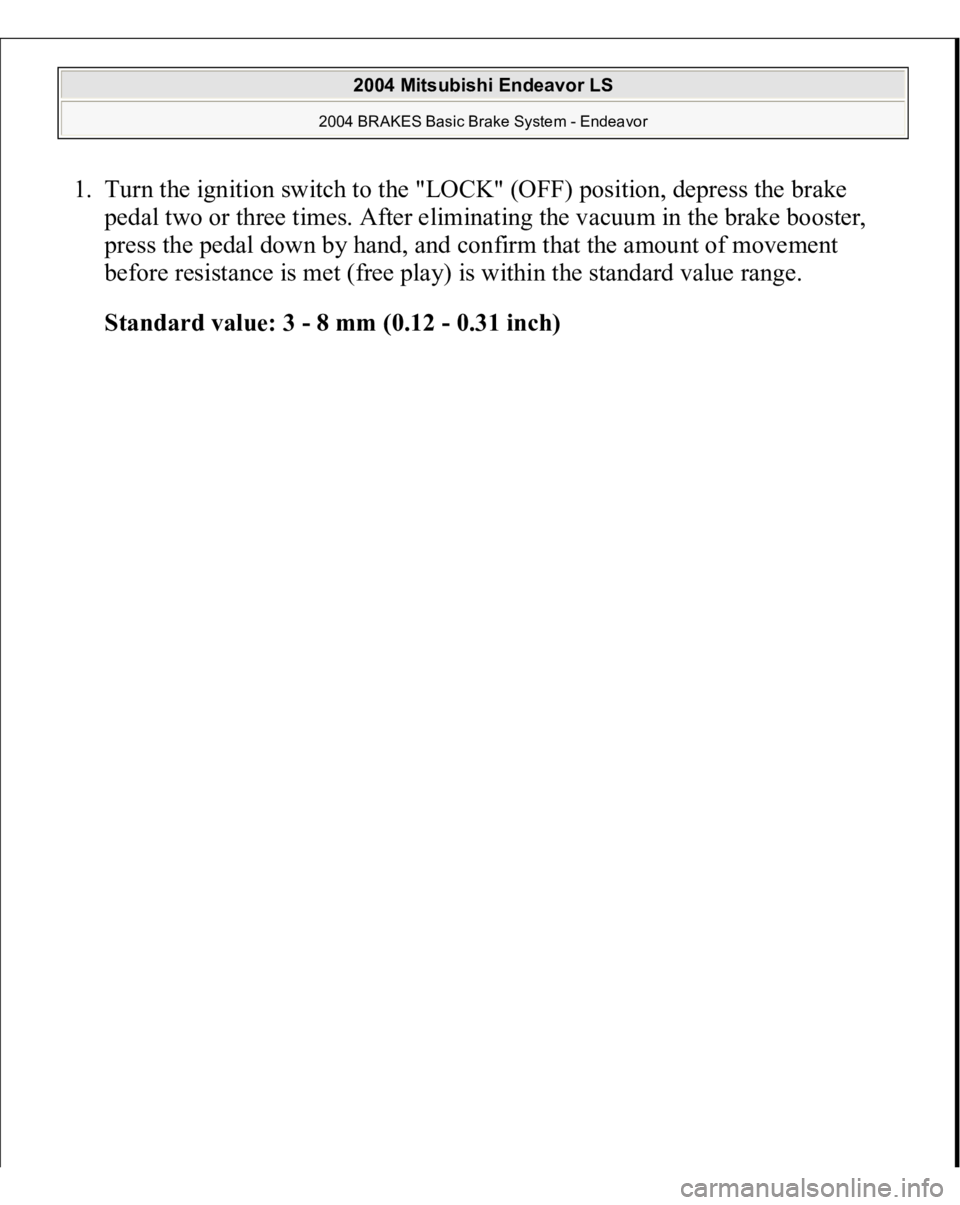

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Turn the ignition switch to the "LOCK" (OFF) position, depress the brake pedal two or three times. After eliminating the vacuum in the brake booster, press the pedal down by hand, and con

Page 731 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Measuring Brake Pedal Free Play Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 732 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. If the brake pedal play is not within the standard value, check the following, and adjust or replace if necessary: Excessive play between the brake pedal and the clevis pin, or between the clevi

Page 733 of 3870

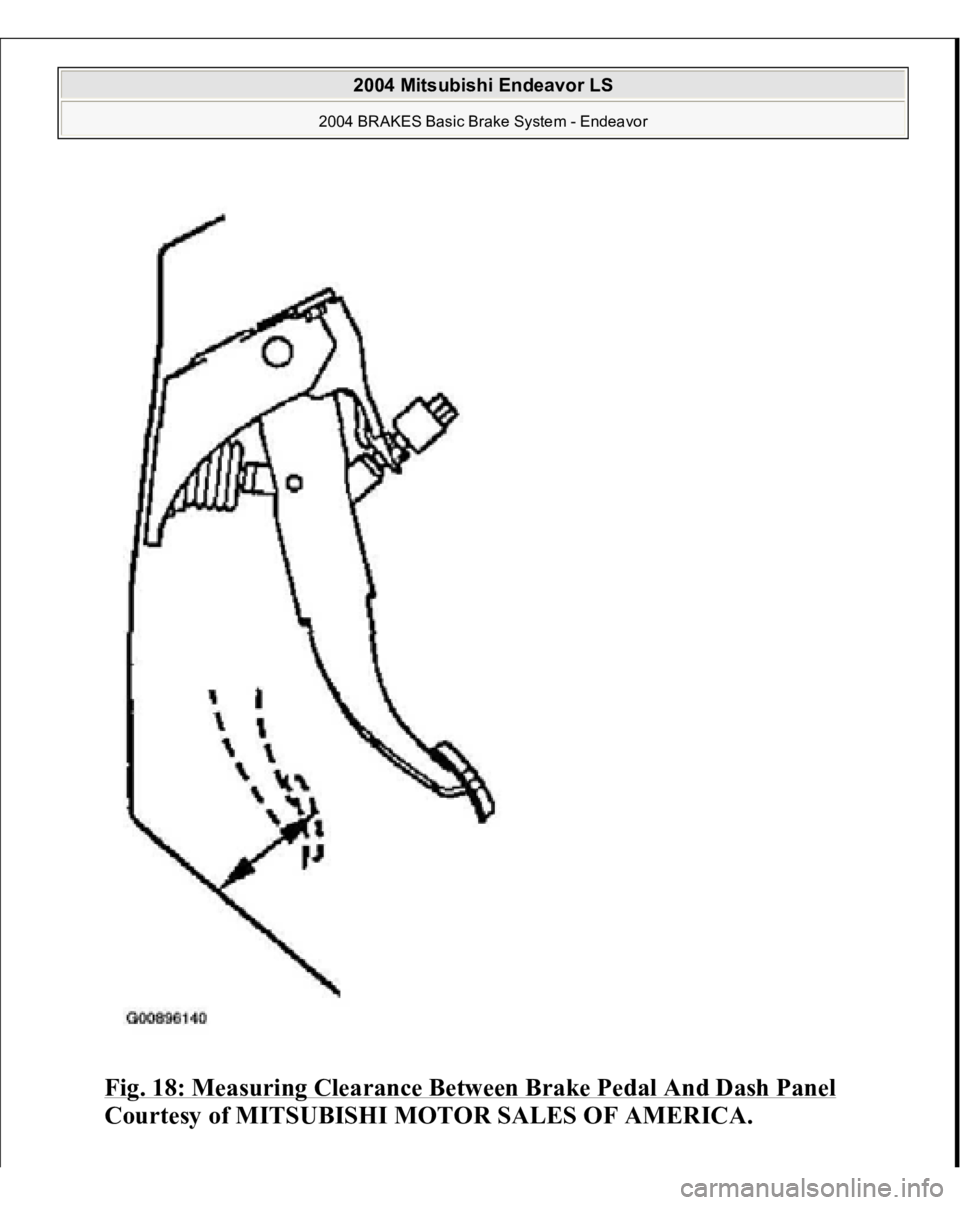

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Measuring Clearance Between Brake Pedal And Dash Panel Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 734 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. If the clearance is outside the standard value, check for air trapped in the brake line and thickness of the disc brake pad. And then adjust and replace defective parts as required. 4. Return t

Page 735 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. With the engine stopped, step on the brake pedal several times. Then step on the brake pedal and start the engine. If the pedal moves downward slightly, the booster is in good condition. If there

Page 736 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Stepping On Pedal & Stopping Engine Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the above three tests are okay, the booster is OK. If one of the above three tests is not okay, t
