Page 673 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 DRIVELINE/AXLES Front Axle - Endeavor GENERAL DESCRIPTION The front axle consists of front hubs, knuckles, wheel bearings and drive shafts, and has the following features: The wheel bearing i

Page 674 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Construction Diagram Of Front Axle (FWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVELINE/AXLES Front Axle - Endeavor

Page 675 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Construction Diagram Of Front Axle (AWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. FRONT AXLE DIAGNOSIS TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If yo

Page 676 of 3870

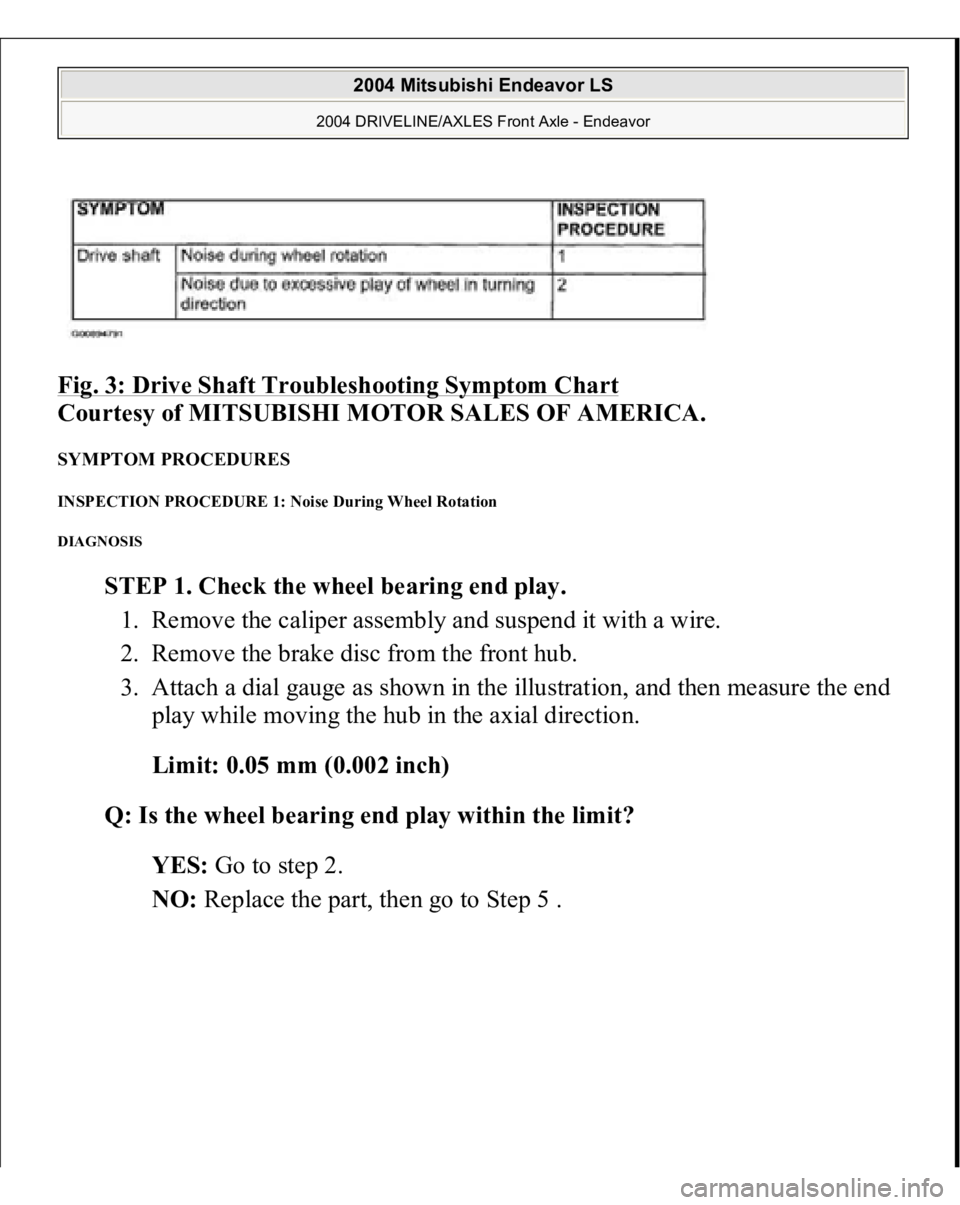

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Drive Shaft Troubleshooting Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Noise During Wheel Rotation DIAGNOSIS STEP 1. Check the

Page 677 of 3870

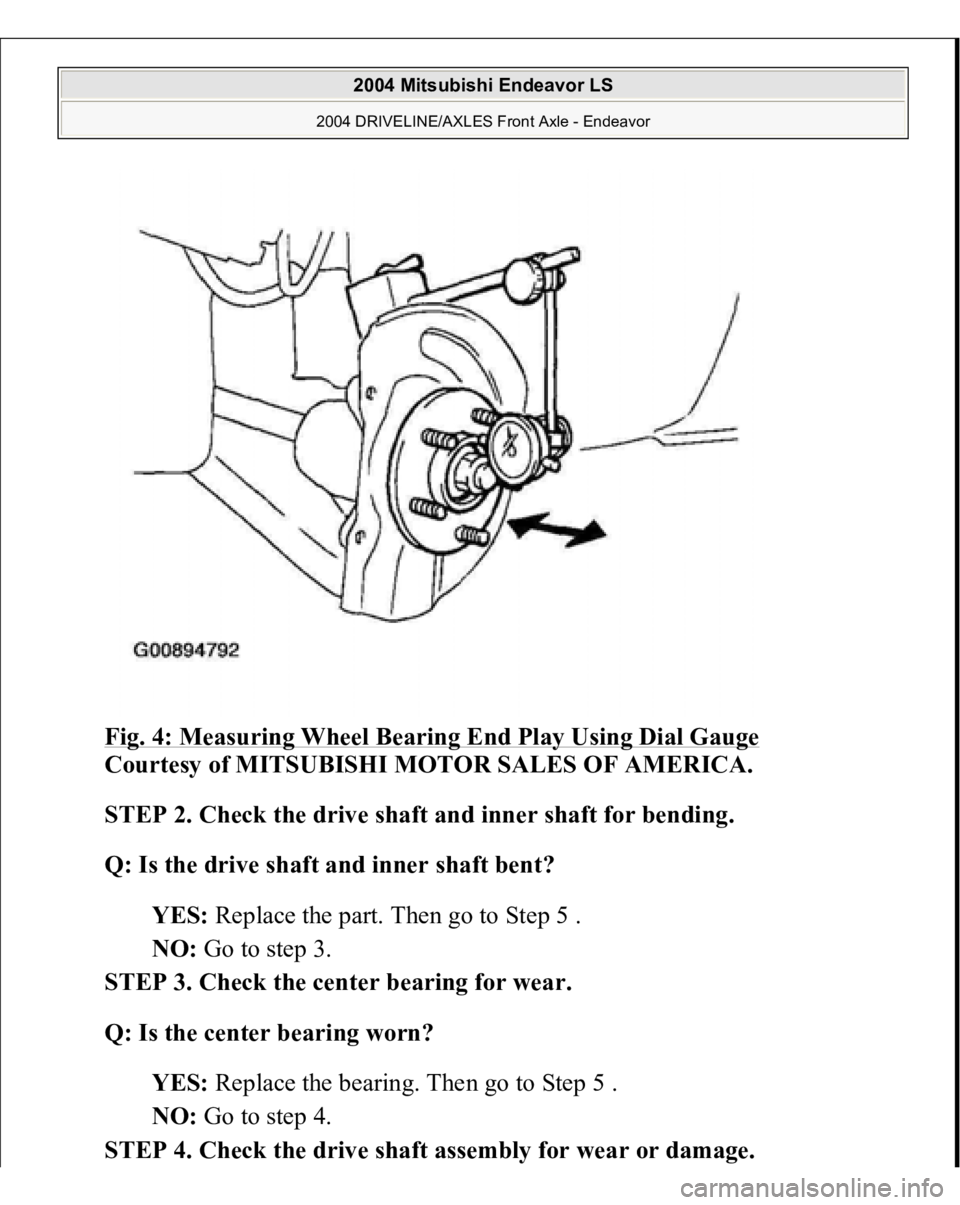

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Measuring Wheel Bearing End Play Using Dial Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 2. Check the drive shaft and inner shaft for bending. Q: Is the drive shaft and inner

Page 678 of 3870

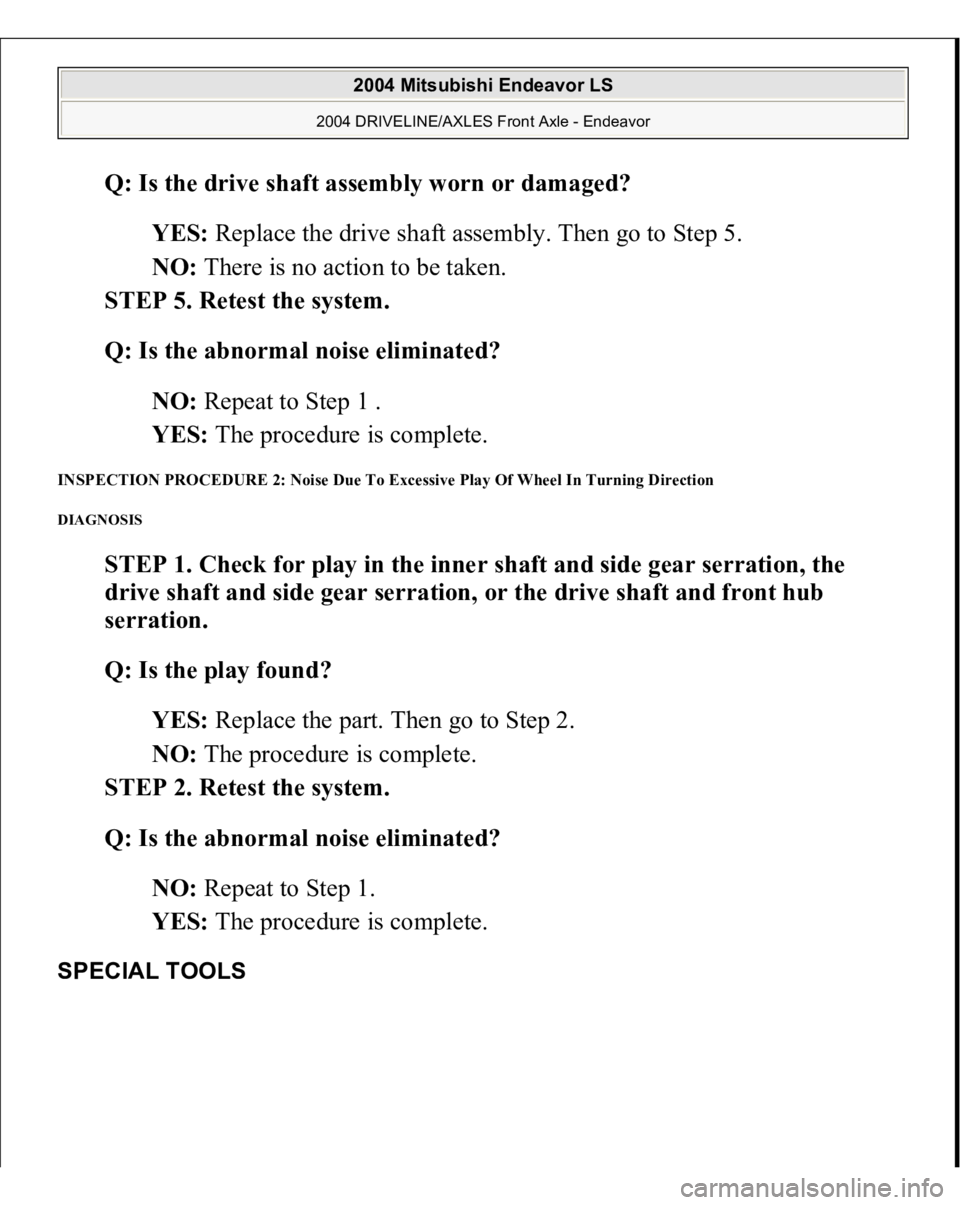

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the drive shaft assembly worn or damaged? YES: Replace the drive shaft assembly. Then go to Step 5. NO: There is no action to be taken. STEP 5. Retest the system. Q: Is the abnormal noise

Page 679 of 3870

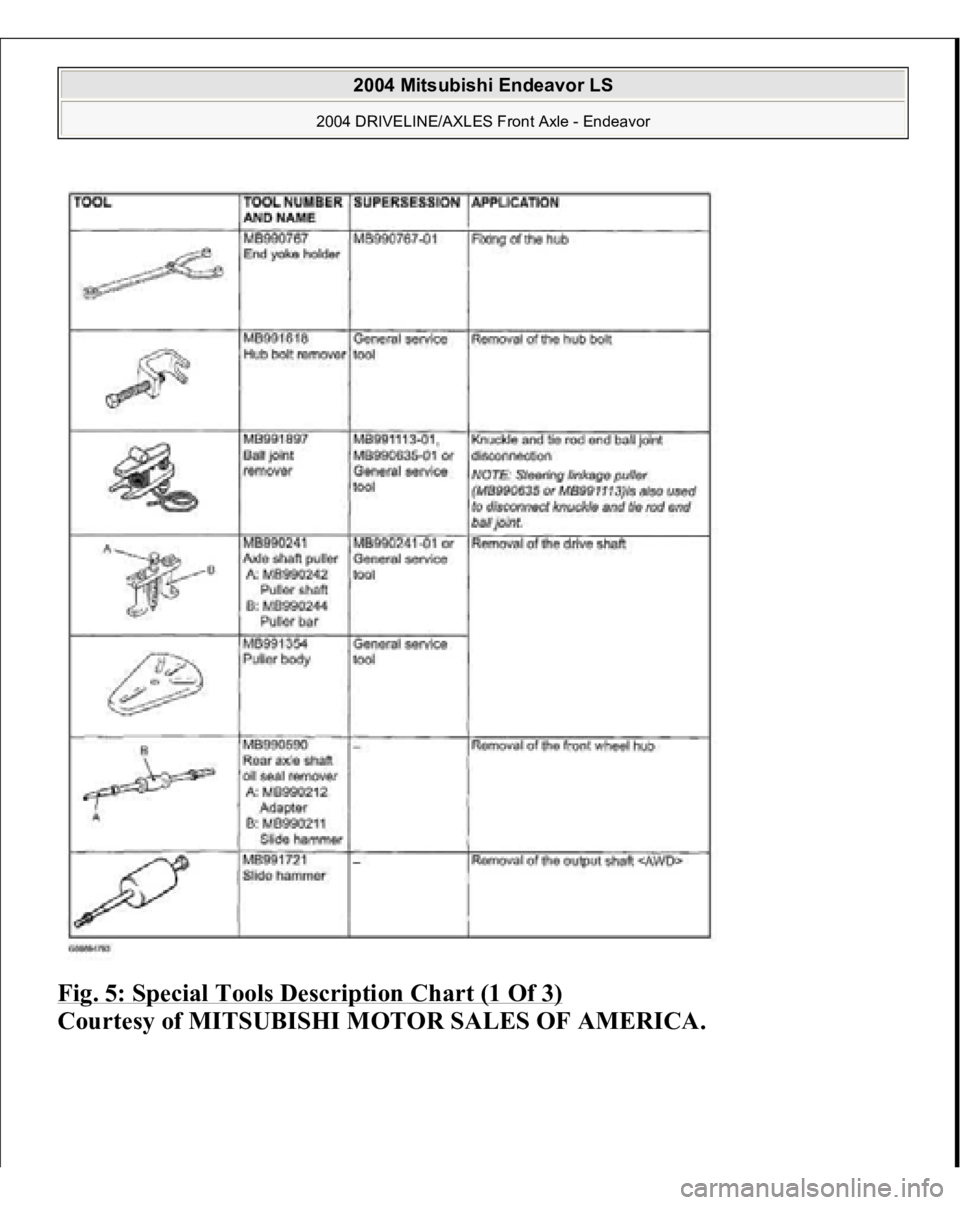

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Special Tools Description Chart (1 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVELINE/AXLES Front Axle - Endeavor

Page 680 of 3870

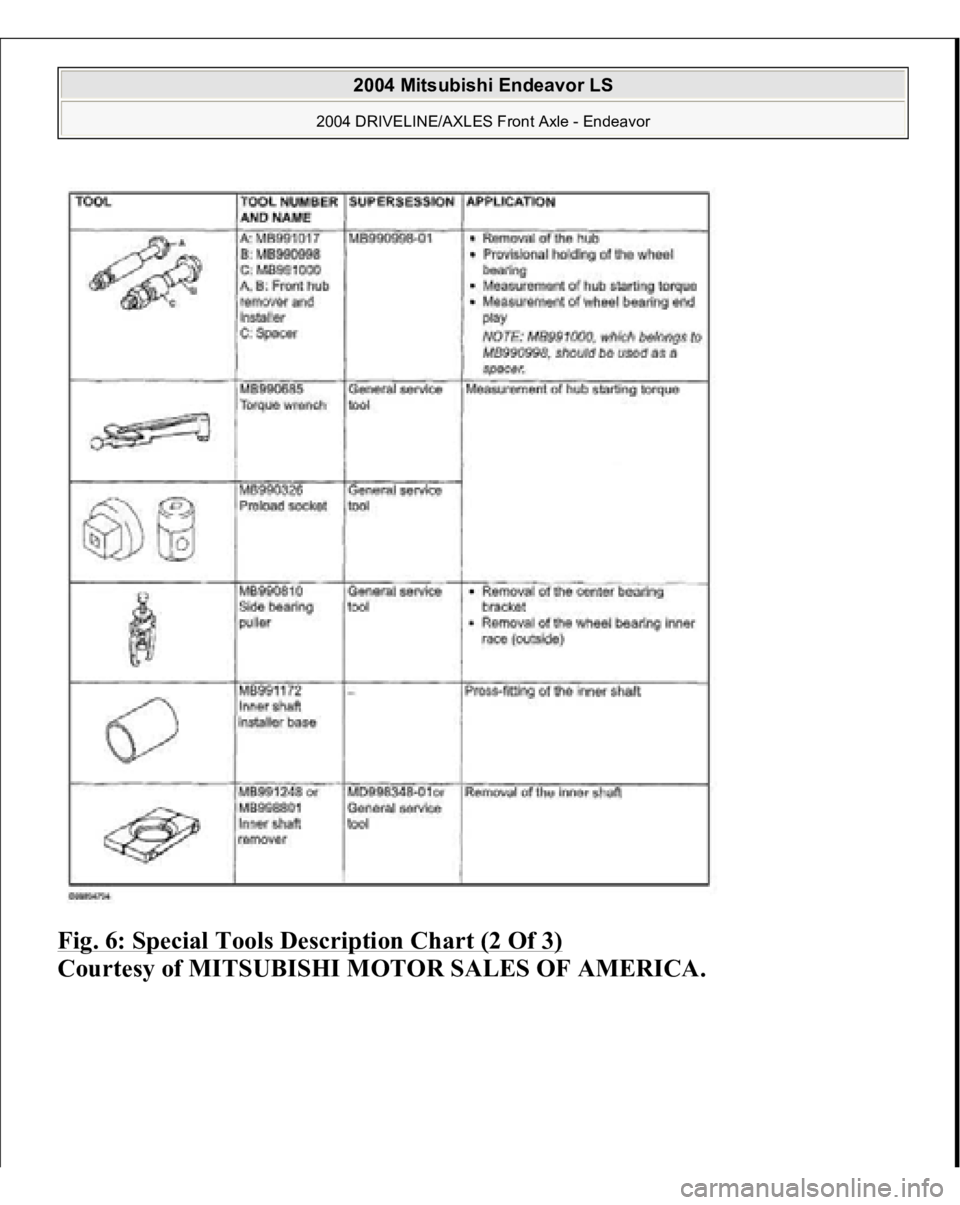

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Special Tools Description Chart (2 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVELINE/AXLES Front Axle - Endeavor
