Page 2481 of 3870

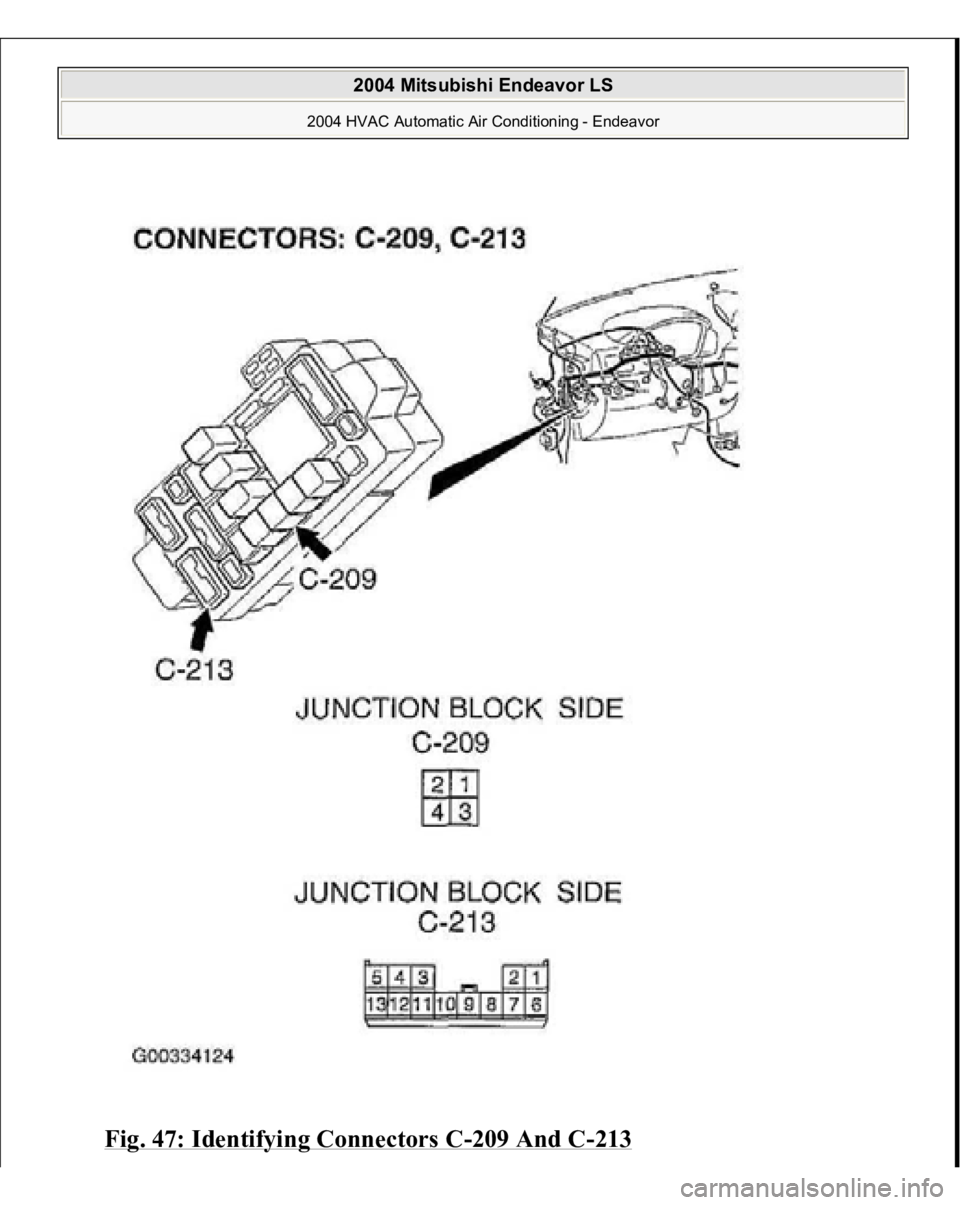

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Identifying Connectors C -209 And C -213 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2482 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Q: Is the wiring harness between rear blower motor connector C-20 (terminal 3) and rear blower relay connector C-209 (terminal 1) in good condition?

Page 2483 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Identifying Connectors C -20 And C -24 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. When battery voltage is applied between the terminals 1 and 3, check that the motor operates. Also

Page 2484 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Measuring Voltage Between Terminals 1 And 3 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 14. Check floor console rear A/C switch assembly connector C-19 for damage. Q: Is floor

Page 2485 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual normally. Fig. 50: Identifying Connector C -19 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 15. Check the floor console rear A/C switch assembly operation. 1. Disconnect floor console re

Page 2486 of 3870

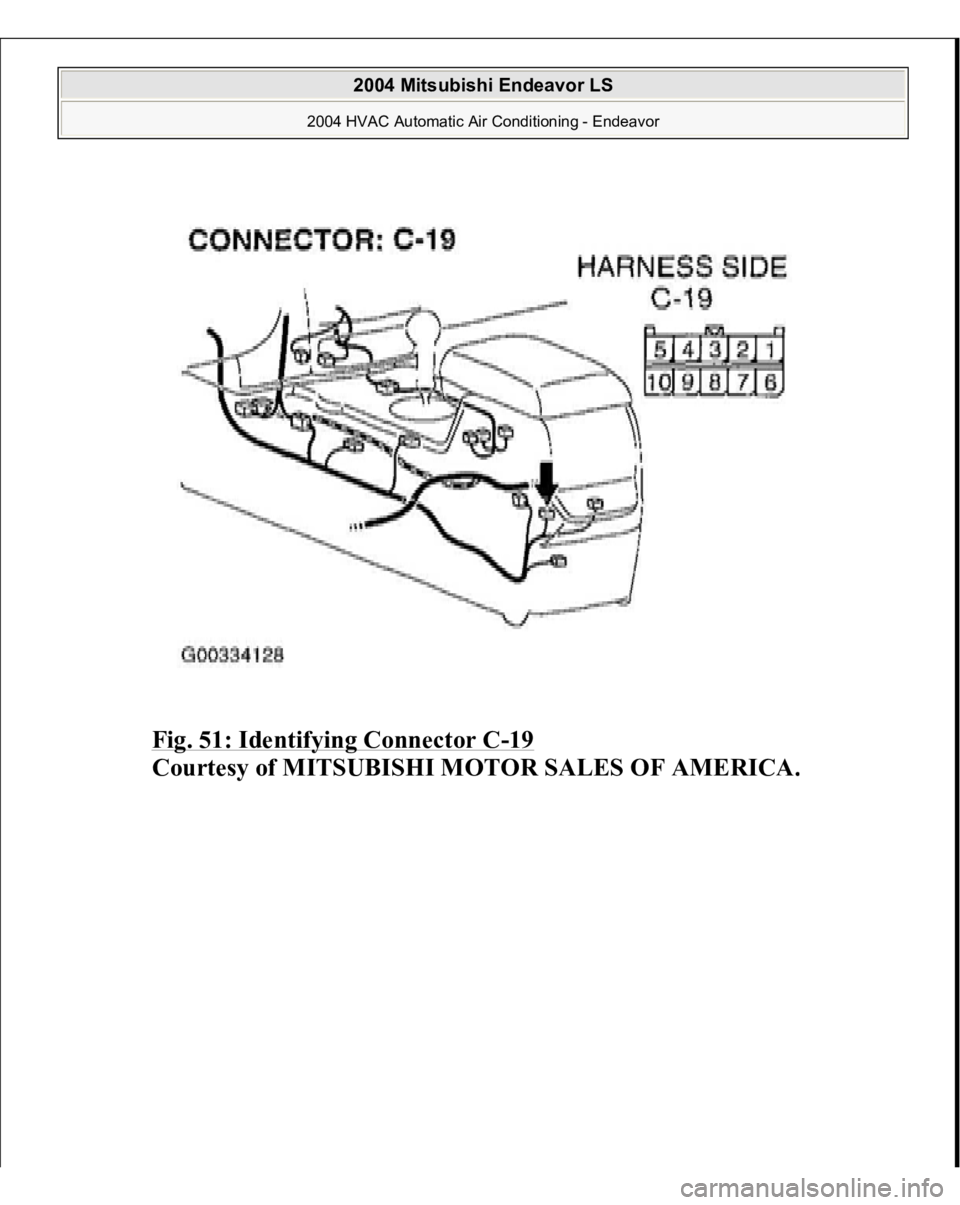

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Identifying Connector C -19 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2487 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Checking Floor Console Rear A/C Switch Assembly Operation Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Follow the table below to check the floor console rear A/C switch assembly for

Page 2488 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 16. NO: Replace the rear blower relay. The rear blower motor should operate normally. STEP 16. Measure the resistance at floor console rear A/C switch assembly connector C-19 i
