Page 649 of 3870

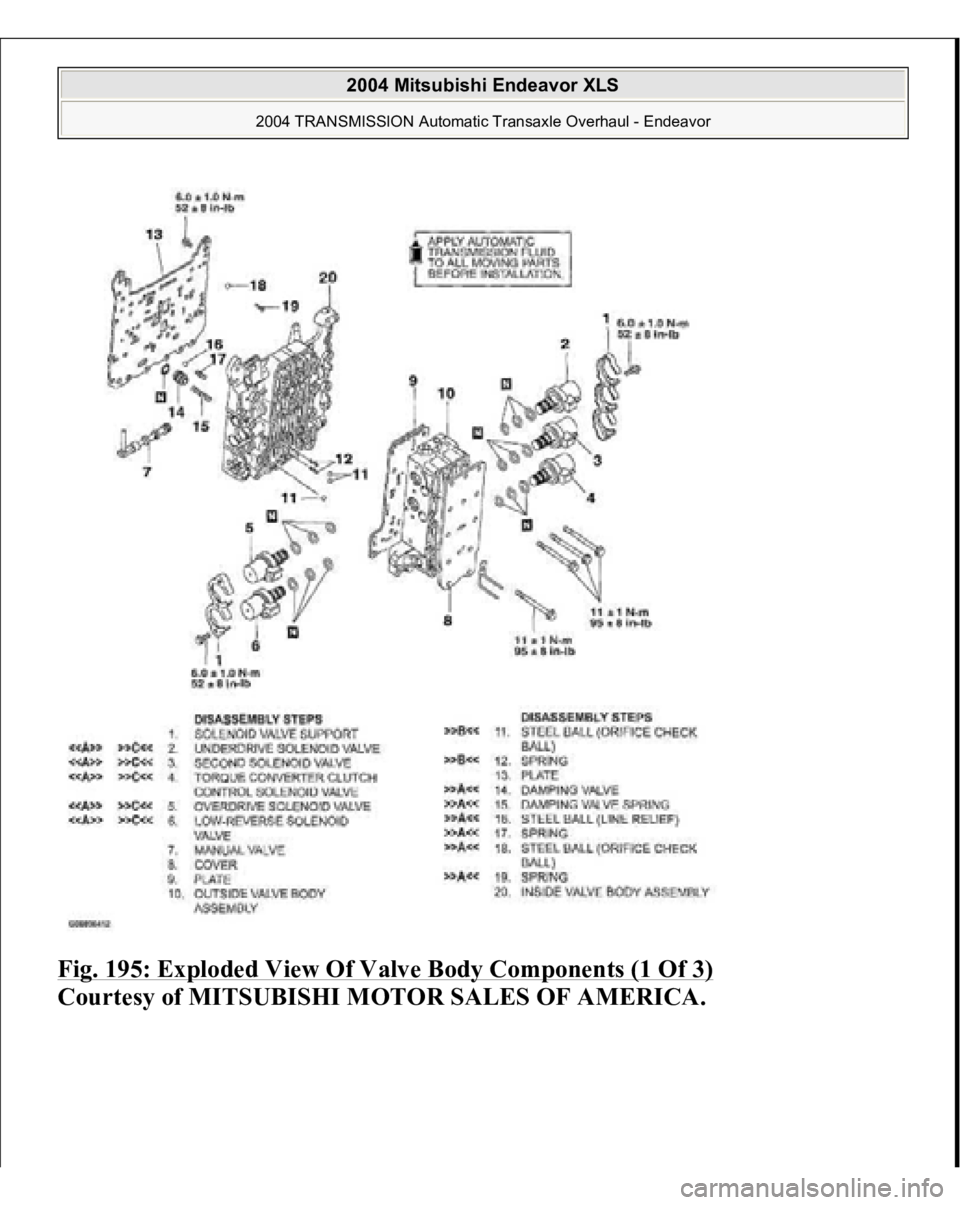

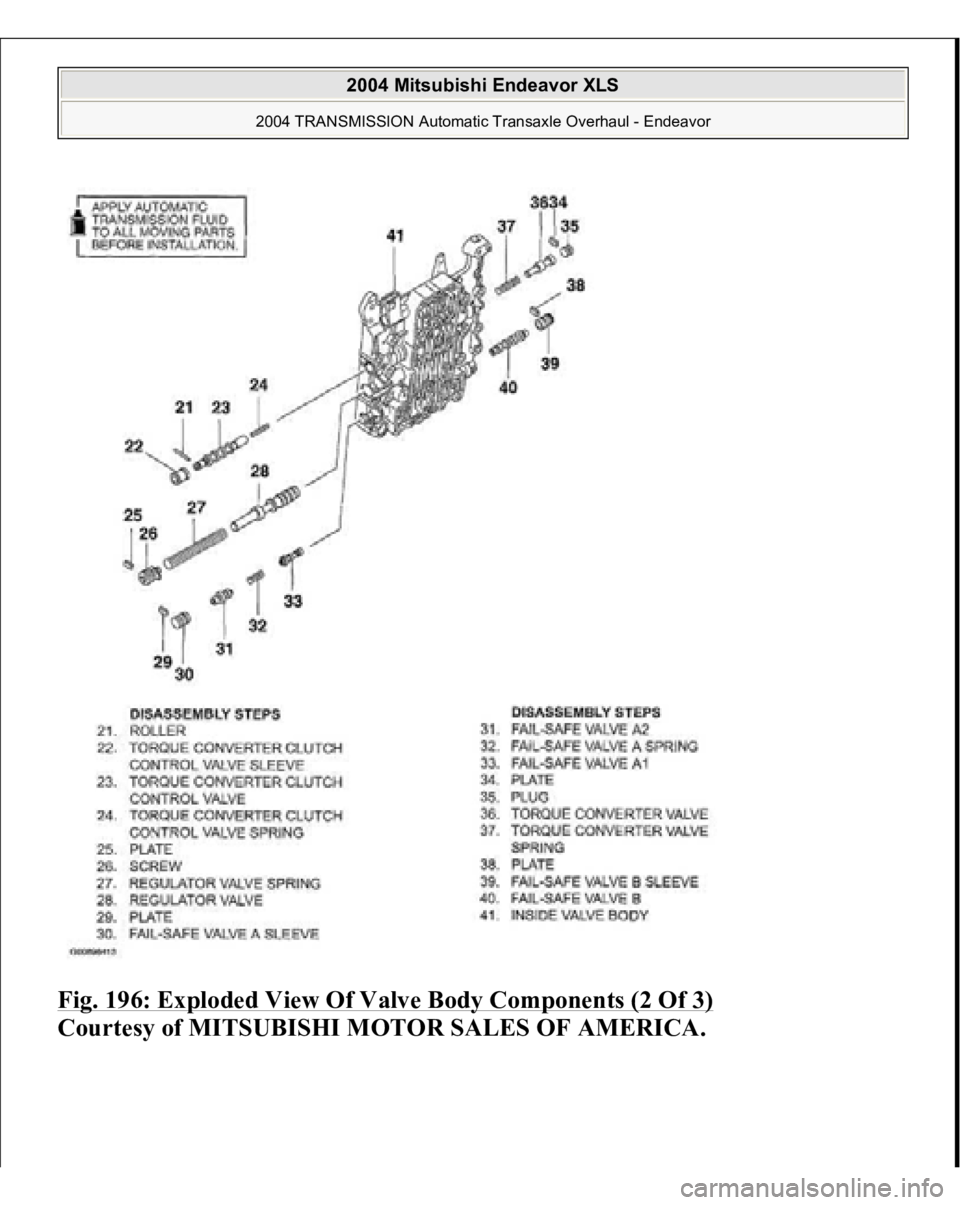

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 195: Exploded View Of Valve Body Components (1 Of 3) Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 650 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 196: Exploded View Of Valve Body Components (2 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 651 of 3870

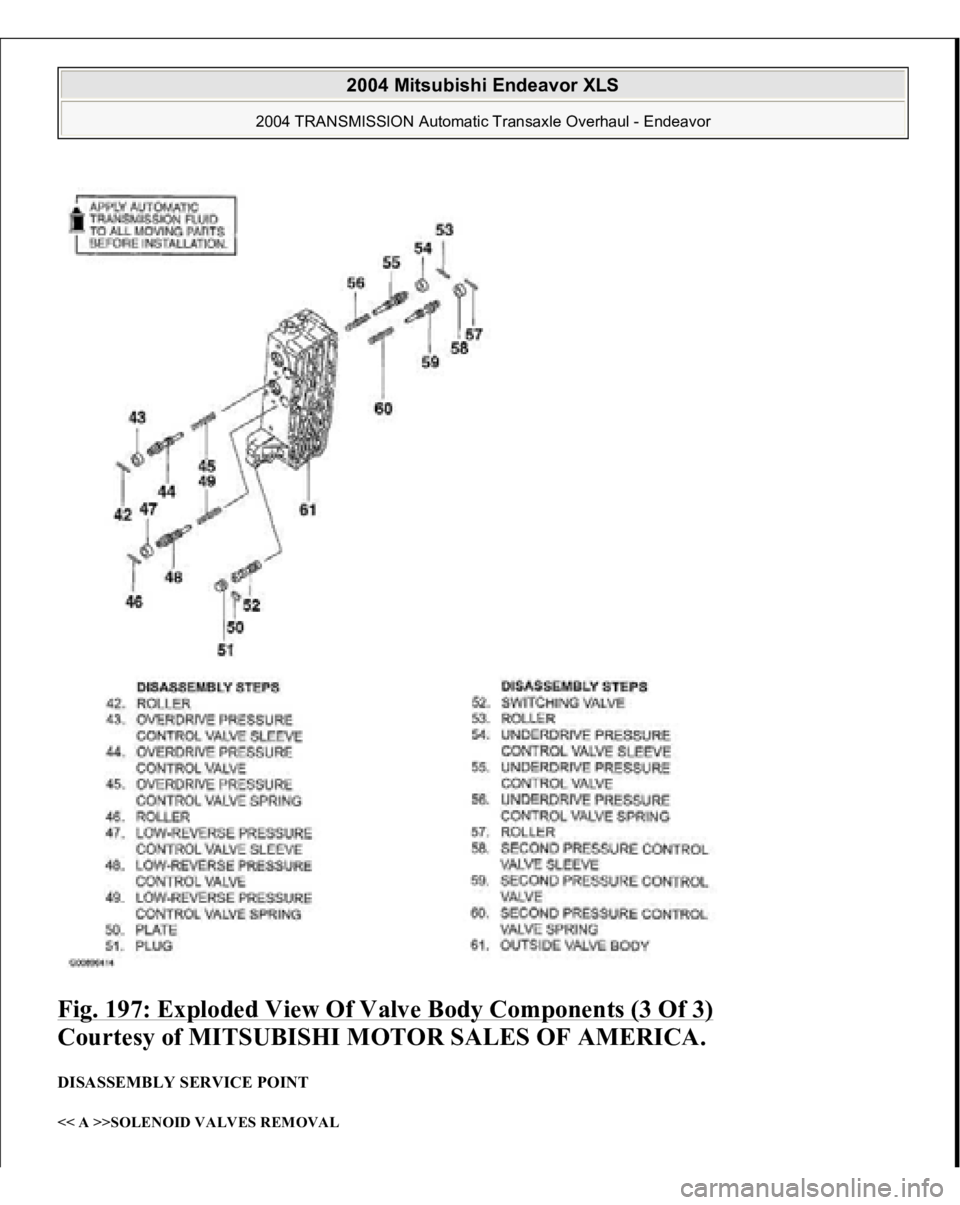

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 197: Exploded View Of Valve Body Components (3 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINT << A >>SOLENOID VALVES REMOVAL 2004 Mitsubishi Endeavor XLS 200

Page 652 of 3870

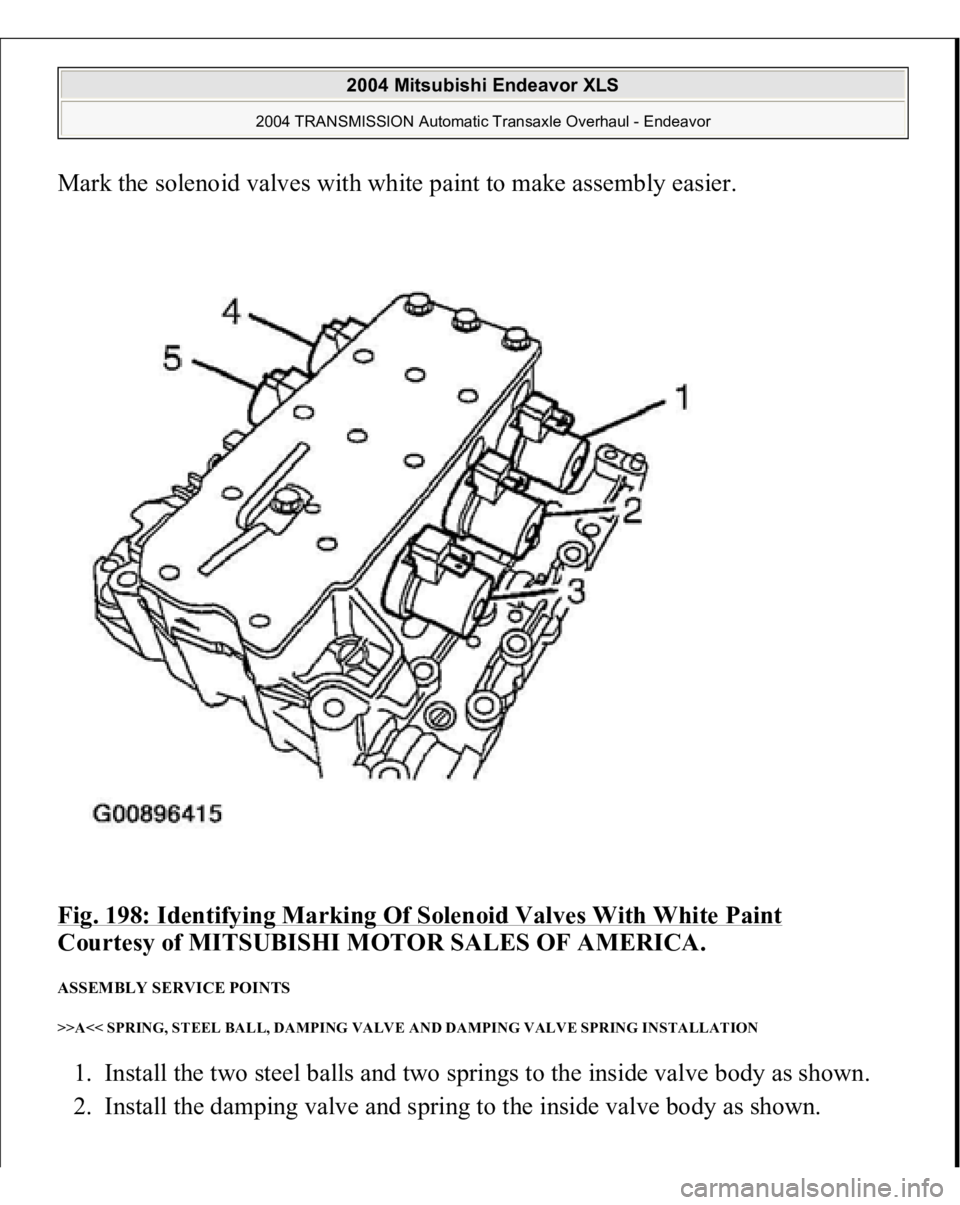

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Mark the solenoid valves with white paint to make assembly easier. Fig. 198: Identifying Marking Of Solenoid Valves With White Paint Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE

Page 653 of 3870

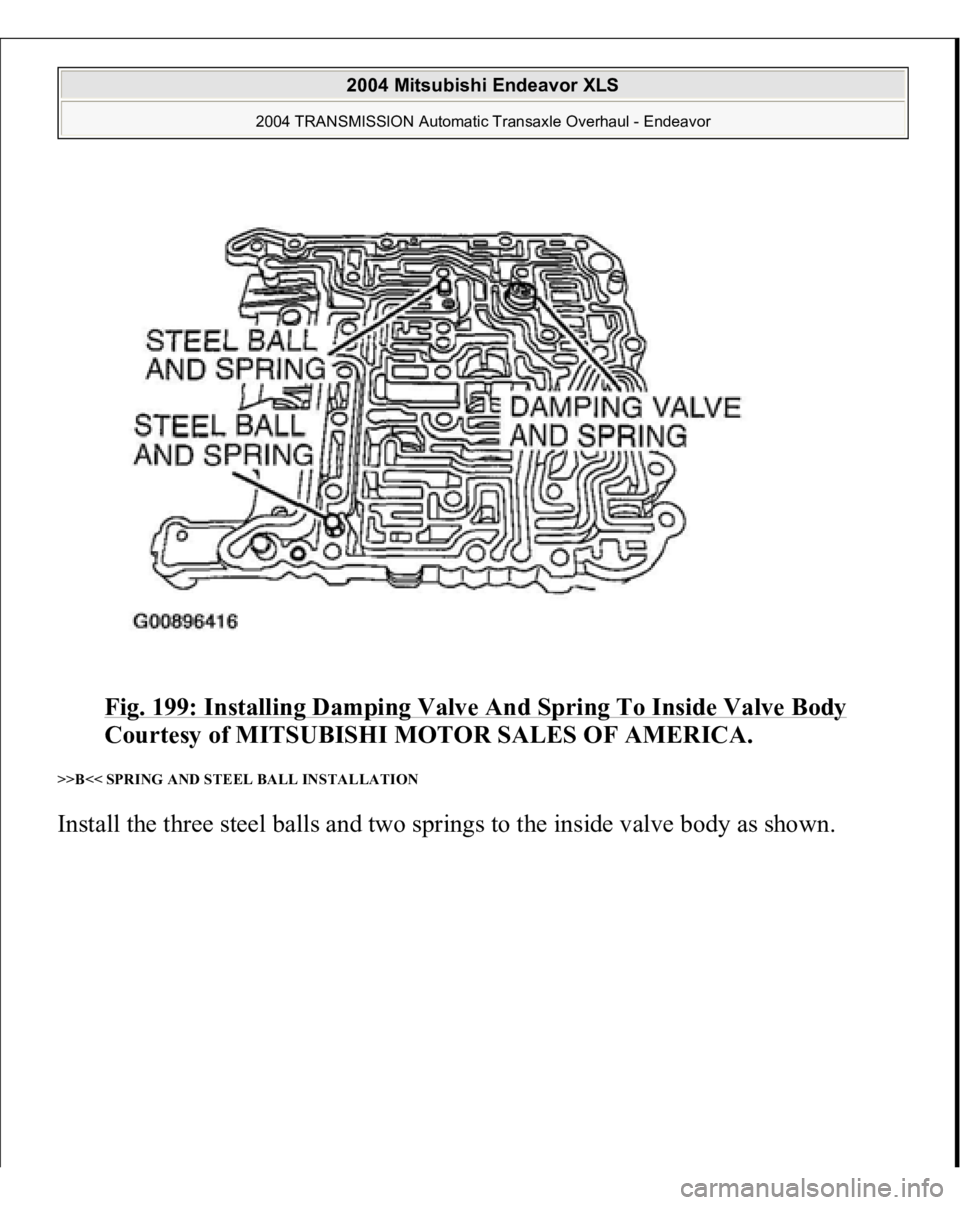

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 199: Installing Damping Valve And Spring To Inside Valve Body Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< SPRING AND STEEL BALL INSTALLATION Install the three steel balls and two spri

Page 654 of 3870

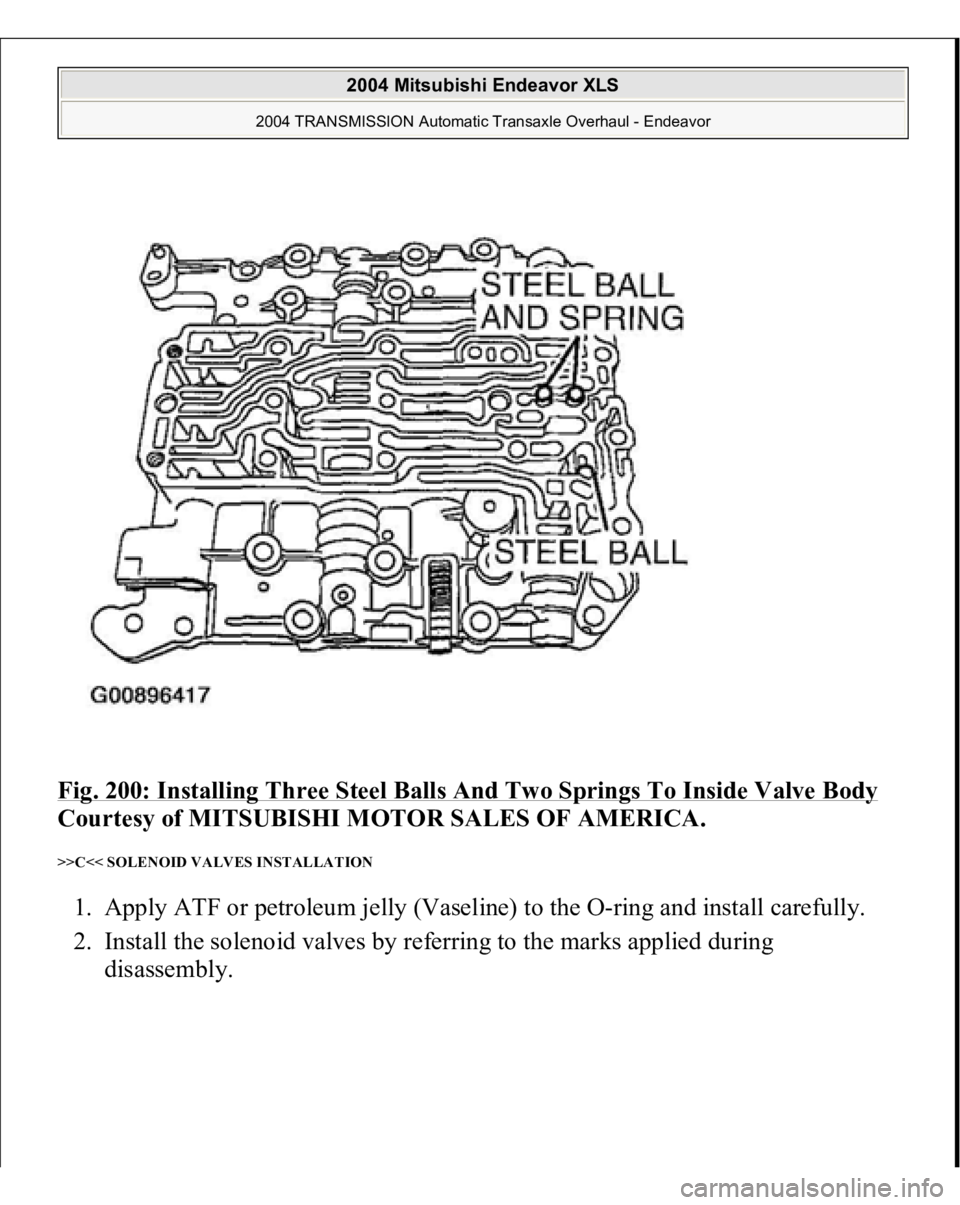

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 200: Installing Three Steel Balls And Two Springs To Inside Valve Body Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< SOLENOID VALVES INSTALLATION 1. Apply ATF or petroleum jelly (Vaseli

Page 655 of 3870

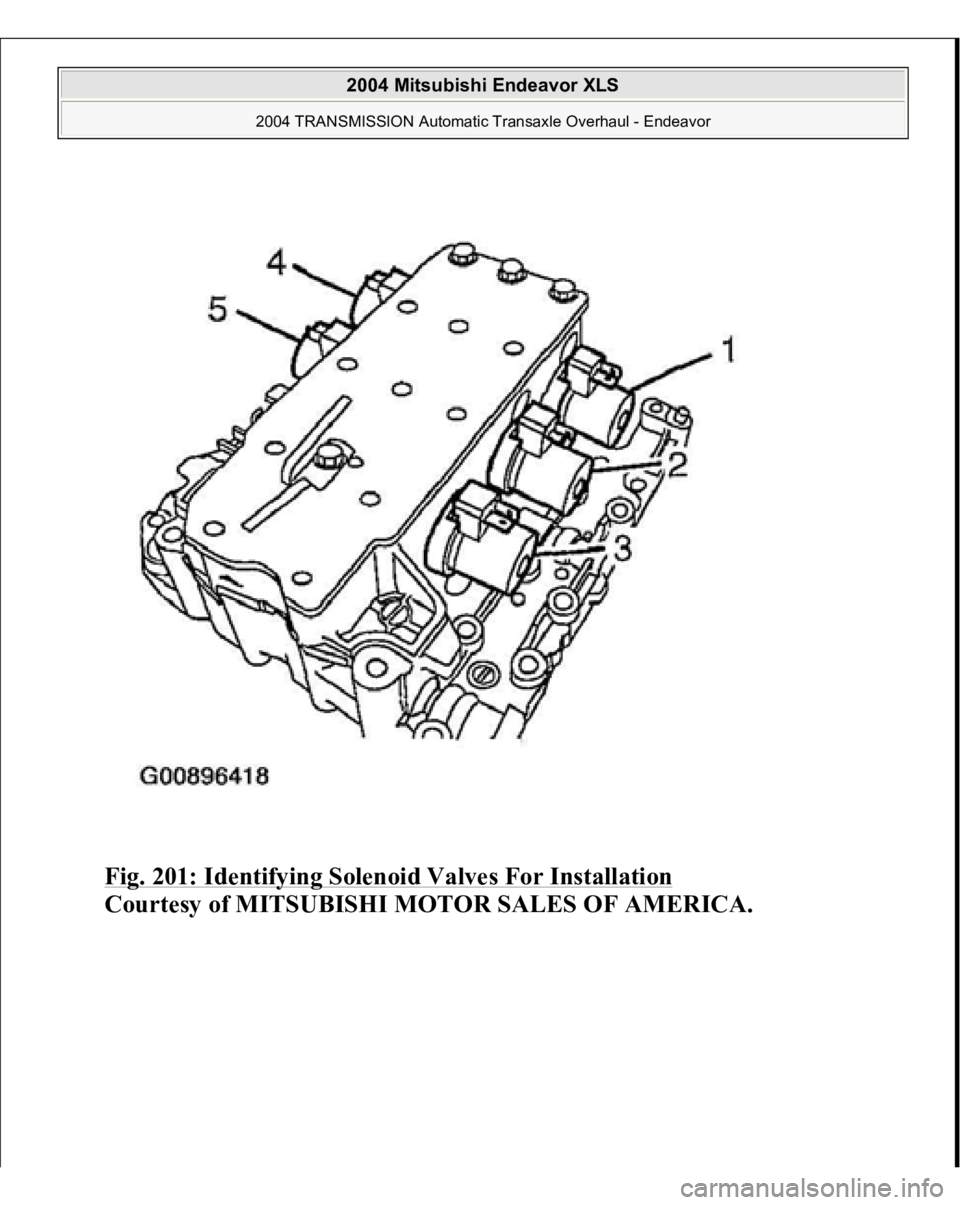

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 201: Identifying Solenoid Valves For Installation Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 656 of 3870

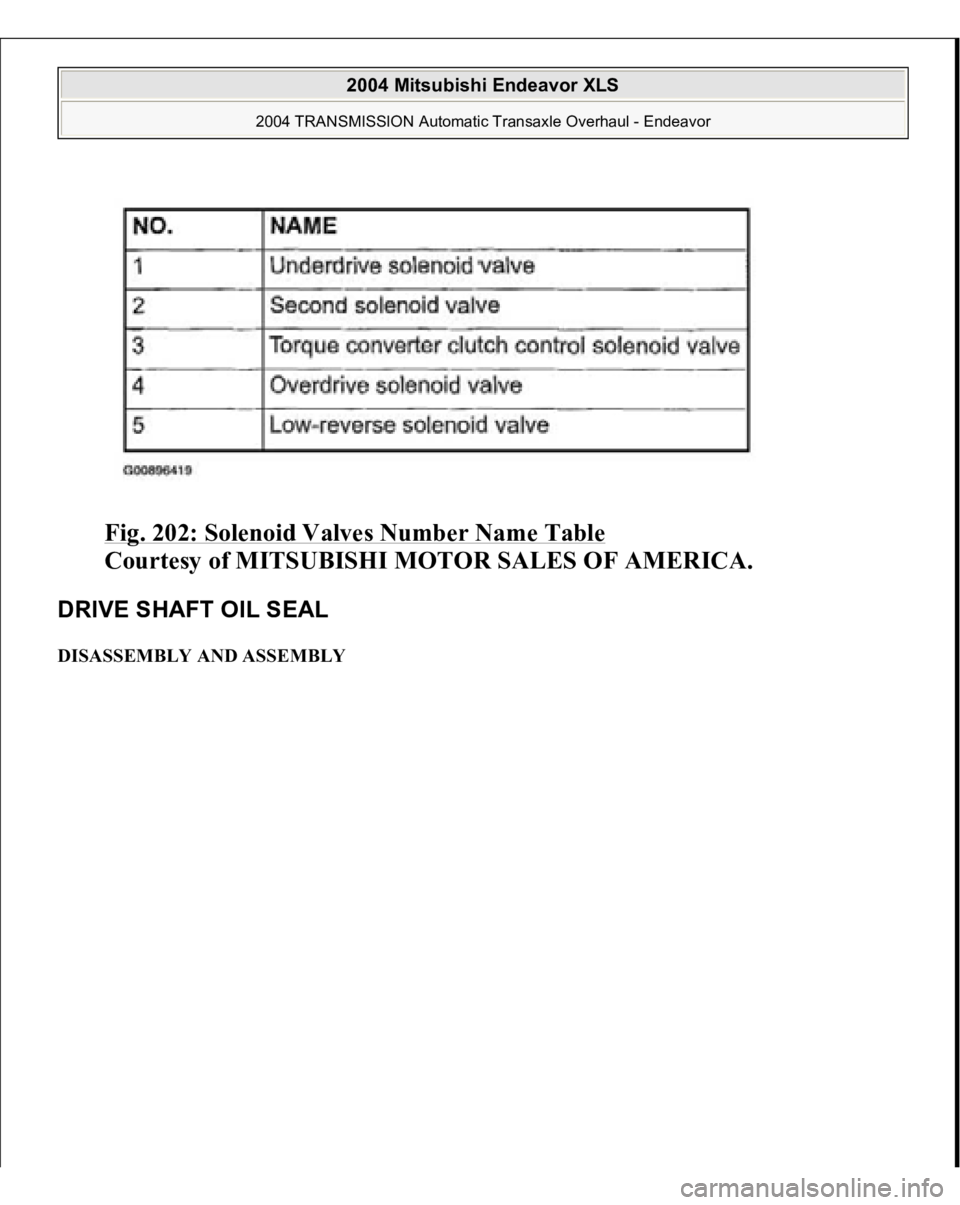

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 202: Solenoid Valves Number Name Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DRIVE SHAFT OIL SEAL DISASSEMBLY AND ASSEMBLY 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic
