Page 737 of 3870

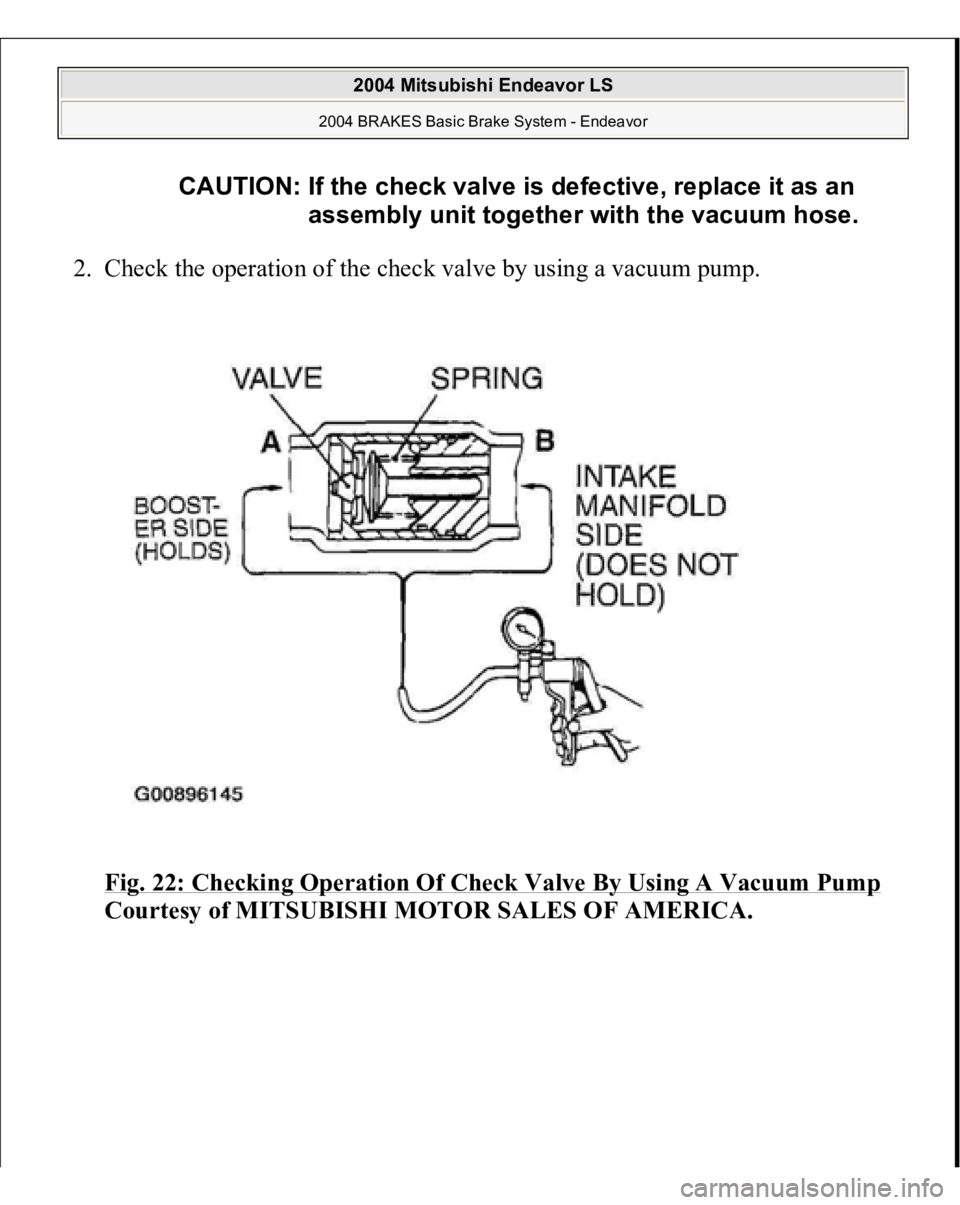

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Check the operation of the check valve by using a vacuum pump. Fig. 22: Checking Operation Of Check Valve By Using A Vacuum Pump Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: If the ch

Page 738 of 3870

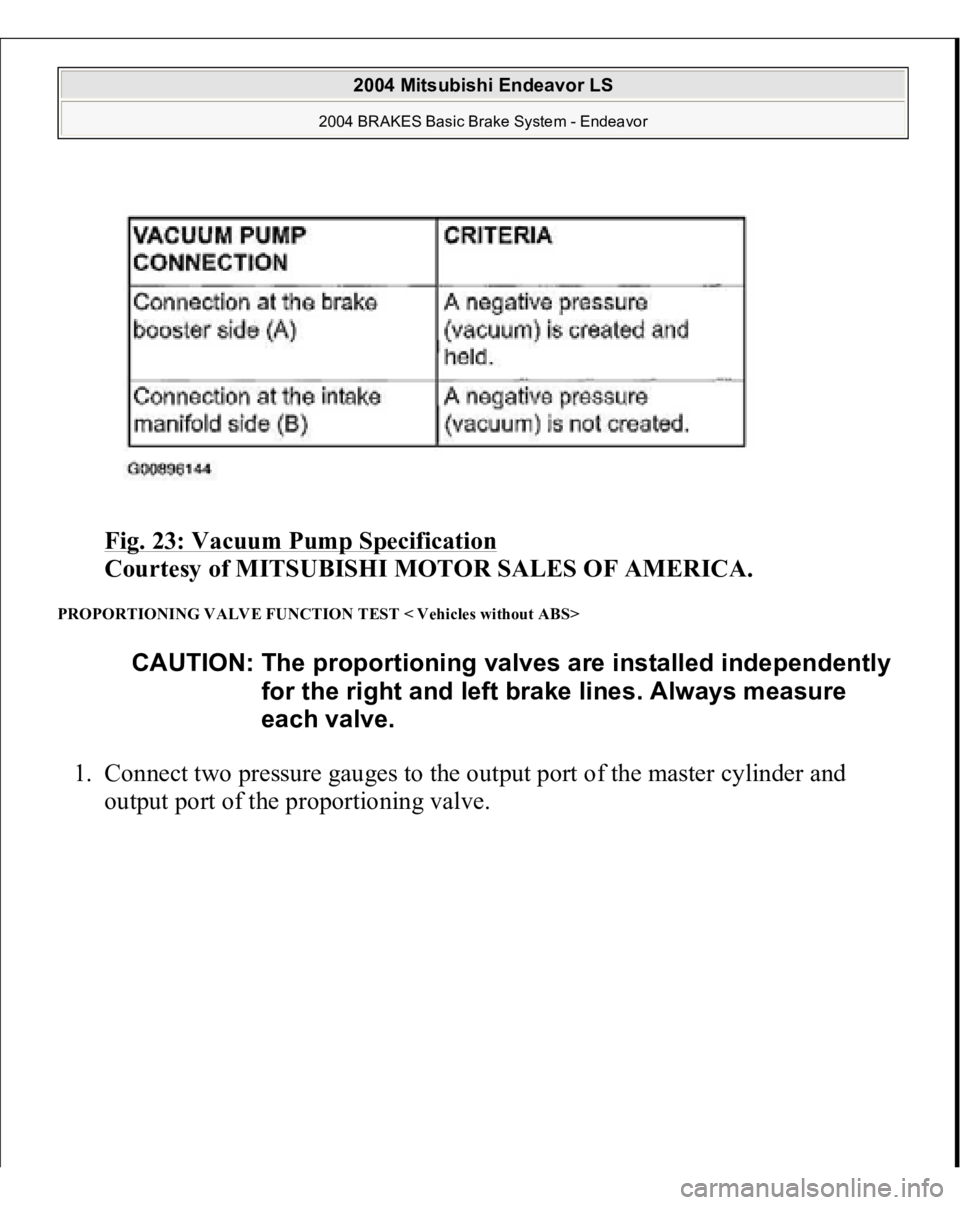

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Vacuum Pump Specification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. PROPORTIONING VALVE FUNCTION TEST < Vehicles without ABS> 1. Connect two pressure gauges to the output port of the

Page 739 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Connecting Pressure Gauges To Output Port Of Master Cylinder And Proportioning Valve Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Bleed the brake line and the pressure gauges (Refer t

Page 740 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual difference between the two is at the limit value or less. Limit: 0.5 MPa (73 psi) Fig. 25: Checking Split Point Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. If the measured pressure exceeds

Page 741 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual The master cylinder used has no check valve, so if bleeding is carried out by the following procedure, bleeding of air from the brake pipeline will become easier. (When brake fluid is not contained

Page 742 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. With the outlet still closed, release the brake pedal. 5. Repeat steps 2 - 4 three or four times to fill the inside of the master cylinder with brake fluid. BRAKE LINE BLEEDING Start the en gin

Page 743 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 27: Identifying Brake Line Bleeding Sequence Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. BRAKE FLUID LEVEL SENSOR CHECK 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endea

Page 744 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual The brake fluid level sensor is in good condition if there is no continuity when the float surface is above "MIN" and if there is continuity when the float surface is below "MIN". F
