Page 73 of 3870

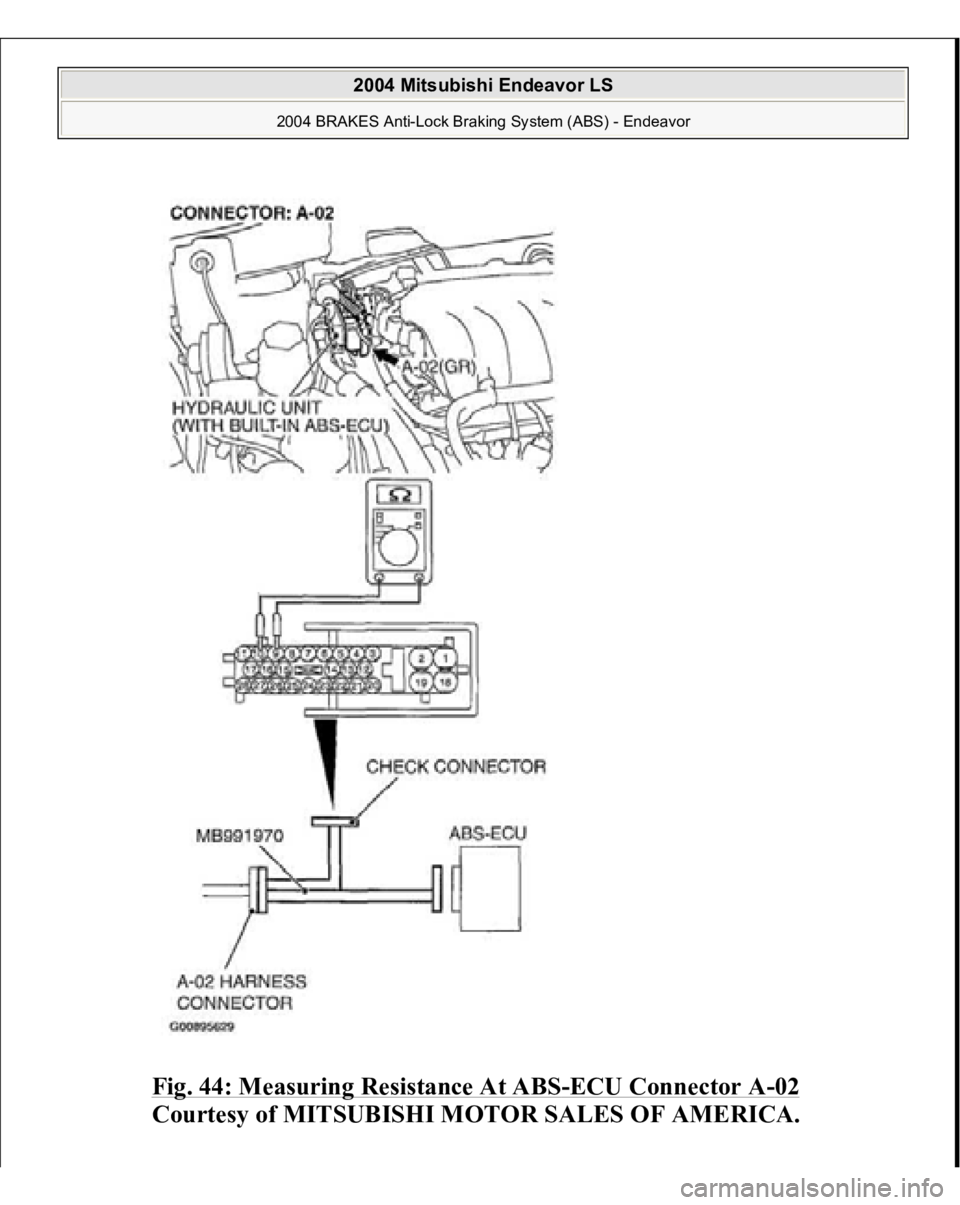

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 44: Measuring Resistance At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 74 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the resistance between terminals 16 and 26, 9 and 10, 27 and 28, or 11 and 17 within the standard value? YES (When resistance between all terminals are within the standard value): Go to Step

Page 75 of 3870

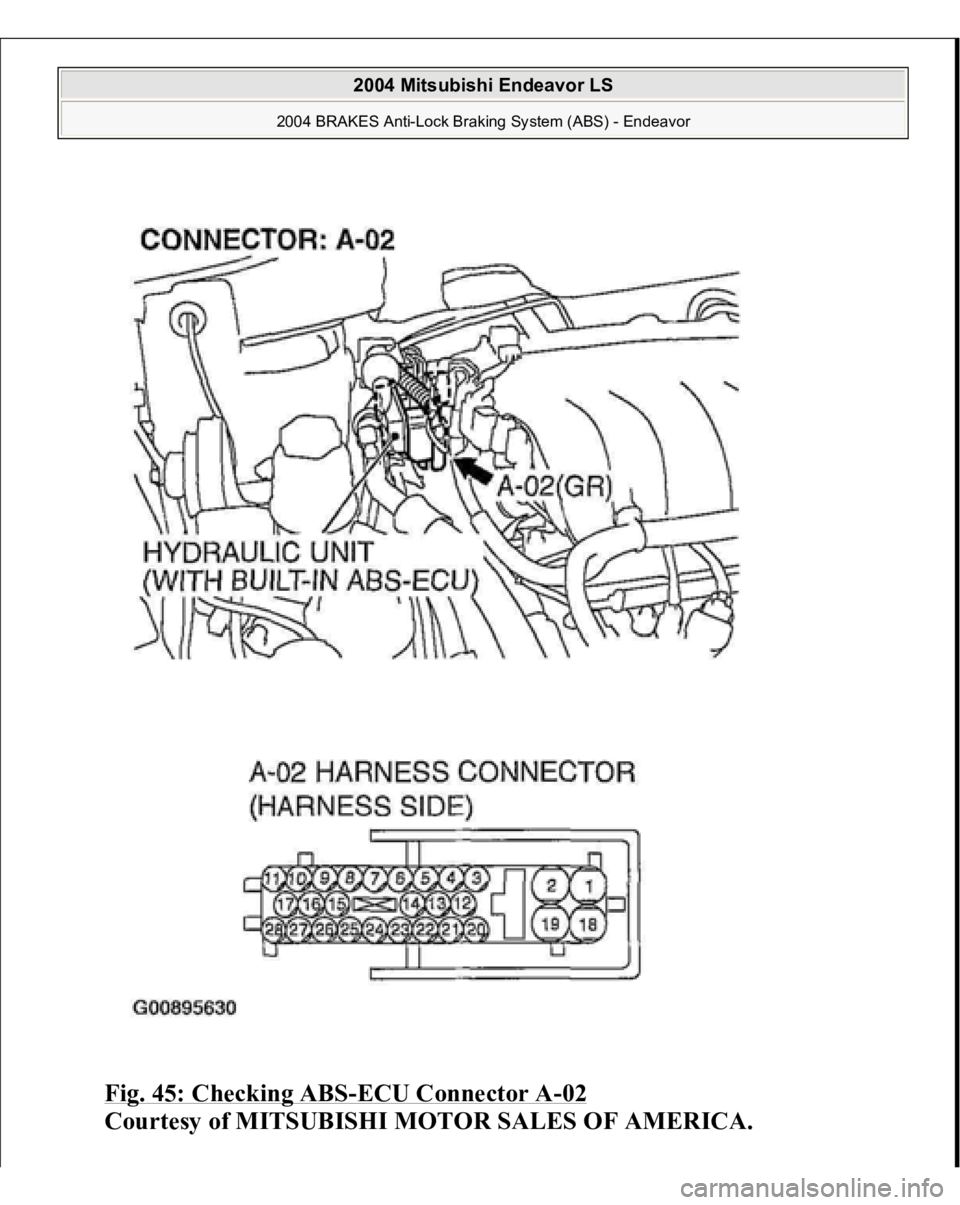

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 45: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 76 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Checking ABS Sensor Connector A -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are ABS-ECU connector A-02 and ABS sensor < front: RH > connector A-31 damaged? YES: Repair or repla

Page 77 of 3870

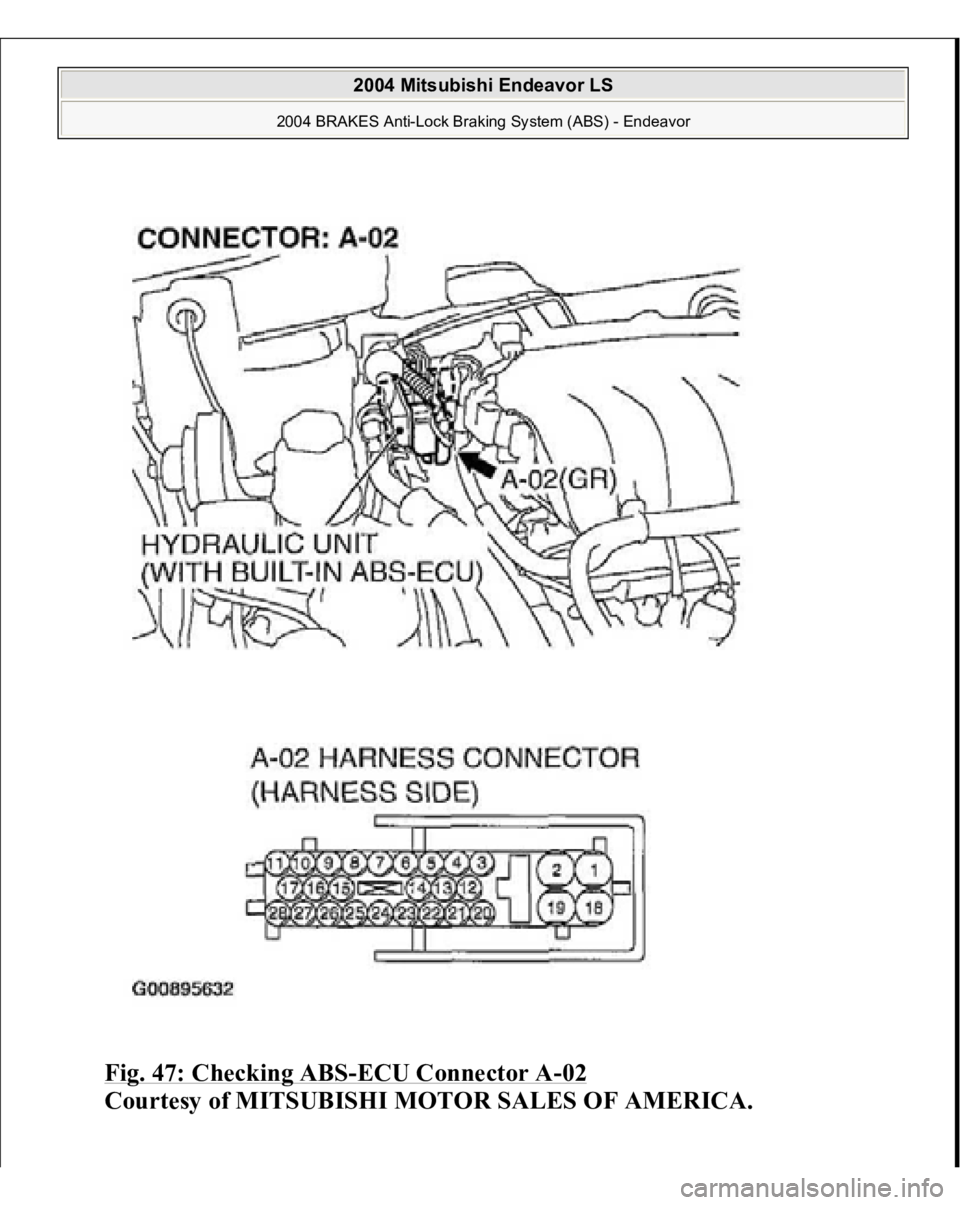

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 78 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Checking ABS Sensor Connector A -14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are ABS-ECU connector A-02 and ABS sensor < front: LH > connector A-14 damaged? YES: Repair or repla

Page 79 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 80 of 3870

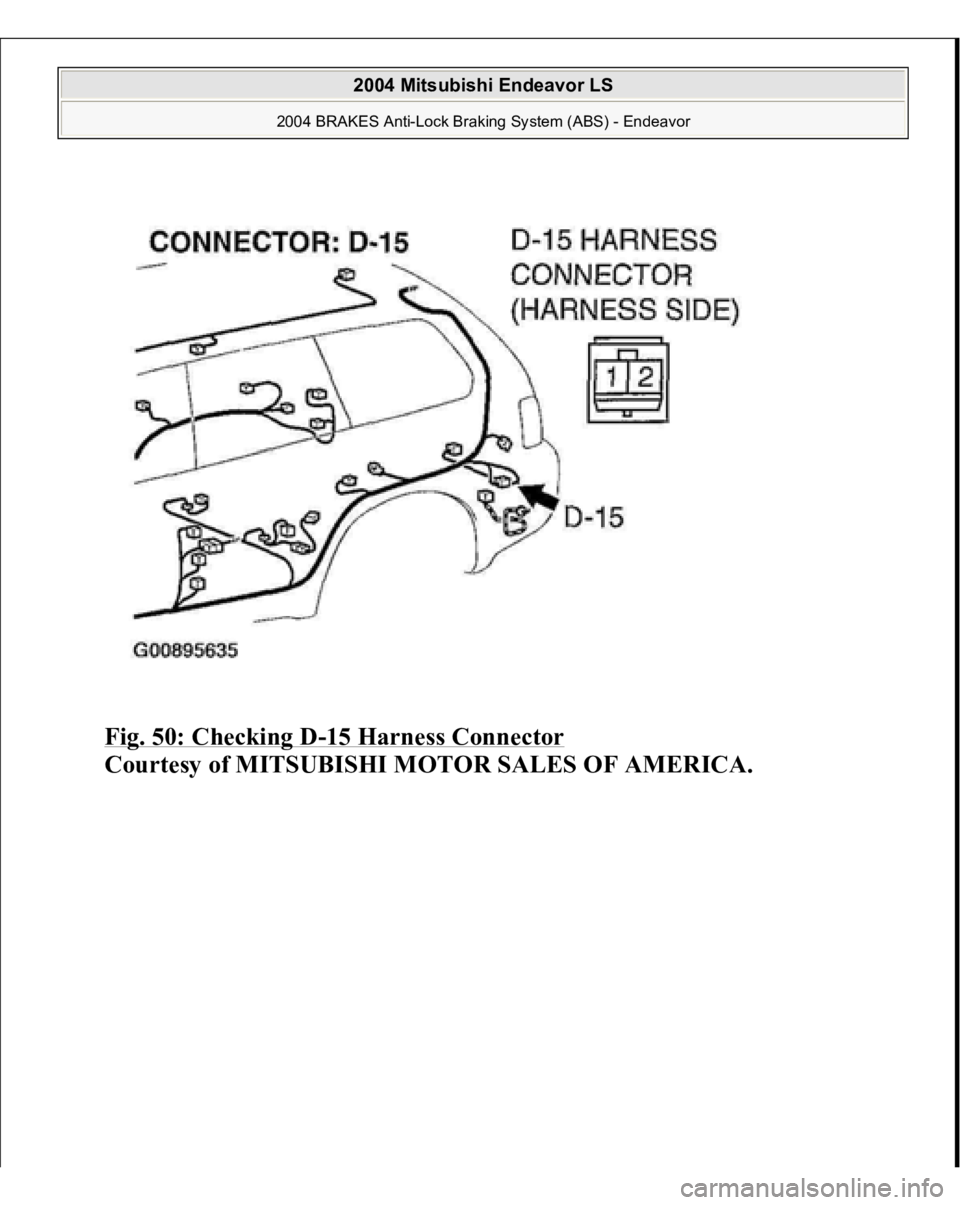

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Checking D -15 Harness Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
