Page 225 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Repair or replace the damaged component(s). Then go to Step 8 . STEP 3. Measure the resistance at ABS-ECU connector A-02. 1. Disconnect the connector A-02, and connect special tool ABS Check H

Page 226 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 132: Measuring Resistance At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 227 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the measured resistance 2 ohms or less? YES: Go to Step 5 . NO: Go to Step 4. STEP 4. Check ABS-ECU connector A-02 for loose, corroded or damaged terminals, or terminals pushed back in t

Page 228 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 133: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is ABS-ECU connector A-02 dama ged? 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking Syste

Page 229 of 3870

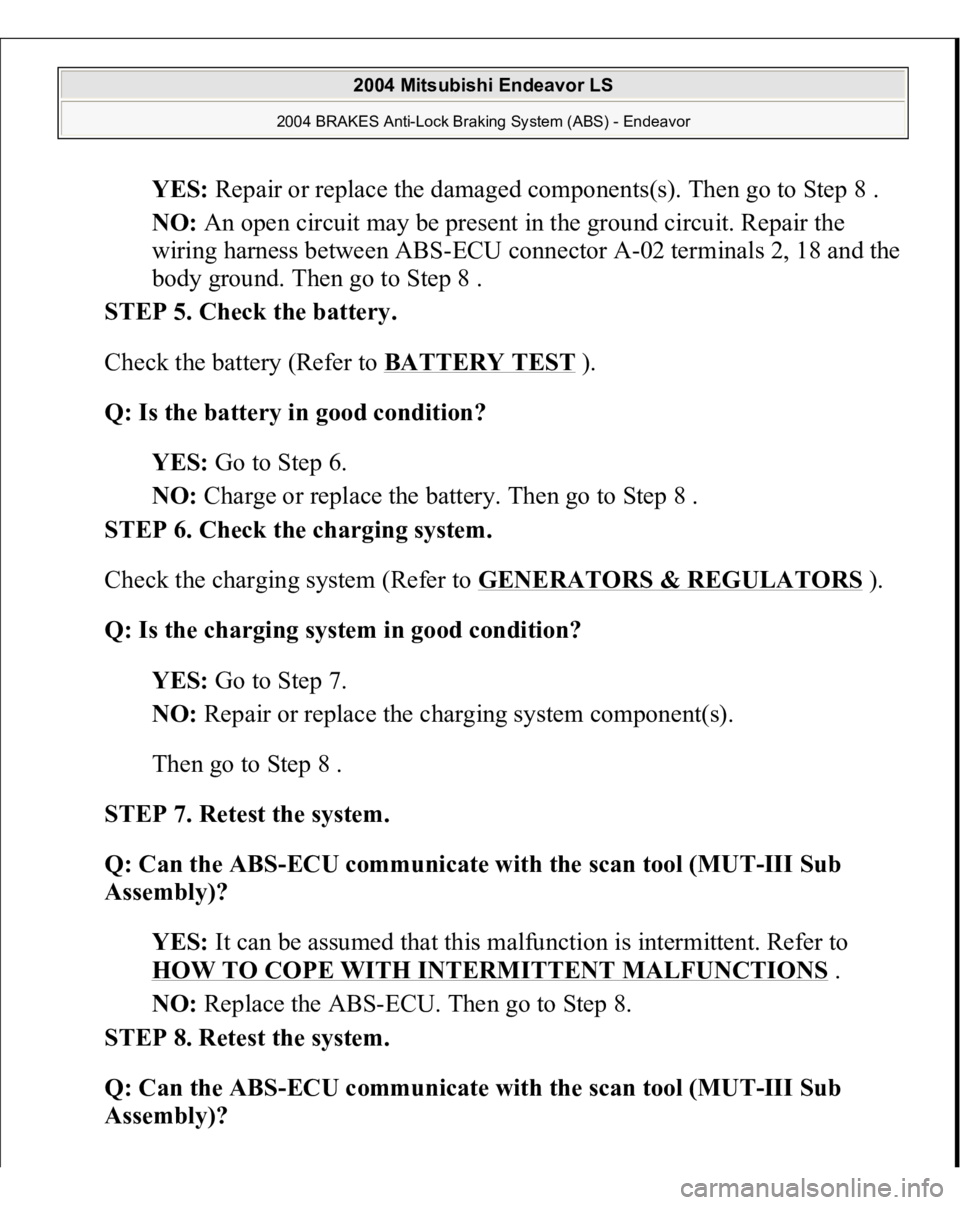

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repair or replace the damaged components(s). Then go to Step 8 . NO: An open circuit may be present in the ground circuit. Repair the wiring harness between ABS-ECU connector A-02 terminals 2,

Page 230 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: The procedure is complete. NO: Go to Step 1 . INSPECTION PROCEDURE 3: WHEN THE IGNITION KEY IS TURNED TO ON (ENGINE STOPPED), THE BRAKE/ABS WARNING LIGHT DOES NOT ILLUMINATE, INSPECTION PROC

Page 231 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 232 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 134: EBO And ABS Warning Light Circuit Diagram Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 135: Identifying Connectors: A -02, C -04, C -31, C -101, C -102, C -103, C - 211, C -215 C
