Page 2153 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS Malfunction of middle-grade multi-center display unit Malfunction of the A/C-ECU Damaged harness wires and connectors DIAGNOSIS REQUIRED SPECIAL TOOLS: MB991223: Harness

Page 2154 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 104: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2155 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be normal

Page 2156 of 3870

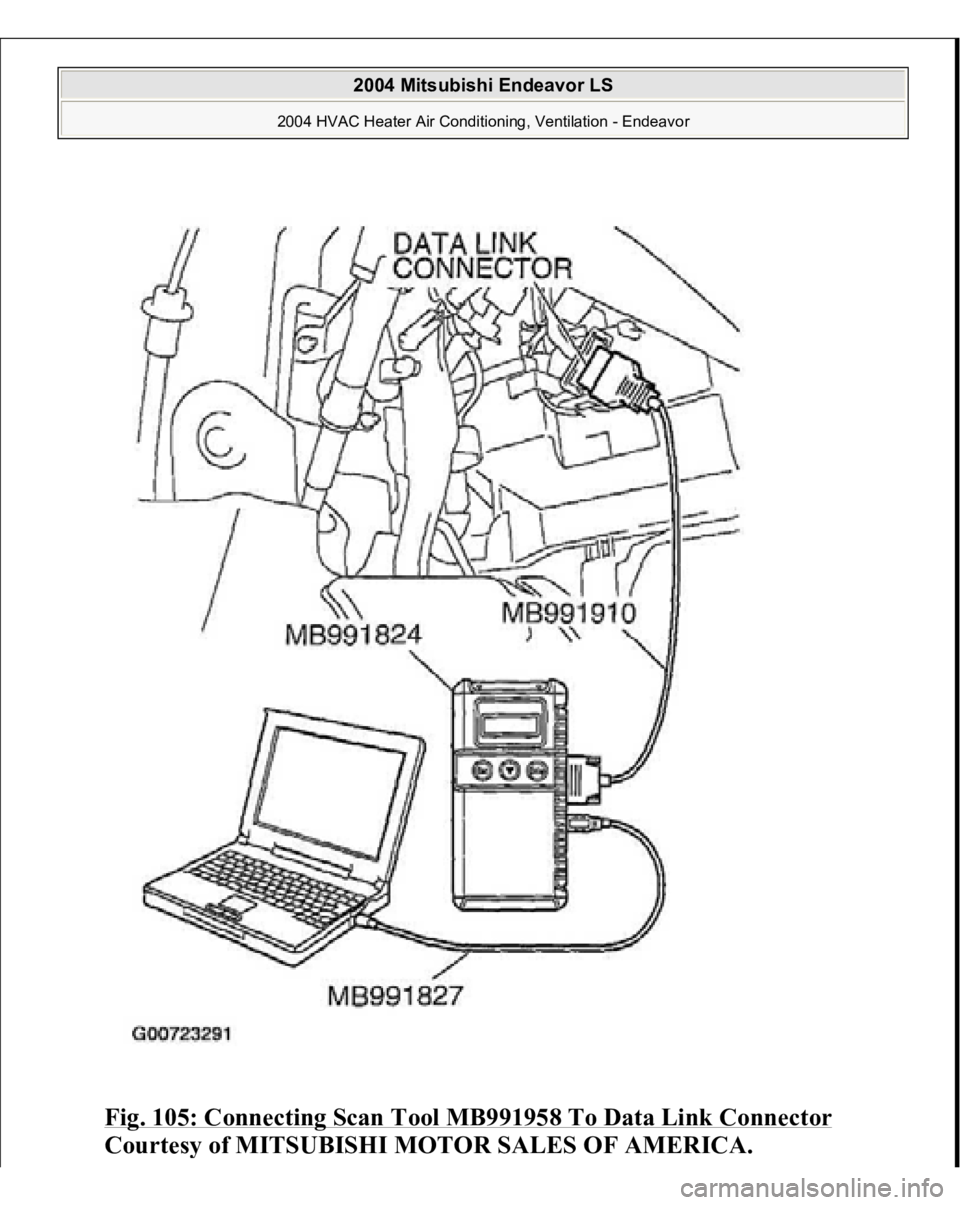

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 105: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2157 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Check that the middle-grade multi-center display unit sets a DTC. 1. Turn the ignition switch to the "ON" position. 2. Check for the DTC related to the middle-grade multi-center display uni

Page 2158 of 3870

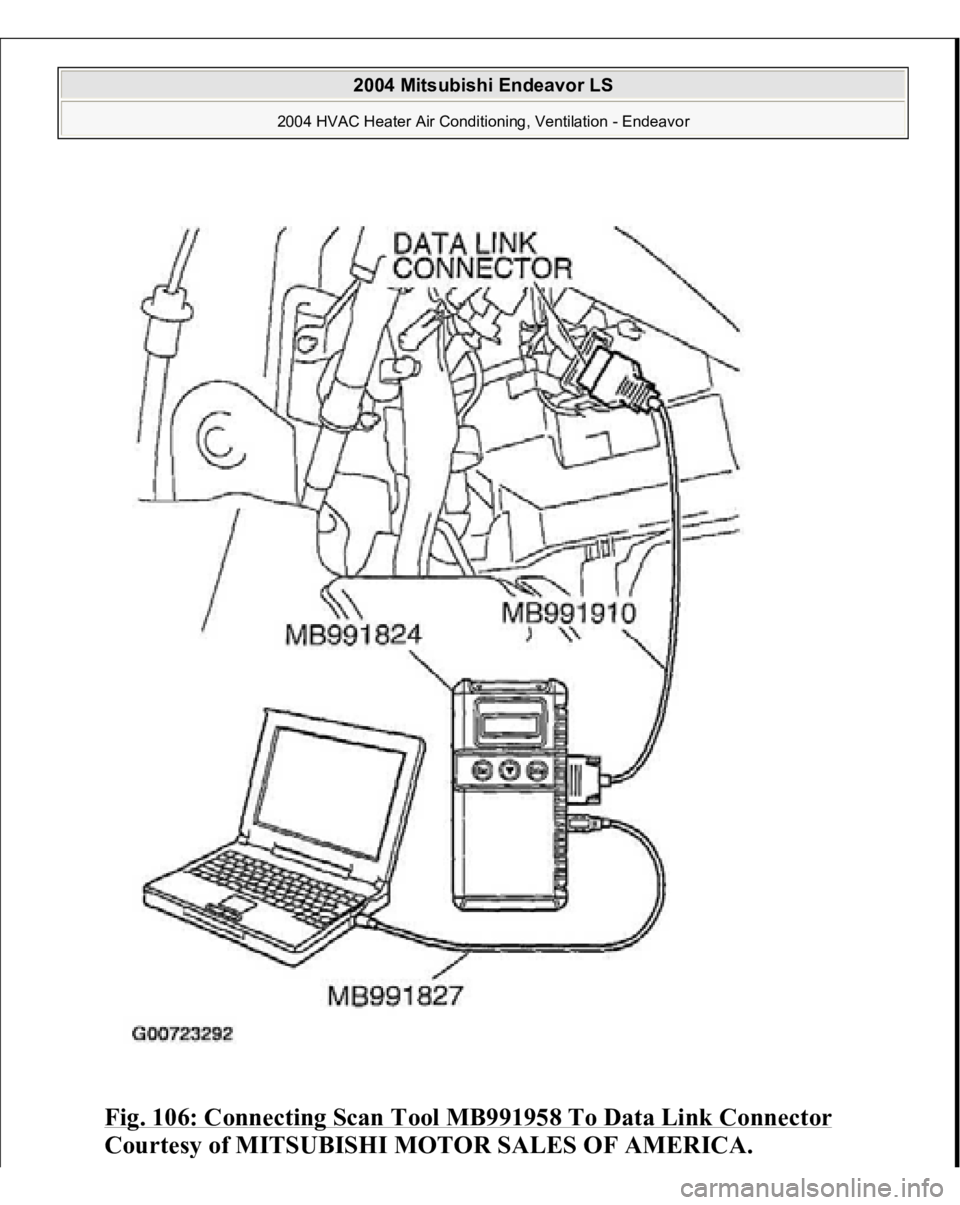

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2159 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Check if a DTC, which relates to CAN communication-linked systems below, is set. ETACS-ECU DTC indicating a time-out error of middle-grade multi-center display unit 1. Turn the ignition switch to

Page 2160 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav
