Page 1673 of 3870

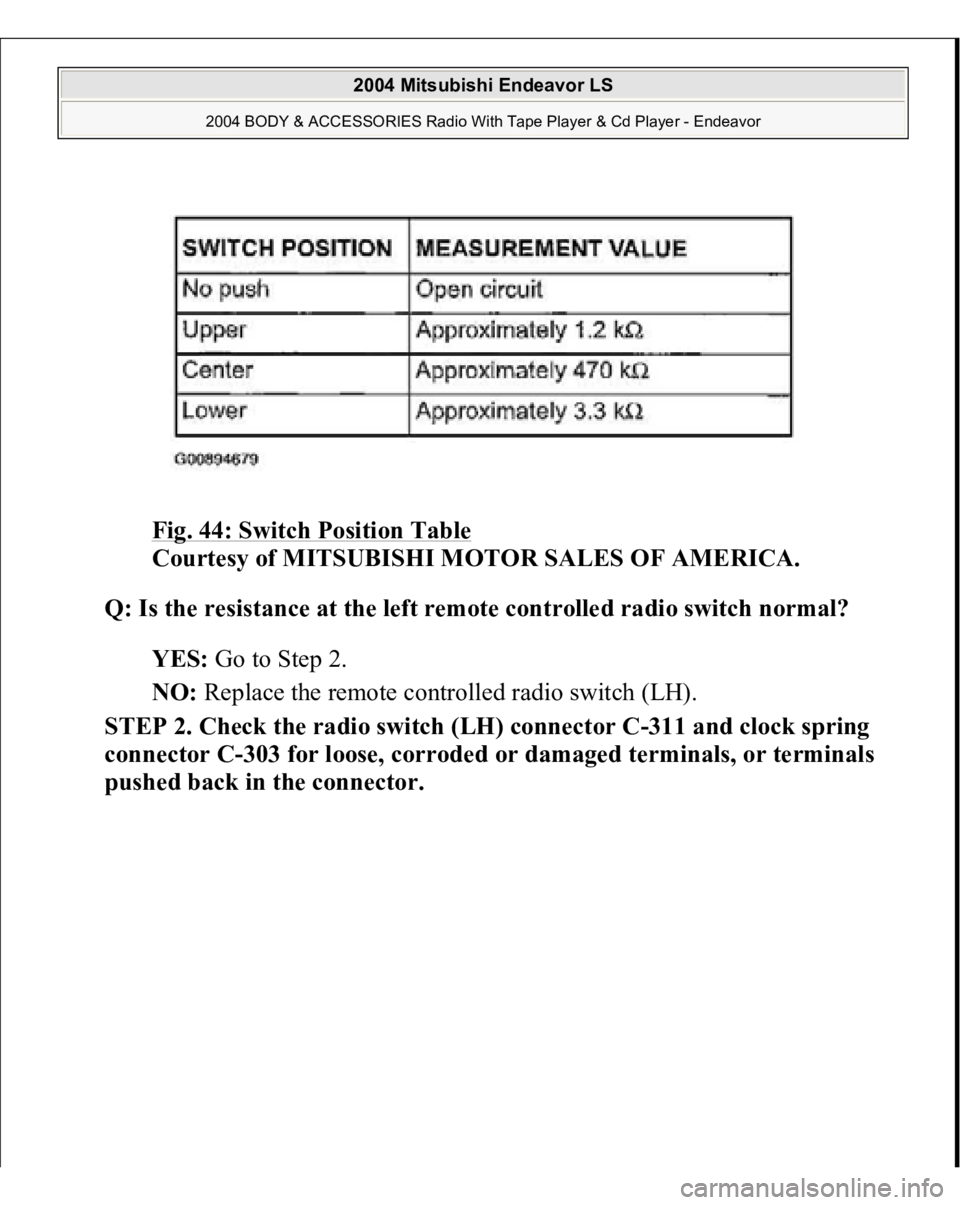

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 44: Switch Position Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the resistance at the left remote controlled radio switch normal? YES: Go to Step 2. NO: Replace the remote c

Page 1674 of 3870

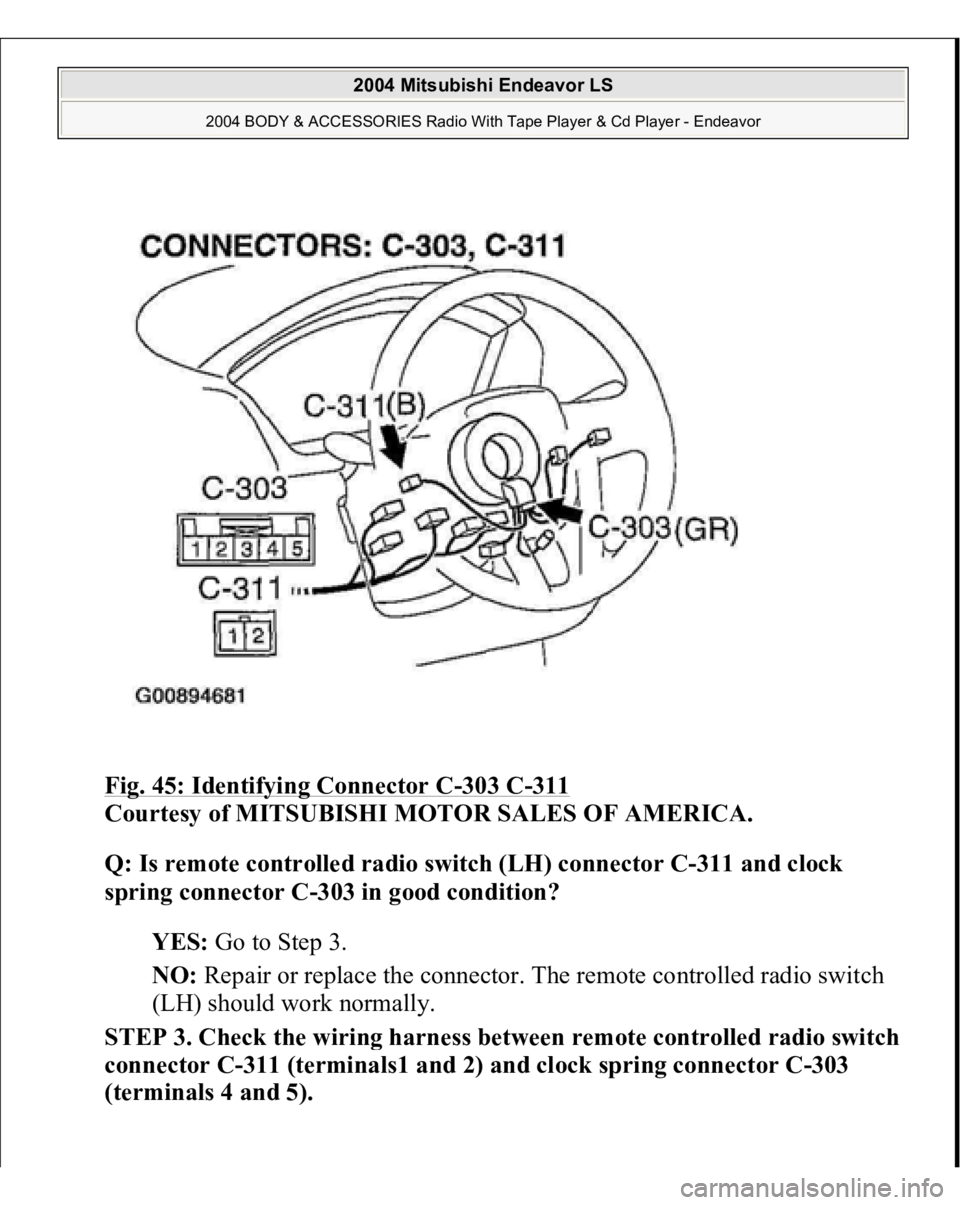

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 45: Identifying Connector C -303 C -311 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is remote controlled radio switch (LH) connector C-311 and clock spring connector C-303 in good condi

Page 1675 of 3870

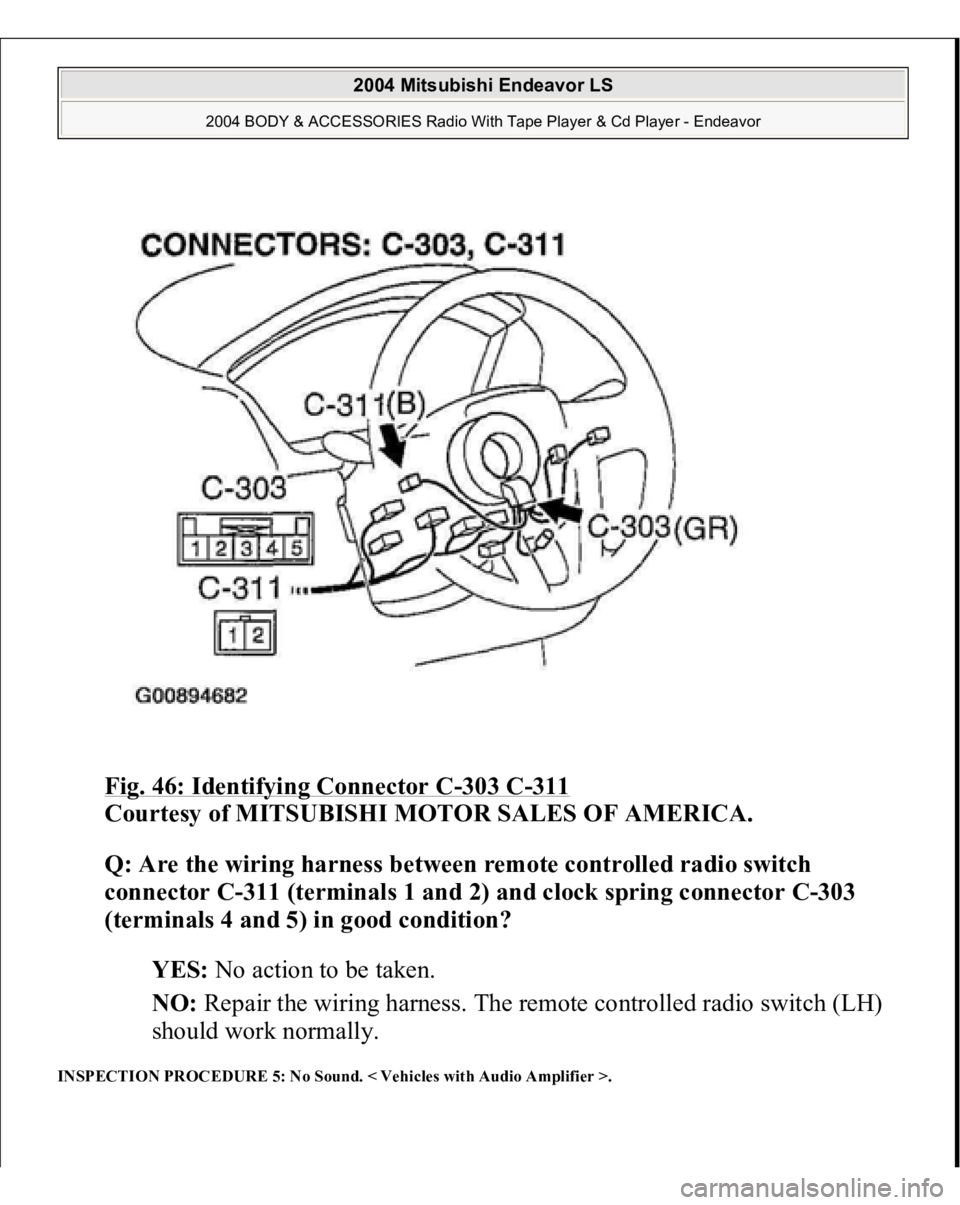

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Identifying Connector C -303 C -311 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the wiring harness between remote controlled radio switch connector C-311 (terminals 1 and 2) and

Page 1676 of 3870

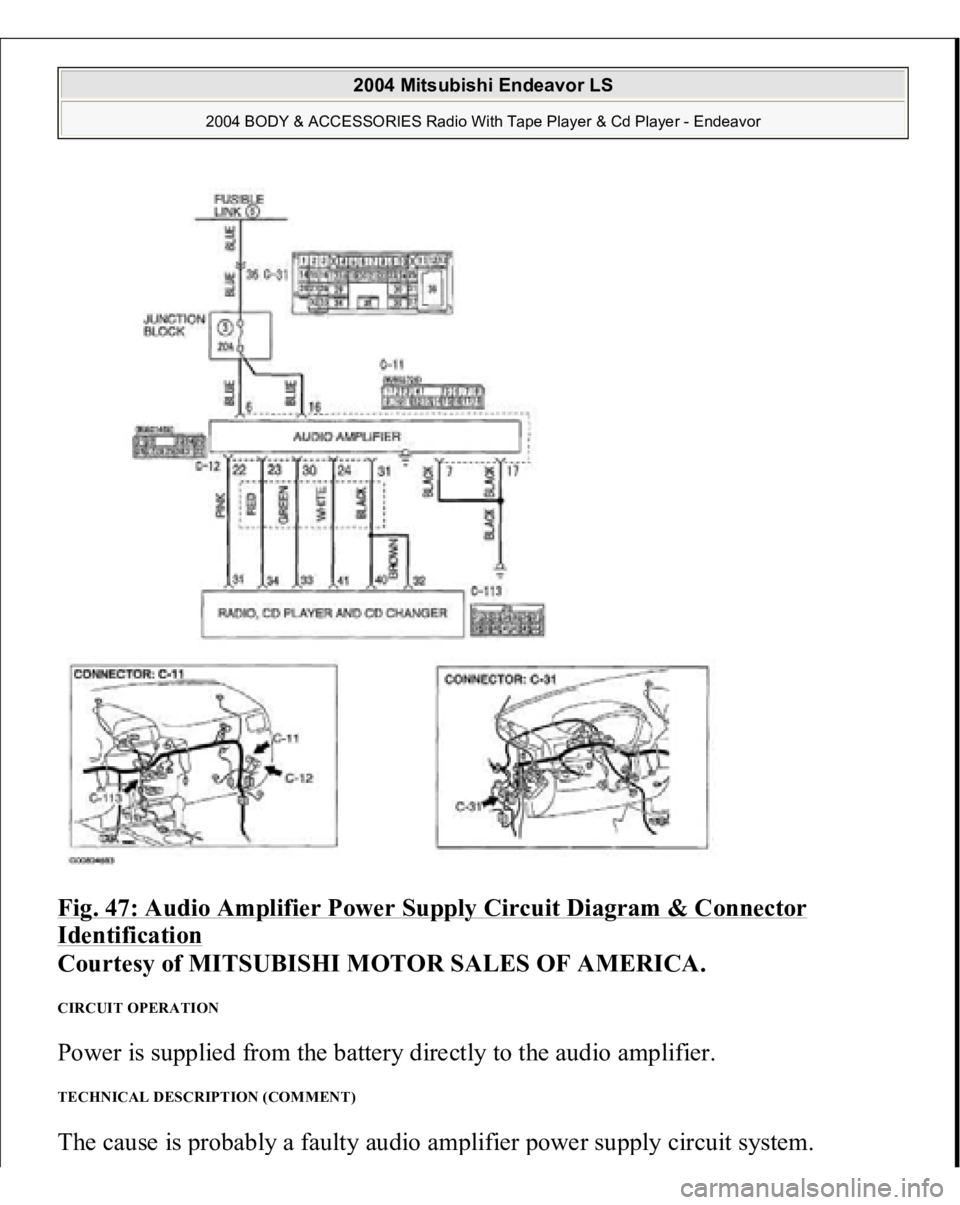

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Audio Amplifier Power Supply Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION Power is supplied from the battery directly to the

Page 1677 of 3870

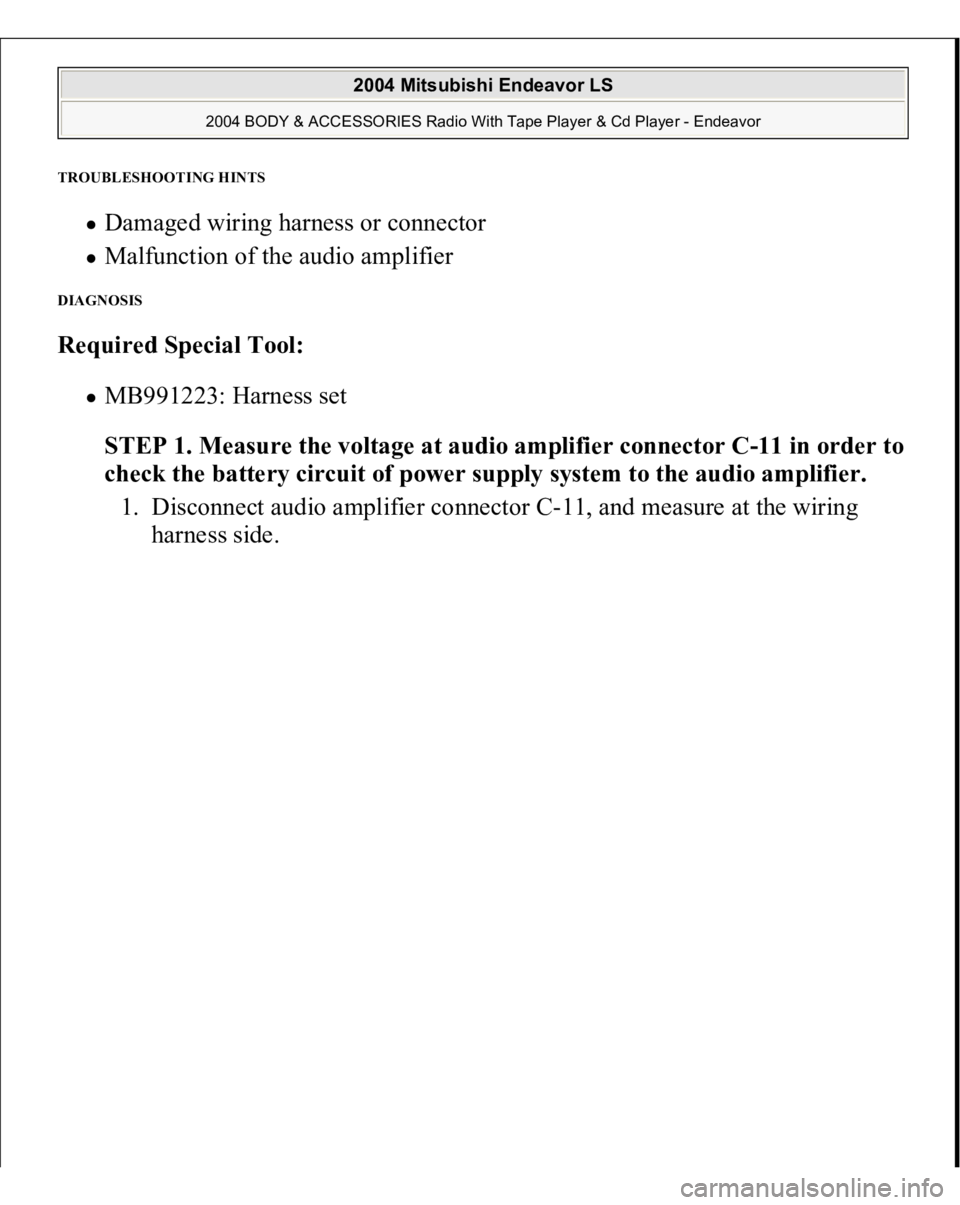

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS Damaged wiring harness or connector Malfunction of the audio amplifier DIAGNOSIS Required Special Tool: MB991223: Harness set STEP 1. Measure the voltage at audio amplifi

Page 1678 of 3870

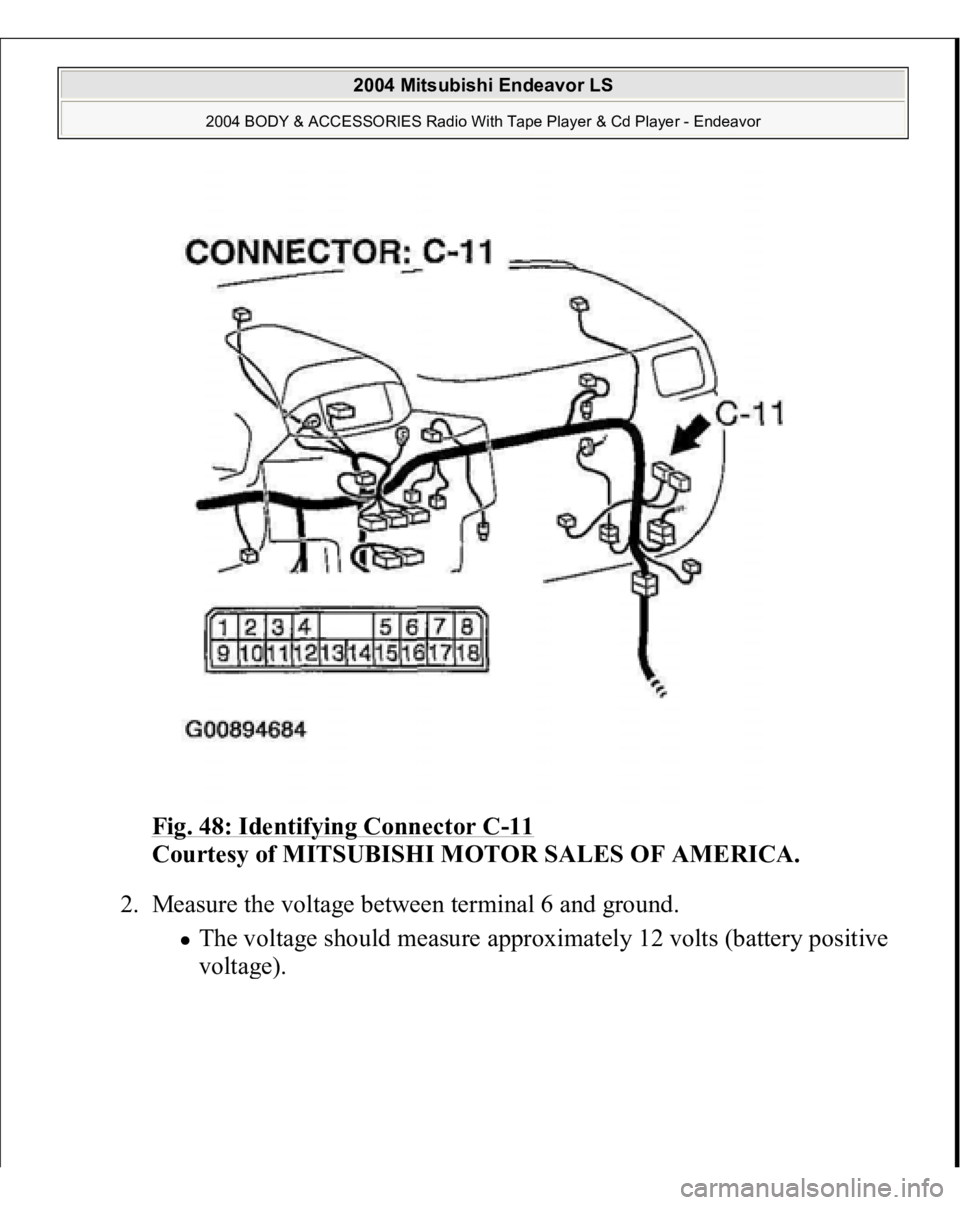

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Identifying Connector C -11 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the voltage between terminal 6 and ground. The voltage should measure approximately 12 volts (battery

Page 1679 of 3870

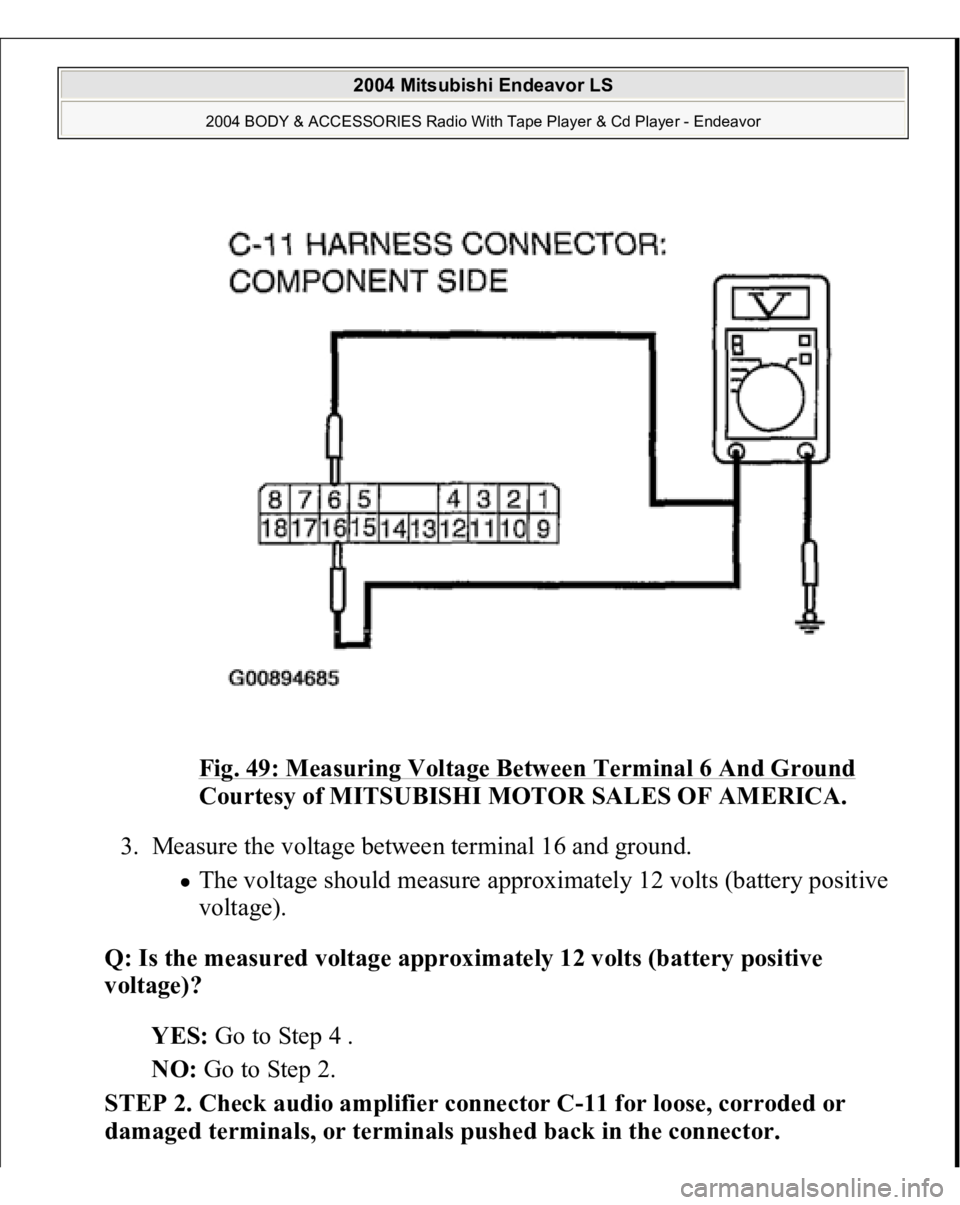

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Measuring Voltage Between Terminal 6 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Measure the voltage between terminal 16 and ground. The voltage should measure approximat

Page 1680 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Identifying Connector C -11 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is audio amplifier connector C-11 in good condition? YES: Go to Step 3. NO: Repair or replace the damaged c
