Page 2129 of 3870

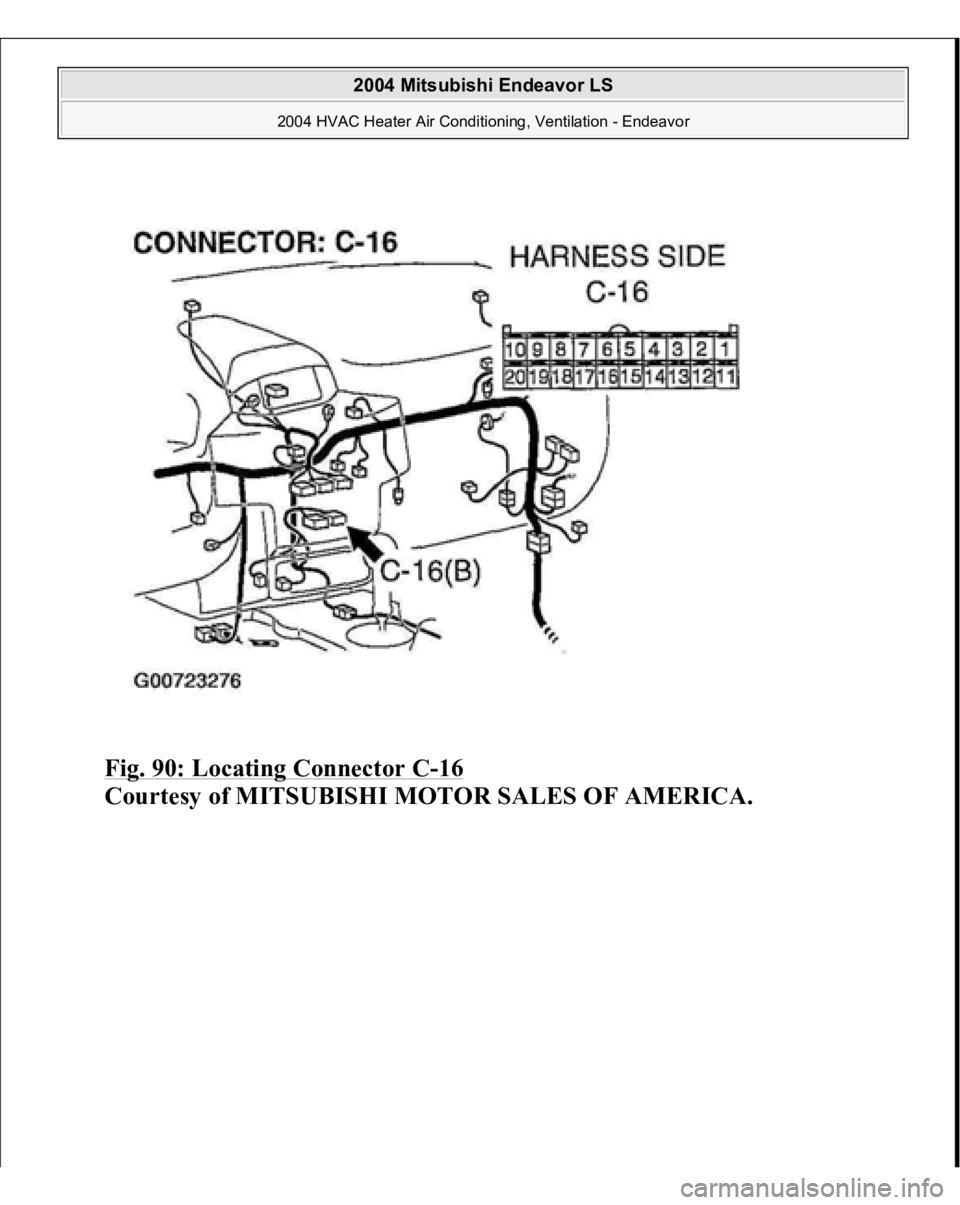

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 90: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2130 of 3870

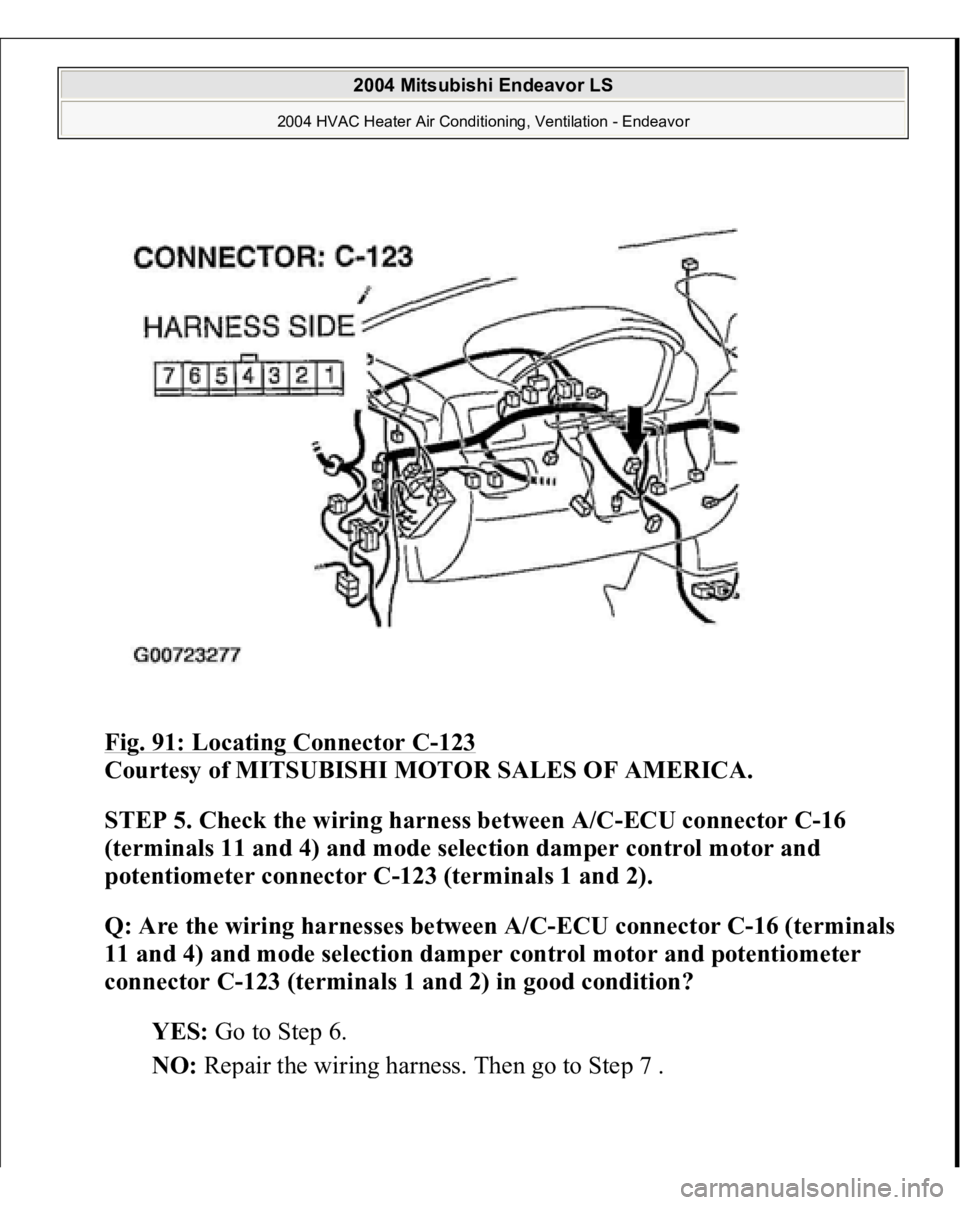

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 91: Locating Connector C -123 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 5. Check the wiring harness between A/C-ECU connector C-16 (terminals 11 and 4) and mode selection damper co

Page 2131 of 3870

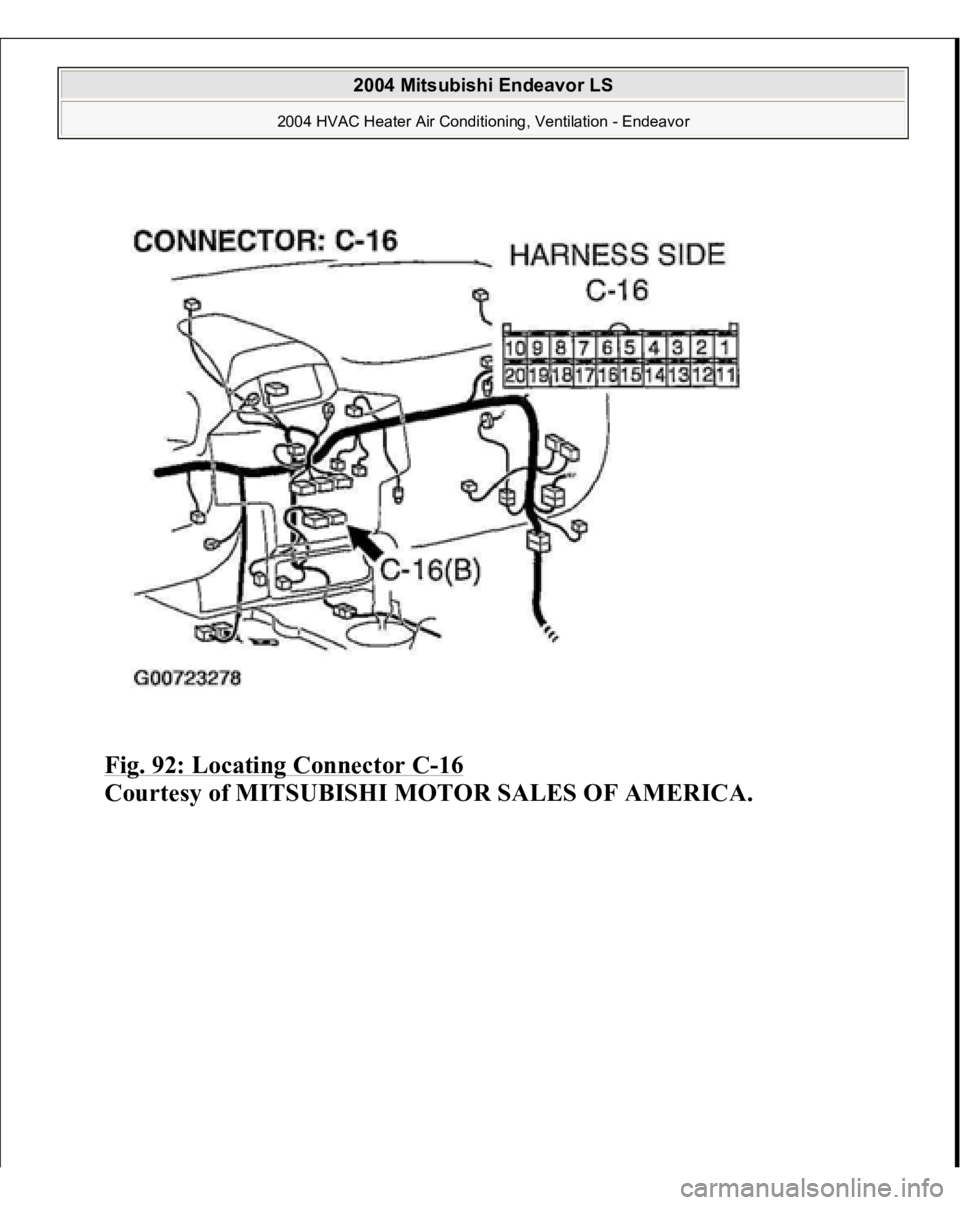

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 92: Locating Connector C -16 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2132 of 3870

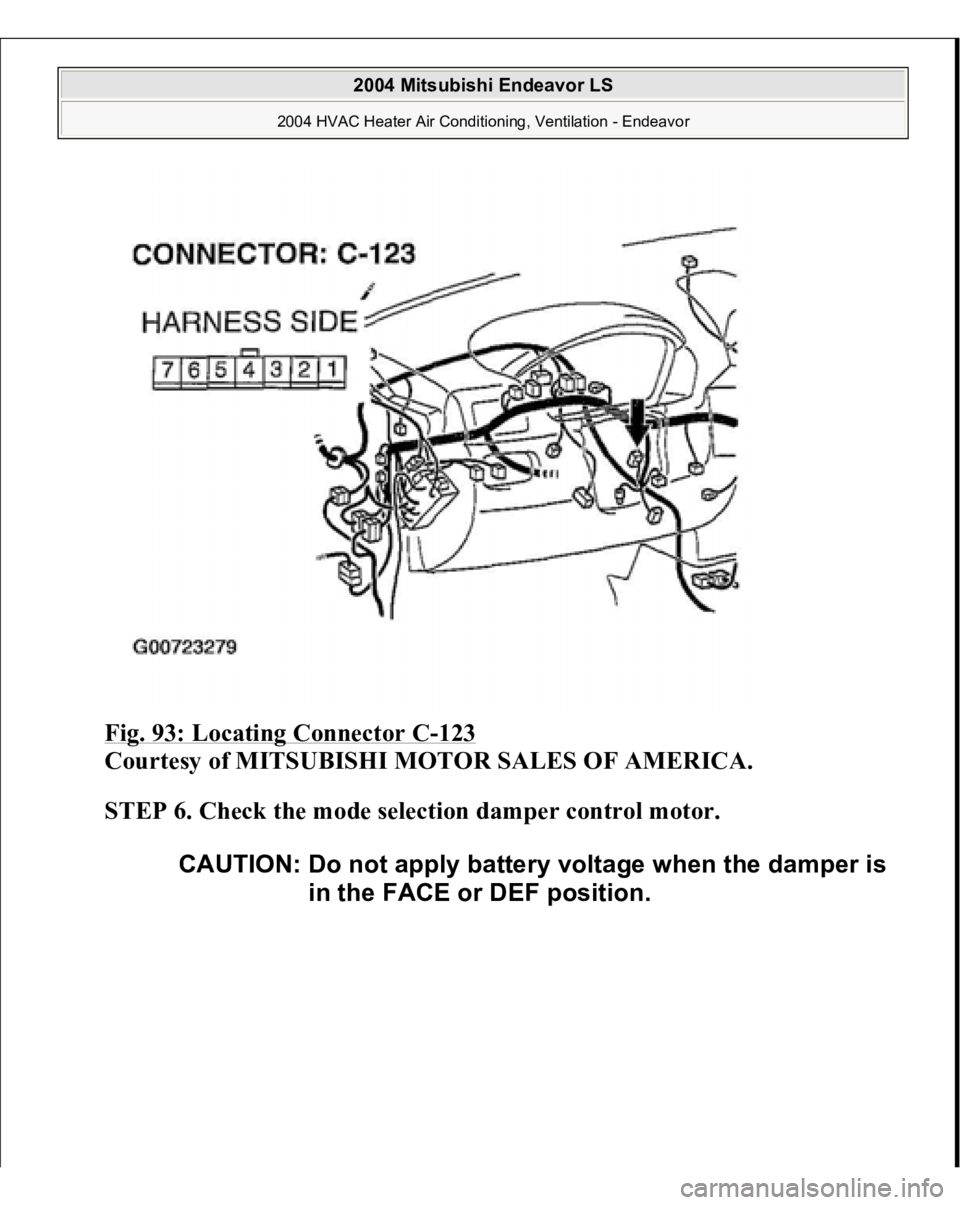

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 93: Locating Connector C -123 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 6. Check the mode selection damper control motor. CAUTION: Do not apply battery voltage when the damper is

Page 2133 of 3870

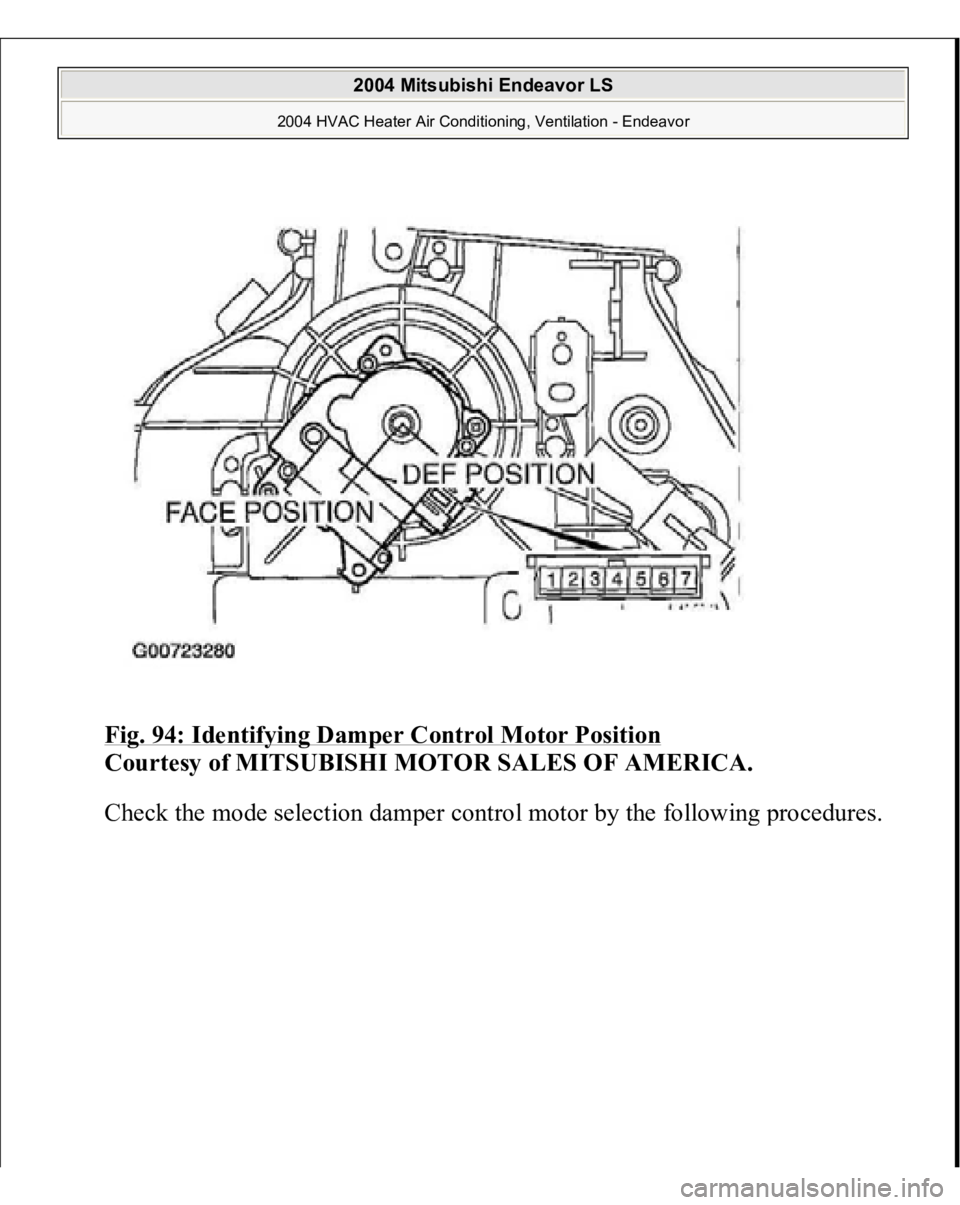

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 94: Identifying Damper Control Motor Position Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Check the mode selection dam per control motor b y the followin g procedures. 2004 Mitsubishi En

Page 2134 of 3870

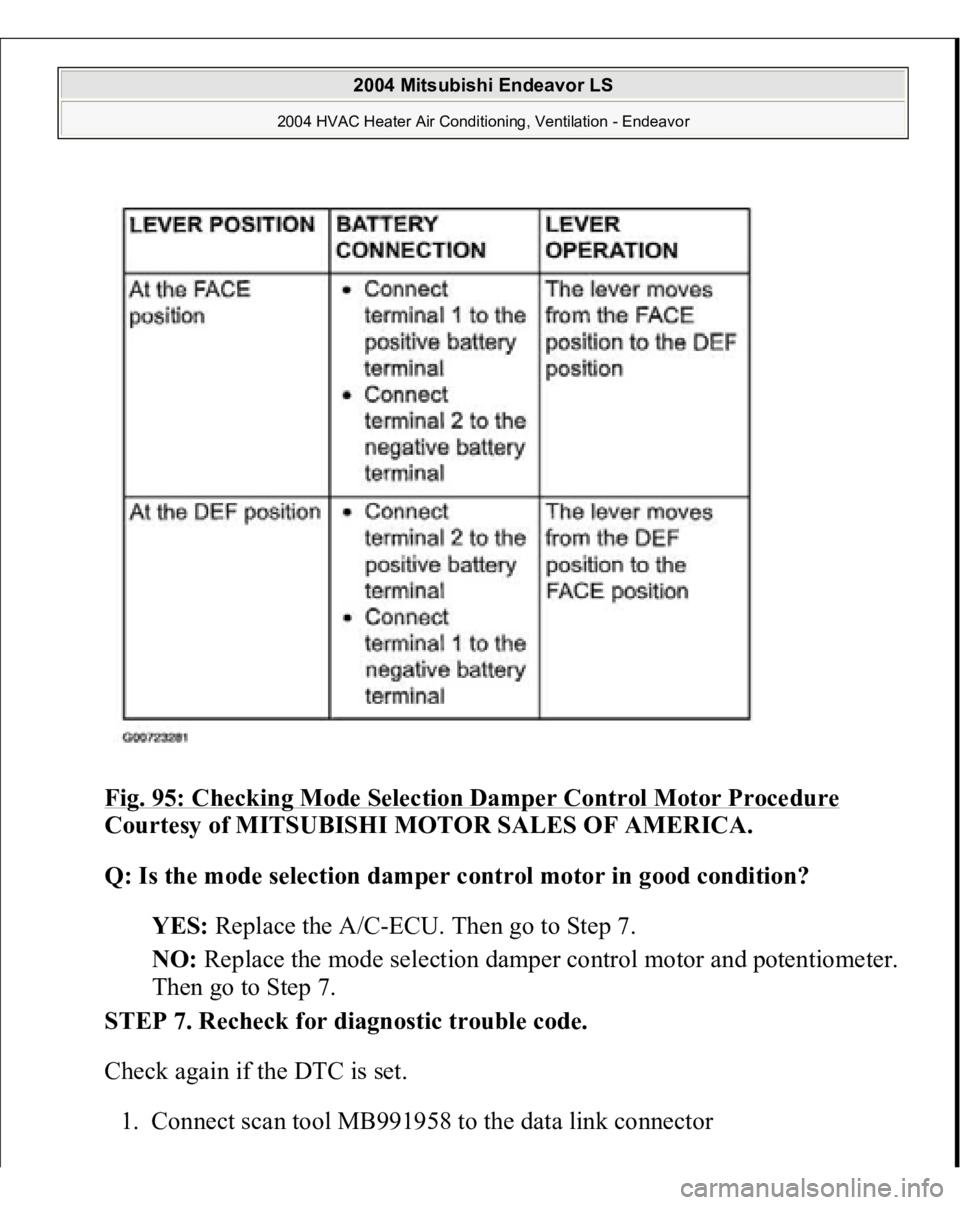

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 95: Checking Mode Selection Damper Control Motor Procedure Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the mode selection damper control motor in good condition? YES: Replace the

Page 2135 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 96: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavo

Page 2136 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the check result satisfactory? YES
