Page 1985 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor IDENTIFICATION For fuse box locations, see Fig. 1 . WARNING:Modifications or improper maintenance, including incorrect removal and installation o

Page 1986 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Locating Fuses & Fusible Links Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ENGINE COMPARTMENT For fuse location and values, see Fig. 2 . 2004 Mitsubishi Endeavor Limited 2004 ELECTRIC

Page 1987 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Identifying Engine Compartment Fuses Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor

Page 1988 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual PASSENGER COMPARTMENTFor fuse location and values, see Fig. 3 . Fig. 3: Identifying Passenger Compartment Fuses Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor Limited

Page 1989 of 3870

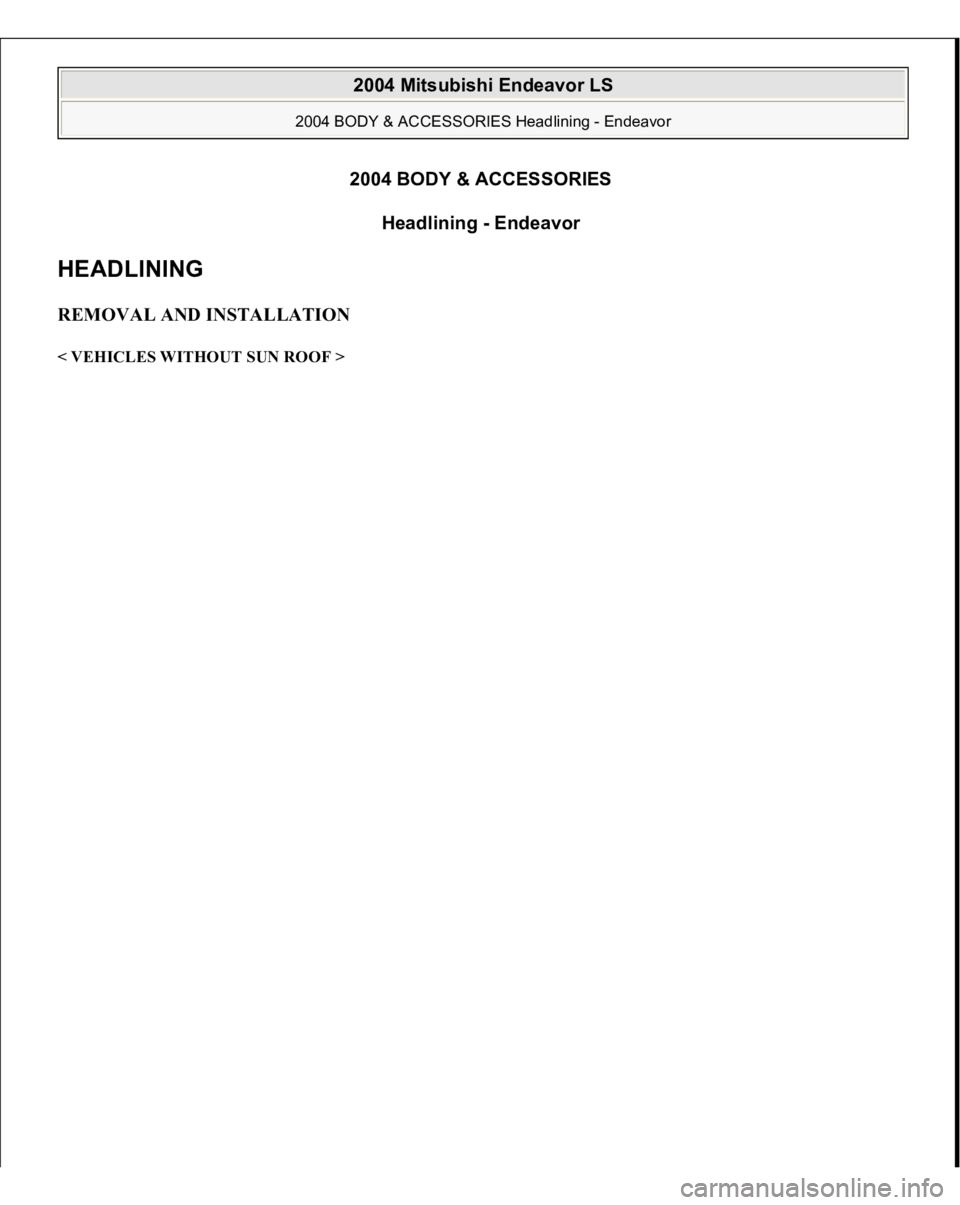

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BODY & ACCESSORIES Headlining - Endeavor HEADLINING REMOVAL AND INSTALLATION < VEHICLES WITHOUT SUN ROOF > 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Headlining - Endeavor 2004

Page 1990 of 3870

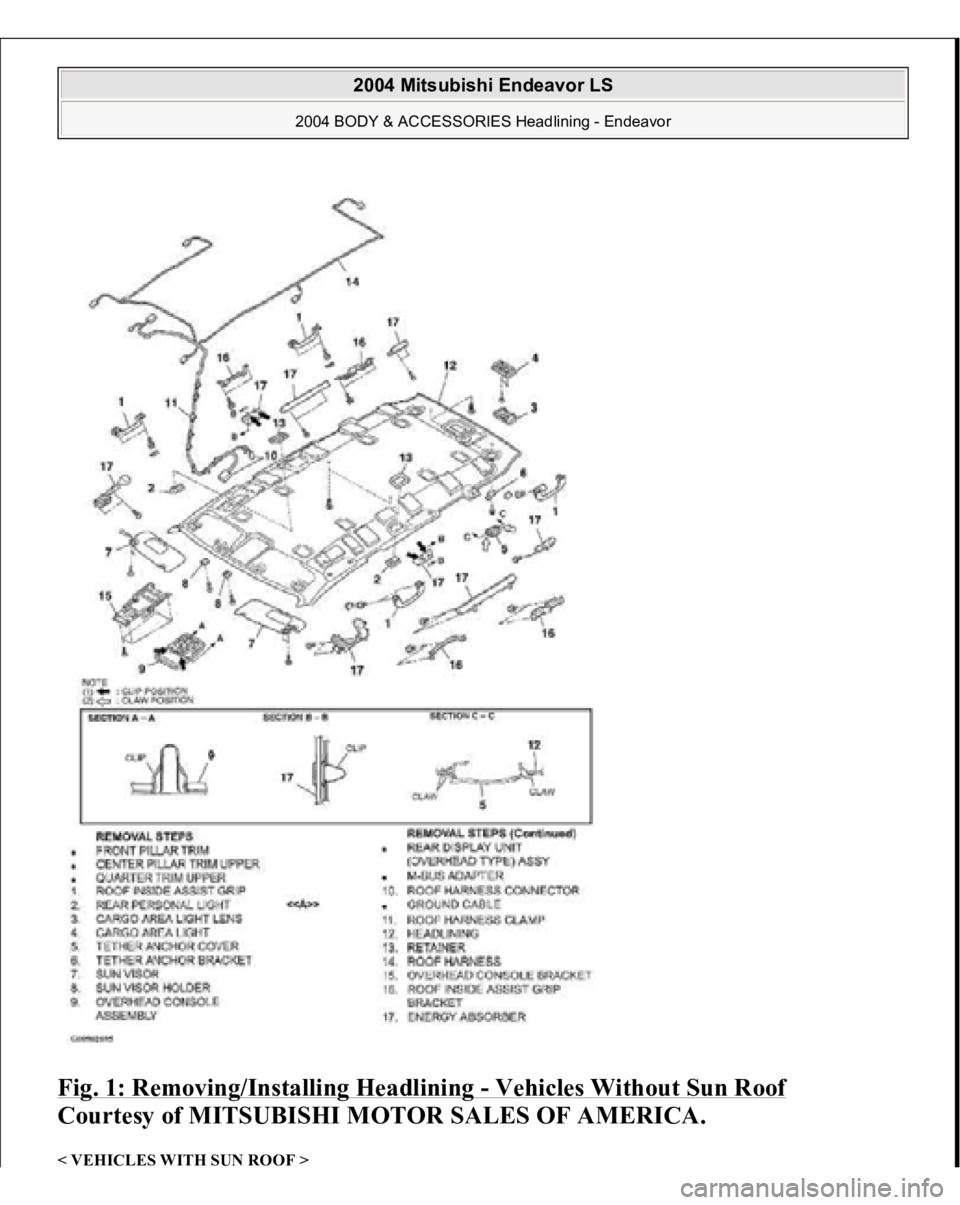

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Removing/Installing Headlining - Vehicles Without Sun Roof Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. < VEHICLES WITH SUN ROOF > 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES

Page 1991 of 3870

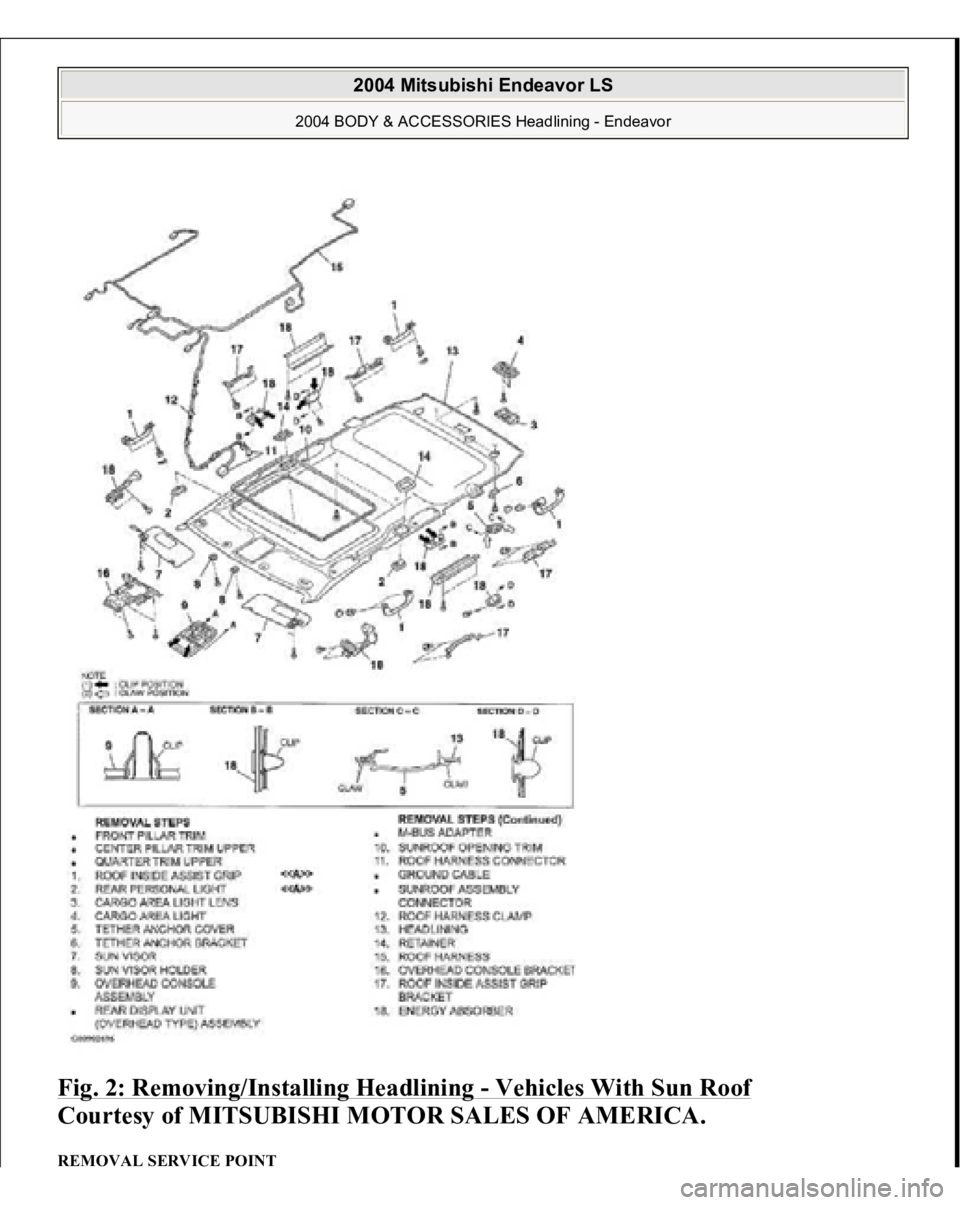

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Removing/Installing Headlining - Vehicles With Sun Roof Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Headlini

Page 1992 of 3870

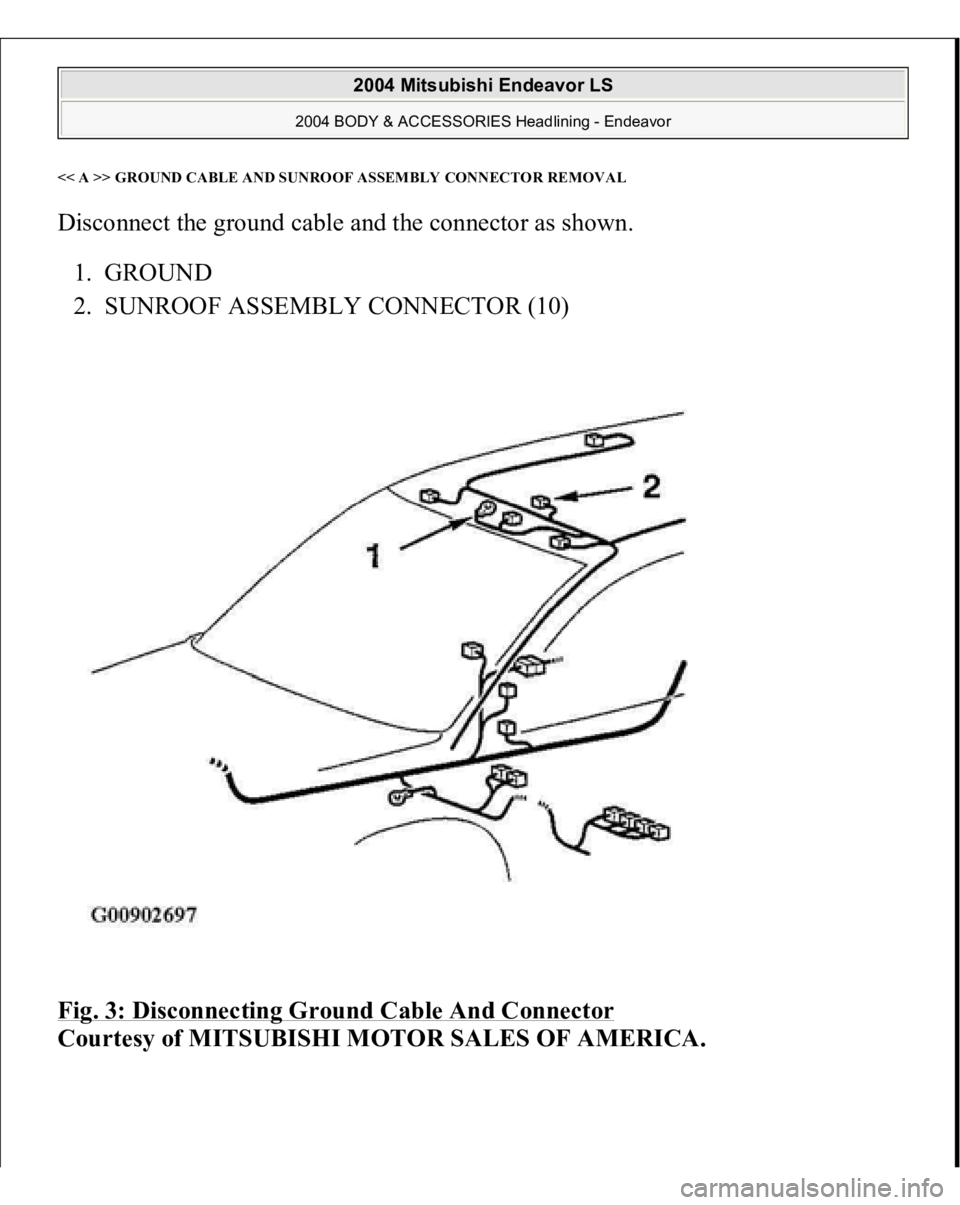

MITSUBISHI ENDEAVOR 2004 Service Repair Manual << A >> GROUND CABLE AND SUNROOF ASSEMBLY CONNECTO RREMOVA L Disconnect the ground cable and the connector as shown. 1. GROUND 2. SUNROOF ASSEMBLY CONNECTOR (10) Fig. 3: Disconnecting Ground Cab
