Page 2625 of 3870

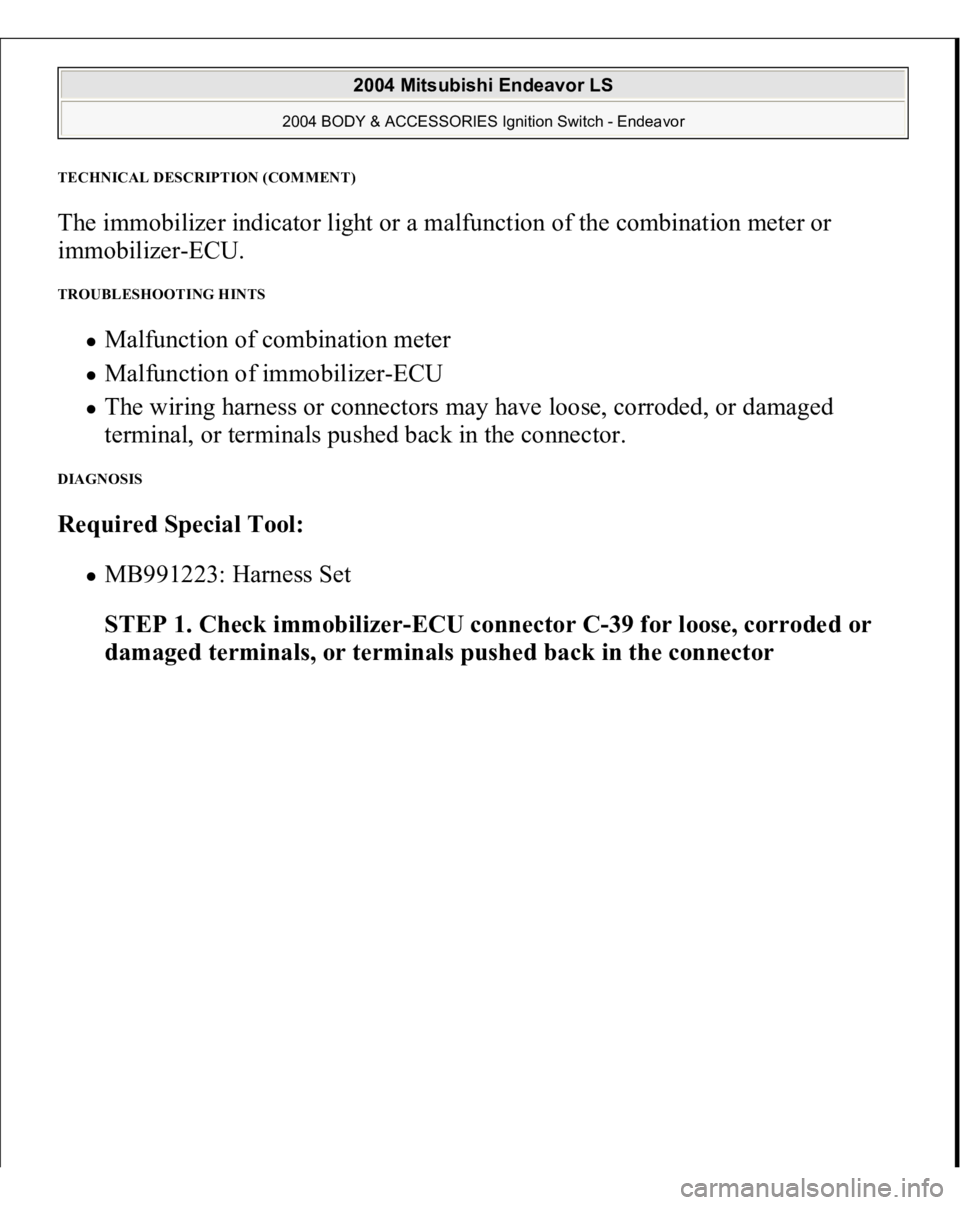

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TECHNICAL DESCRIPTION (COMMENT ) The immobilizer indicator light or a malfunction of the combination meter or immobilizer-ECU. TROUBLESHOOTING HINTS Malfunction of combination meter Malfunction of

Page 2626 of 3870

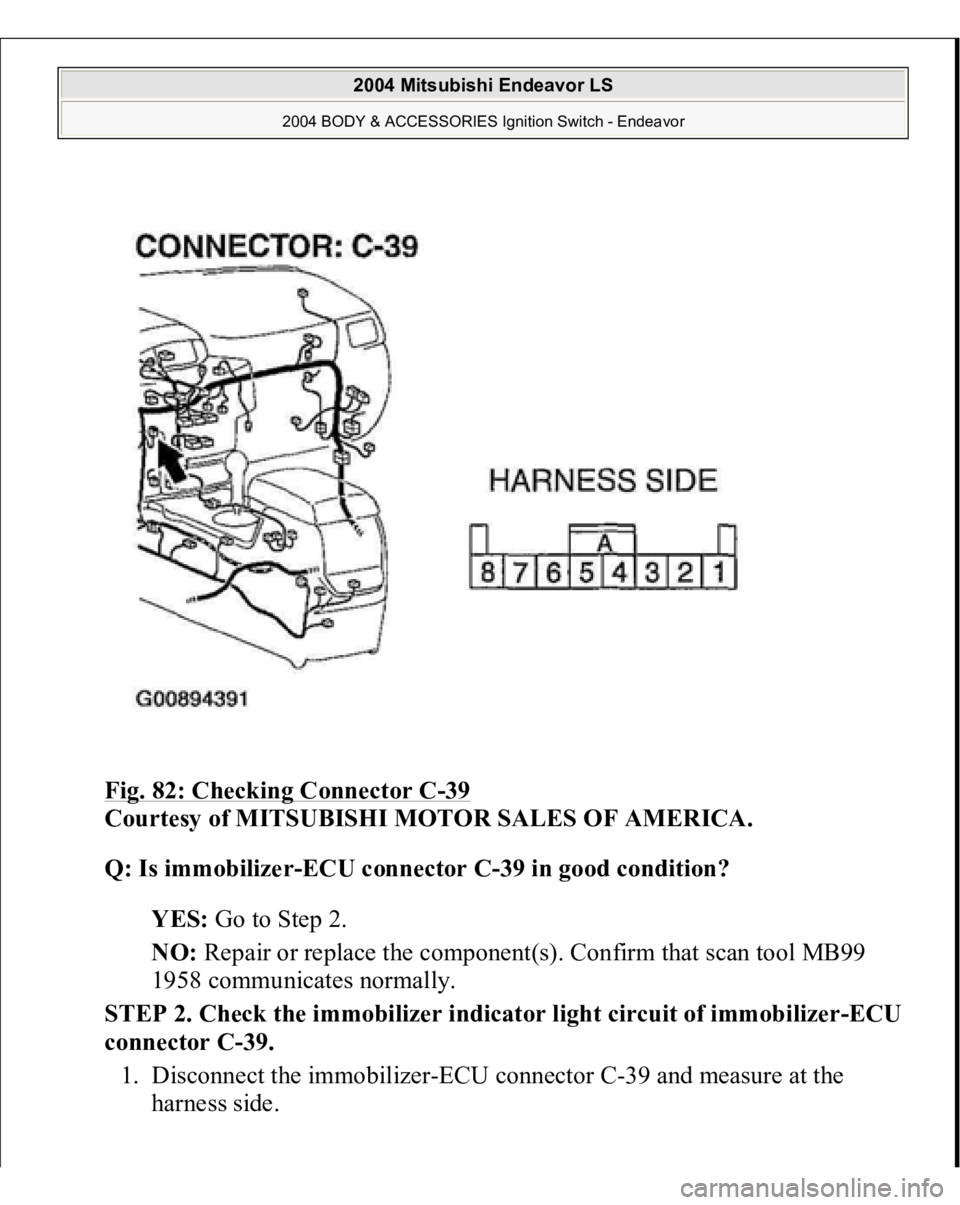

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 82: Checking Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is immobilizer-ECU connector C-39 in good condition? YES: Go to Step 2. NO: Repair or replace the component(s)

Page 2627 of 3870

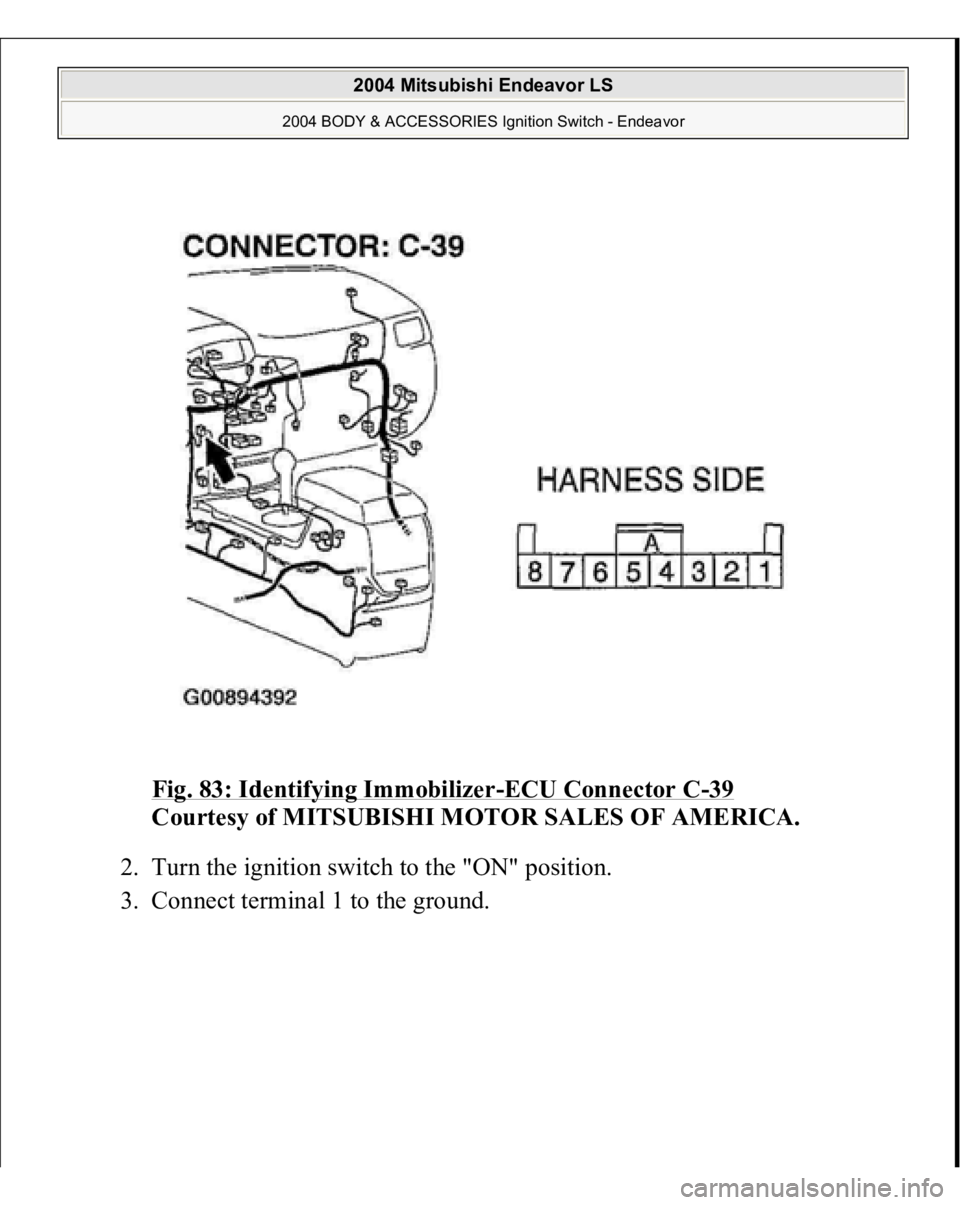

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 83: Identifying Immobilizer -ECU Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the ignition switch to the "ON" position. 3. Connect terminal 1 to the ground.

Page 2628 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 84: Checking Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does only the immobilizer indicator light illuminate? (other indicator lights are in good condition) YES: Repla

Page 2629 of 3870

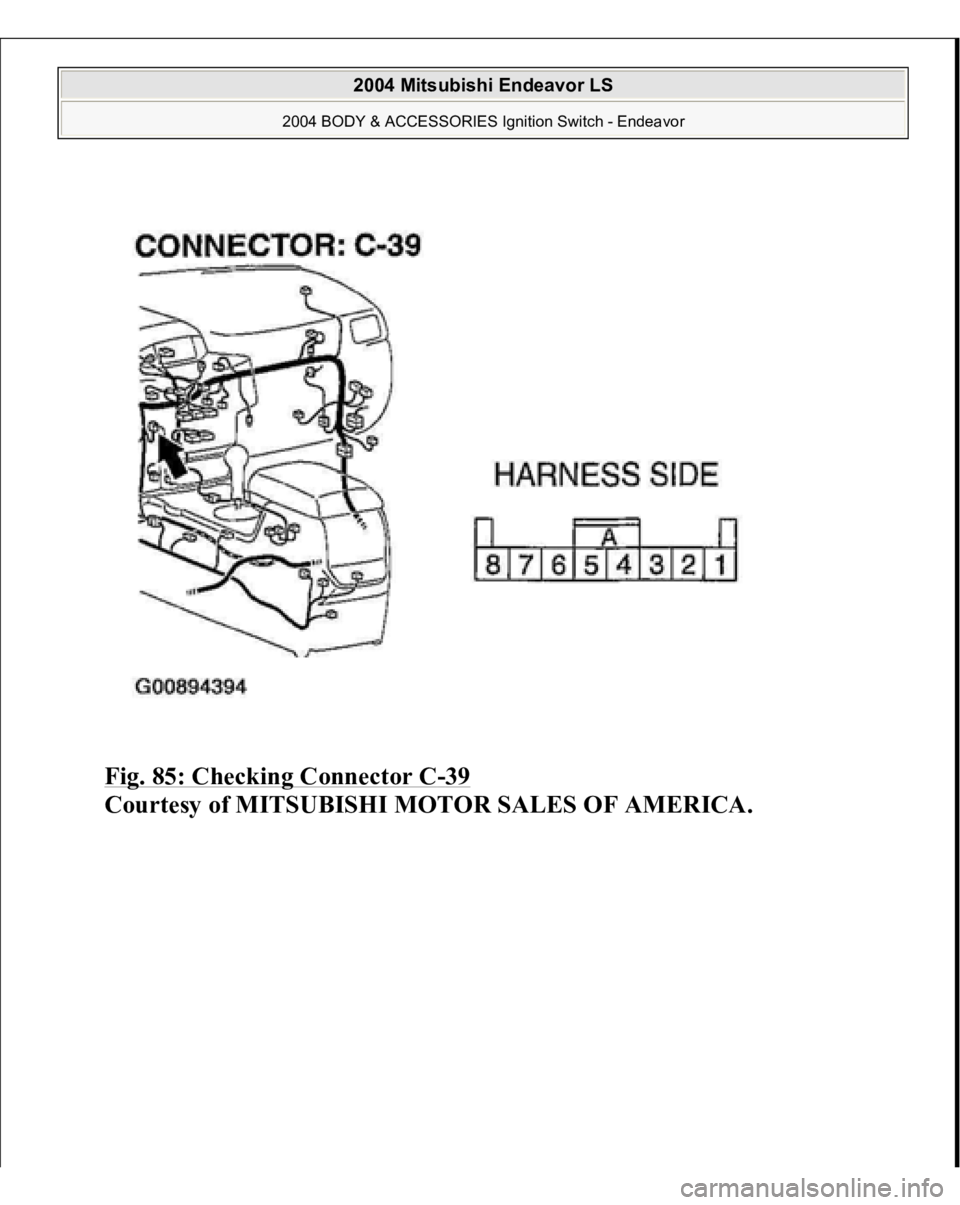

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 85: Checking Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2630 of 3870

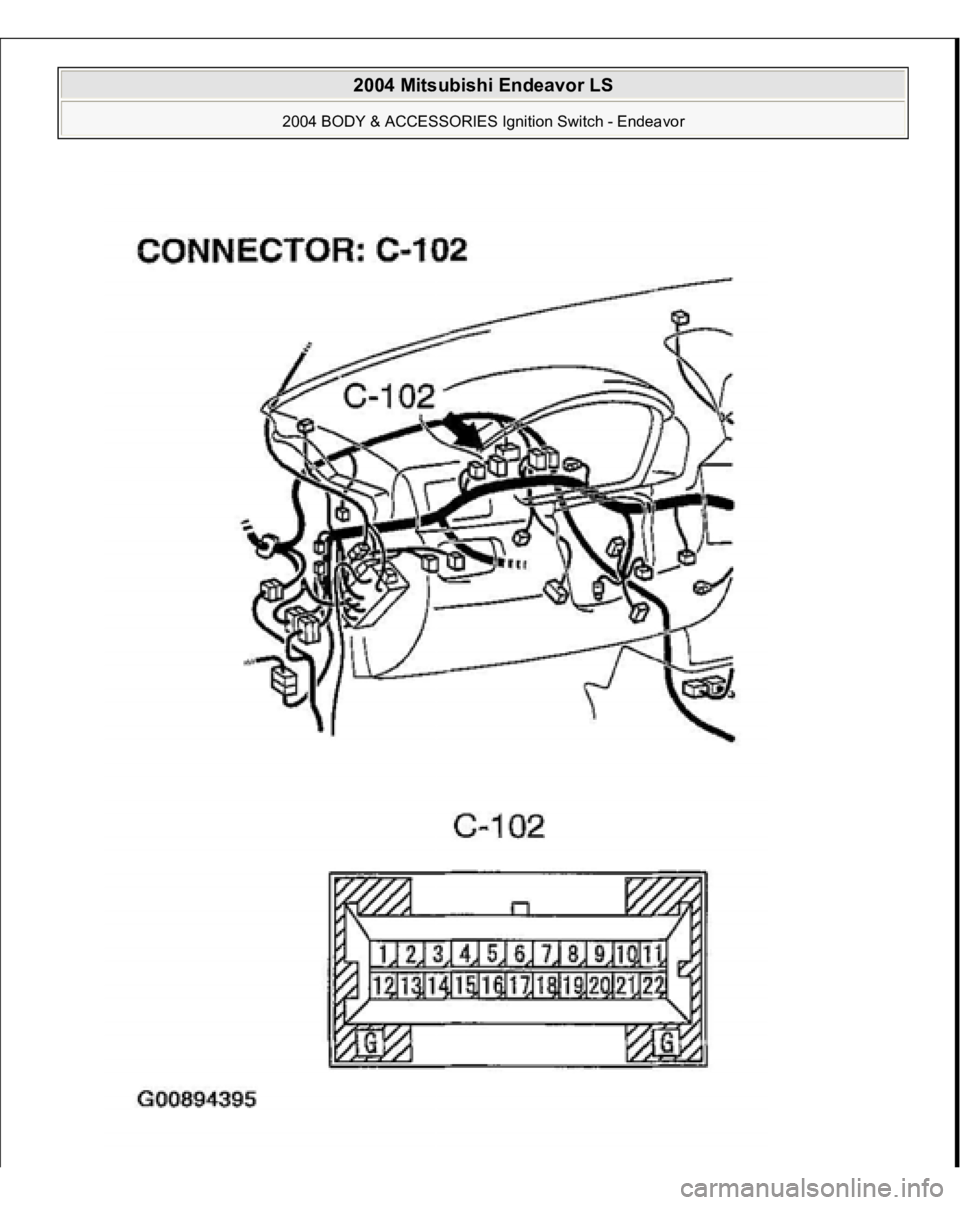

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2631 of 3870

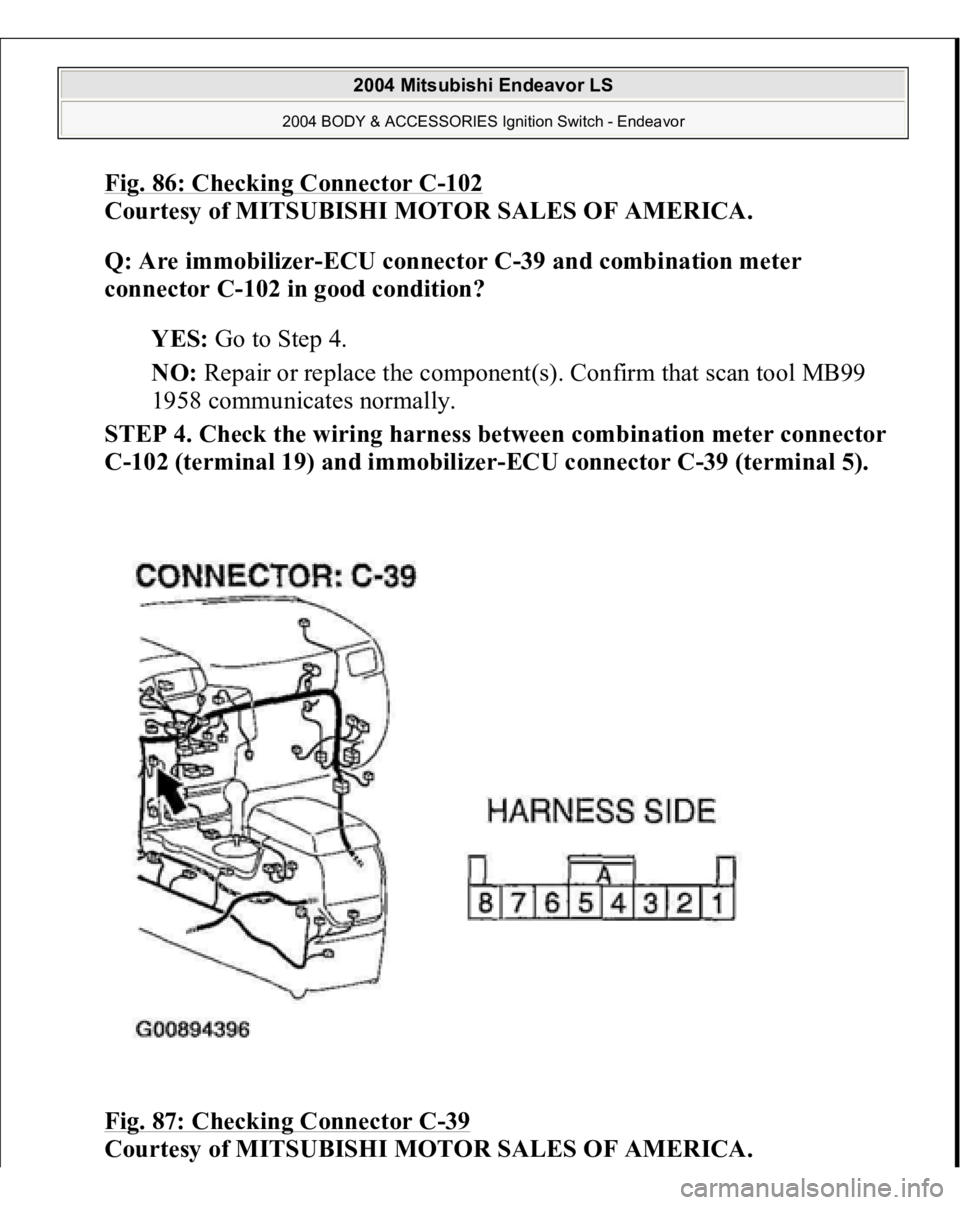

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 86: Checking Connector C -102 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are immobilizer-ECU connector C-39 and combination meter connector C-102 in good condition? YES: Go to Step 4

Page 2632 of 3870

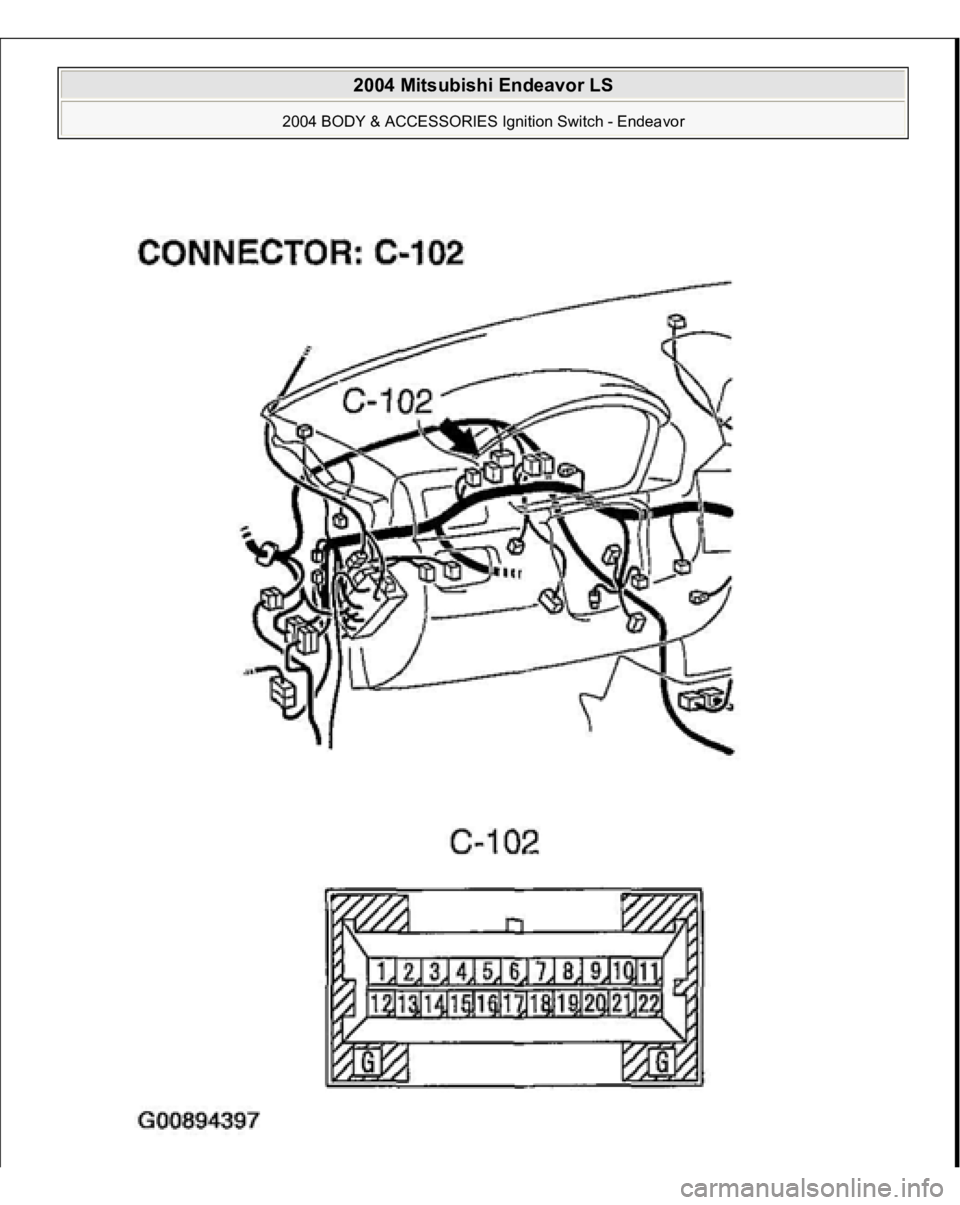

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor
