Page 1281 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual See REGULATOR VOLTAGE SPECIFICATIONS TABLE . 14. After the test, lower the engine speed to idle. 15. Turn the ignition switch to the LOCK (OFF) position. 16. Disconnect the engine tachometer or

Page 1282 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

Page 1283 of 3870

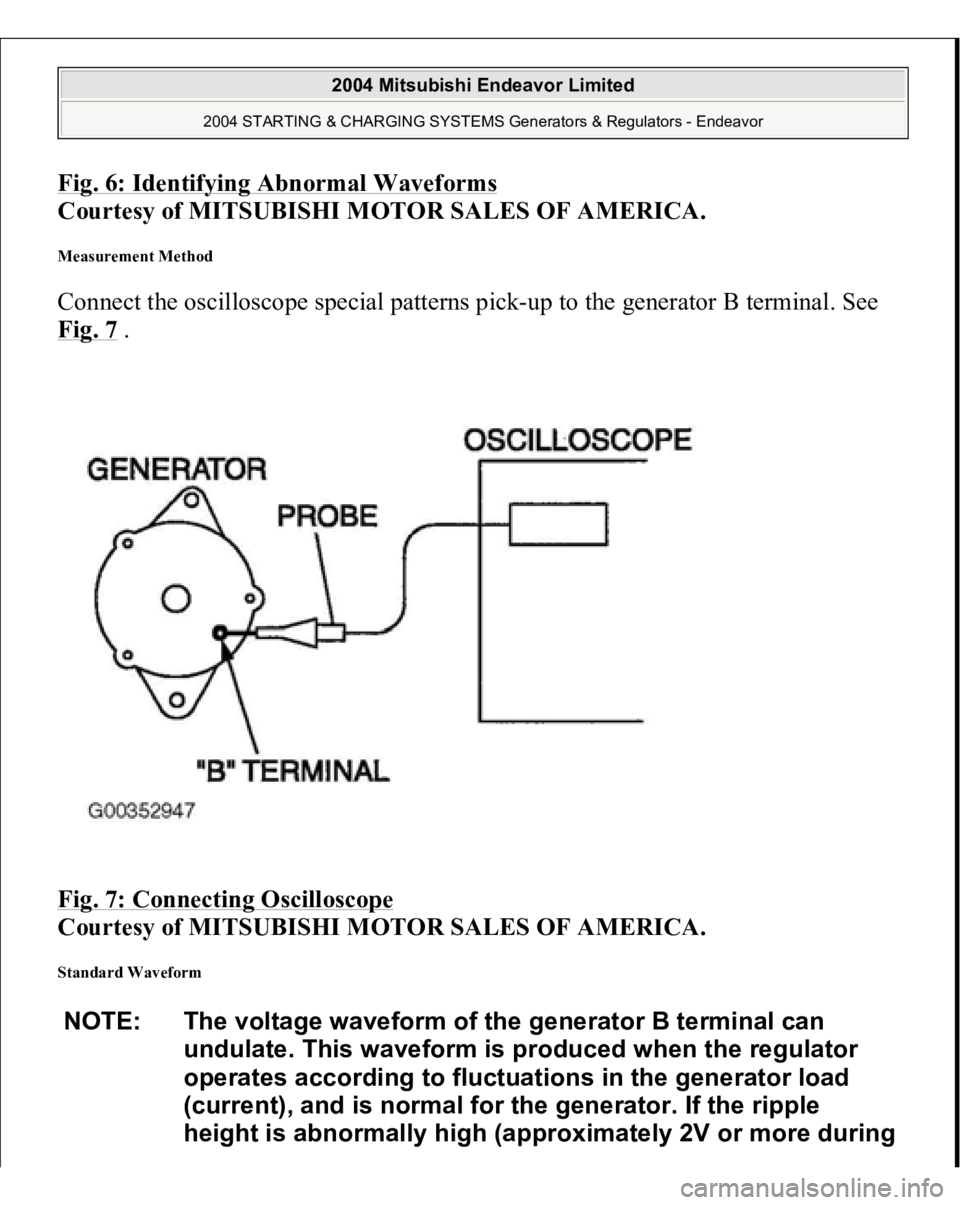

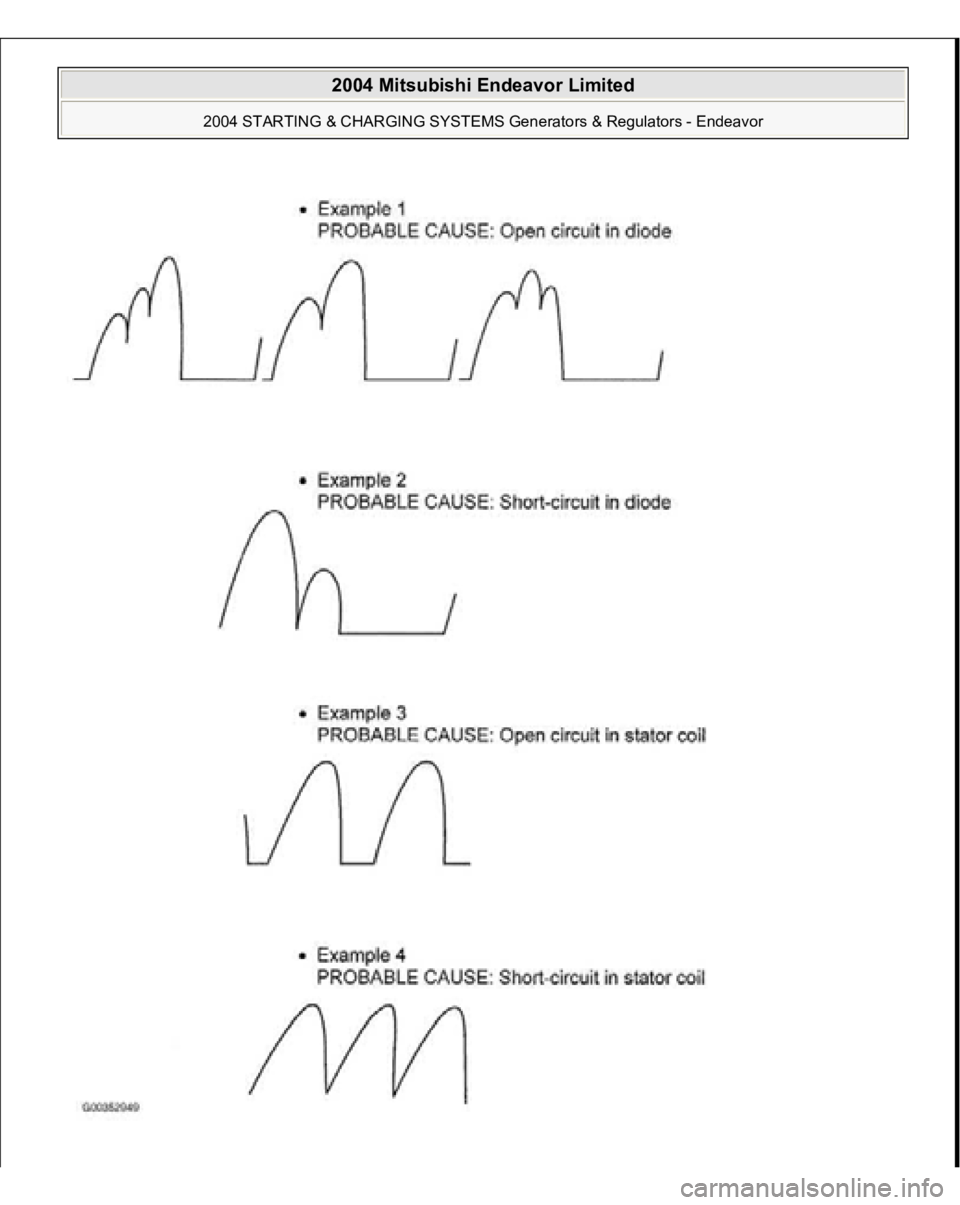

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Identifying Abnormal Waveforms Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Measurement Method Connect the oscilloscope special patterns pick-up to the generator B terminal. See Fig. 7

Page 1284 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual For standard waveform observation conditions, see Fig. 8 . Fig. 8: Identifying Observation Conditions Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. COMPONENT TESTING BRUSH 1. Replace the brush i

Page 1285 of 3870

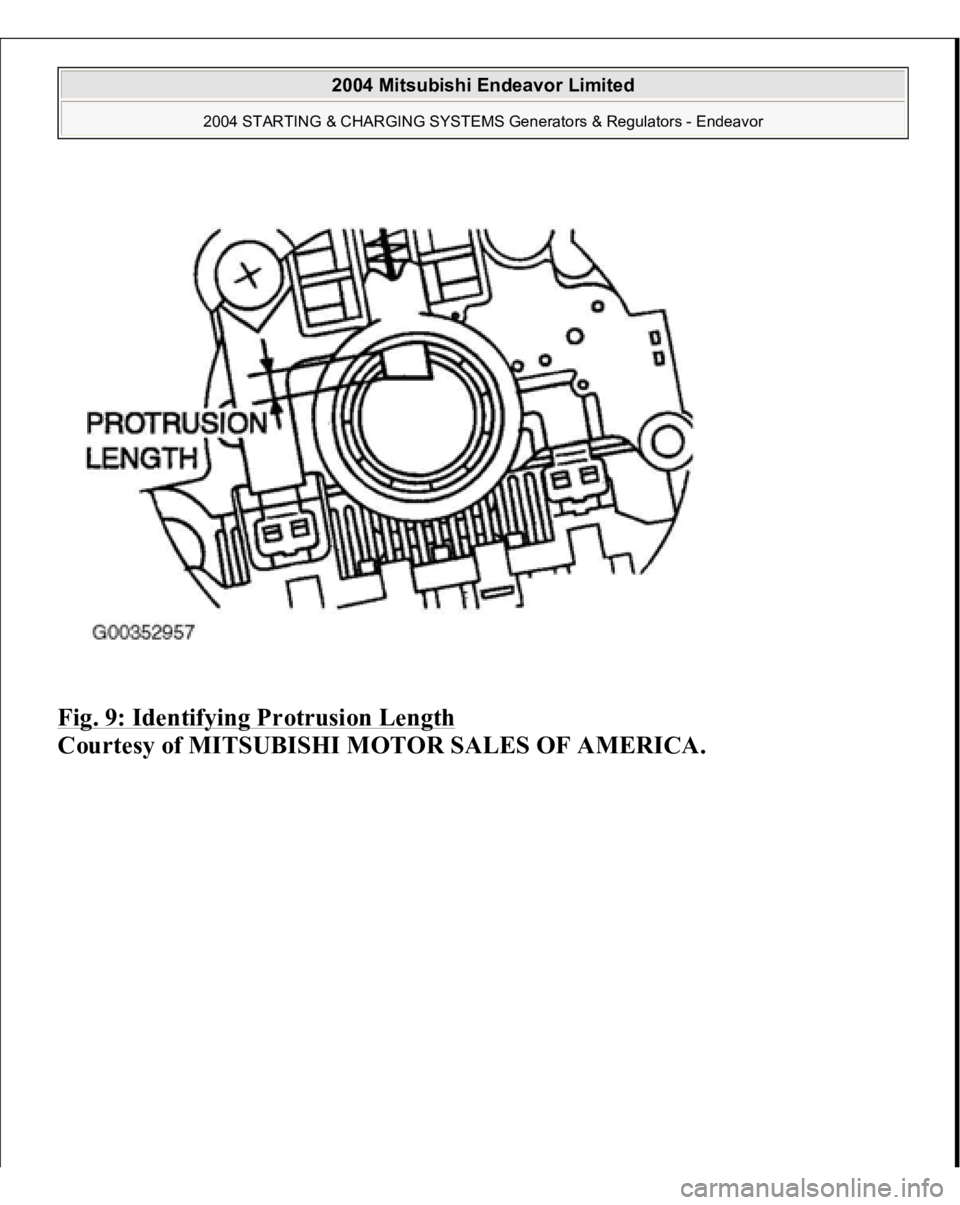

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Identifying Protrusion Length Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

Page 1286 of 3870

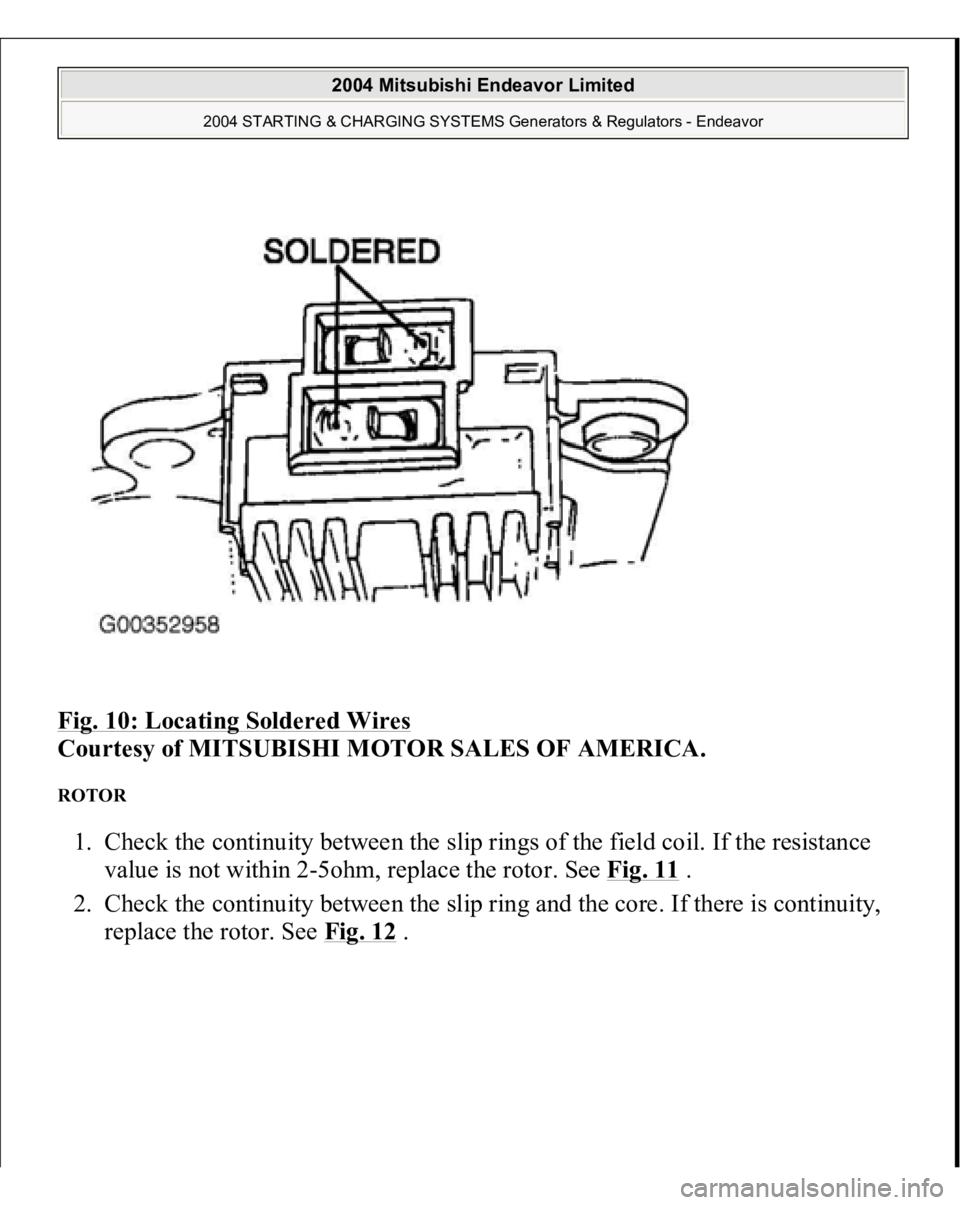

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Locating Soldered Wires Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ROTOR 1. Check the continuity between the slip rings of the field coil. If the resistance value is not within 2-5ohm

Page 1287 of 3870

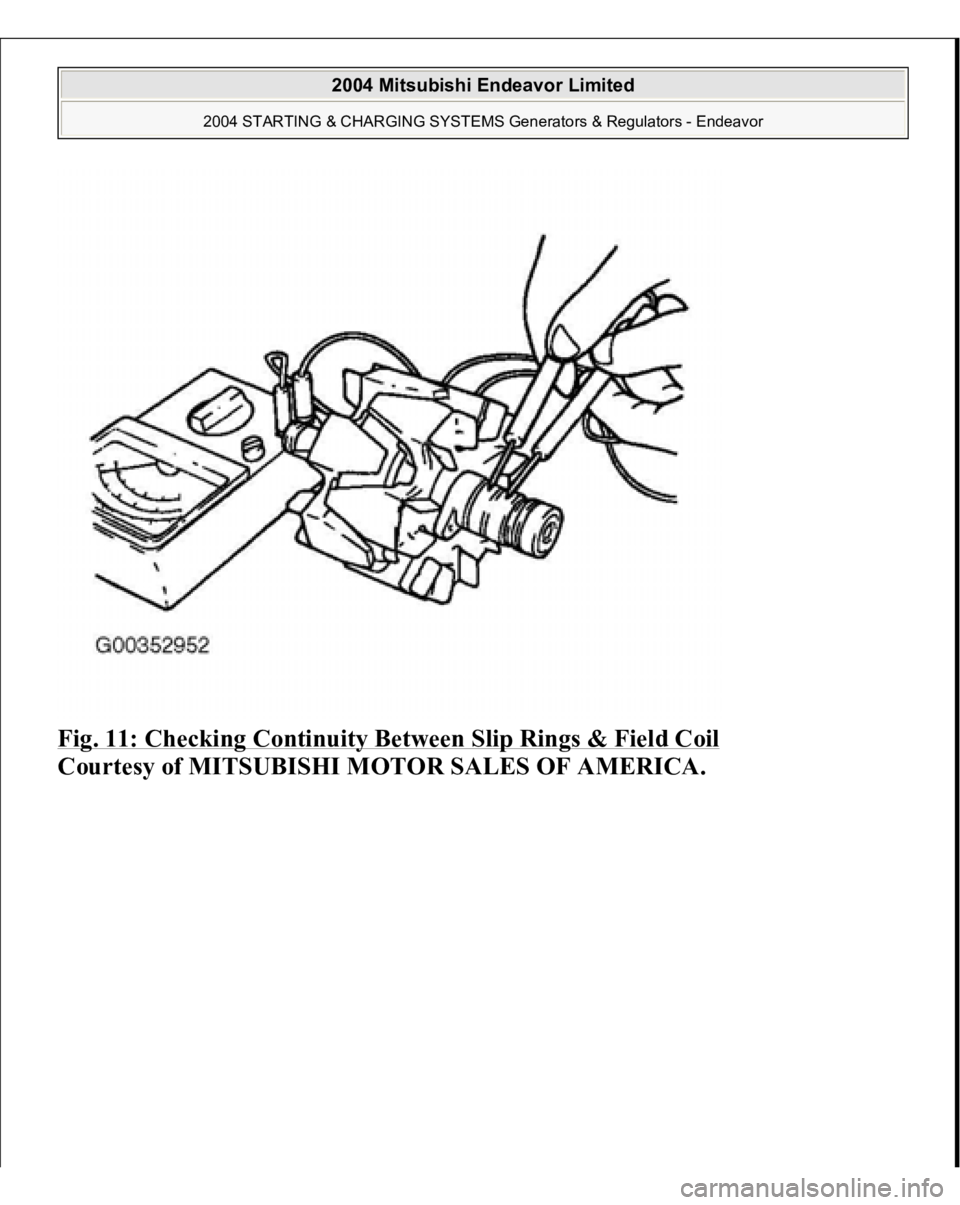

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Checking Continuity Between Slip Rings & Field Coil Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators & Regulato

Page 1288 of 3870

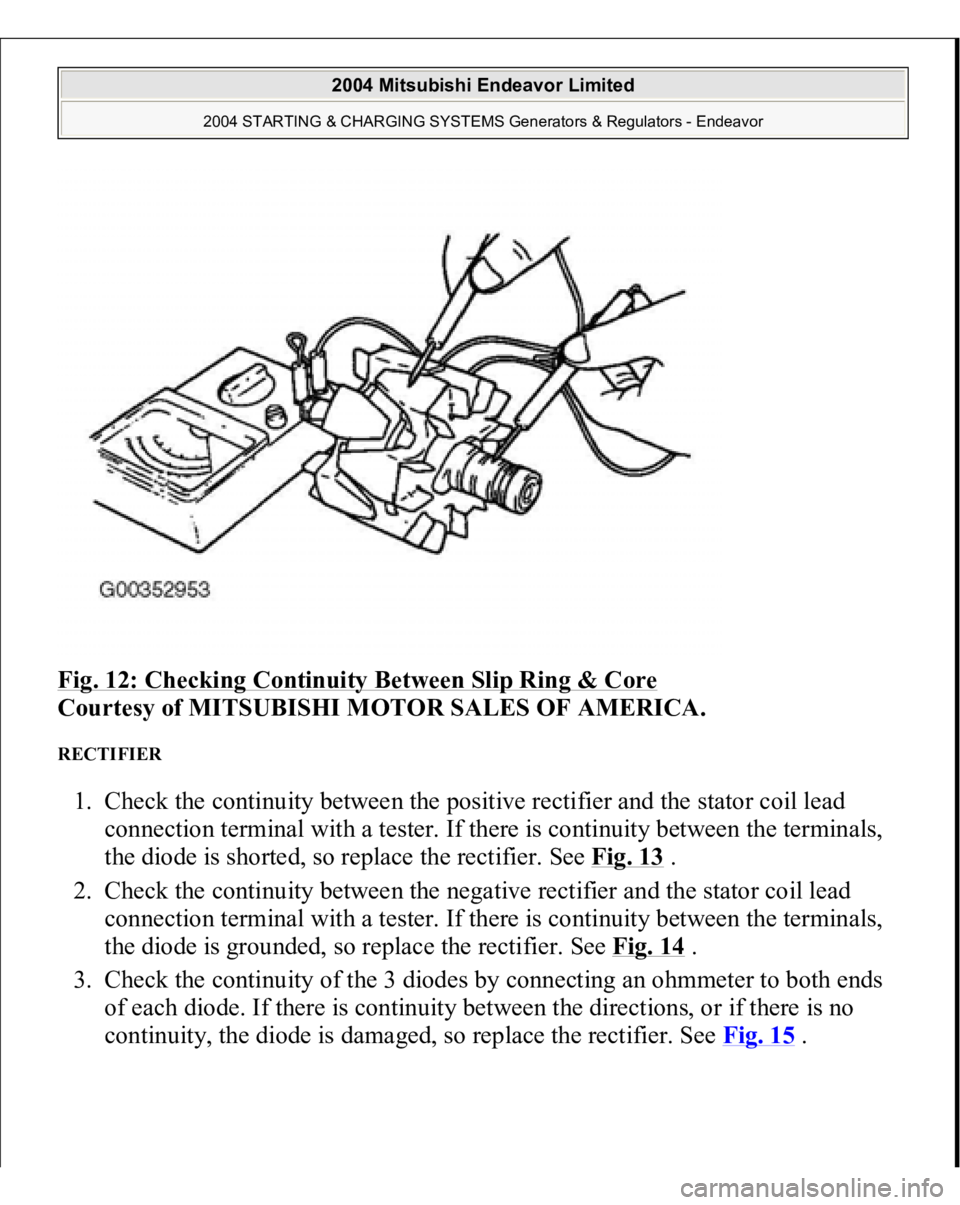

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Checking Continuity Between Slip Ring & Core Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. RECTIFIER 1. Check the continuity between the positive rectifier and the stator coil lead conne
