Page 2753 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Identifying Connector C - 13 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between joint connector (2) C-104 (terminal 24) and remote controlled mirror (RH) con

Page 2754 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Heated Door Mirror Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door M

Page 2755 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual If the heater function (heated door mirror) of either of the door mirrors does not operate normally, it may be due to malfunctions in the heated door mirror circuit or door mirror. TROUBLESHOOTING H

Page 2756 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Identifying Connector E - 14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is remote controlled mirror (LH) connector E-14 in good condition? YES: Go to Step 3. NO: Repair or repl

Page 2757 of 3870

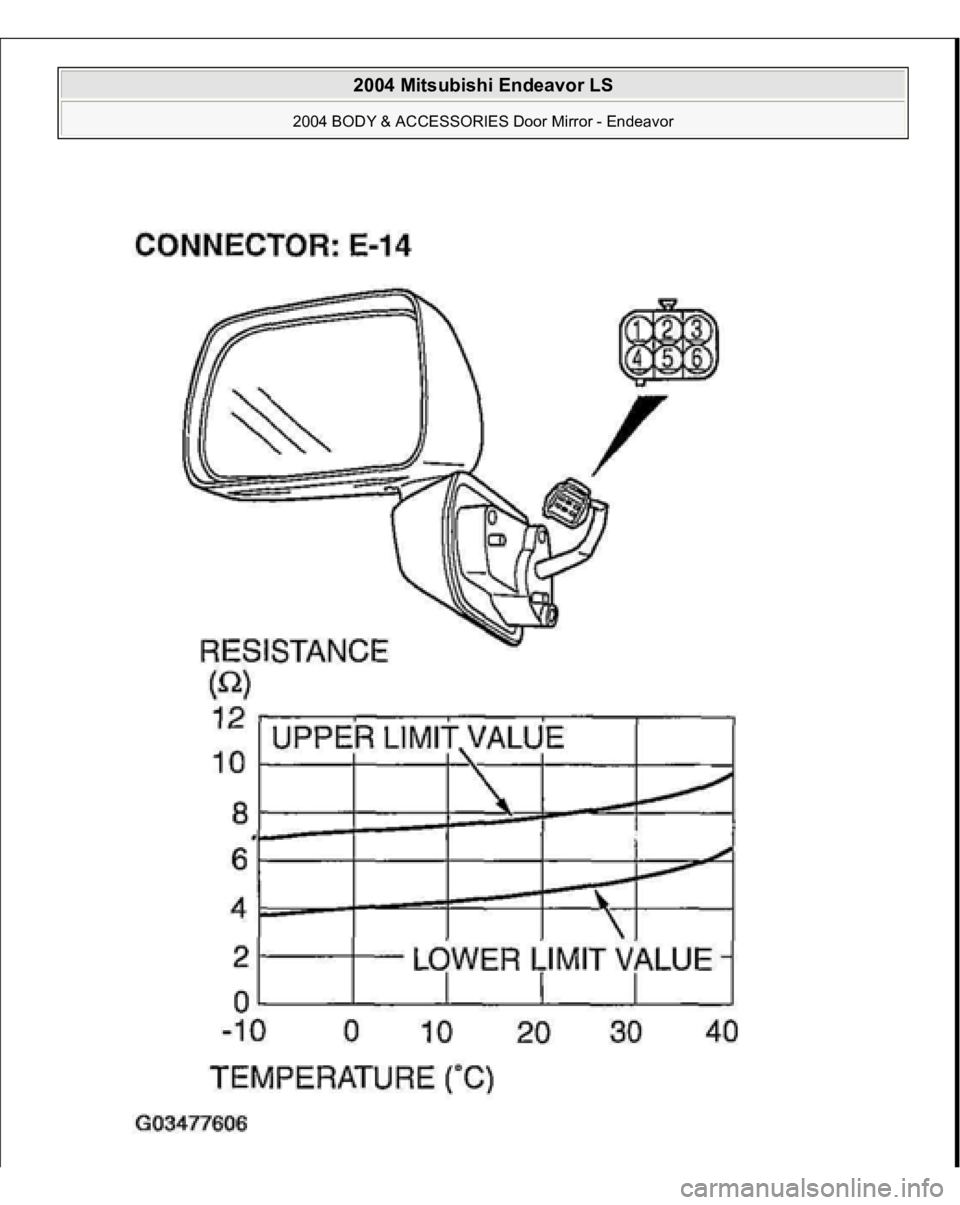

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Check to see that the resistance shown in the graph is almost satisfied when measuring the resistance between terminal 1 and 3 of the remote controlled mirror (LH ) connector E-14. cold), leave th

Page 2758 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door Mirror - Endeavor

Page 2759 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Identifying Connector E -14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured value within the range in the graph? YES: Go to Step 4. NO: Replace the door mirror (LH).

Page 2760 of 3870

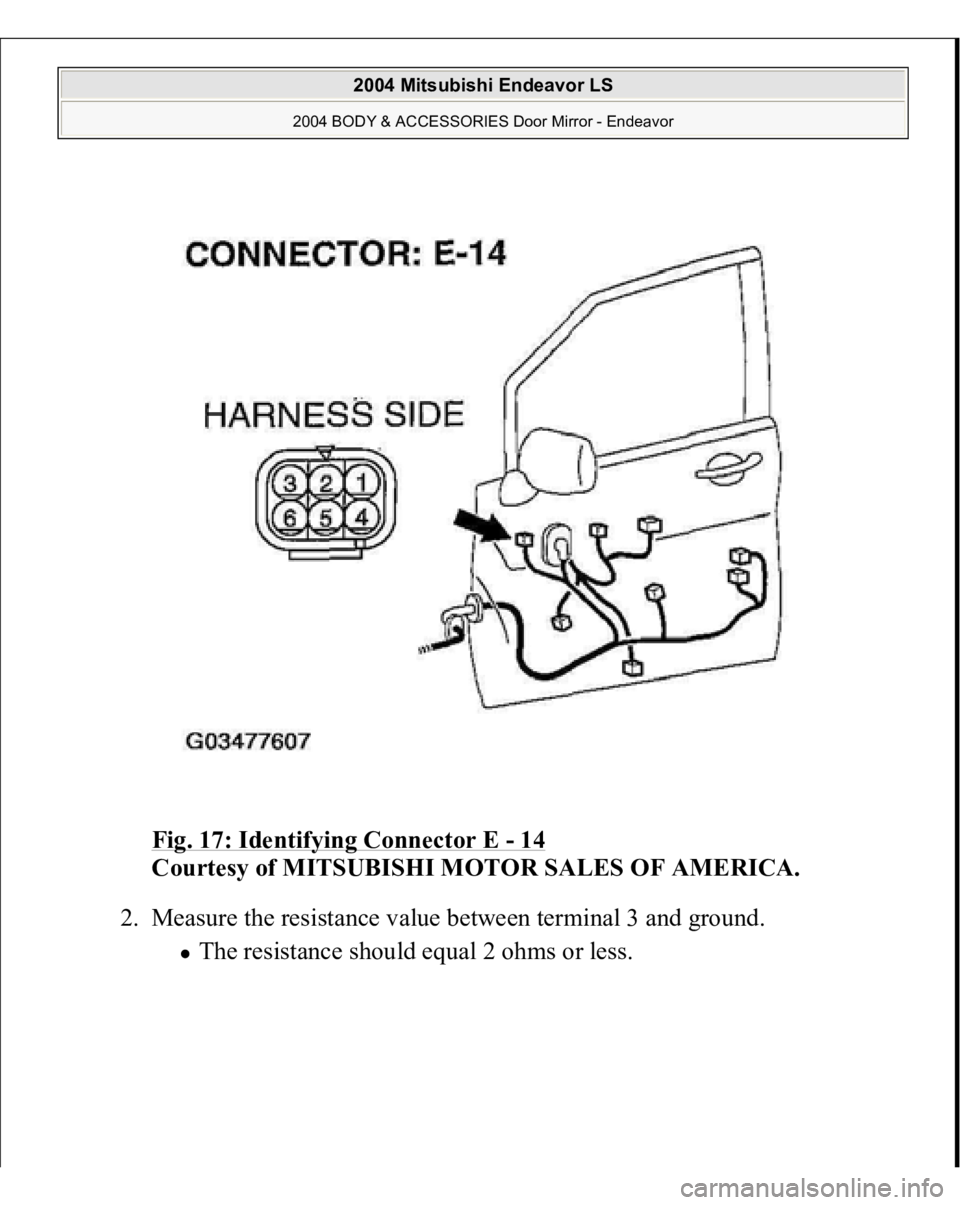

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Identifying Connector E - 14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance value between terminal 3 and ground. The resistance should e qual 2 ohms or less.
