Page 2385 of 3870

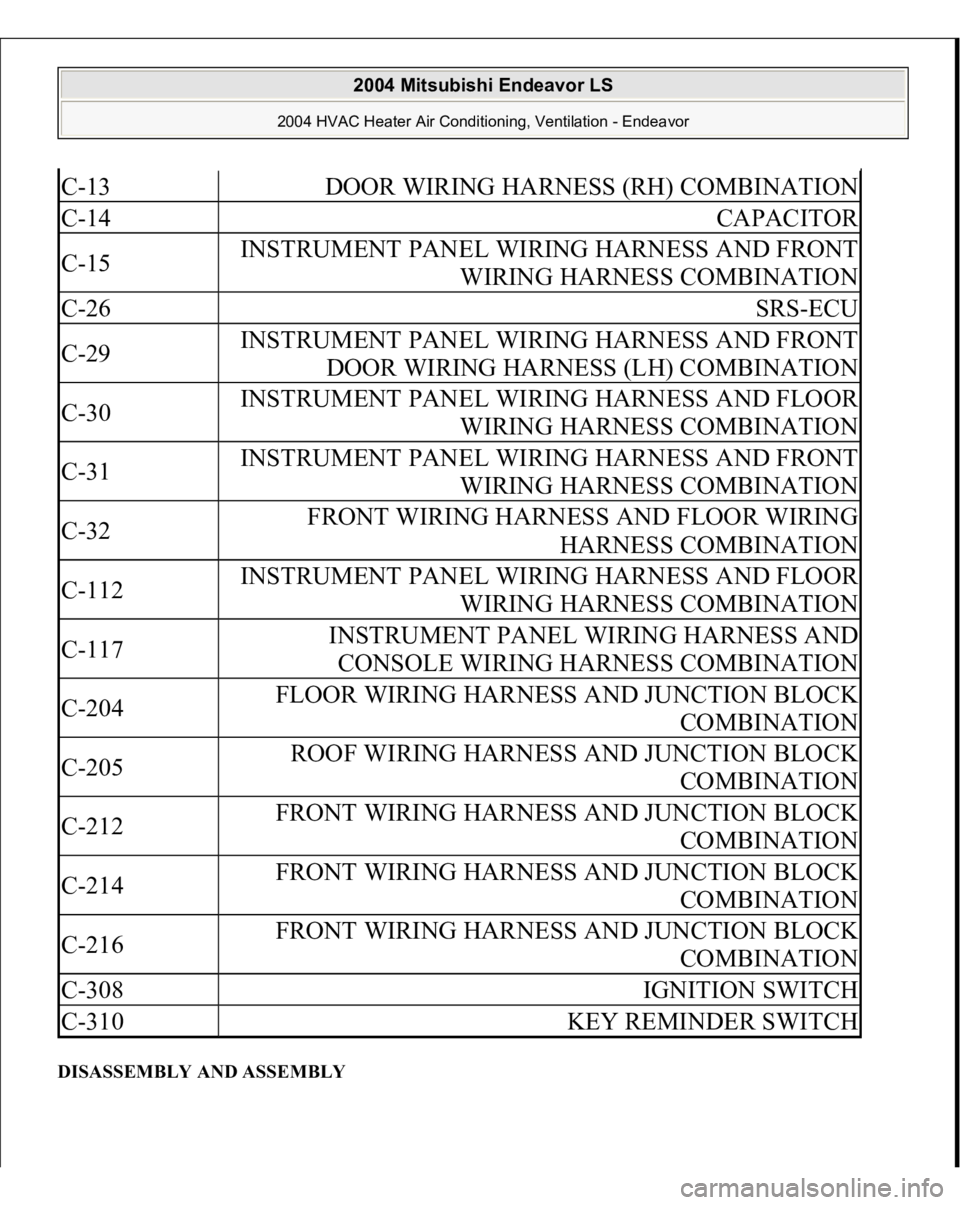

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISASSEMBLY AND ASSEMBLY C-13 DOOR WIRING HARNESS (RH) COMBINATION C-14 CAPACITOR C-15 INSTRUMENT PANEL WIRING HARNESS AND FRONT WIRING HARNESS COMBINATION C-26 SRS-ECU C-29 INSTRUMENT PANEL WIRING H

Page 2386 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2387 of 3870

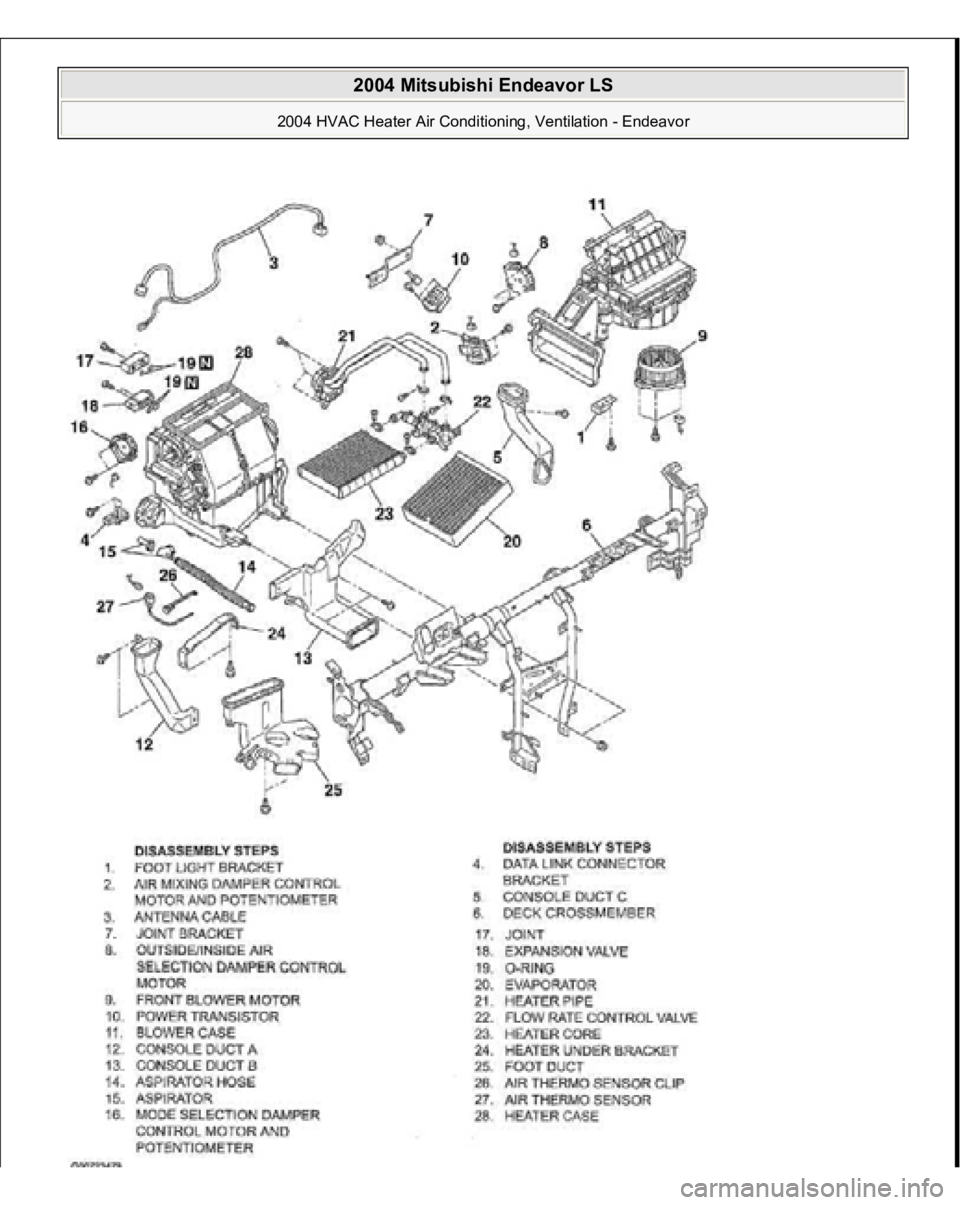

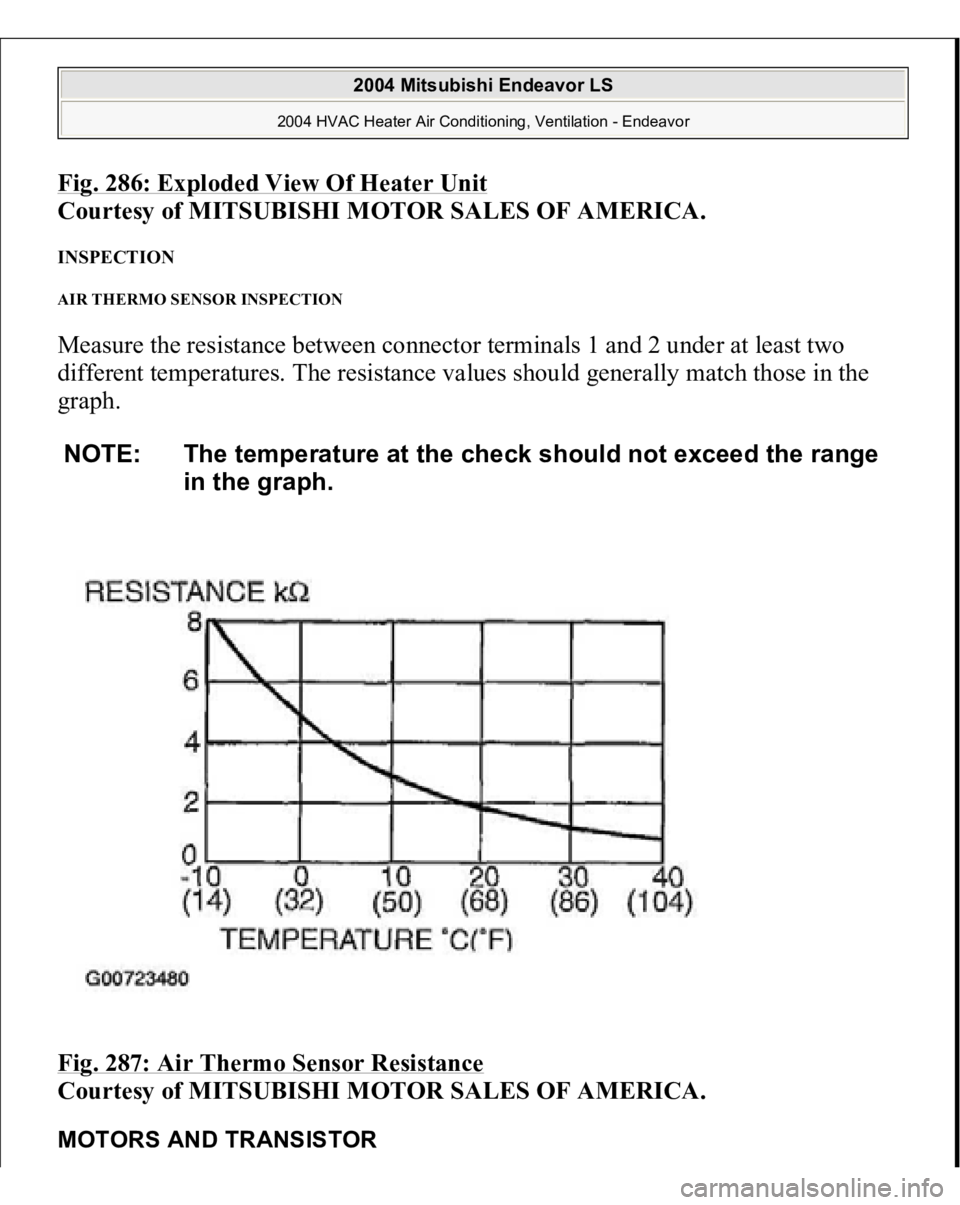

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 286: Exploded View Of Heater Uni t Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION AIR THERMO SENSOR INSPECTION Measure the resistance between connector terminals 1 and 2 under at le

Page 2388 of 3870

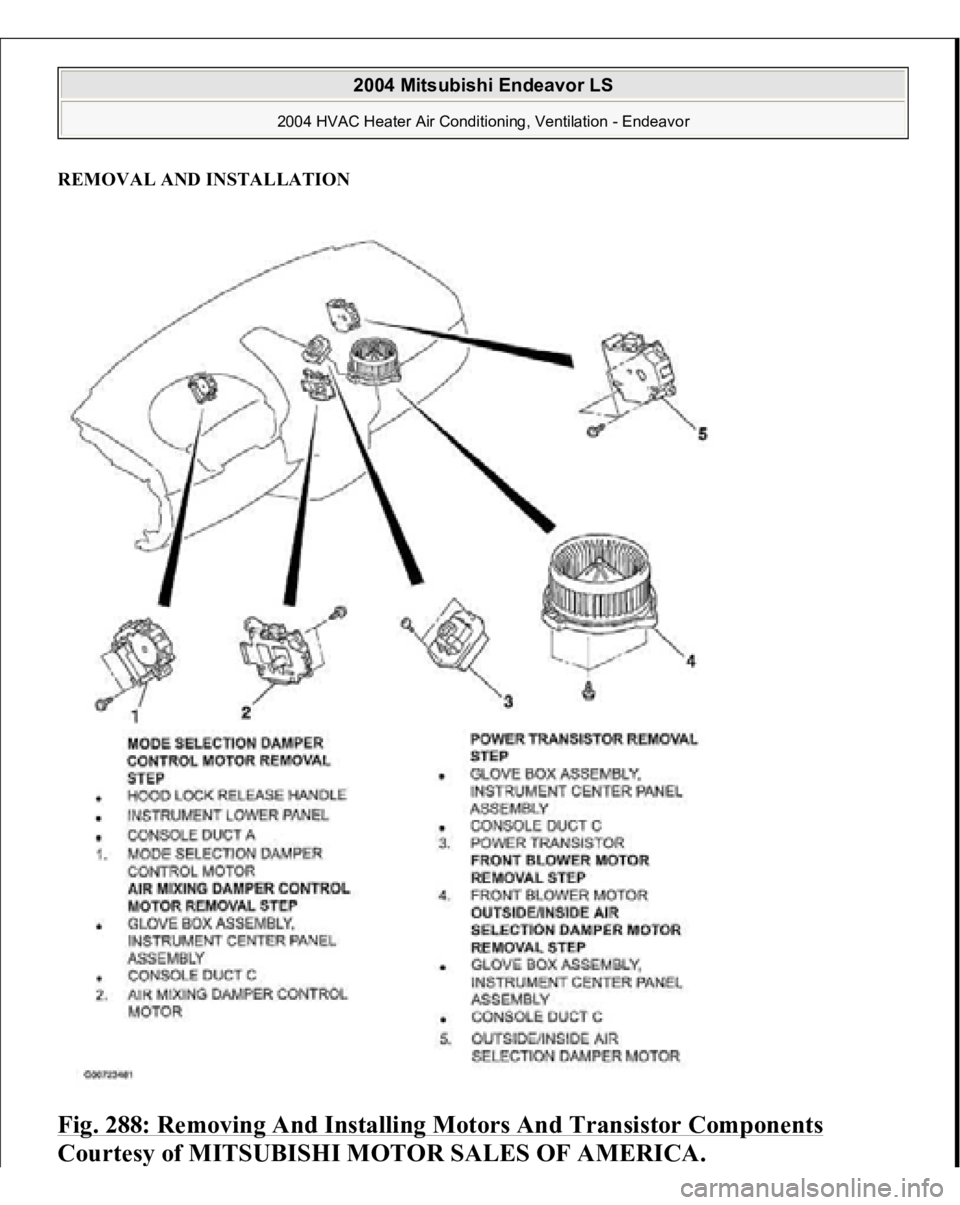

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL AND INSTALLATIONFig. 288: Removing And Installing Motors And Transistor Components Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Condit

Page 2389 of 3870

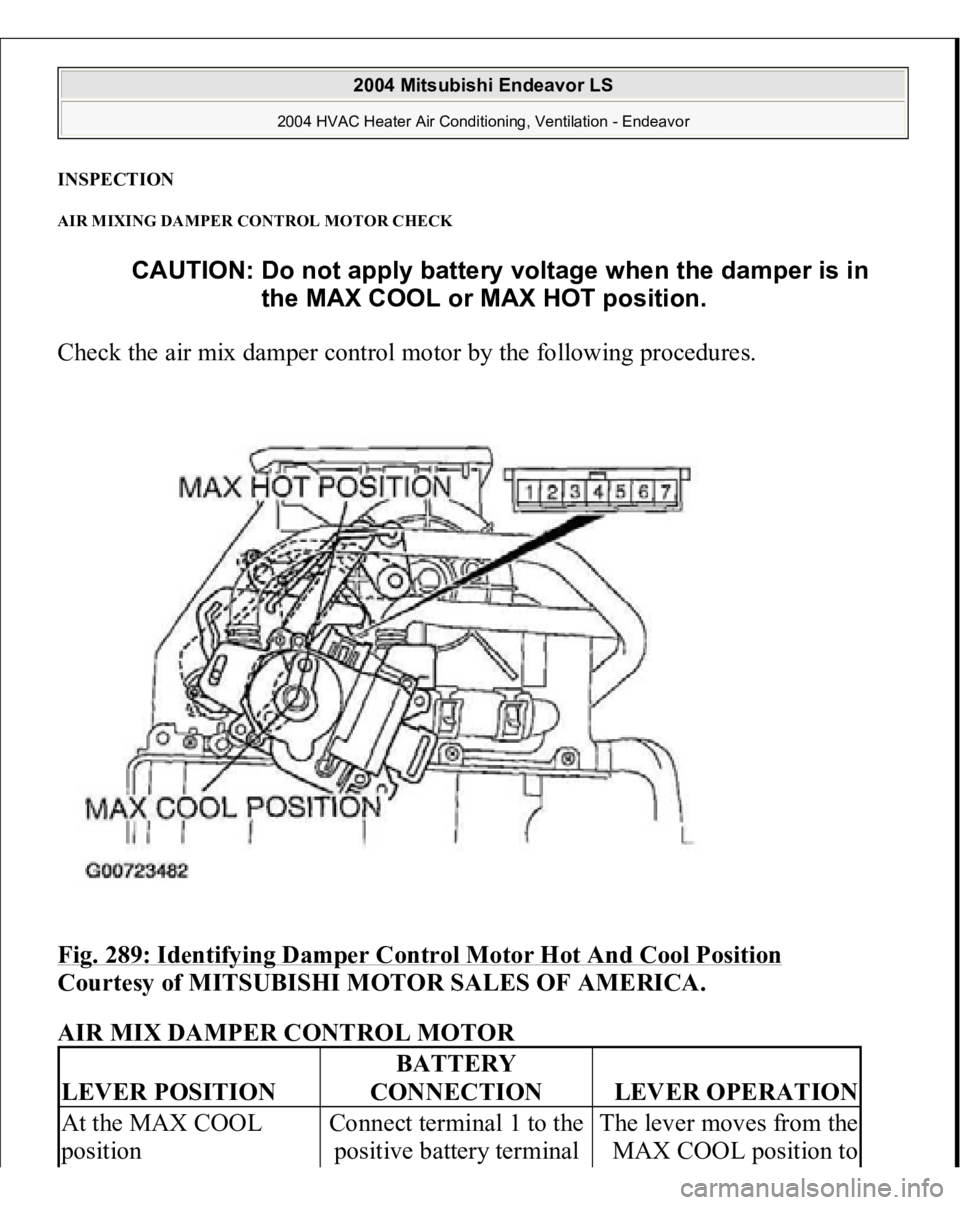

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSPECTION AIR MIXING DAMPER CONTROL MOTOR CHECK Check the air mix damper control motor by the following procedures. Fig. 289: Identifying Damper Control Motor Hot And Cool Position Courtesy of MITS

Page 2390 of 3870

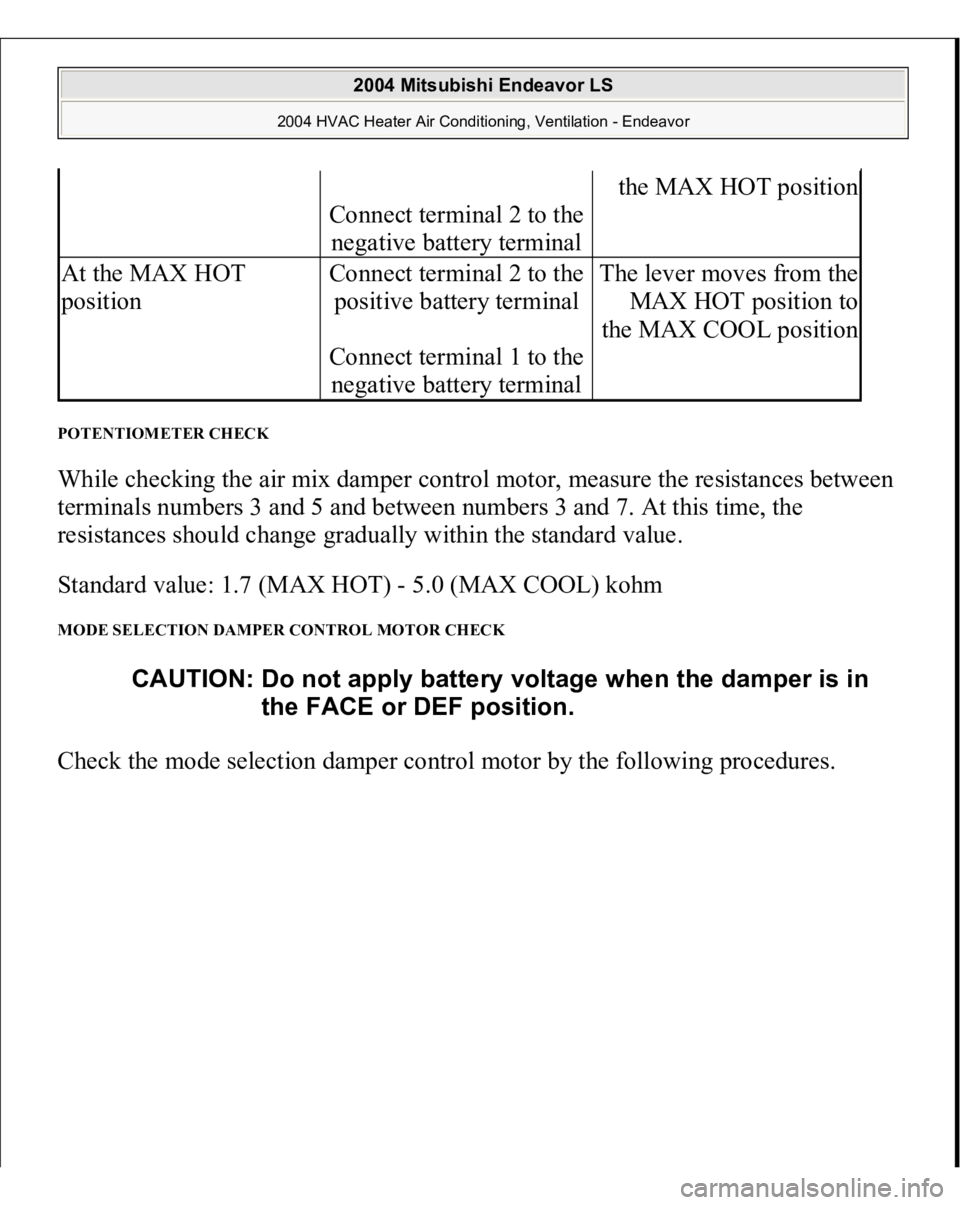

MITSUBISHI ENDEAVOR 2004 Service Repair Manual POTENTIOMETER CHECK While checking the air mix damper control motor, measure the resistances between terminals numbers 3 and 5 and between numbers 3 and 7. At this time, the resistances should chang

Page 2391 of 3870

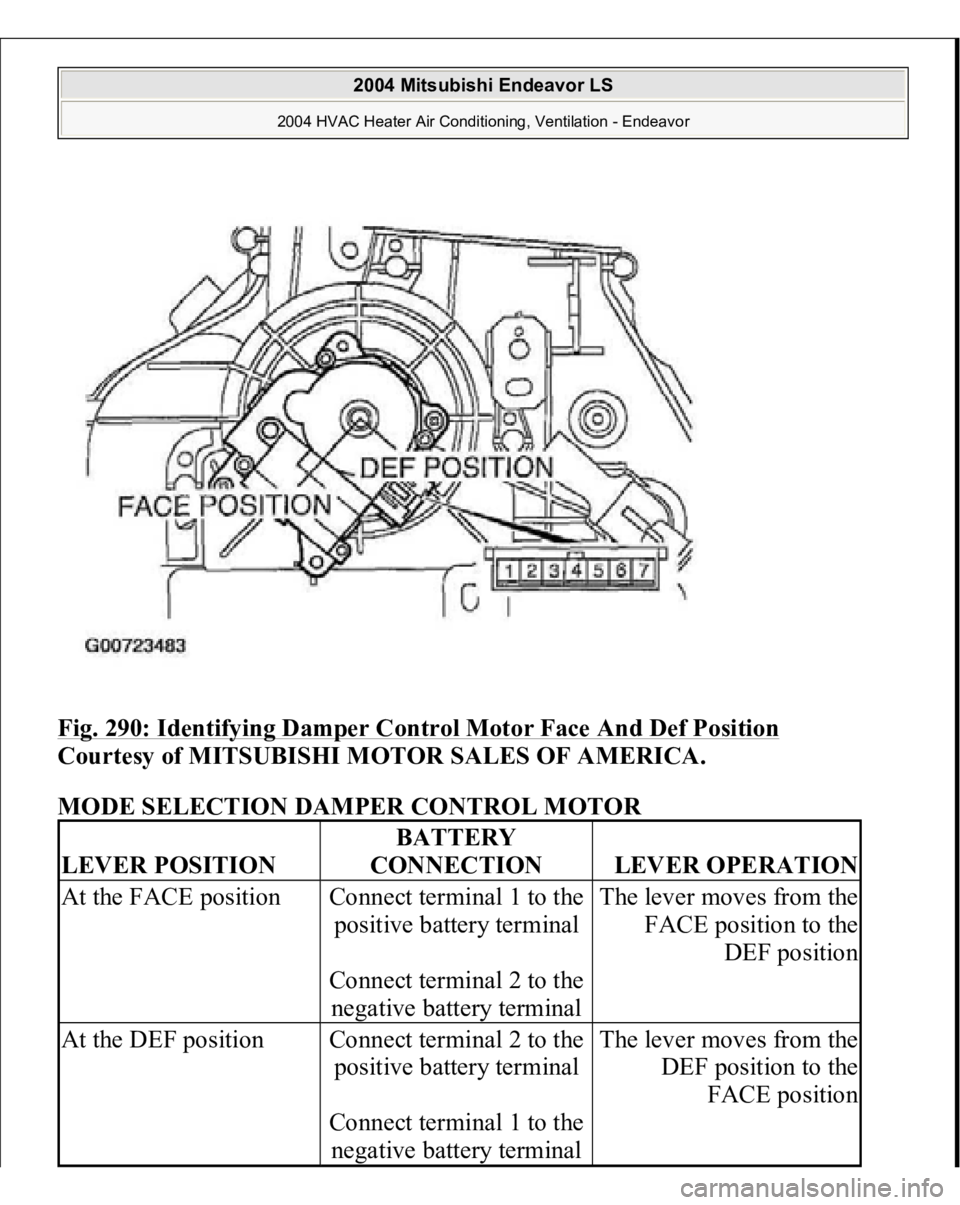

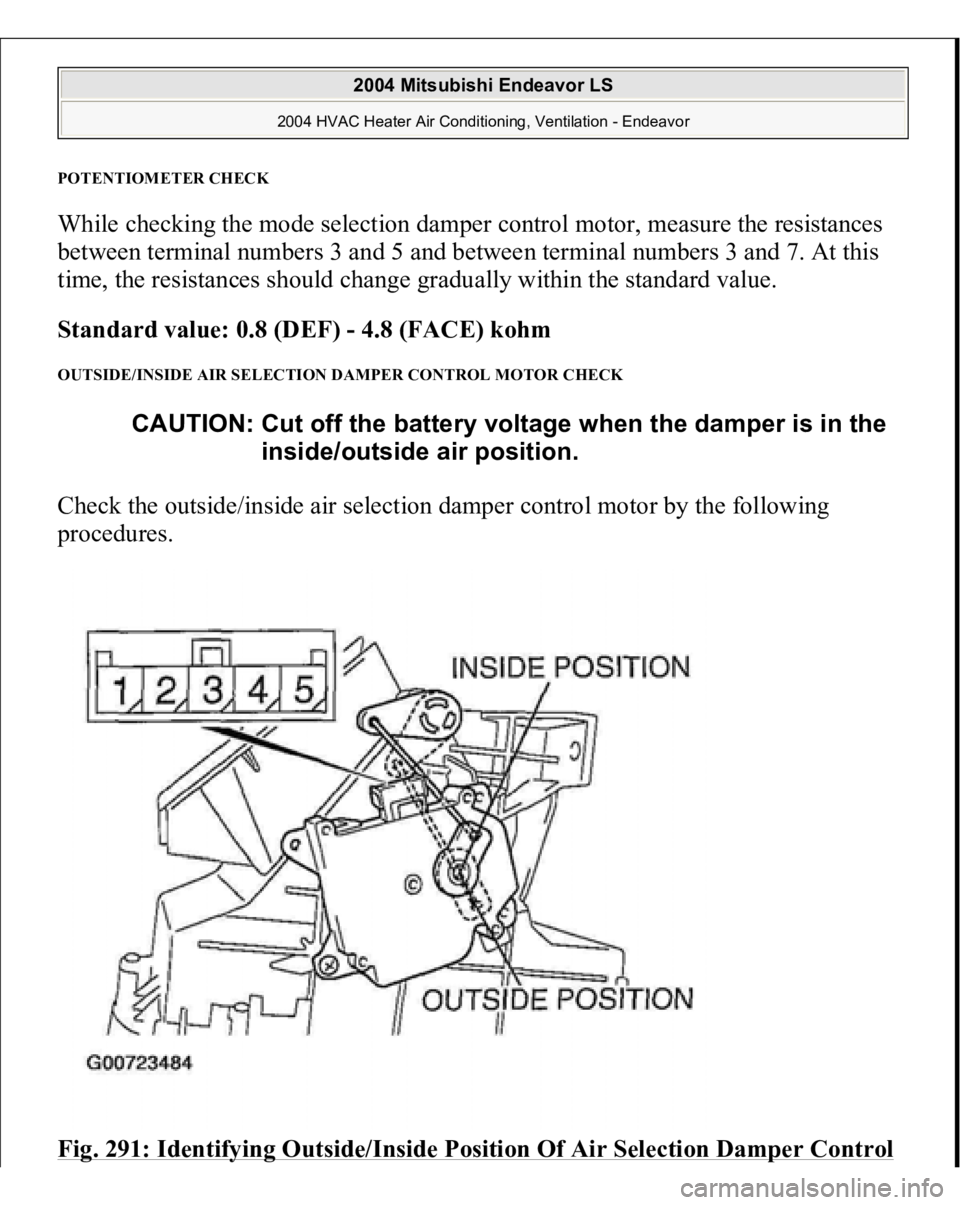

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 290: Identifying Damper Control Motor Face And Def Position Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. MODE SELECTION DAMPER CONTROL MOTOR LEVER POSITION BATTERY CONNECTION LEVER OPERA

Page 2392 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual POTENTIOMETER CHECK While checking the mode selection damper control motor, measure the resistances between terminal numbers 3 and 5 and between terminal numbers 3 and 7. At this time, the resistanc
