Page 1065 of 3870

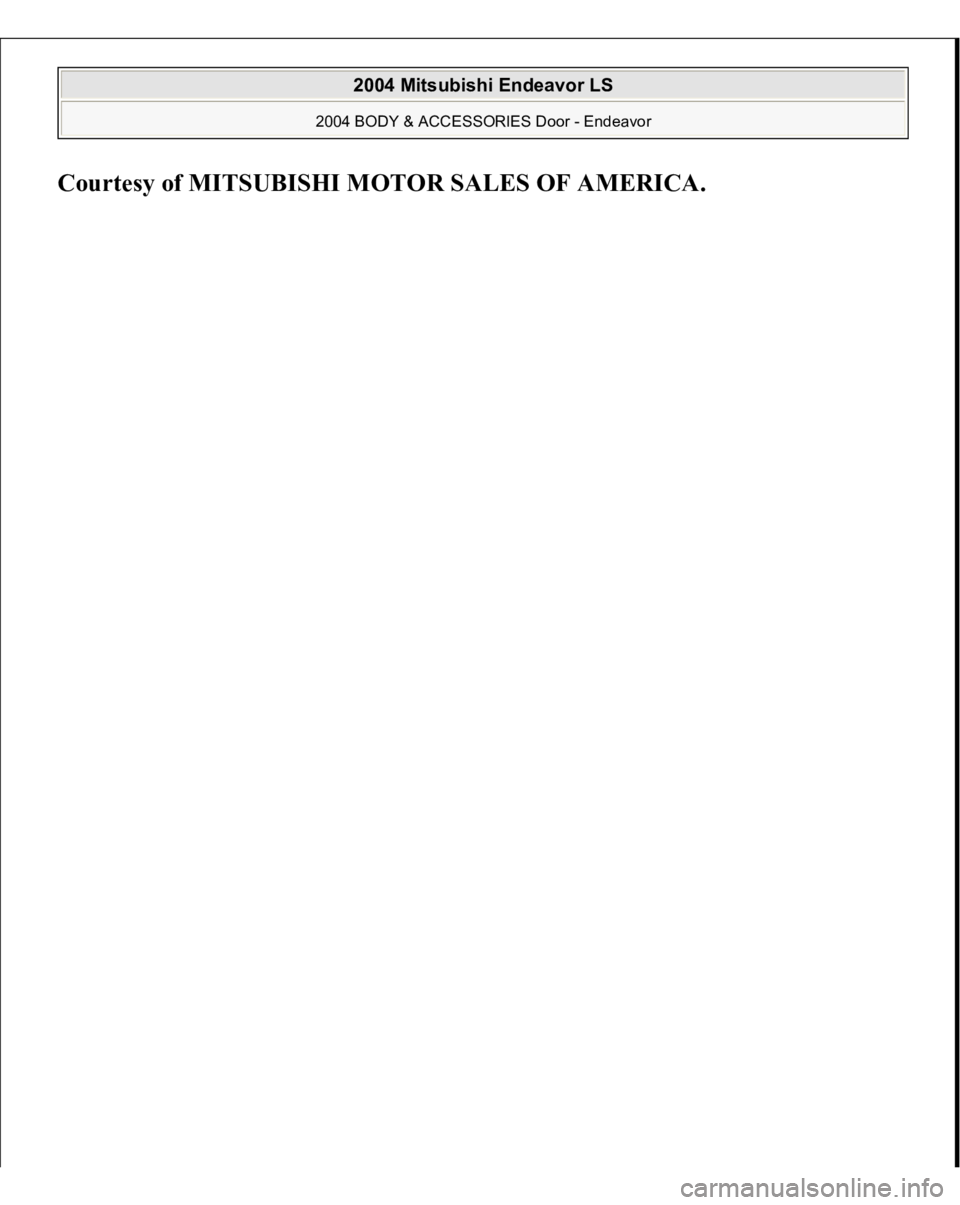

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1066 of 3870

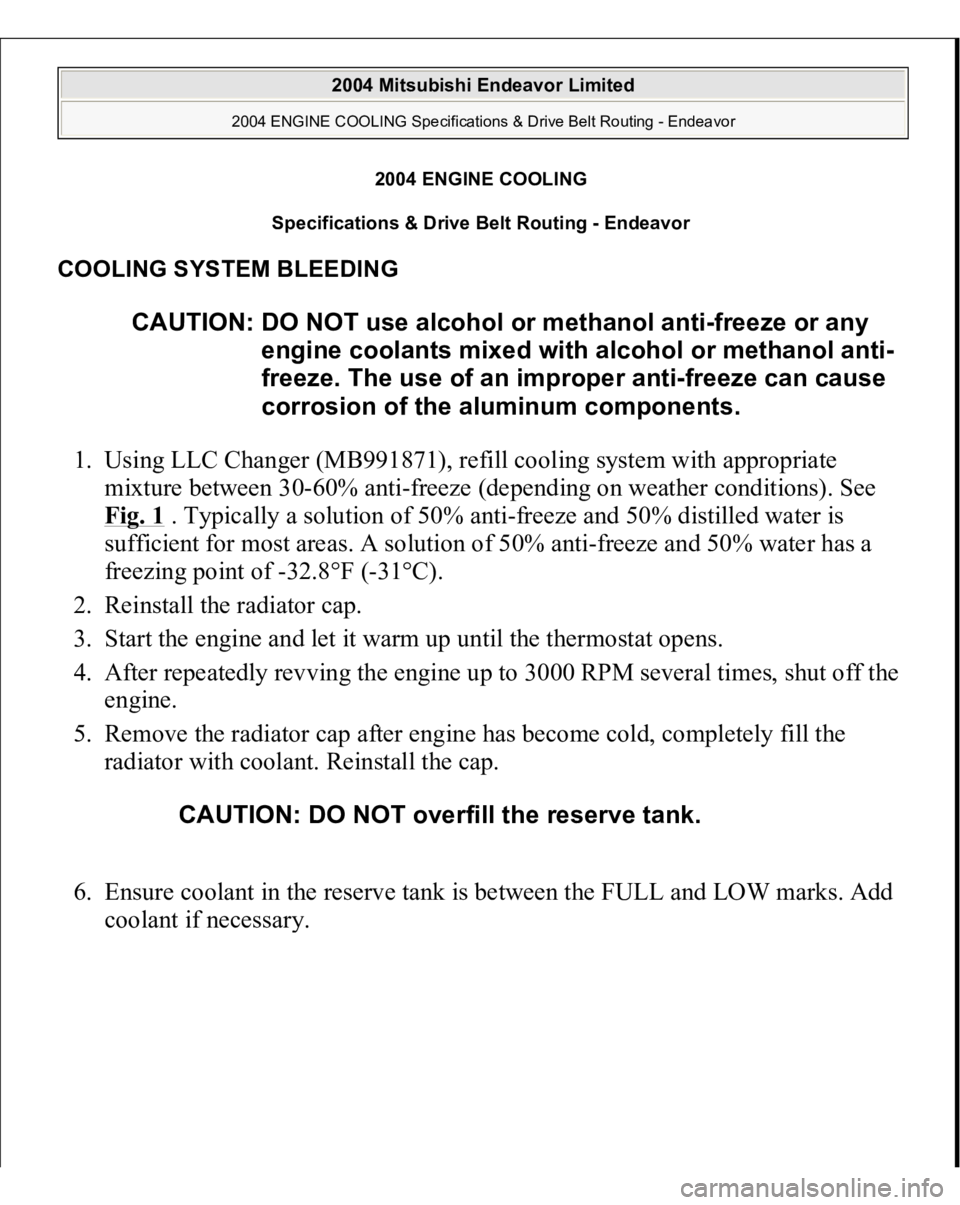

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 ENGINE COOLING Specifications & Drive Belt Routing - Endeavor COOLING SYSTEM BLEEDING 1. Using LLC Changer (MB991871), refill cooling system with appropriate mixture between 30-60% anti-freeze

Page 1067 of 3870

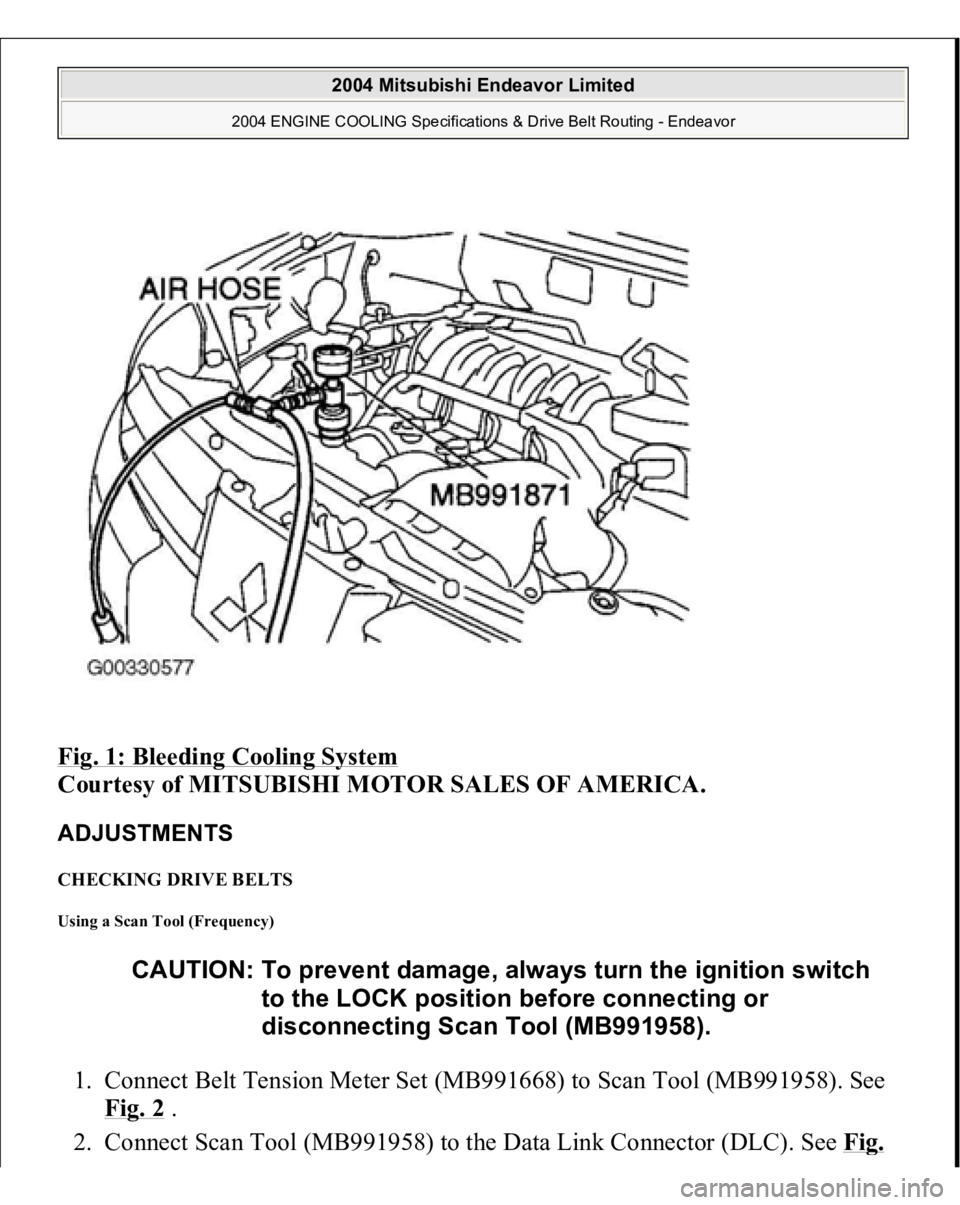

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Bleeding Cooling System Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ADJUSTMENTS CHECKING DRIVE BELTS Using a Scan Tool (Frequency) 1. Connect Belt Tension Meter Set (MB991668) to Scan To

Page 1068 of 3870

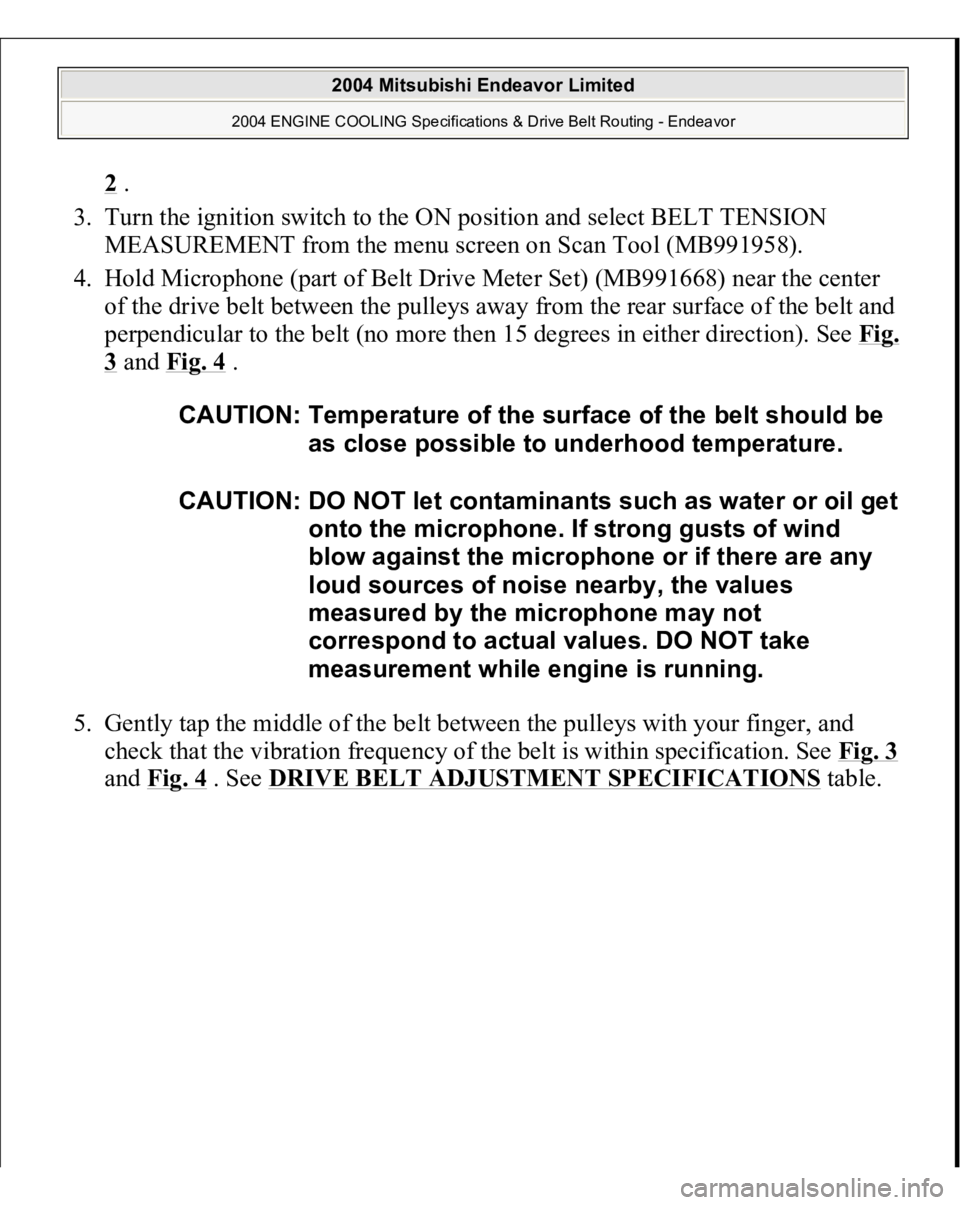

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2 . 3. Turn the ignition switch to the ON position and select BELT TENSION MEASUREMENT from the menu screen on Scan Tool (MB991958). 4. Hold Microphone (part of Belt Drive Meter Set) (MB991668) n

Page 1069 of 3870

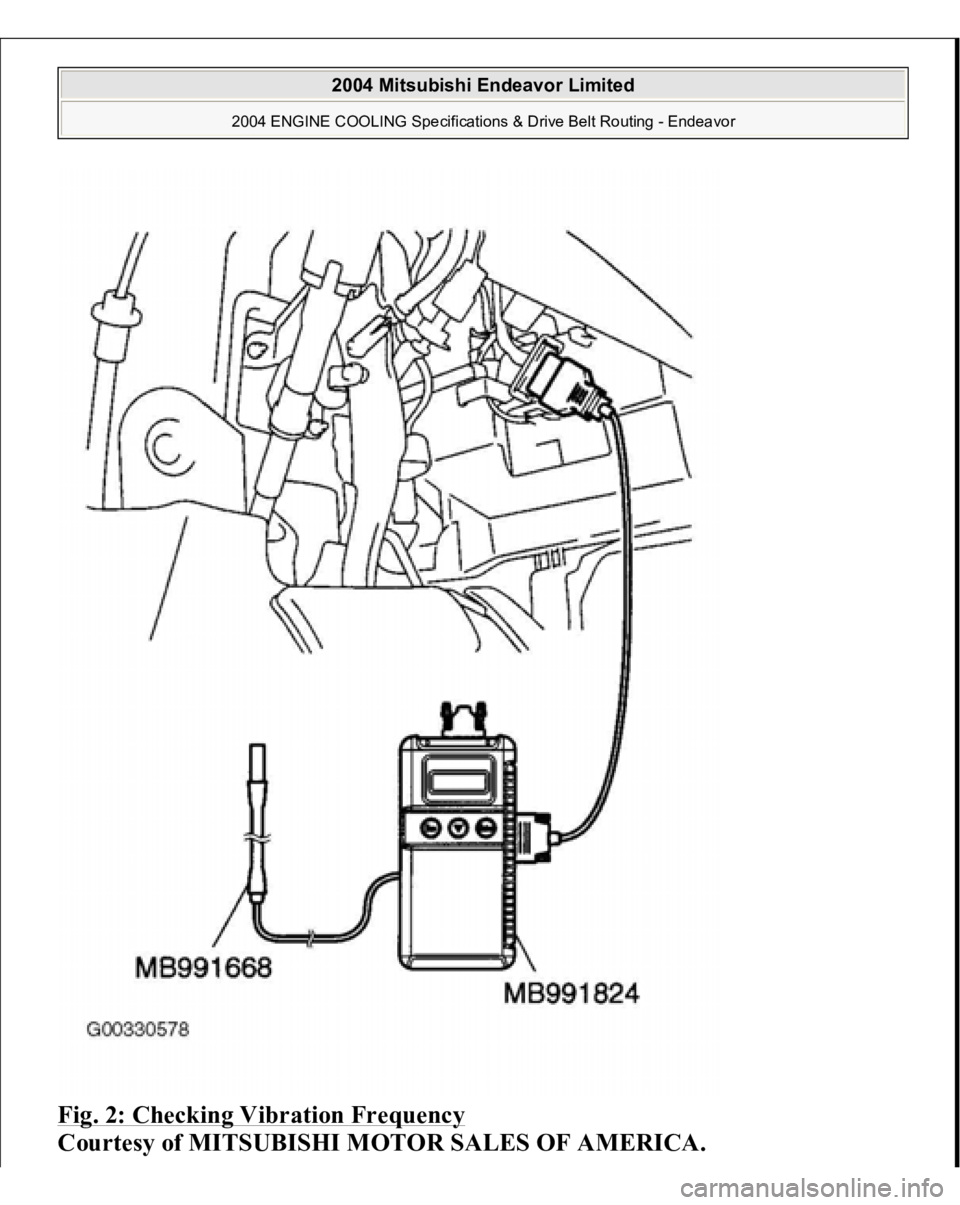

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Checking Vibration Frequency Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE COOLING Specifications & Drive Belt Routing - Endeavor

Page 1070 of 3870

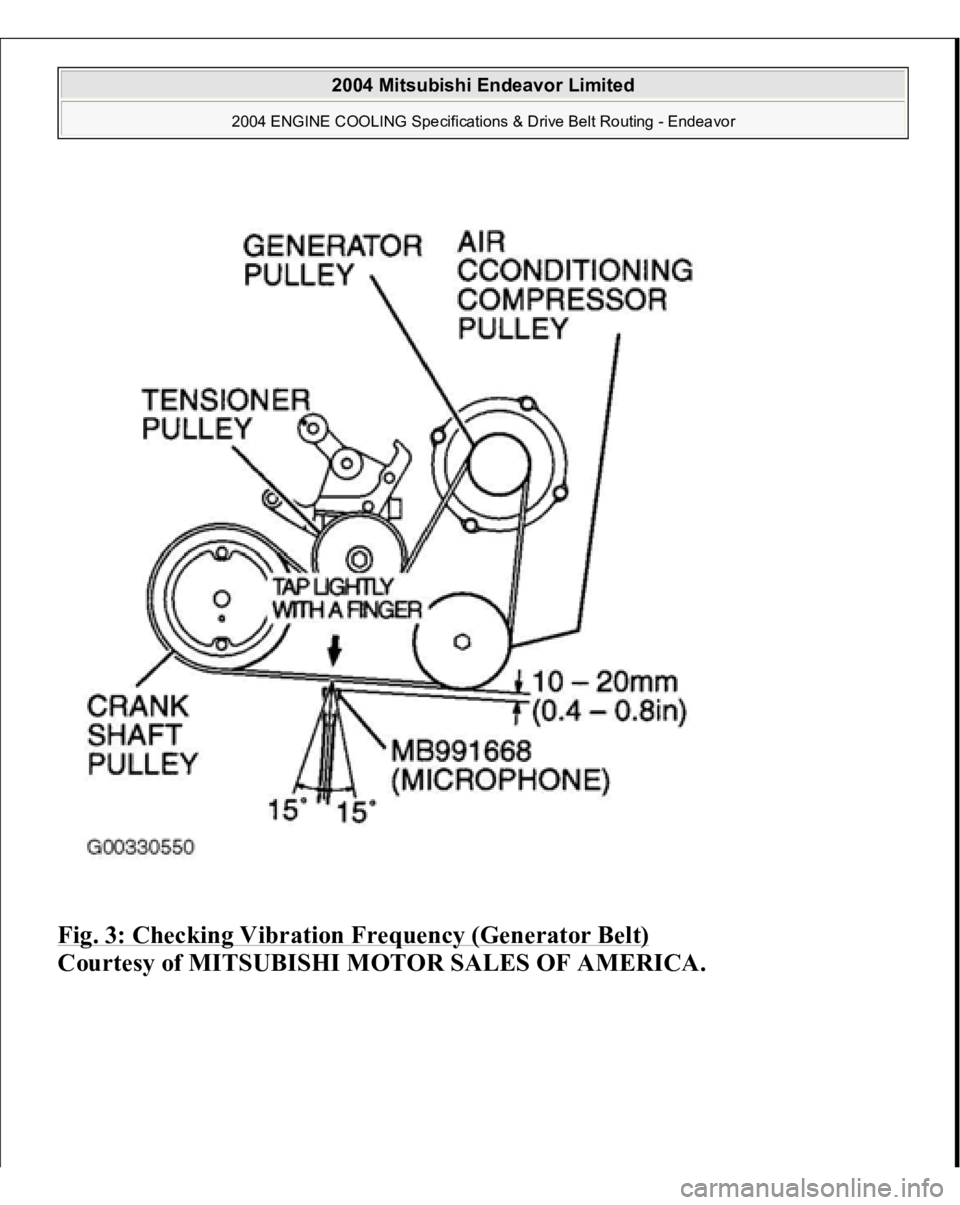

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Checking Vibration Frequency (Generator Belt) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE COOLING Specifications & Drive Belt Routing - End

Page 1071 of 3870

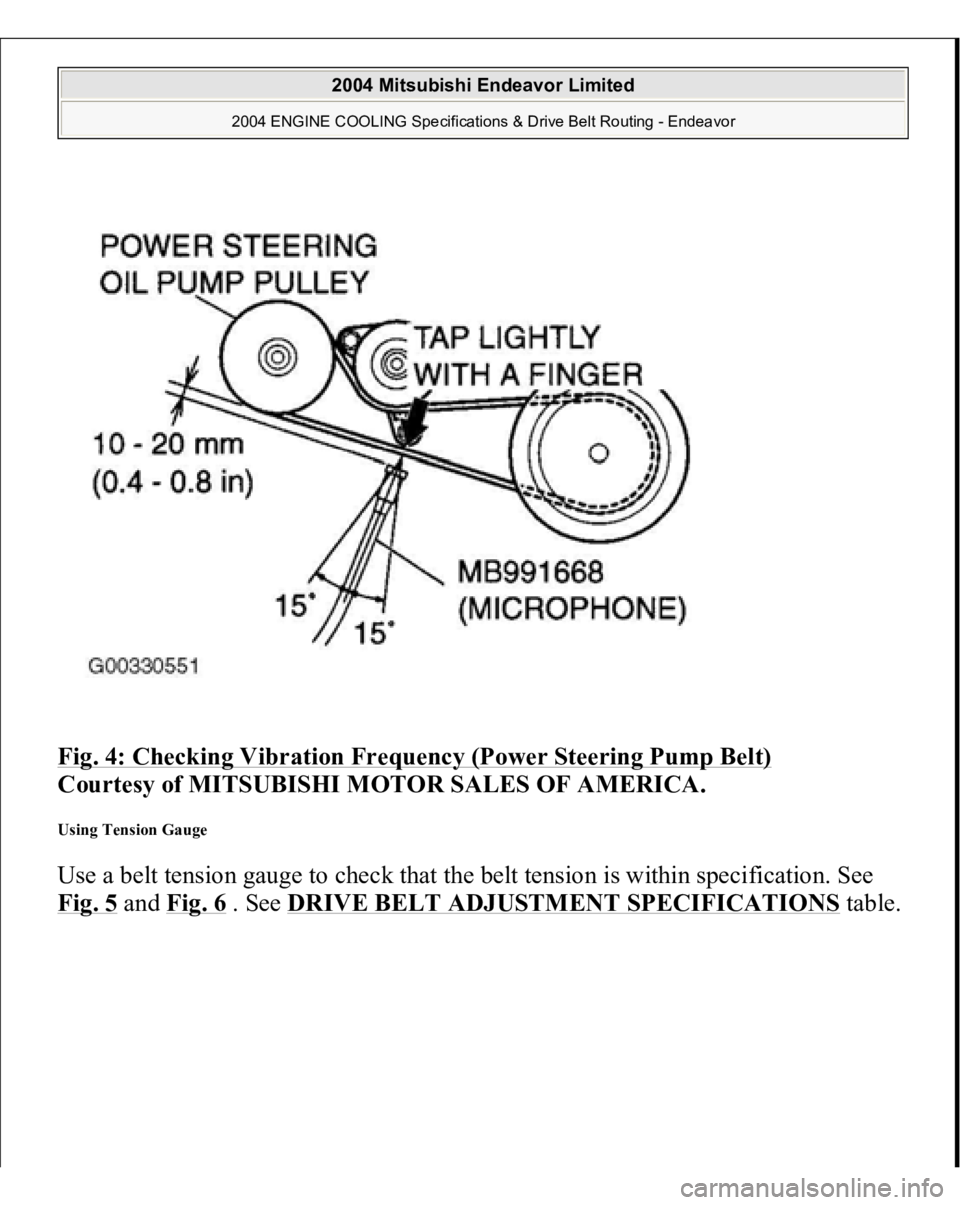

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Checking Vibration Frequency (Power Steering Pump Belt) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Using Tension Gauge Use a belt tension gauge to check that the belt tension is within

Page 1072 of 3870

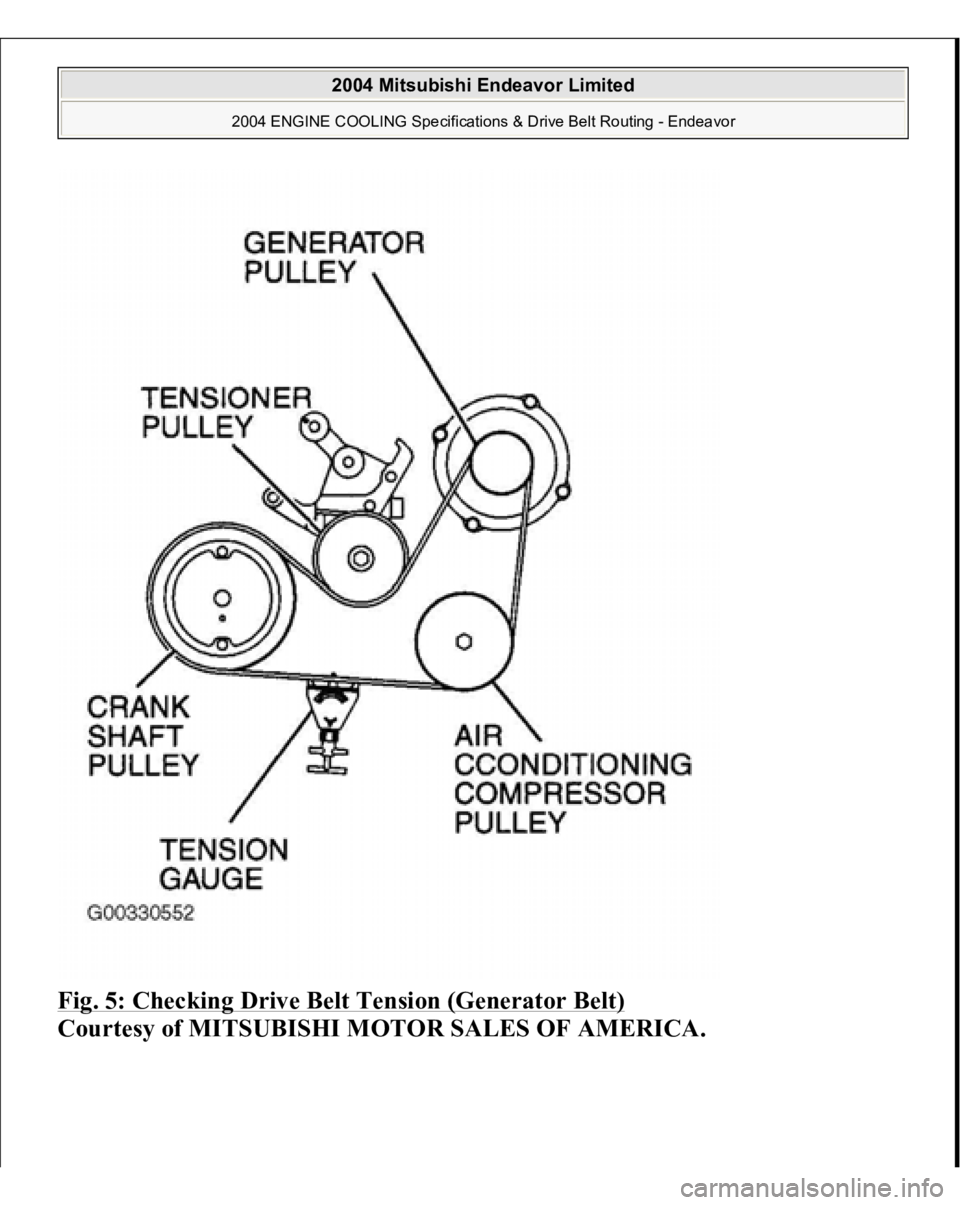

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Checking Drive Belt Tension (Generator Belt) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE COOLING Specifications & Drive Belt Routing - Ende
