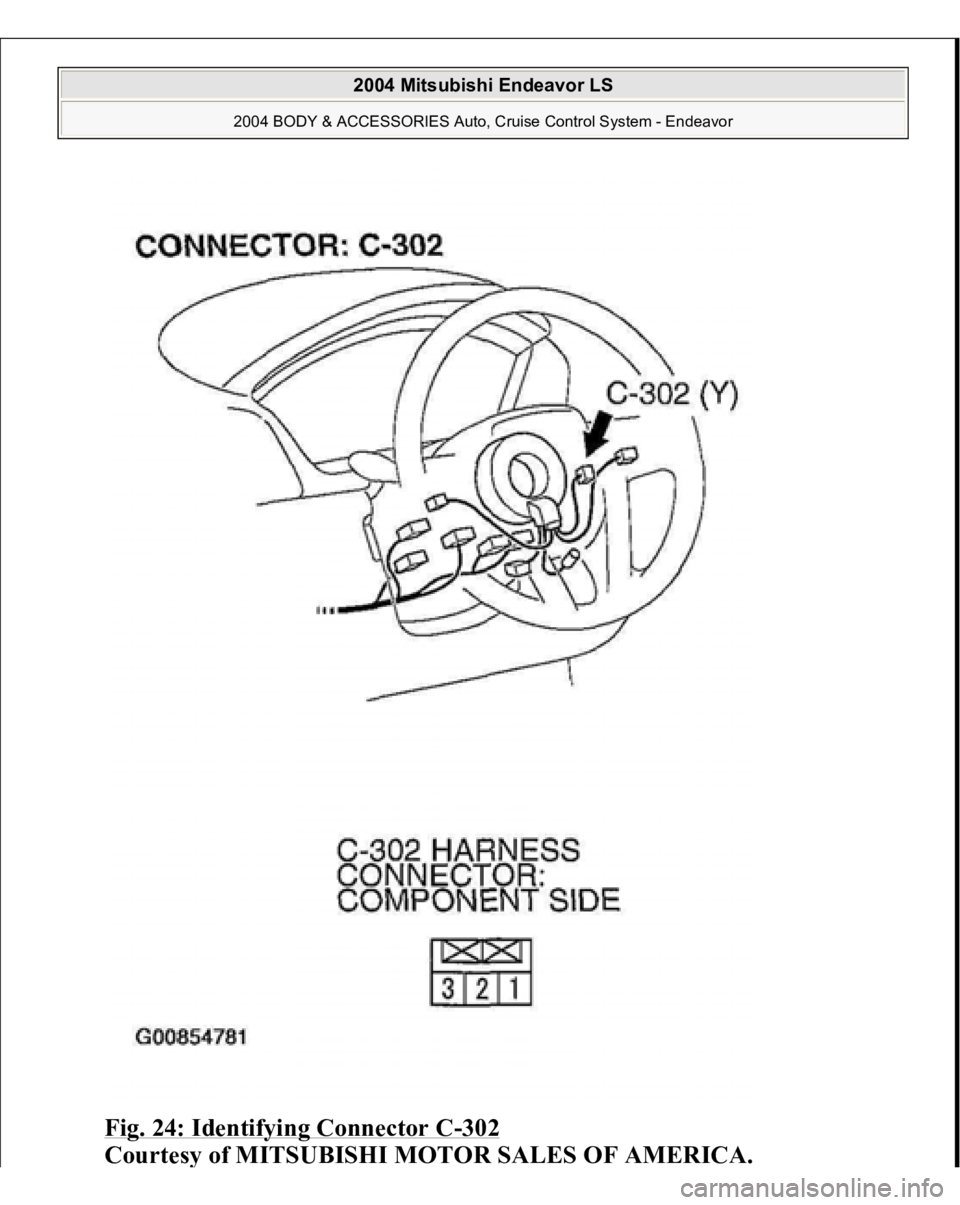

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Identifying Connector C -302 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 850 of 3870

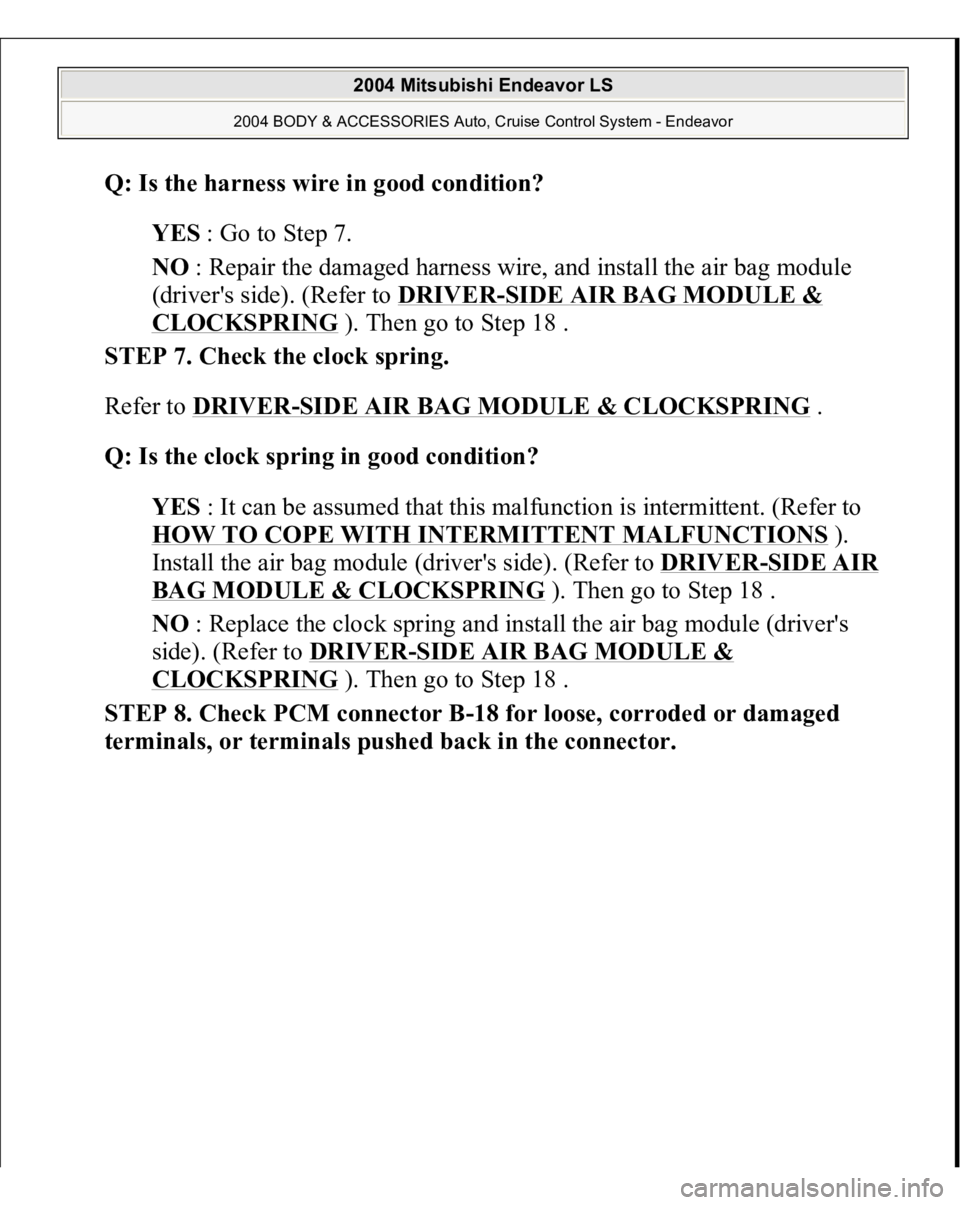

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the harness wire in good condition? YES : Go to Step 7. NO : Repair the damaged harness wire, and install the air bag module (driver's side). (Refer to DRIVER -SIDE AIR BAG MODULE & CL

Page 851 of 3870

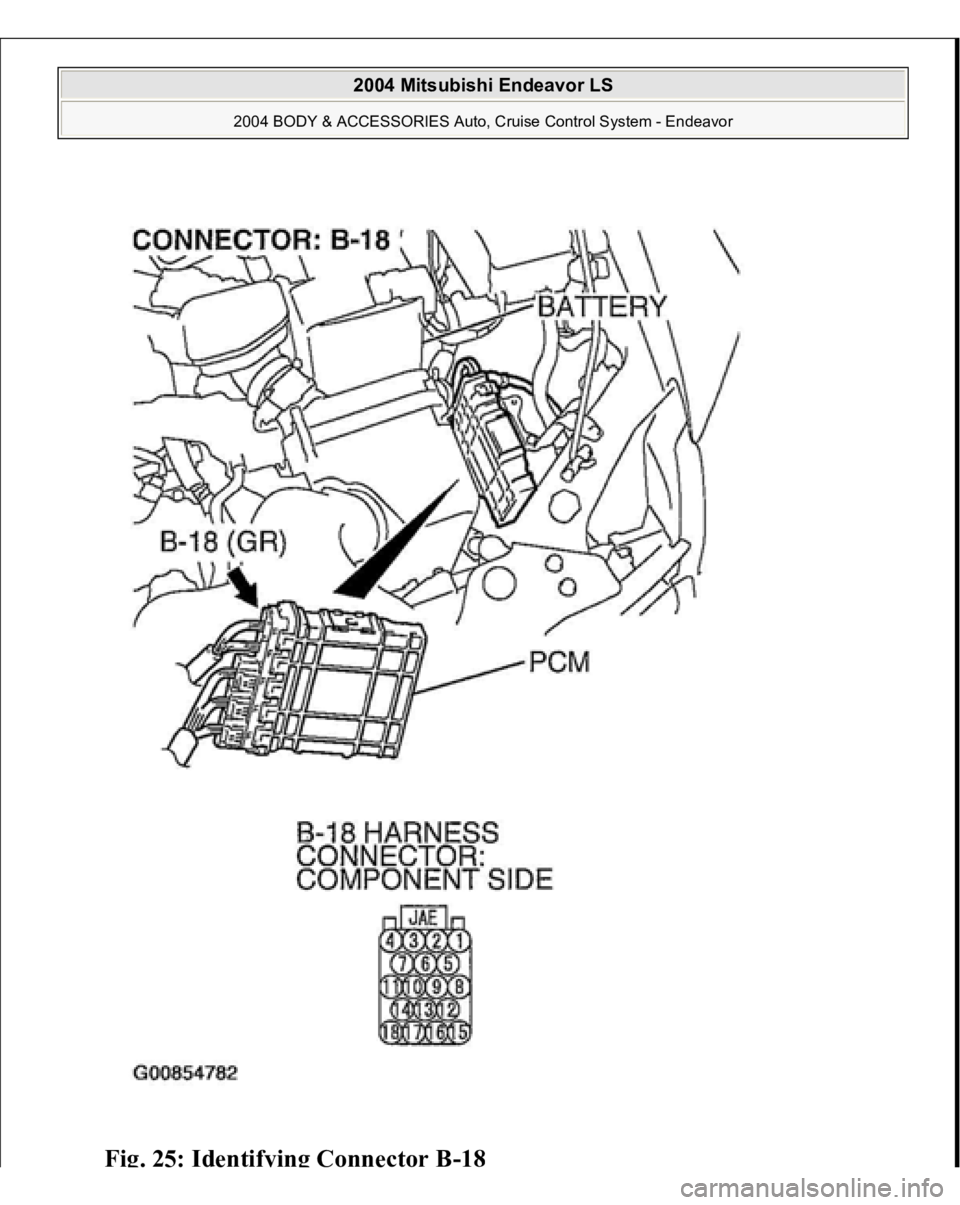

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Identif ying Connector B-18 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 852 of 3870

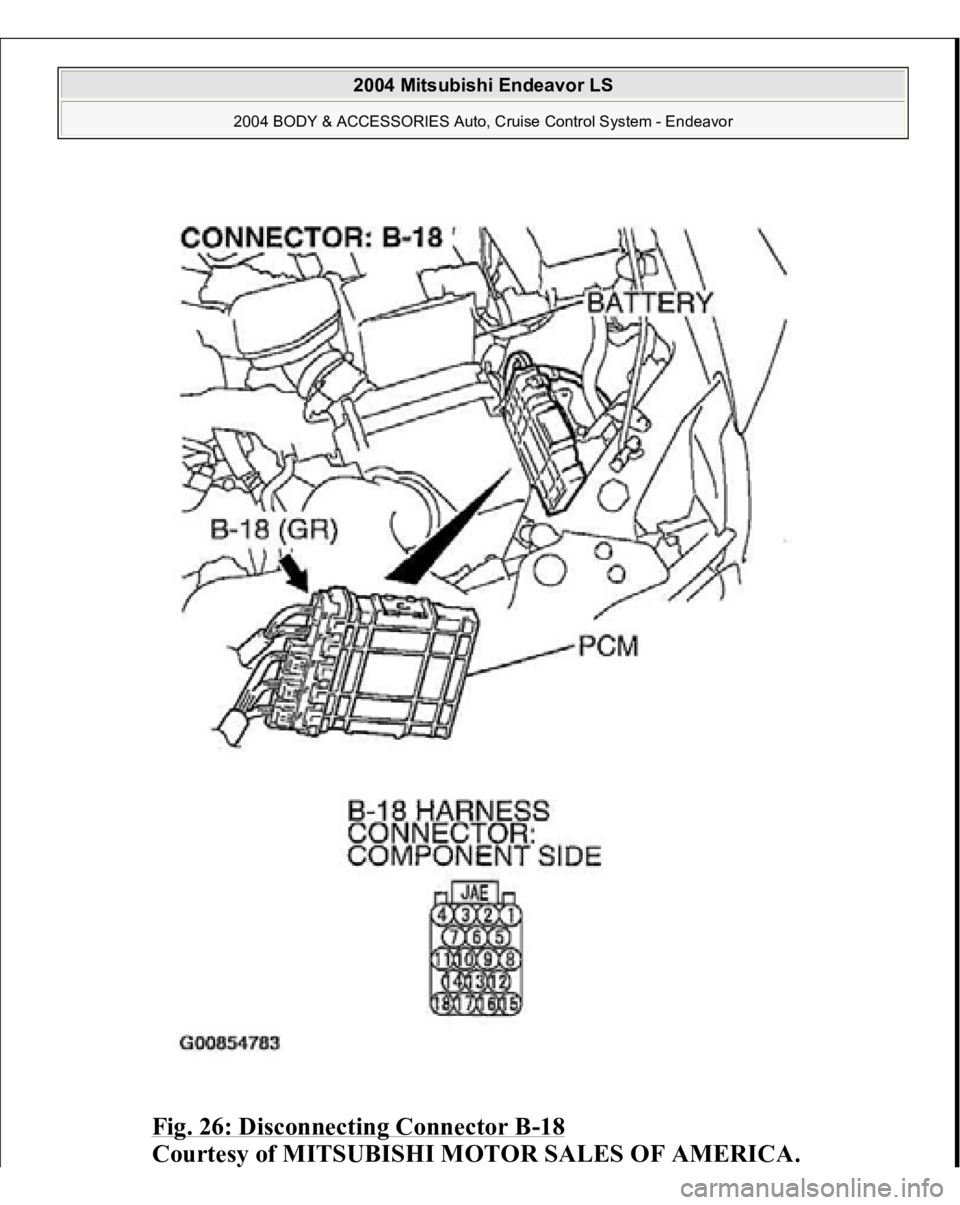

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Q: Are the connector and terminals in good condition? YES : Go to Step 9. NO : Repair or replace the faulty connector, (Refer to GROUP 00E, Harnes

Page 853 of 3870

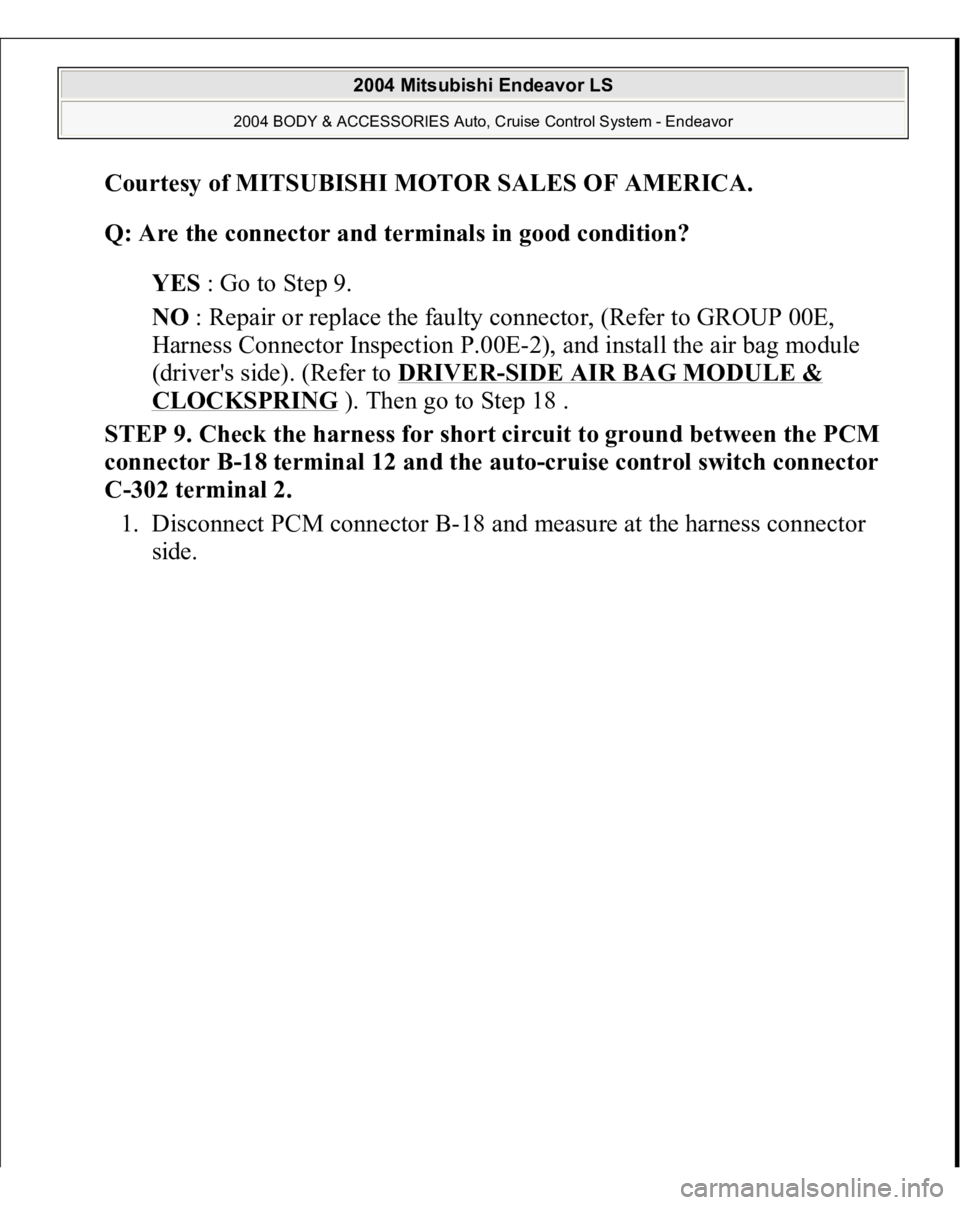

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 26: Disconnecting Connector B -18 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 854 of 3870

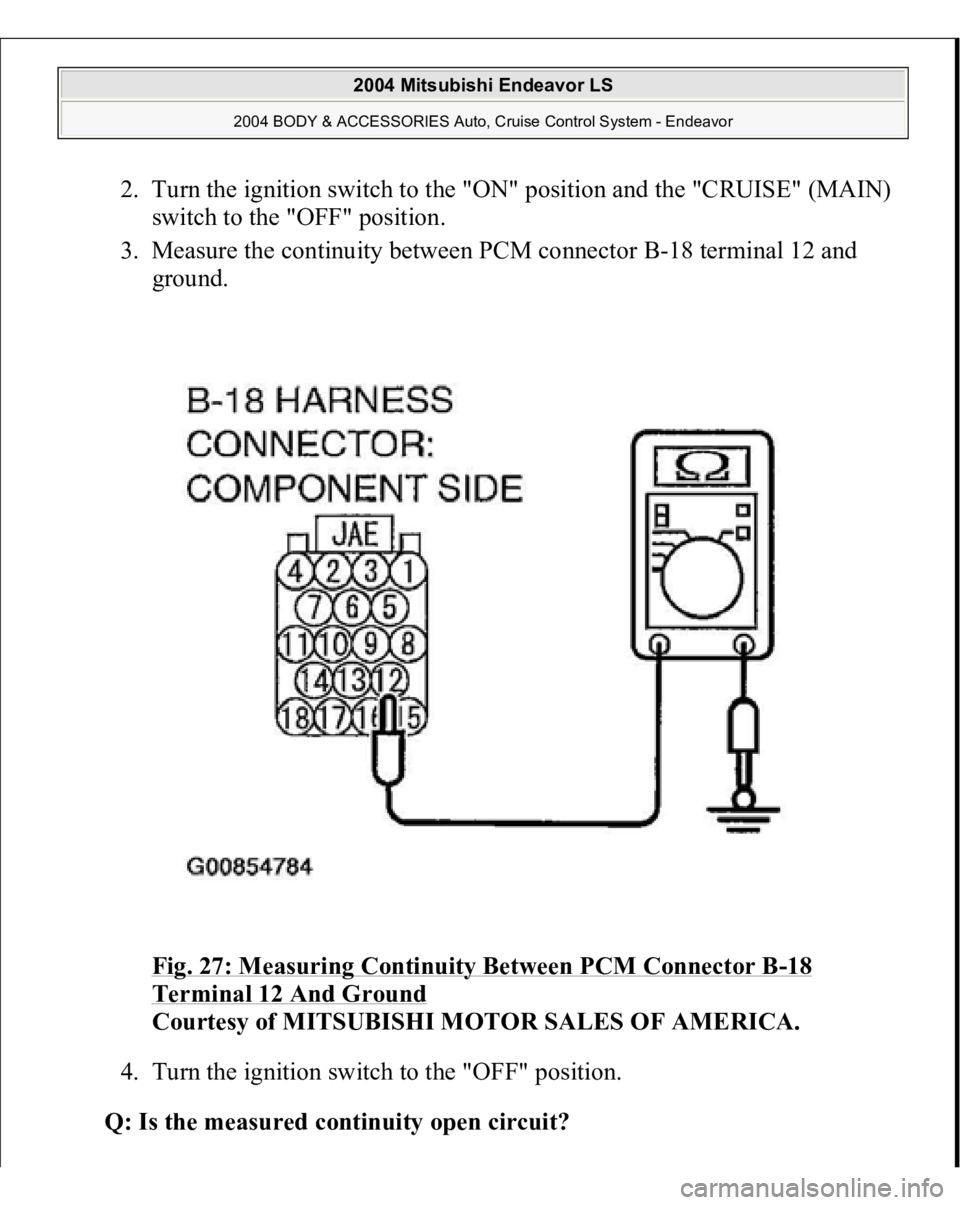

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position and the "CRUISE" (MAIN) switch to the "OFF" position. 3. Measure the continuity between PCM connector B-18 terminal 12 and

Page 855 of 3870

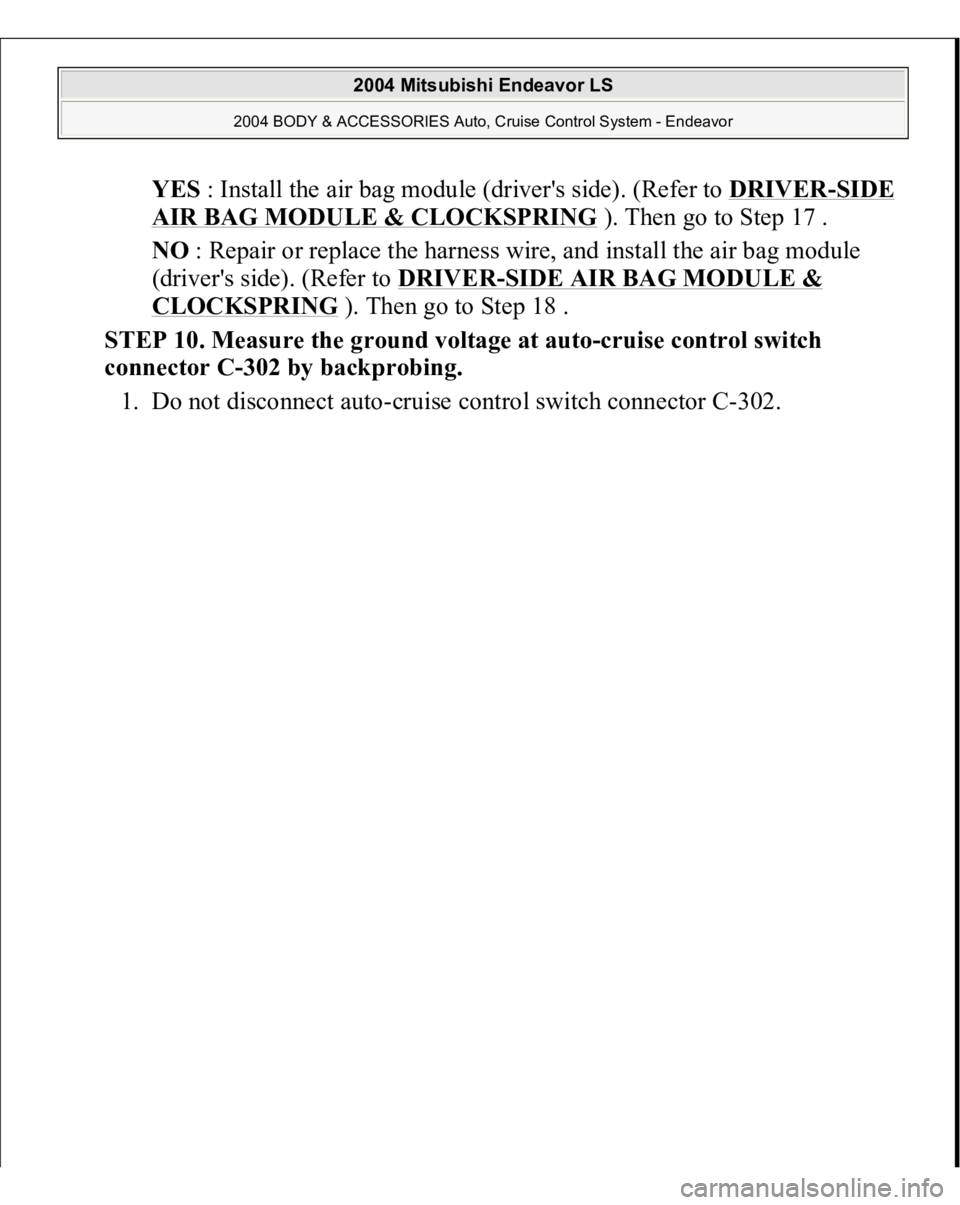

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES : Install the air bag module (driver's side). (Refer to DRIVER -SIDE AIR BAG MODULE & CLOCKSPRING ). Then go to Step 17 . NO : Repair or replace the harness wire, and install the air bag m

Page 856 of 3870

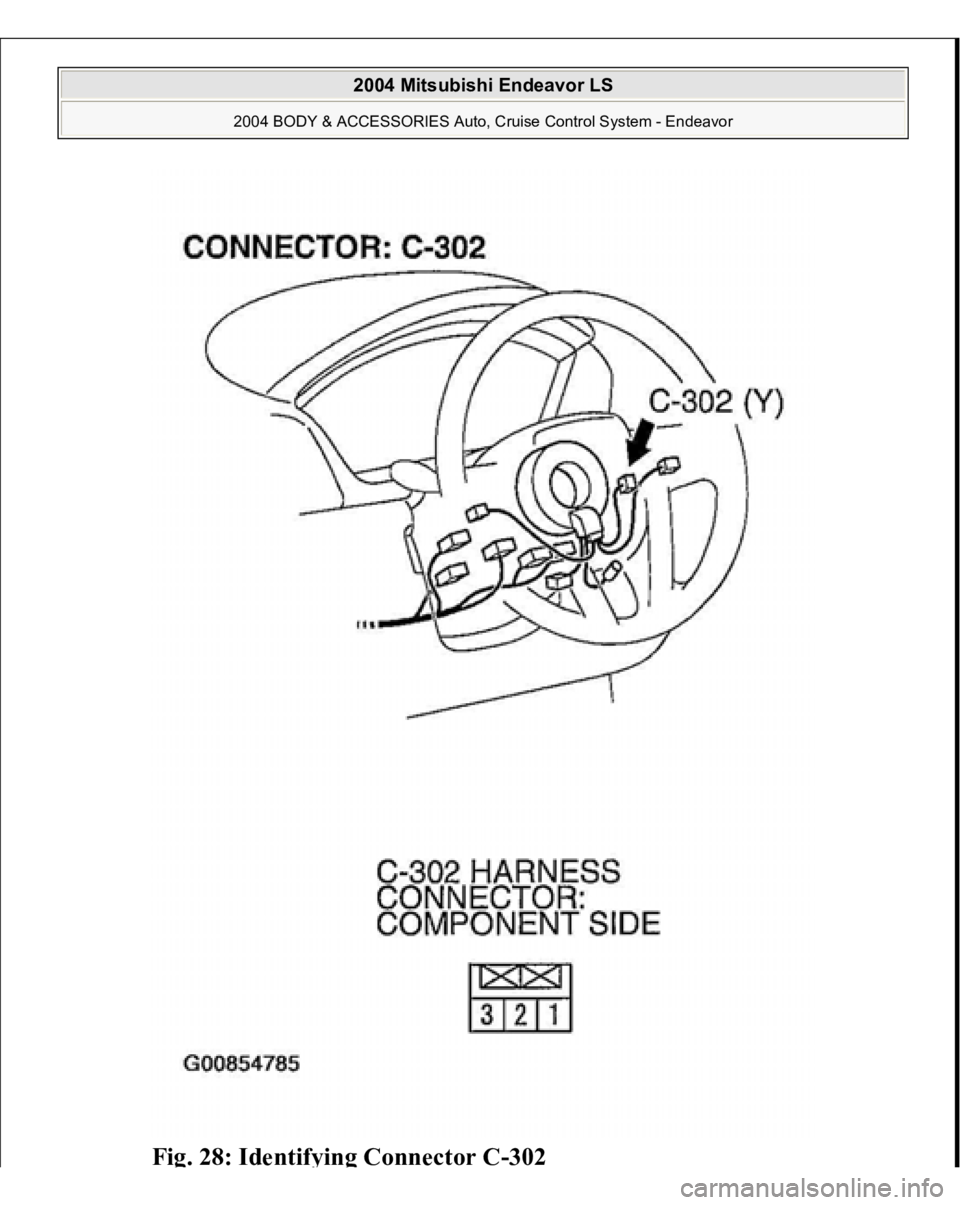

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 28: Identif ying Connector C-302 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
