Page 2761 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Measuring Resistance Value Between Terminal 3 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured resistance 2 ohms or less? YES: Go to Step 6 . NO: Go to Step

Page 2762 of 3870

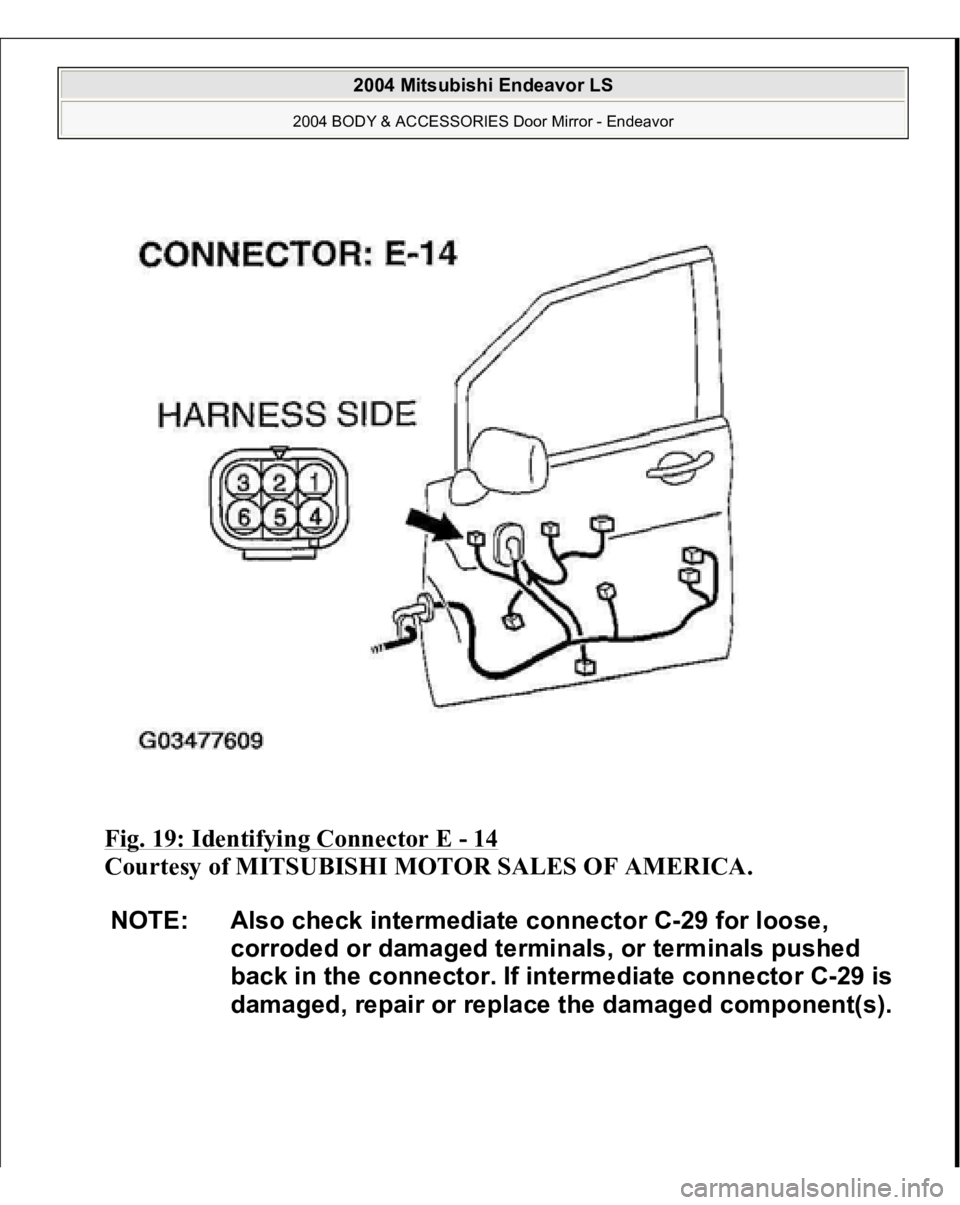

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Identifying Connector E - 14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-29 for loose, corroded or damaged terminals, or terminals pushed ba

Page 2763 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Identifying Connector C - 29 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between remote controlled mirror (LH) connector E-14 (terminal 3) and ground in good

Page 2764 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Identifying Connector C - 104 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is joint connector (2) C-104 in good condition? YES: Go to Step 7. NO: Repair or replace the damaged co

Page 2765 of 3870

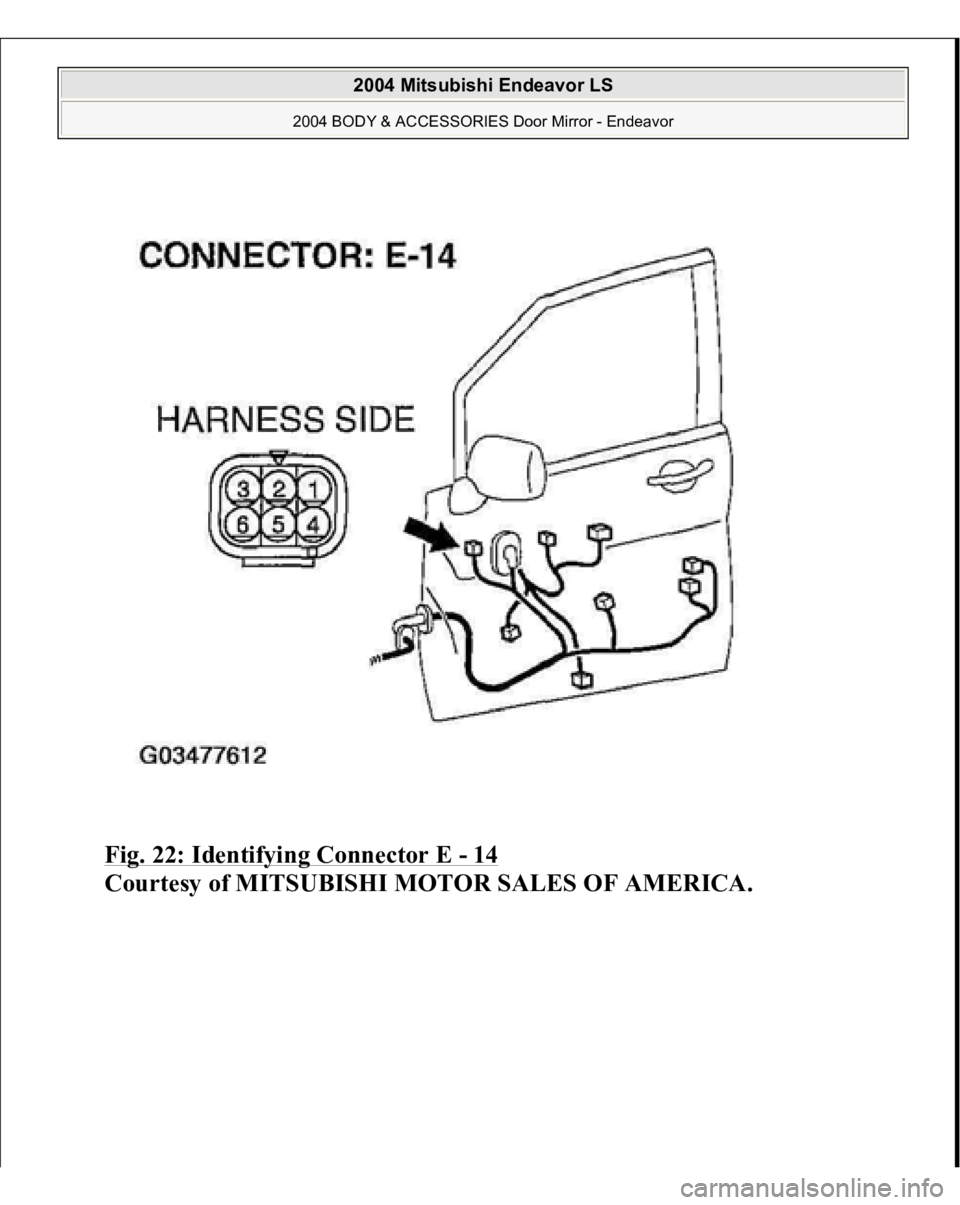

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Identifying Connector E - 14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door Mirror - Endeavor

Page 2766 of 3870

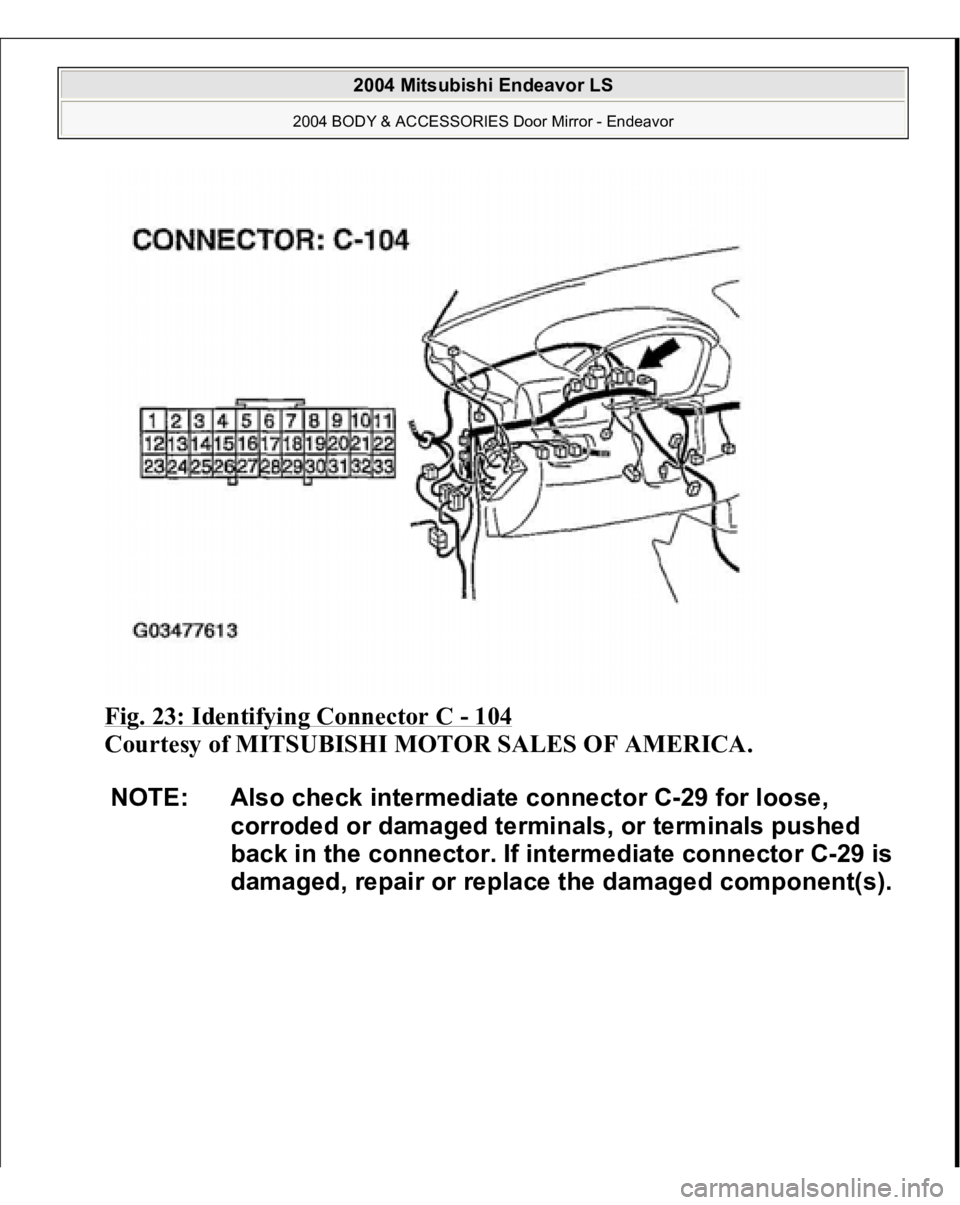

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Identifying Connector C - 104 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-29 for loose, corroded or damaged terminals, or terminals pushed b

Page 2767 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Identifying Connector C - 29 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between remote controlled mirror (LH) connector E-14 (terminal 1) and joint connector

Page 2768 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Identifying Connector E - 01 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is remote controlled mirror (RH) connector E-01 in good condition? YES: Go to Step 9 . NO: Repair or rep
