Page 873 of 3870

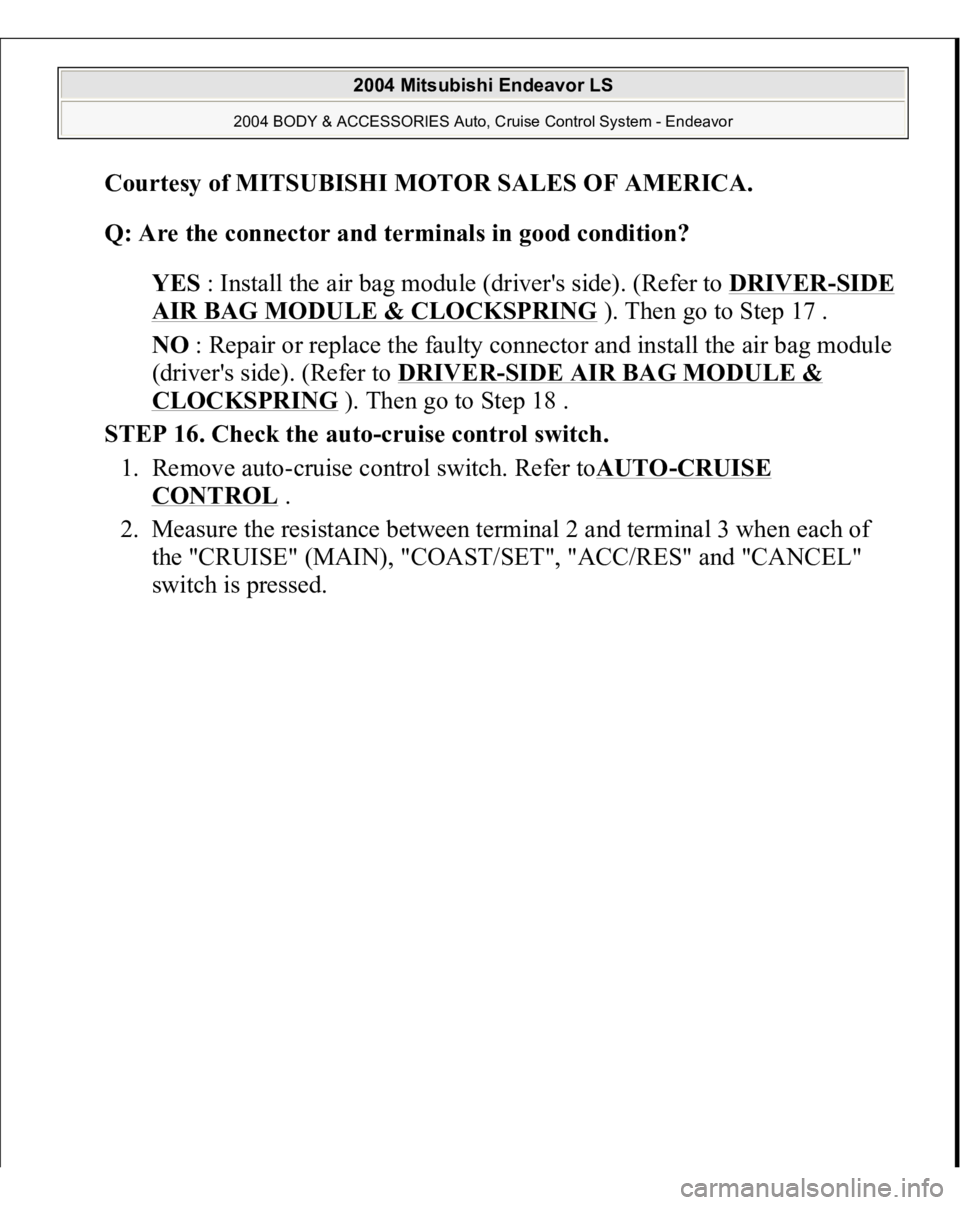

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Q: Are the connector and terminals in good condition? YES : Install the air bag module (driver's side). (Refer to DRIVER -SIDE AIR BAG MODULE &

Page 874 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 875 of 3870

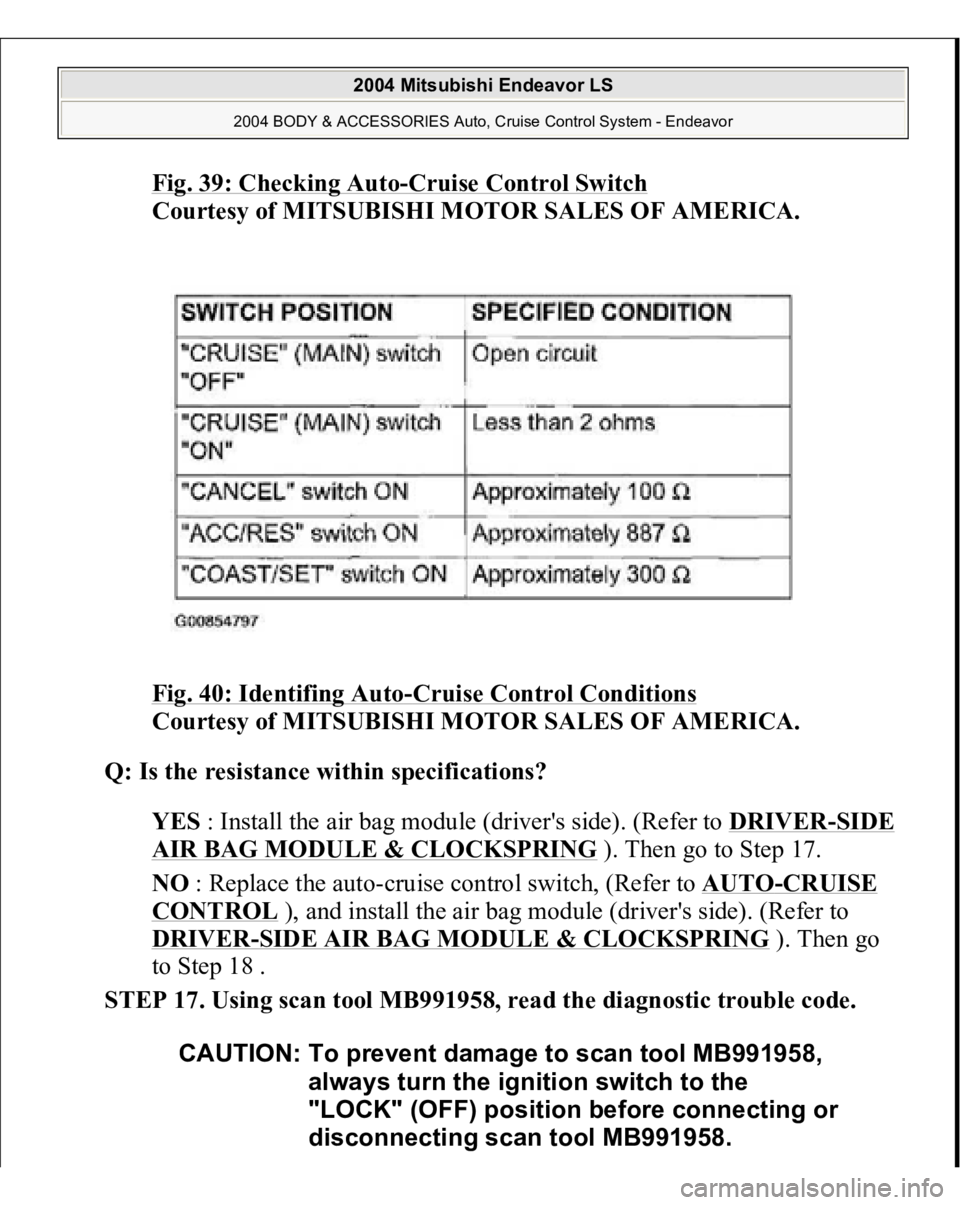

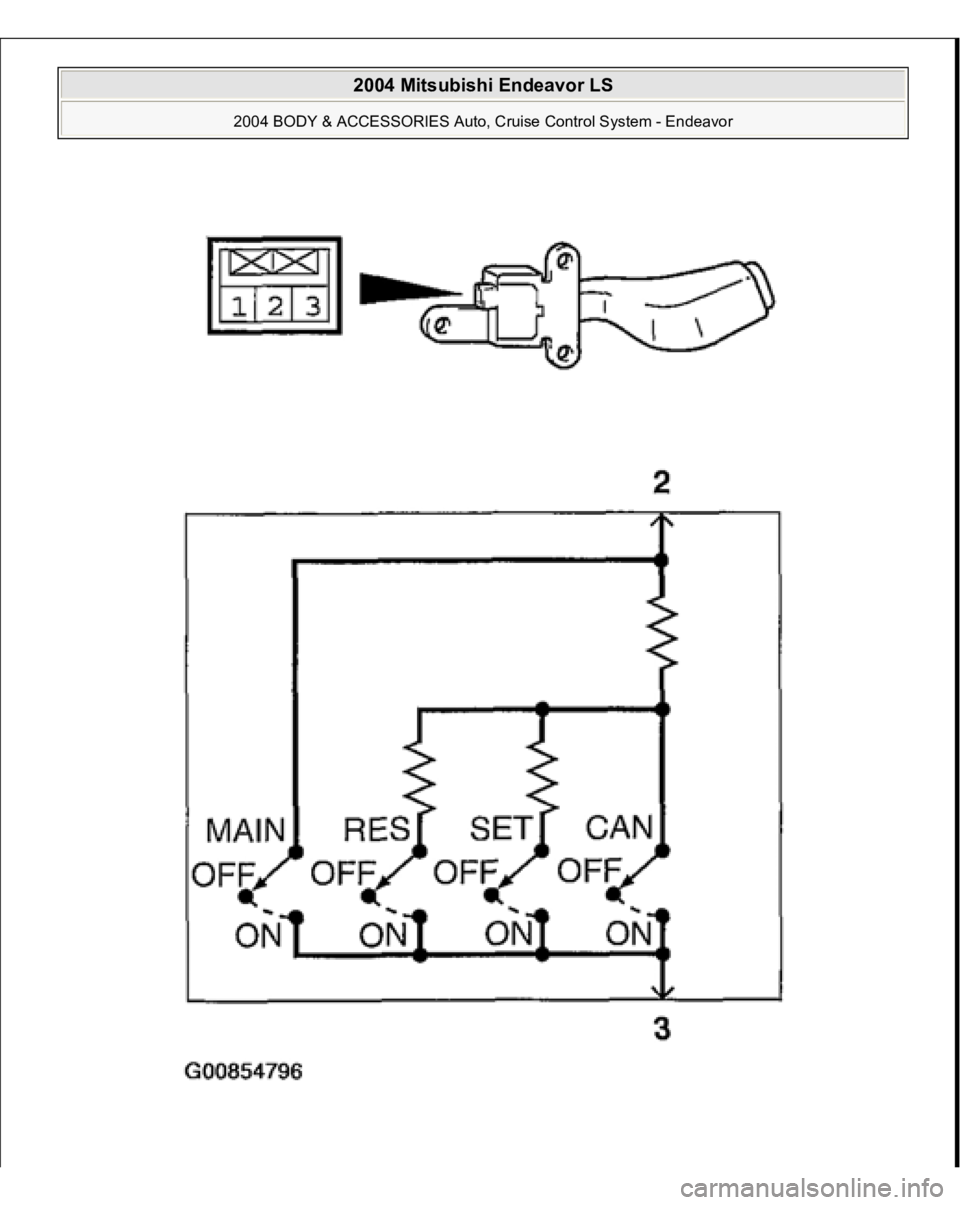

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Checking Aut o-Cruise Control Switc h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 40: Identifing Auto -Cruise Control Conditions Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q:

Page 876 of 3870

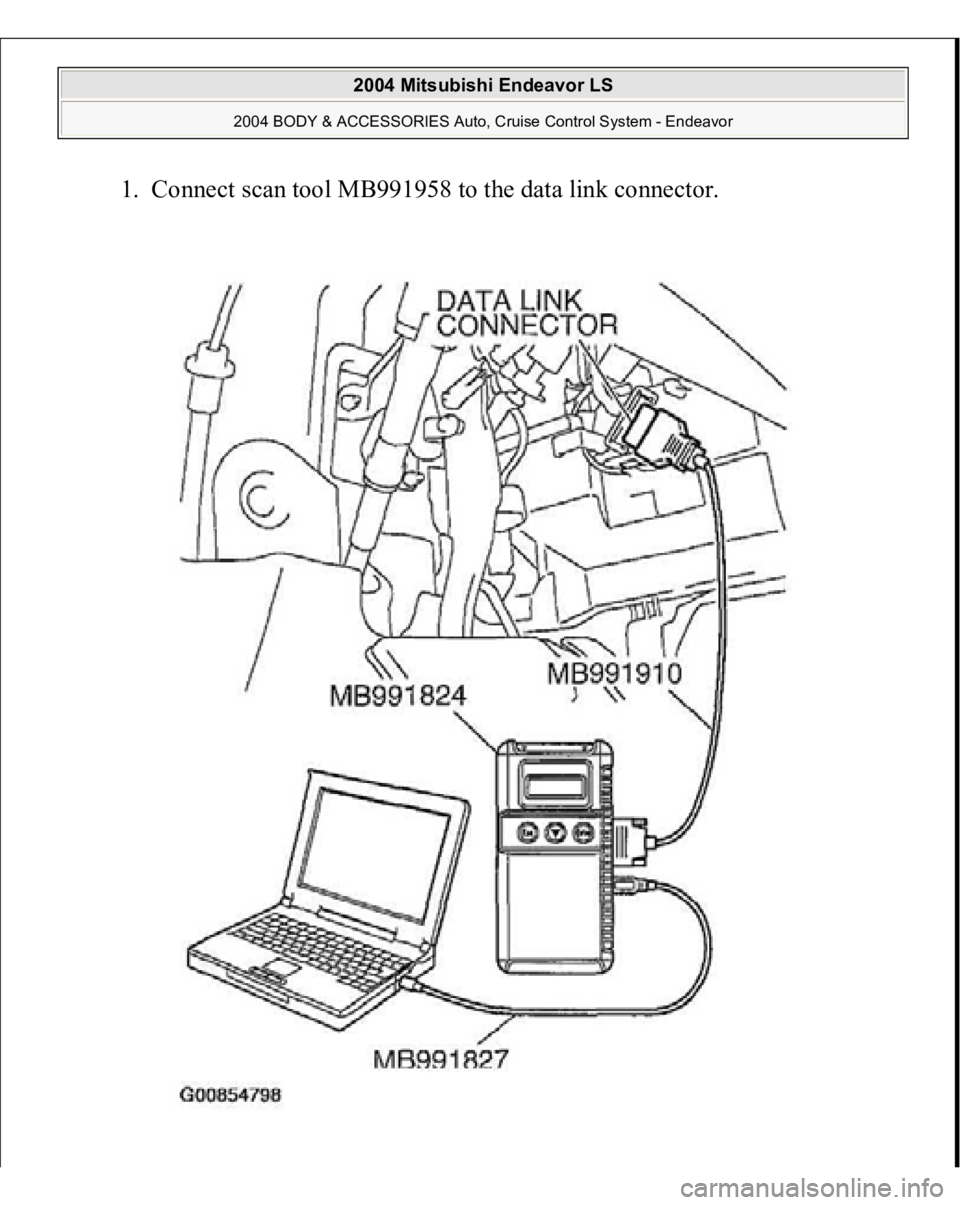

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connector. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 877 of 3870

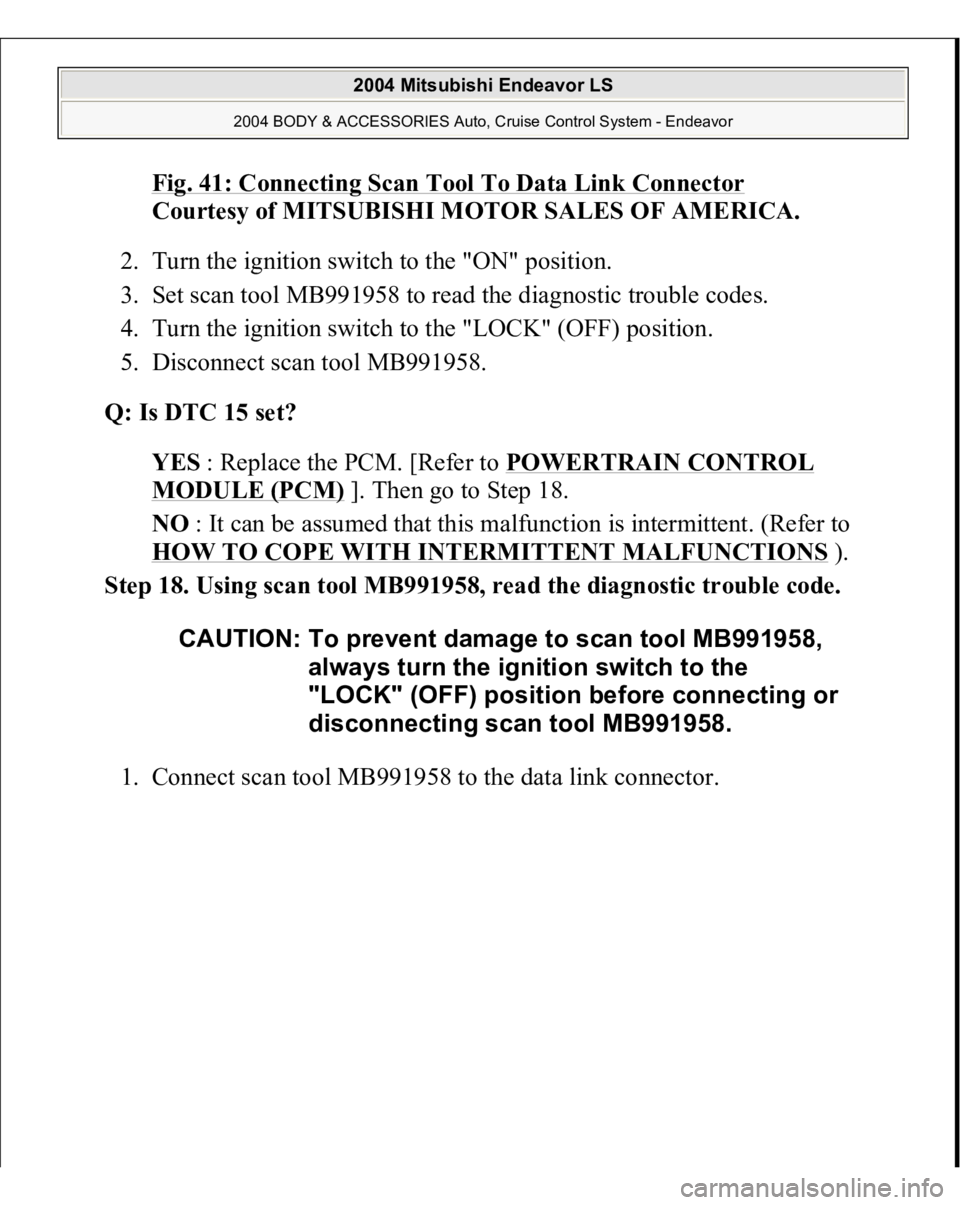

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Connecting Scan Tool To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to read the

Page 878 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 879 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to read the diagnostic trouble codes. 4. Turn the ignition swit

Page 880 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Stoplight Switch System Circuit Diagram Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
