Page 2265 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2266 of 3870

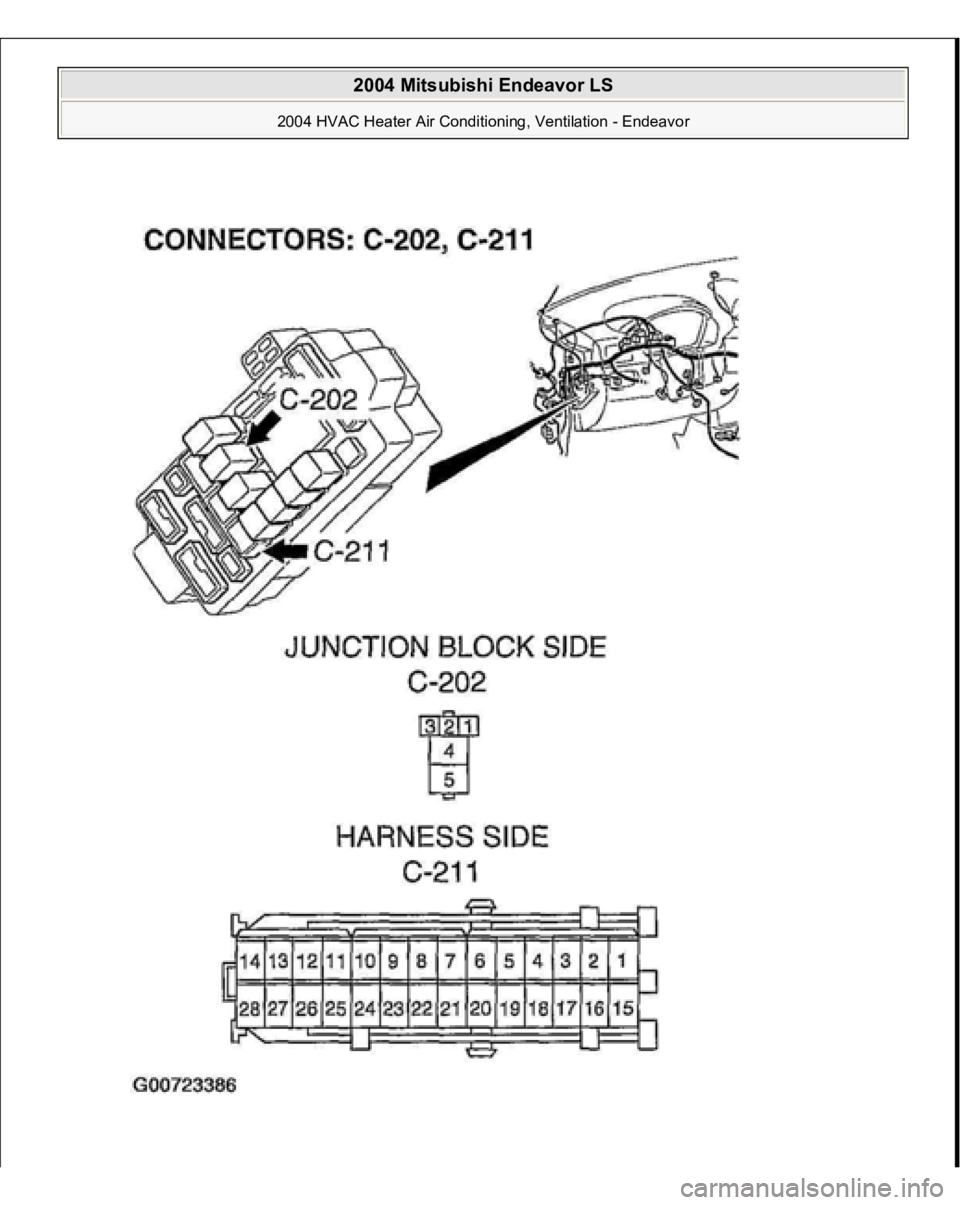

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 193: Locating Connector C -211 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-16 (terminal 9) and front blower relay connector C-202 (ter

Page 2267 of 3870

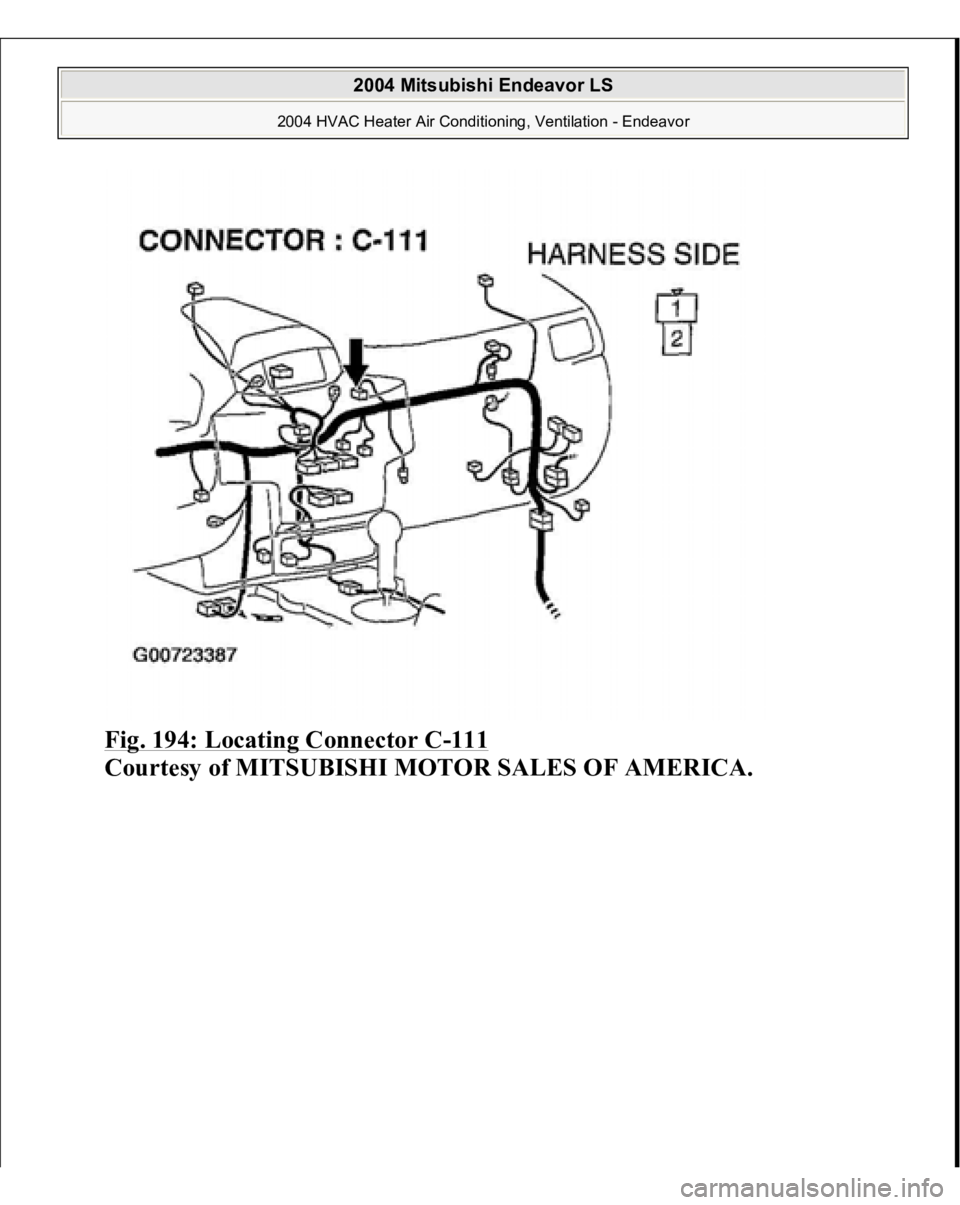

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 194: Locating Connector C -111 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2268 of 3870

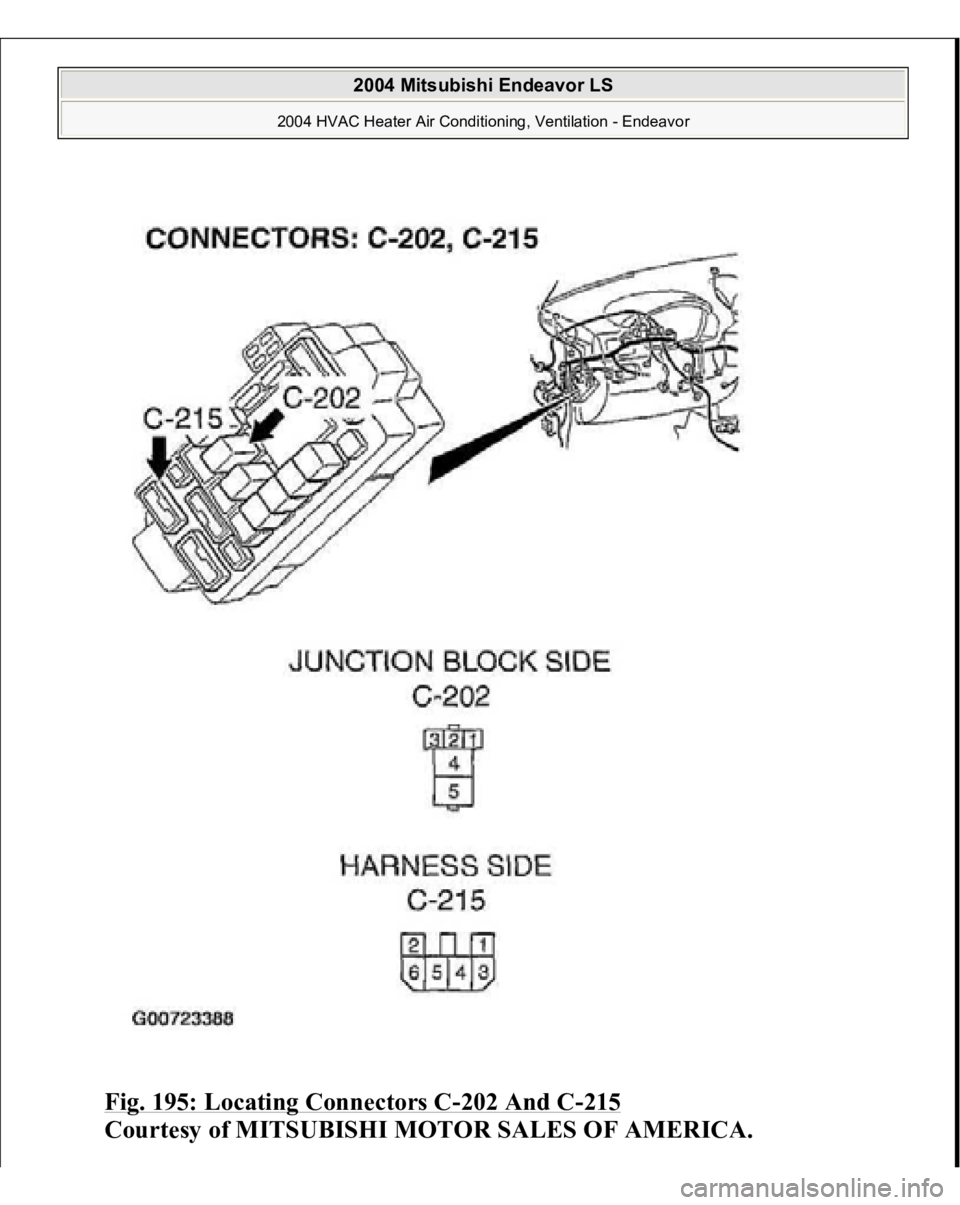

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 195: Locating Connectors C -202 And C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2269 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between front blower motor connector C-111 (terminal 1) and front blower relay connector C-202 (terminal 4) in good condition? YES: The front blower motor should operate

Page 2270 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 196: Checking Front Blower Fan And Motor Operation Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 12. Check power transistor connector C-108 for loose, corroded or damaged terminals, or

Page 2271 of 3870

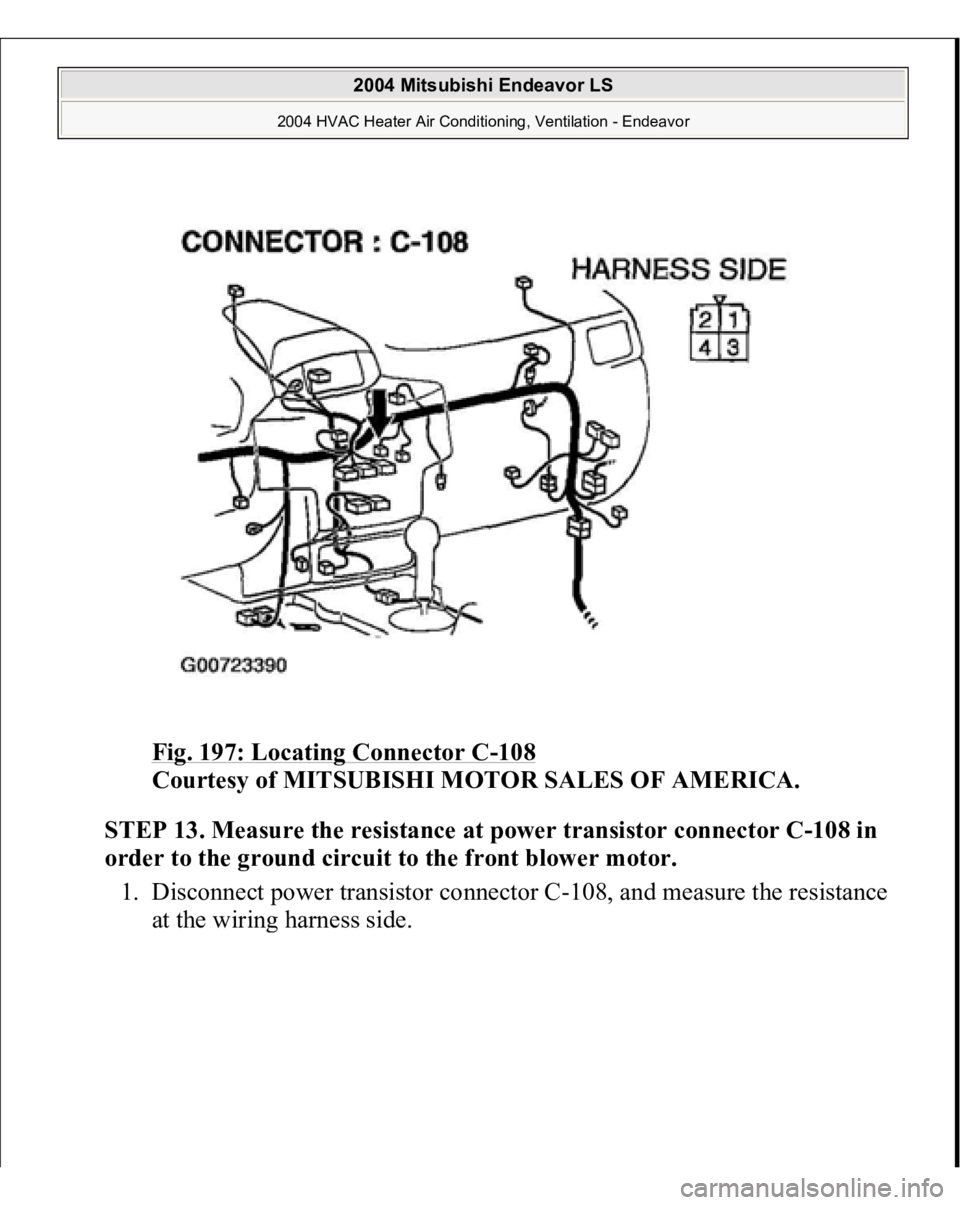

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 197: Locating Connector C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 13. Measure the resistance at power transistor connector C-108 in order to the ground circuit to the front

Page 2272 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 198: Locating Connector C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance value between terminal 2 and ground. The measured value should be 2 ohms or less. Q:
