Page 2257 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 186: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 6. Check the wiring harness between front blower relay connector C-202 (terminal 1) a

Page 2258 of 3870

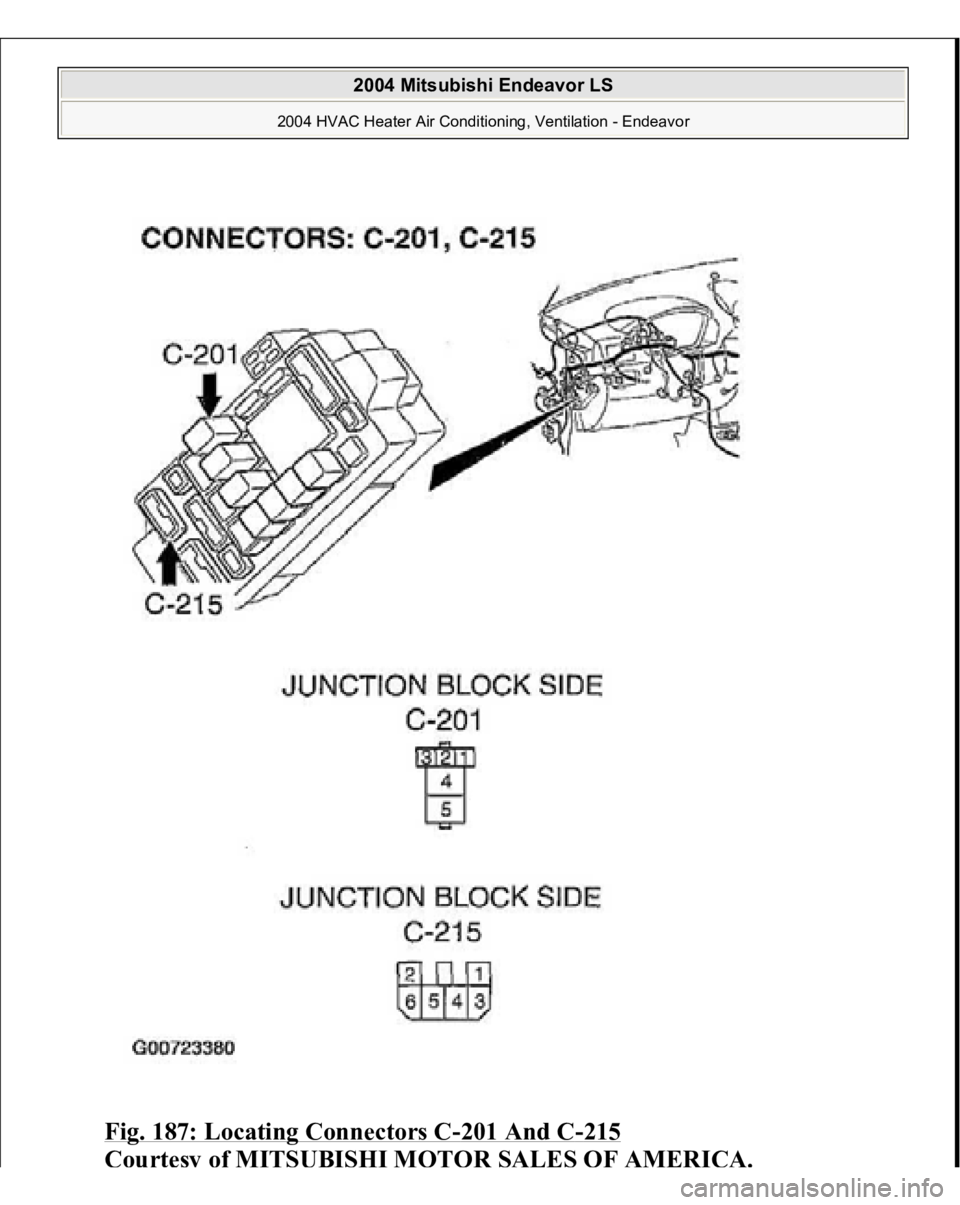

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 187: Locating Connectors C -201 And C -215 Cou rtesy of MIT SU BI SHI M OTOR SALE S OF AMERI CA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2259 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between front blower relay connector C-202 (terminal 1) and the ignition switch (IG2) in good condition? YES: The front blower motor should operate normally. NO: Repai

Page 2260 of 3870

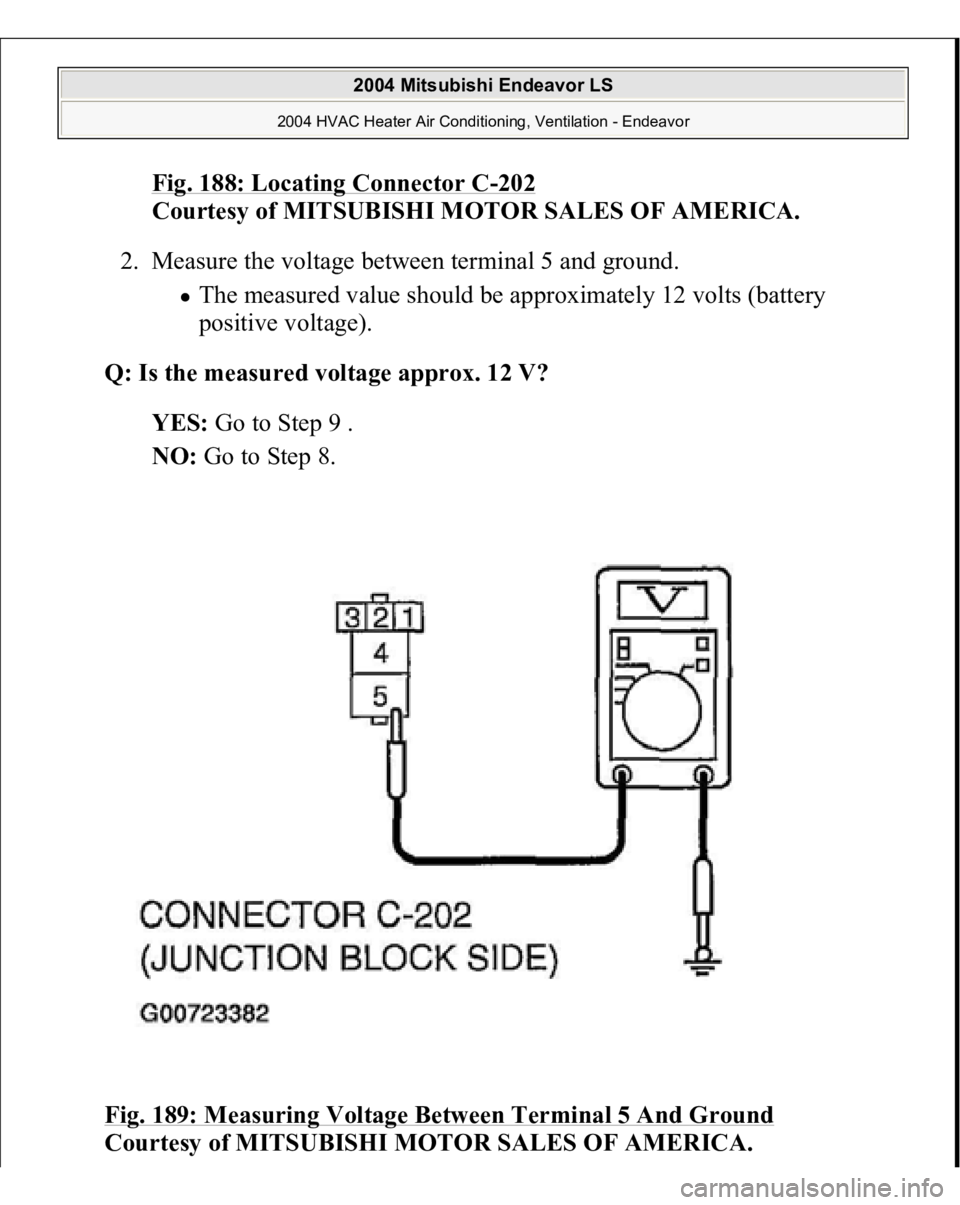

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 188: Locating Connector C -202 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the voltage between terminal 5 and ground. The measured value should be approximately 12 volts (batte

Page 2261 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 8. Check the wiring harness between front blower relay connector C-202 (terminal 5) and fusible link (1). Fig. 190: Identifying Fusible Link Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Page 2262 of 3870

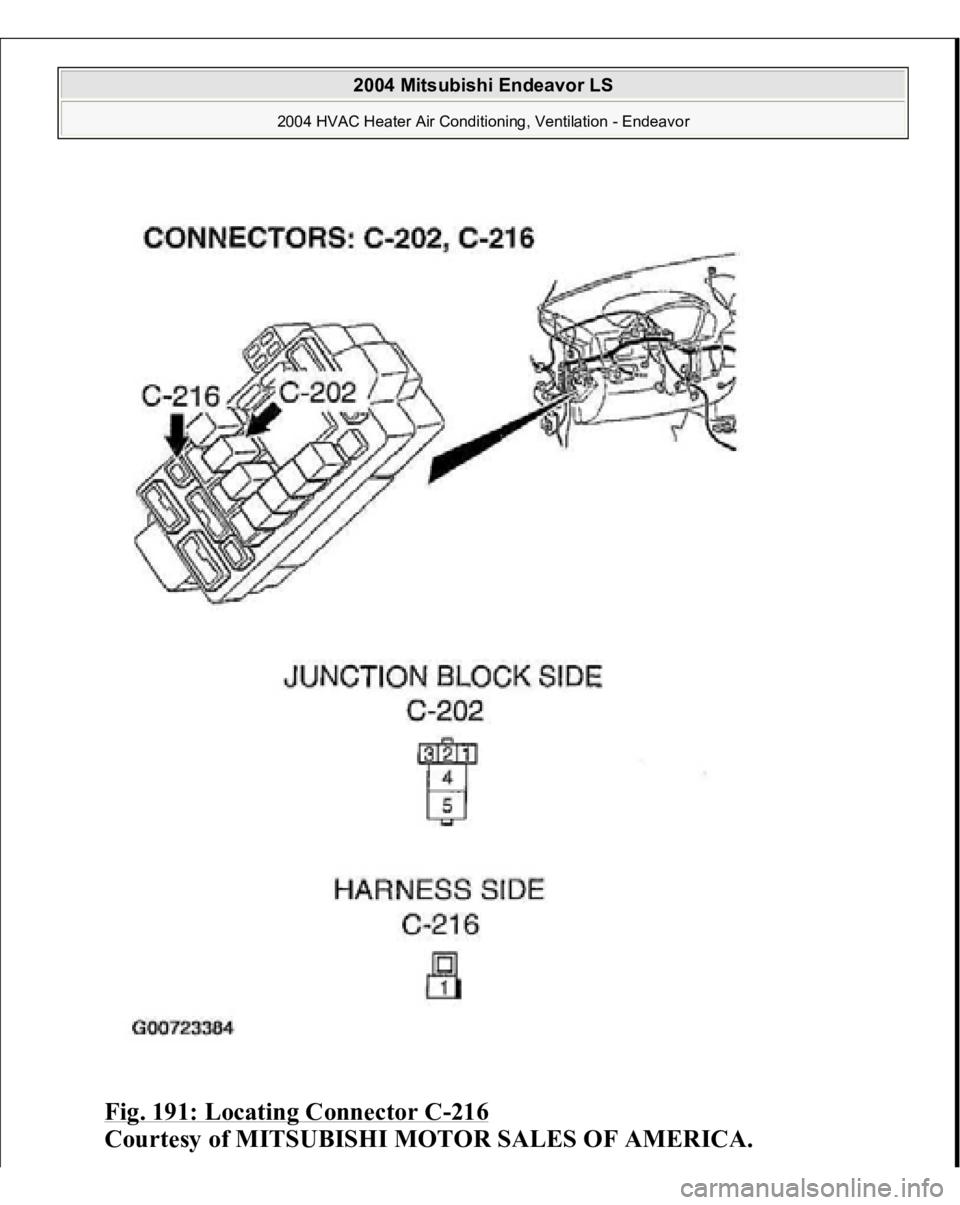

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 191: Locating Connector C -216 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2263 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between front blower relay connector C-202 (terminal 5) and fusible link (1) in good condition? YES: The front blower motor should operate normally. NO: Repair the wir

Page 2264 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 192: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
