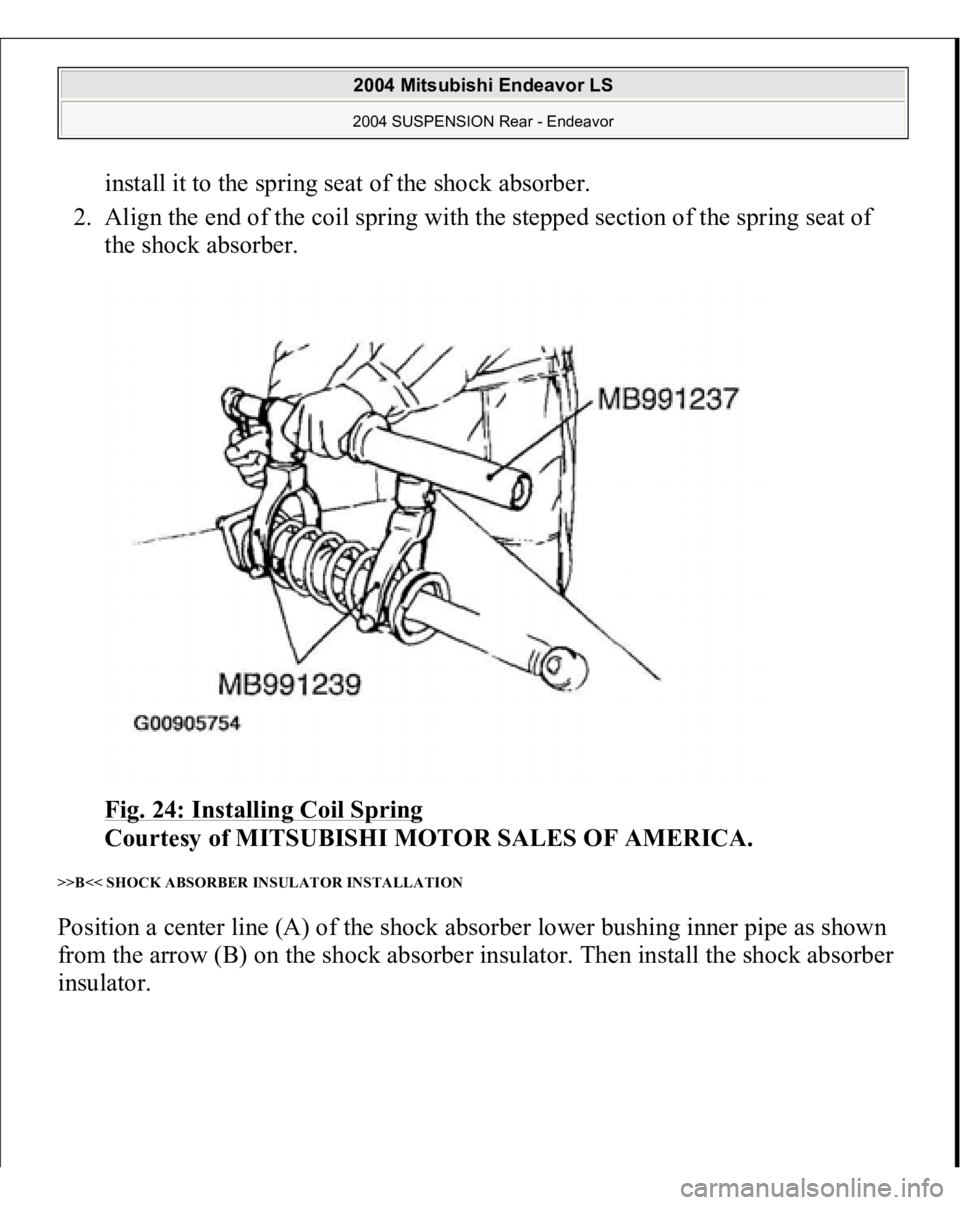

MITSUBISHI ENDEAVOR 2004 Service Repair Manual install it to the spring seat of the shock absorber. 2. Align the end of the coil spring with the stepped section of the spring seat of the shock absorber. Fig. 24: Installing Coil Spring Courte

Page 3066 of 3870

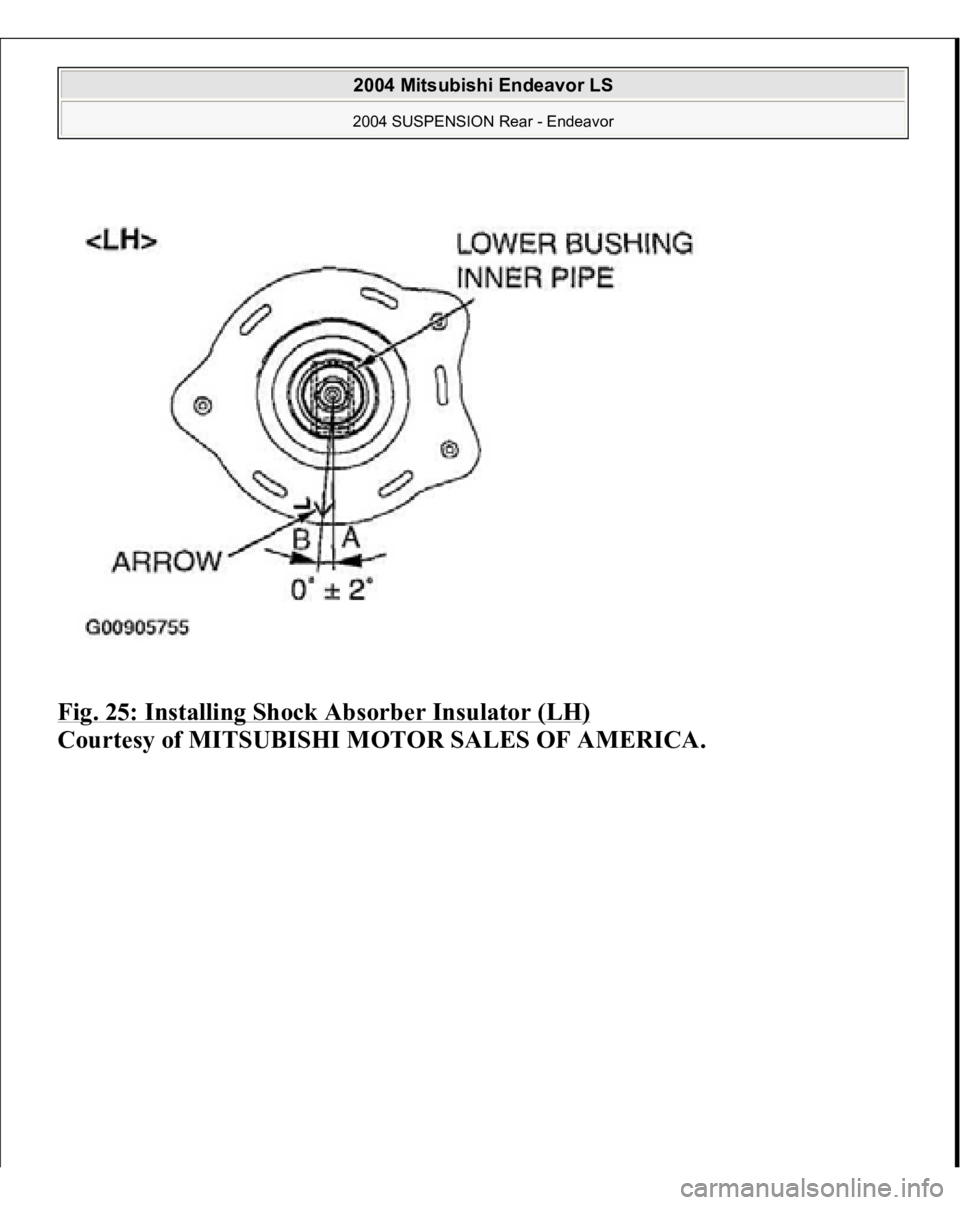

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Installing Shock Absorber Insulator (LH) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Page 3067 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 26: Installing Shock Absorber Insulator (RH) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< COIL SPRING NUT INSTALLATION 1. Temporarily tighten the coil spring nut. 2. Remove special to

Page 3068 of 3870

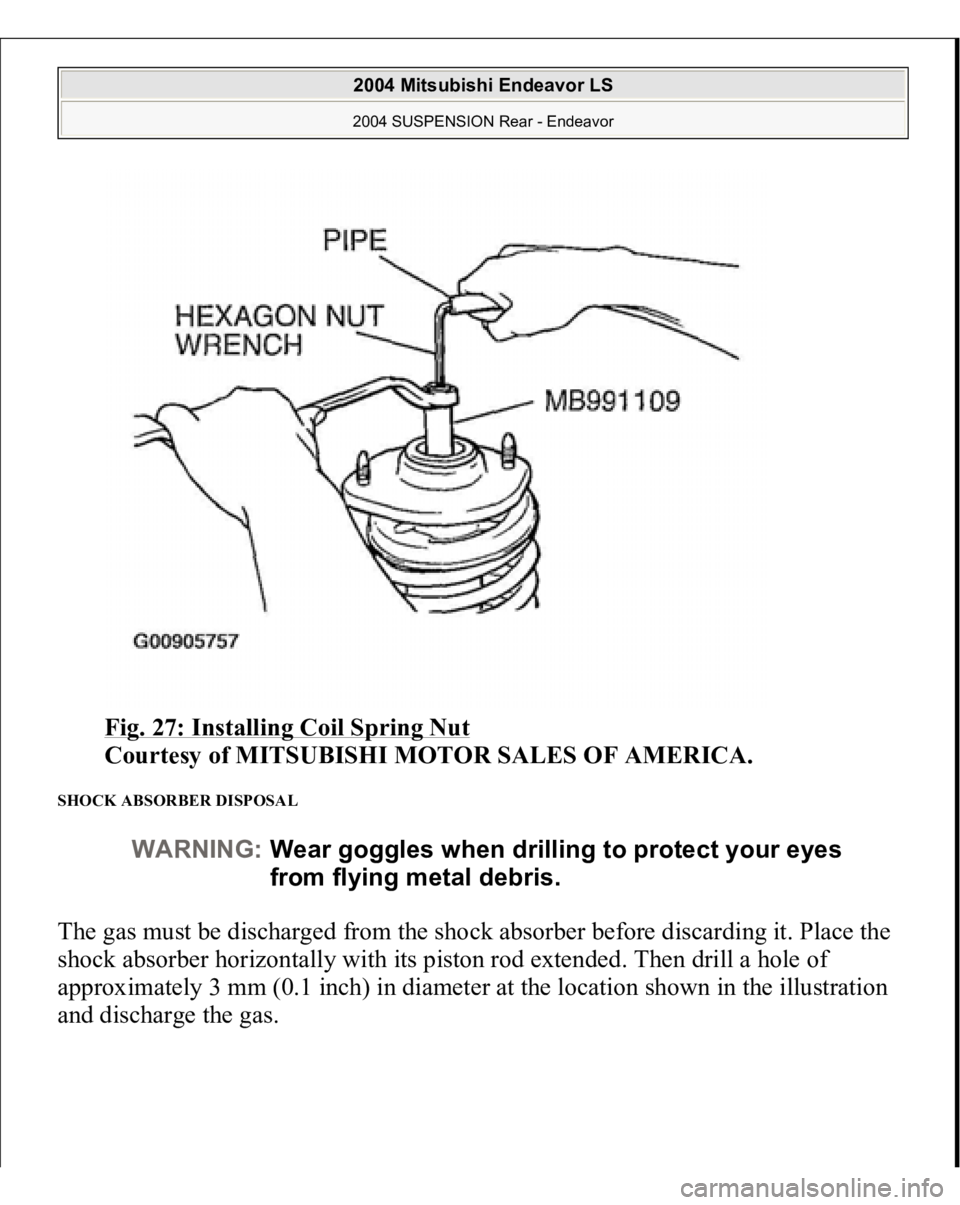

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 27: Installing Coil Spring Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SHOCK ABSORBER DISPOSAL The gas must be discharged from the shock absorber before discarding it. Place the shock

Page 3069 of 3870

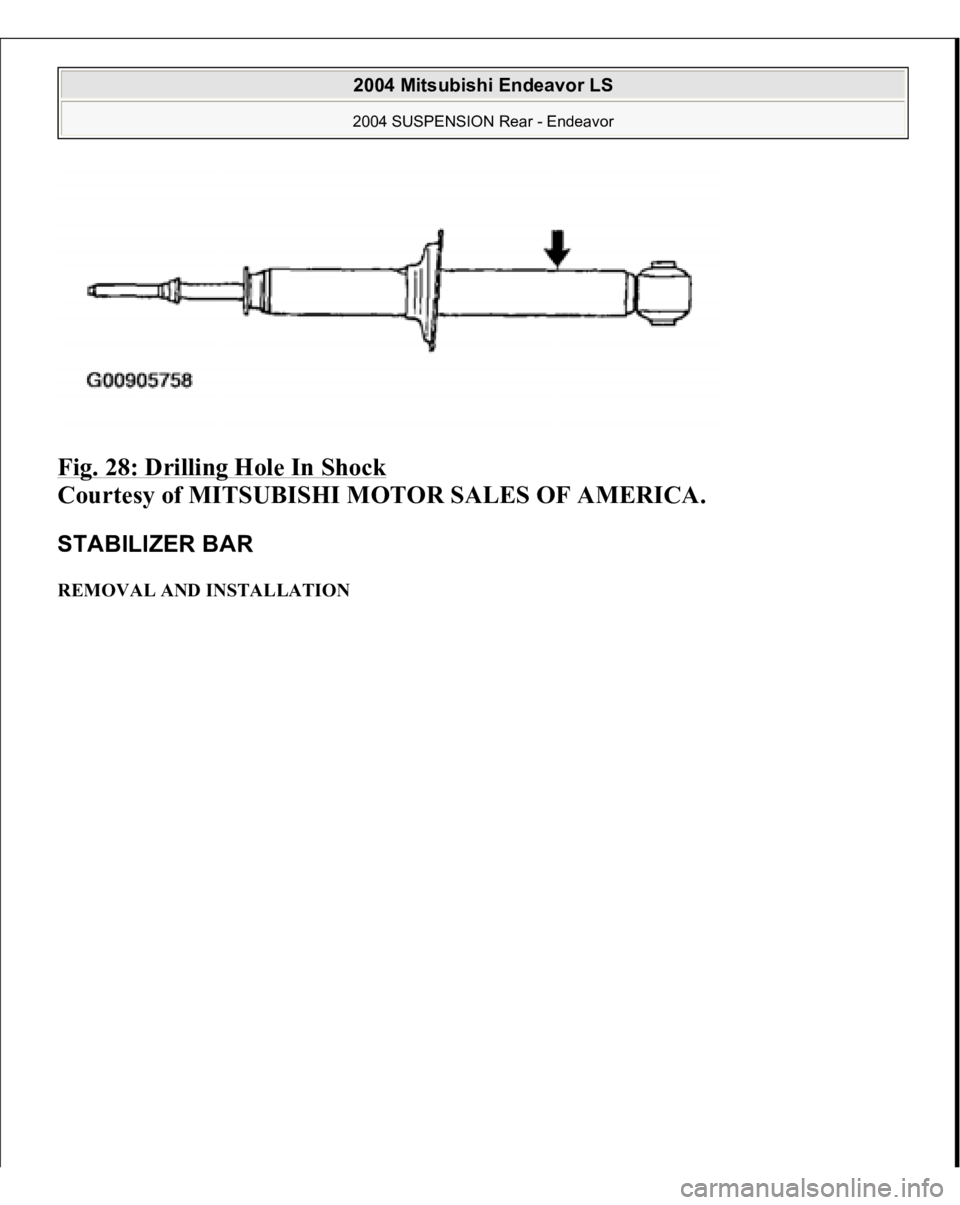

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 28: Drilling Hole In Shock Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STABILIZER BAR REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Page 3070 of 3870

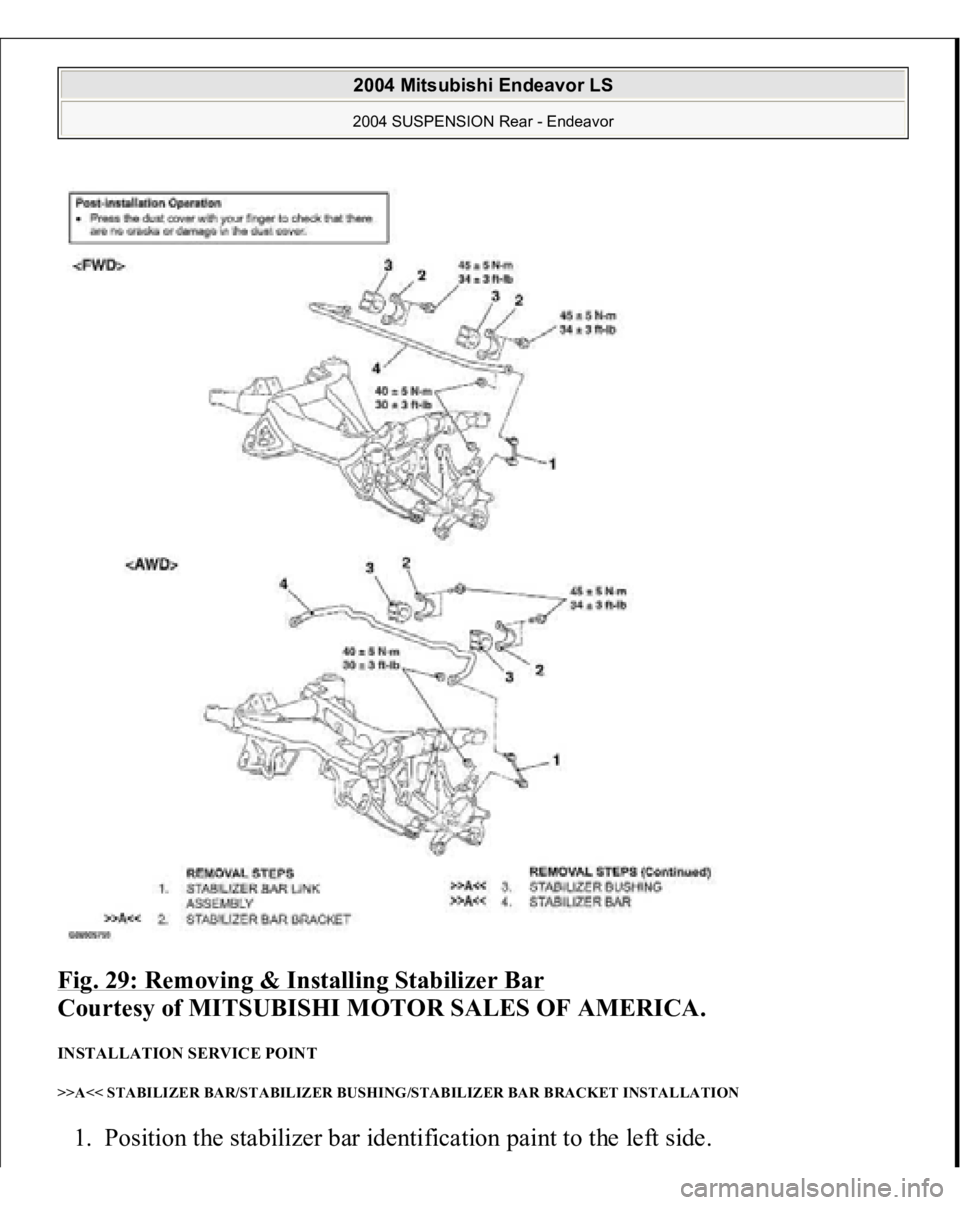

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 29: Removing & Installing Stabilizer Bar Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< STABILIZER BAR/STABILIZER BUSHING/STABILIZER BAR BRACKET INSTALLATION 1

Page 3071 of 3870

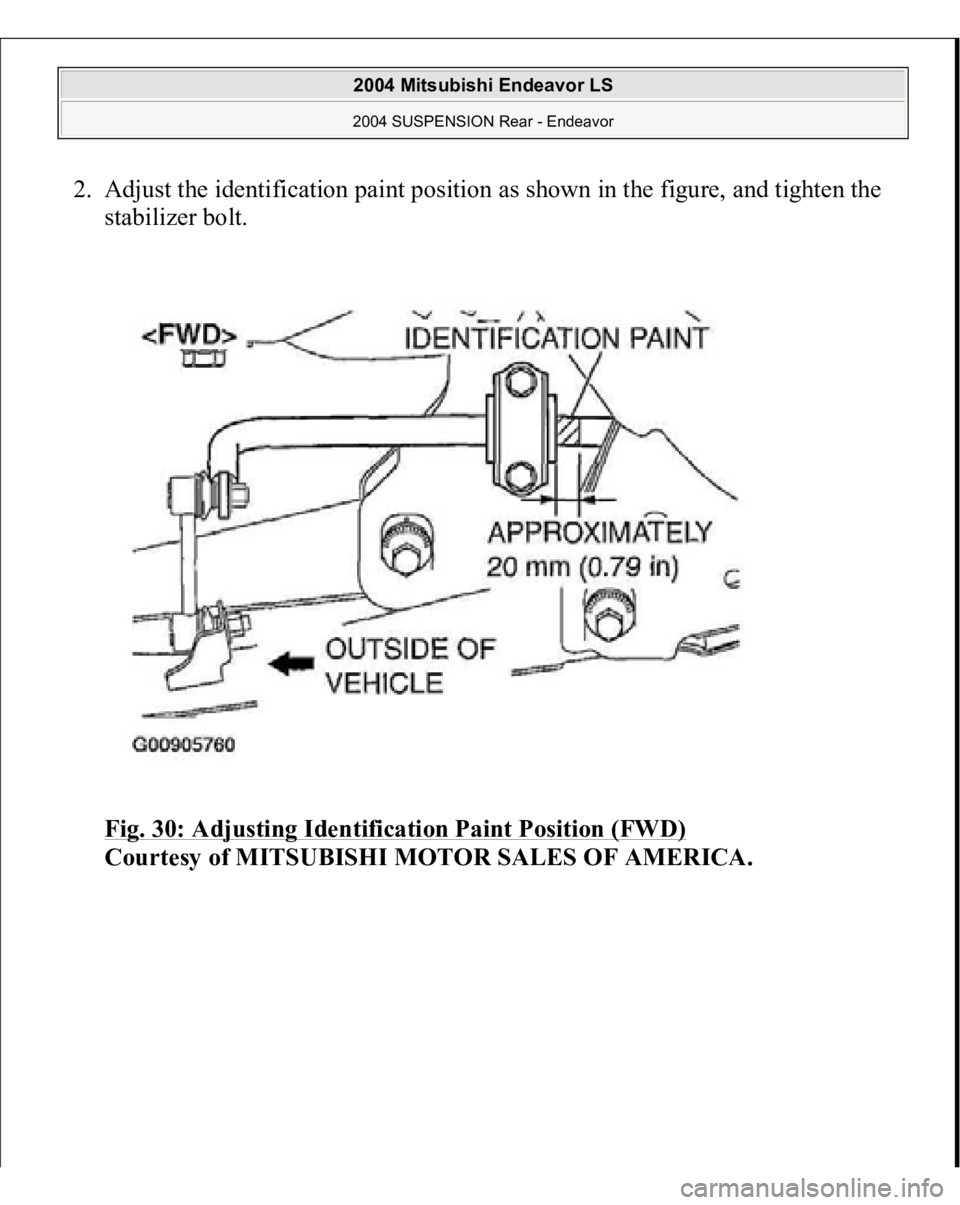

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Adjust the identification paint position as shown in the figure, and tighten the stabilizer bolt. Fig. 30: Adjusting Identification Paint Position (FWD) Courtesy of MITSUBISHI MOTOR SALES OF AM

Page 3072 of 3870

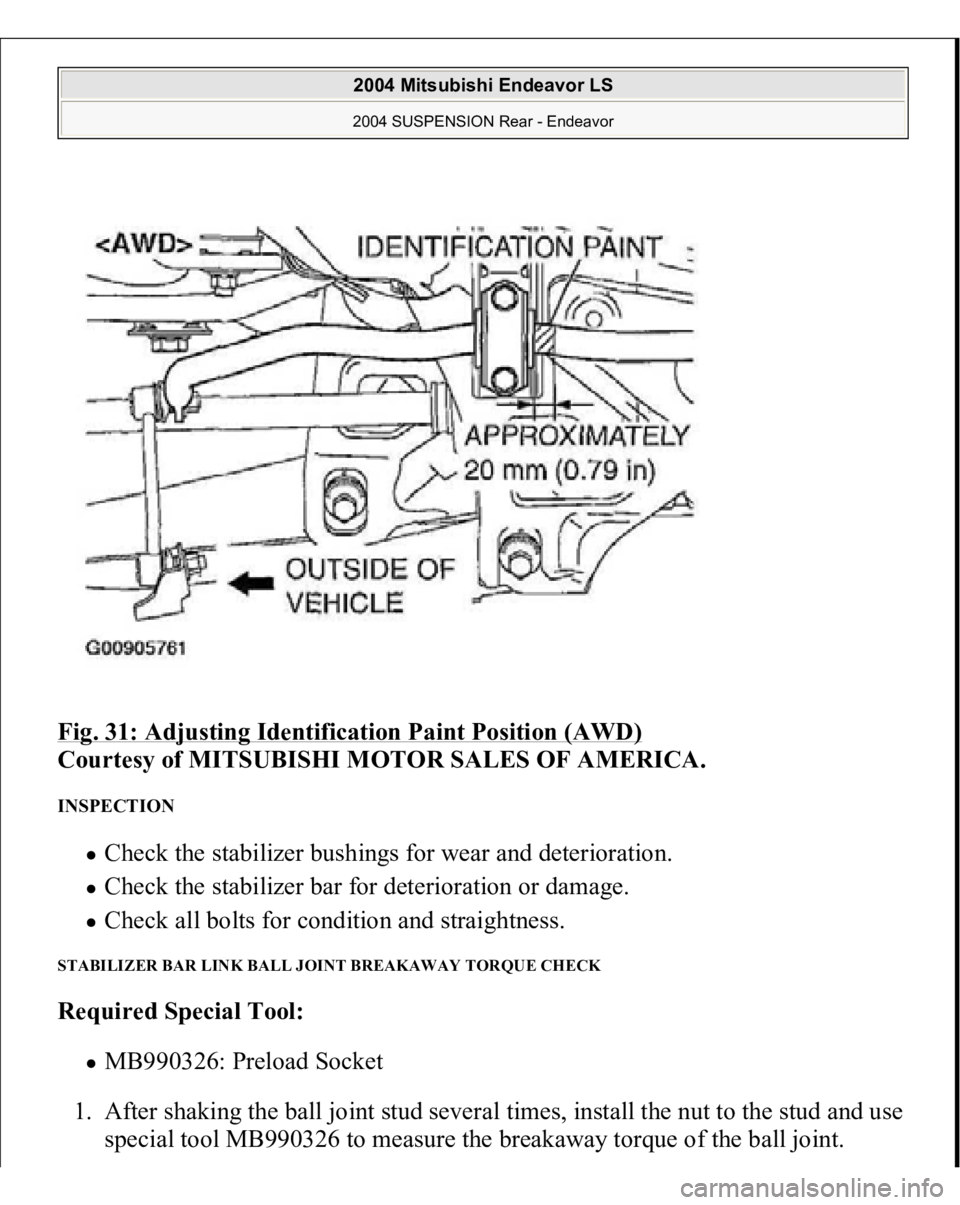

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Adjusting Identification Paint Position (AWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check the stabilizer bushings for wear and deterioration. Check the stabilizer bar
