Page 2881 of 3870

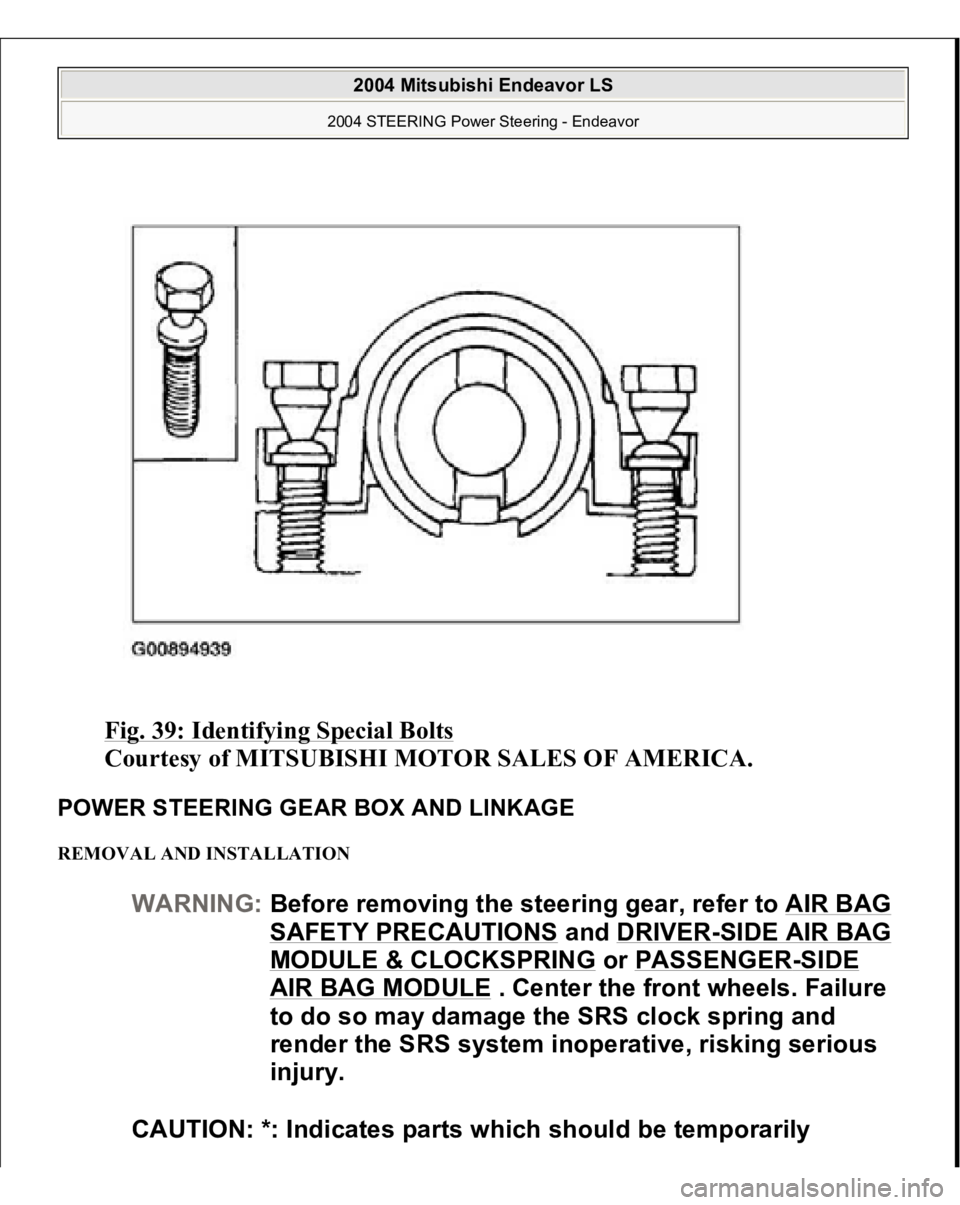

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Identifying Special Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. POWER STEERING GEAR BOX AND LINKAGE REMOVAL AND INSTALLATION WARNING:Before removing the steering gear, refer to A

Page 2882 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Removing & Installing Power Steering Gear Box And Linkage (1 Of 2)Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . tightened, and then fully tightened after placing the vehicle horizontally

Page 2883 of 3870

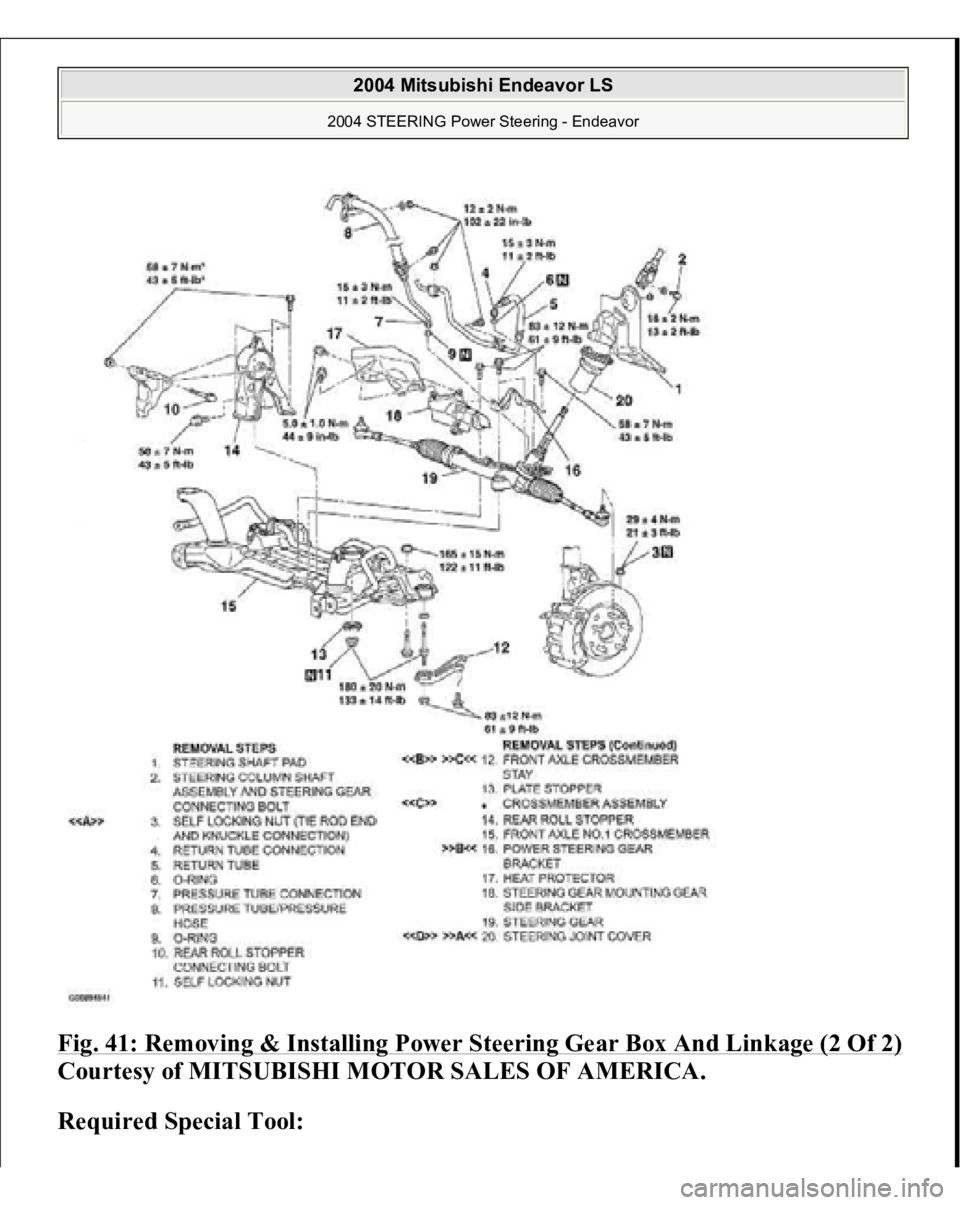

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Removing & Installing Power Steering Gear Box And Linkage (2 Of 2)Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tool: 2004 Mitsubishi Endeavor LS 2004 STEERING Power St

Page 2884 of 3870

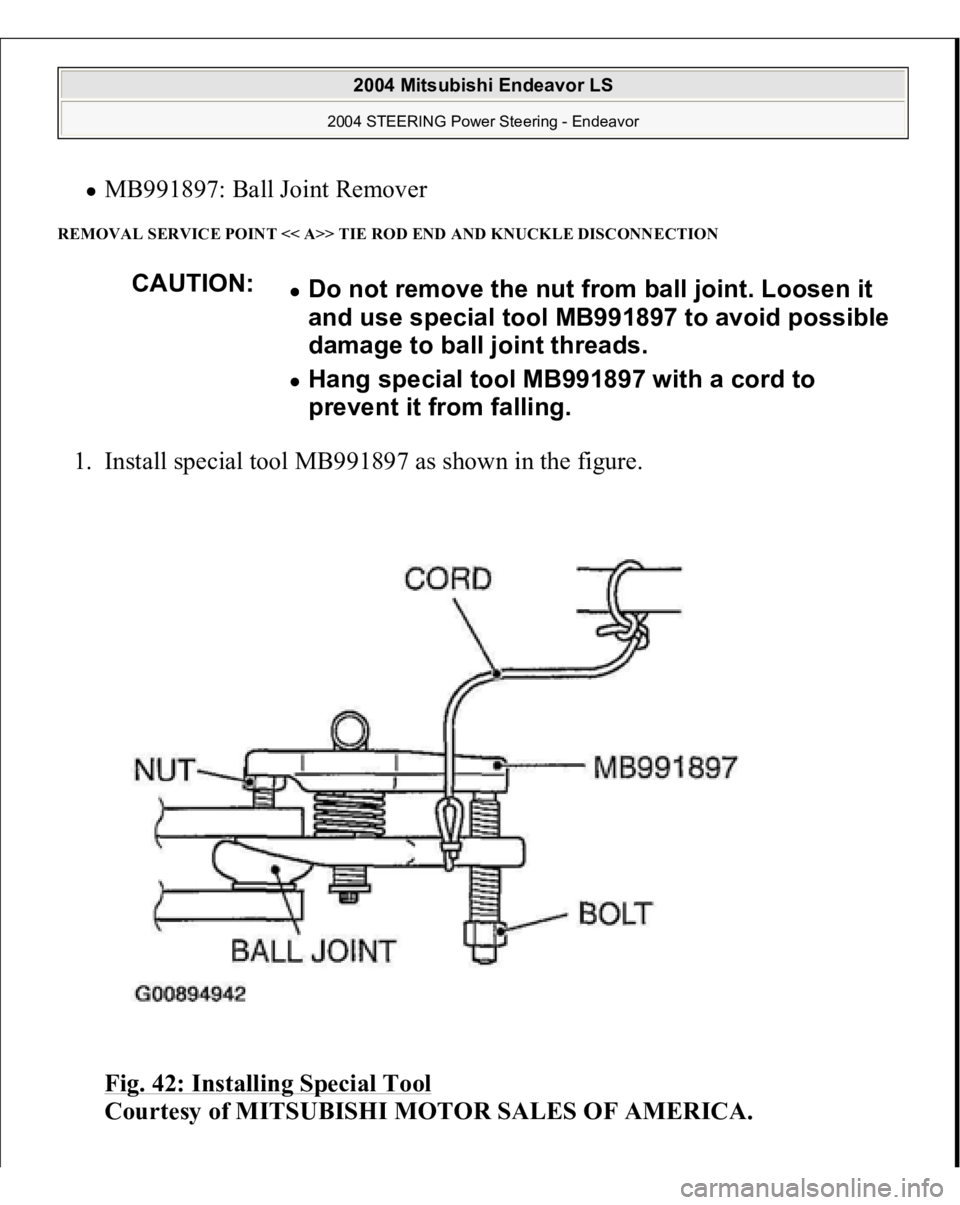

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991897: Ball Joint Remover REMOVAL SERVICE POINT << A>> TIE ROD END AND KNUCKLE DISCONNECTION 1. Install special tool MB991897 as shown in the figure. Fig. 42: Installing Special Tool Courtesy

Page 2885 of 3870

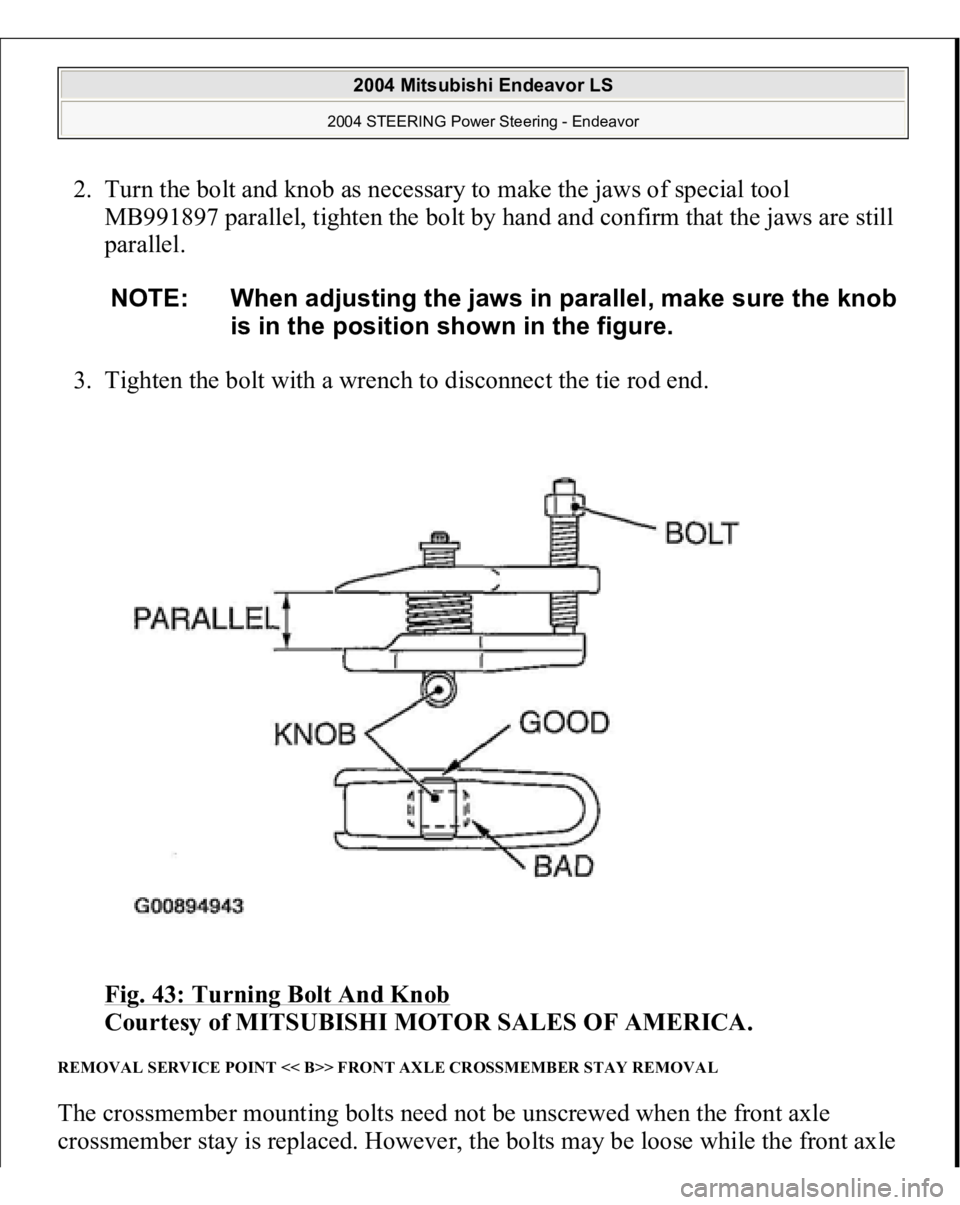

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the bolt and knob as necessary to make the jaws of special tool MB991897 parallel, tighten the bolt by hand and confirm that the jaws are still parallel. 3. Tighten the bolt with a wrench t

Page 2886 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual crossmember stay is removed. Retighten the bolts to 180 +/- 20 N.m (13 +/- 14 ft- lb). Fig. 44: Removing Front Axle Crossmember Stay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE

Page 2887 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 45: Using Transmission Jack To Hold Crossmember Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << D>>STEERING JOINT COVER REMOVAL From inside the vehicle, loosen the 3 sh

Page 2888 of 3870

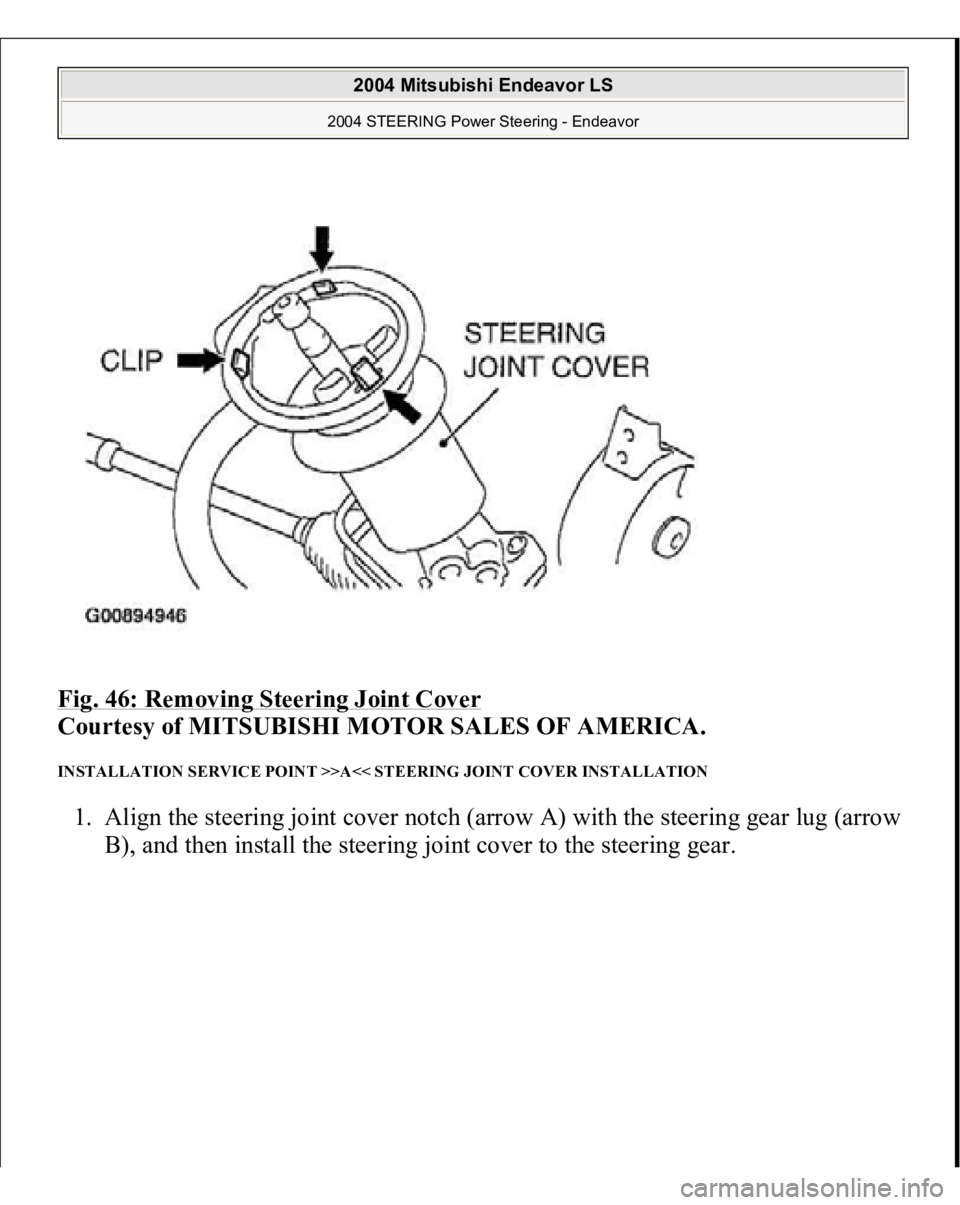

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Removing Steering Joint Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< STEERING JOINT COVER INSTALLATION 1. Align the steering joint cover notch (arr
