Page 2137 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A STEP 1. Using scan tool MB991958, diagnose the CAN bus line. 1. Connect scan tool MB9919

Page 2138 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 97: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavo

Page 2139 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be normal

Page 2140 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 98: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavo

Page 2141 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the check result satisfactory? YES

Page 2142 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual powertrain control module. If the connectors and wiring are normal, and obviously the ECU is the cause of the trouble, replace the ECU. If in doubt, do not replace the ECU. TROUBLESHOOTING HINTS

Page 2143 of 3870

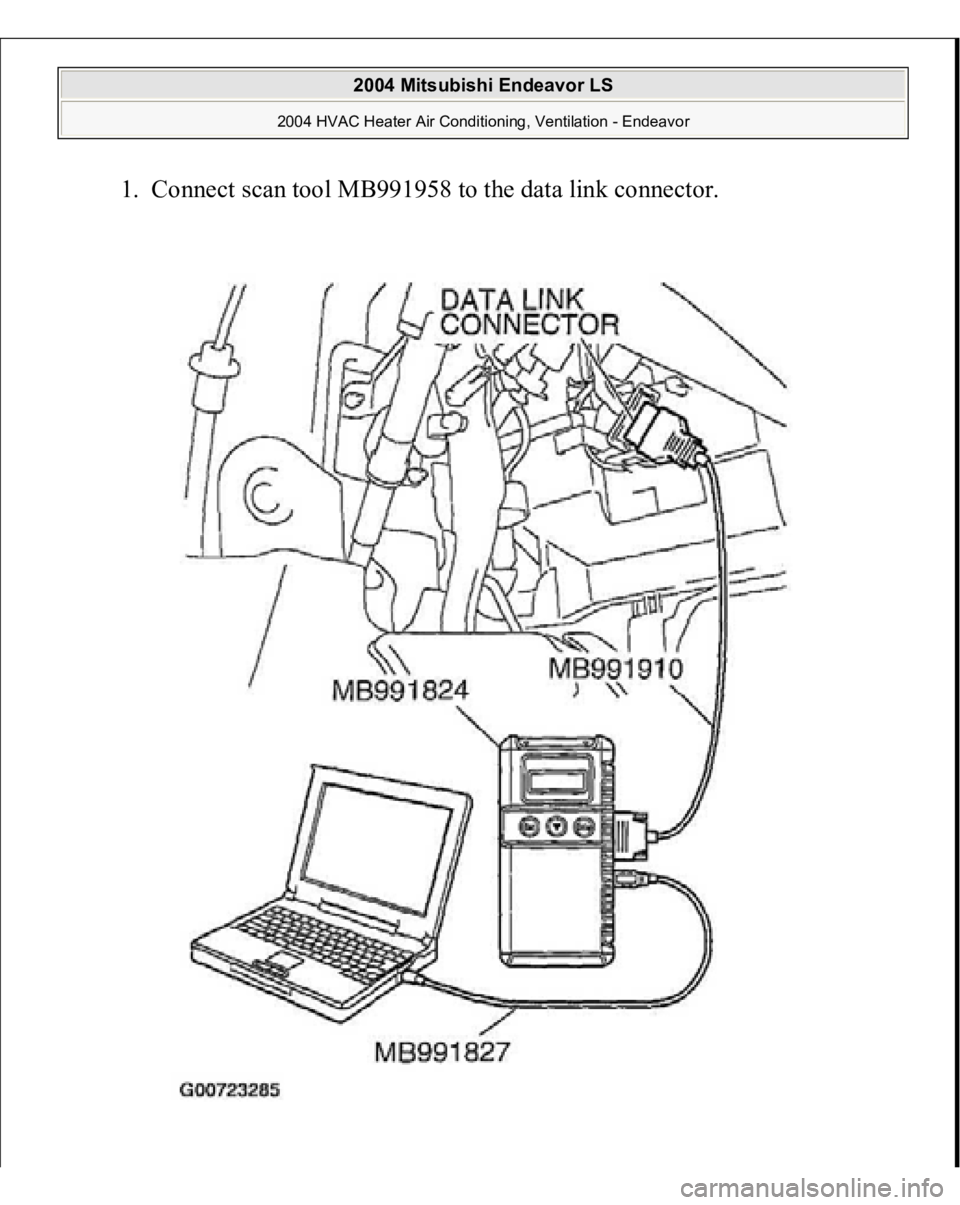

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connector. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2144 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 99: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus lin
Load next 8 pages
