Page 2377 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 279: Identifying Fan Control Relay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2378 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual FAN CONTROL RELAY CONTINUITY CHART IDLE-UP OPERATION CHECK 1. Before inspection and adjustment, set vehicle in the following condition: Engine coolant temperature: 80 - 90 °C (176.0 - 194.0 °F)

Page 2379 of 3870

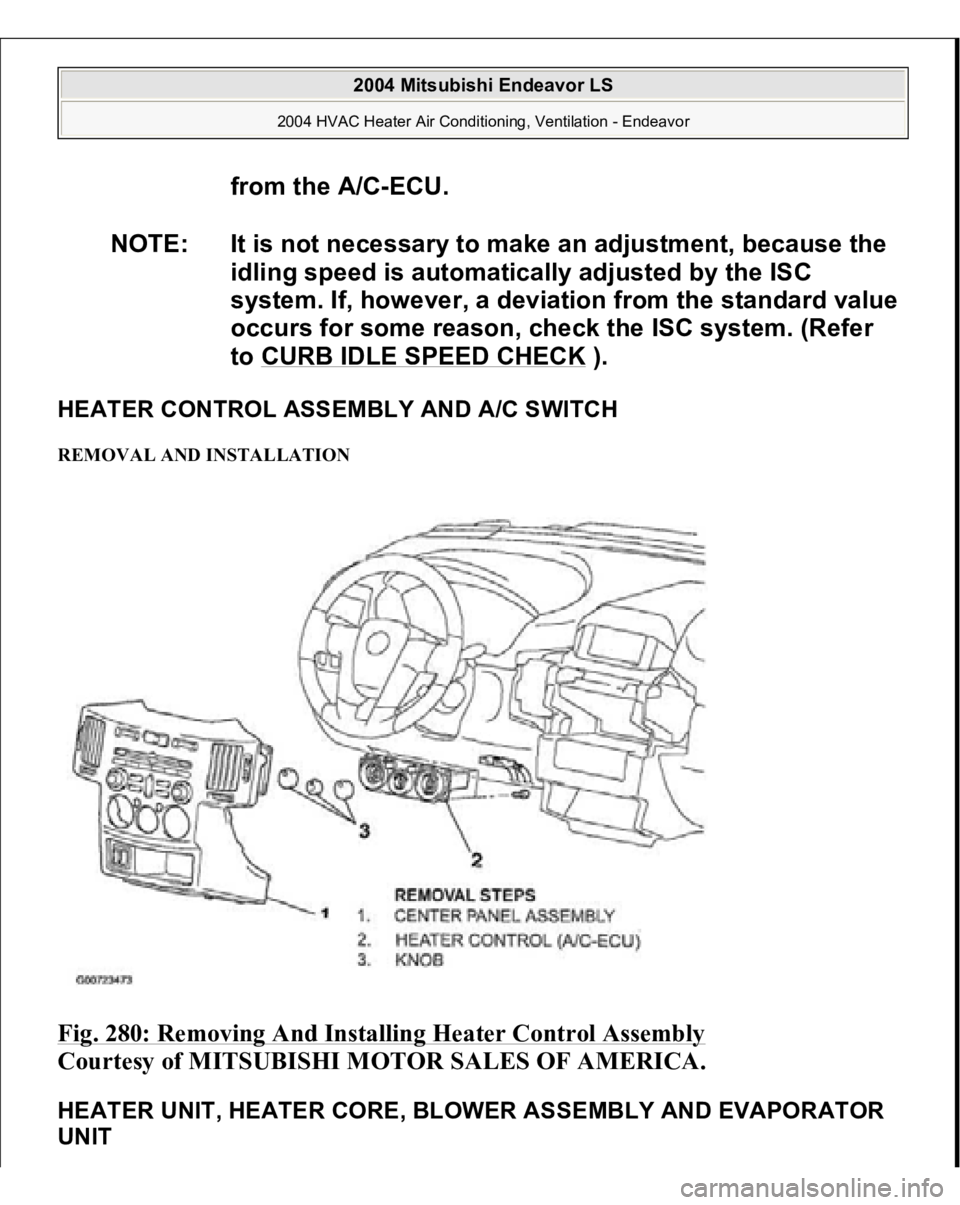

MITSUBISHI ENDEAVOR 2004 Service Repair Manual HEATER CONTROL ASSEMBLY AND A/C SWITCH REMOVAL AND INSTALLATION Fig. 280: Removing And Installing Heater Control Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. HEATER UNIT, HEATER CORE, B

Page 2380 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL AND INSTALLATIONPre-removal and Post-installation Operation Refrigerant draining and Refilling (Refer to CHARGING and DISCHARGING .) Engine coolant Draining and Refilling (Refer to 1

Page 2381 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 281: Removing And Installing Heater Uni t Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS << A >> SUCTION PIPE AND LIQUID PIPE DISCONNECTION To prevent the entry of dust

Page 2382 of 3870

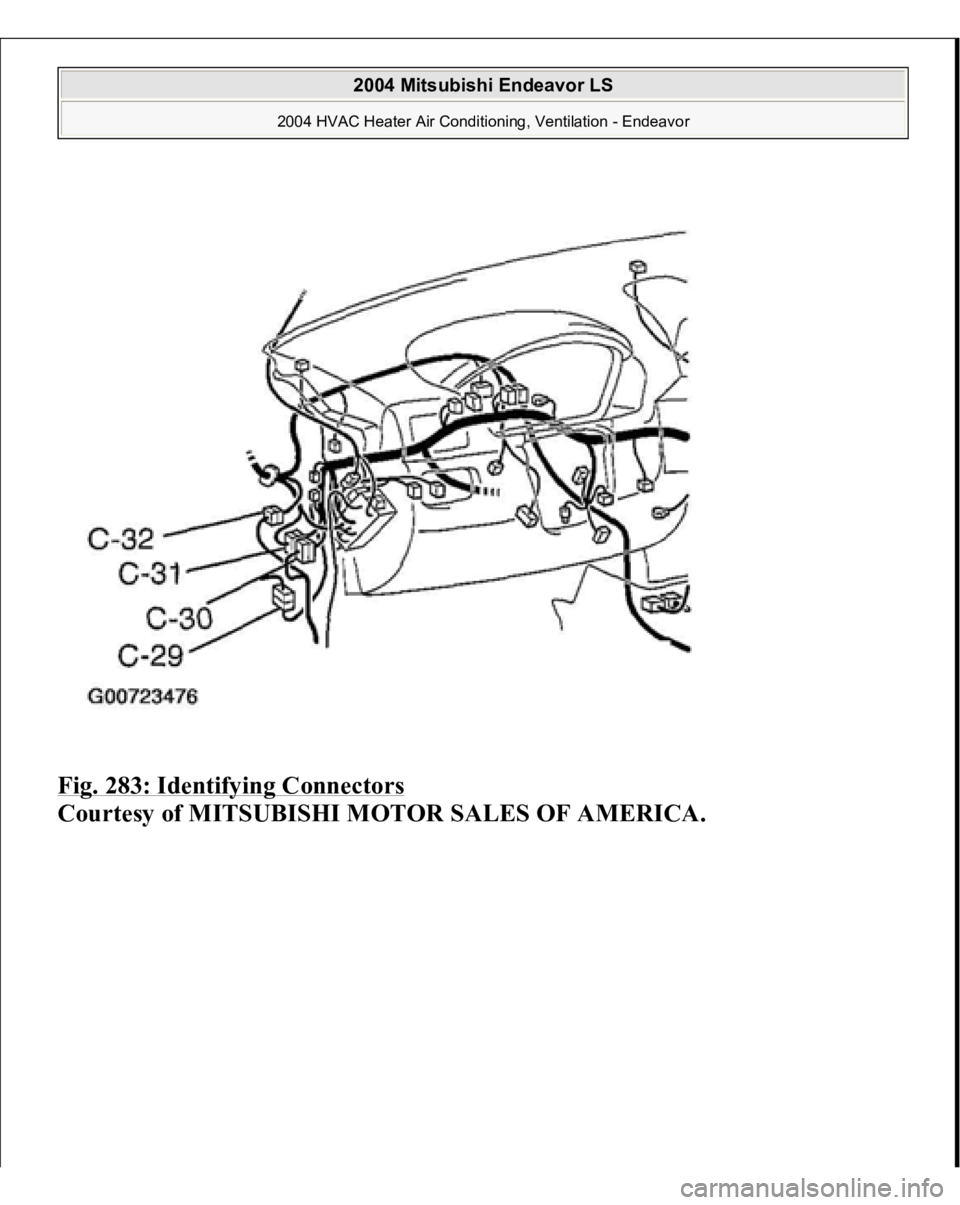

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 283: Identifying Connectors Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2383 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 284: Identifying Connectors Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2384 of 3870

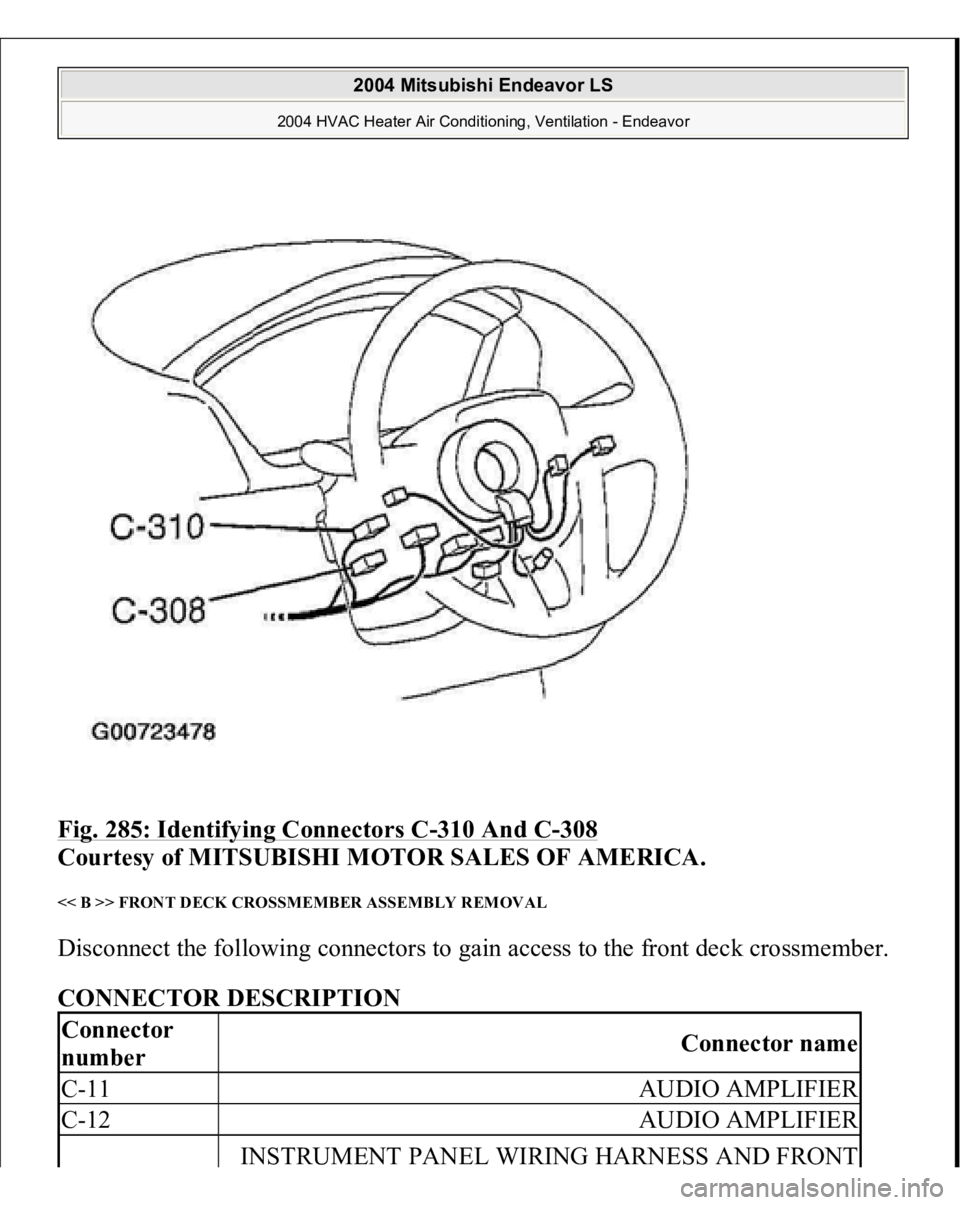

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 285: Identifying Connectors C -310 And C -308 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << B >> FRONT DECK CROSSMEMBER ASSEMBLY REMOVAL Disconnect the following connectors to gain access
Load next 8 pages
