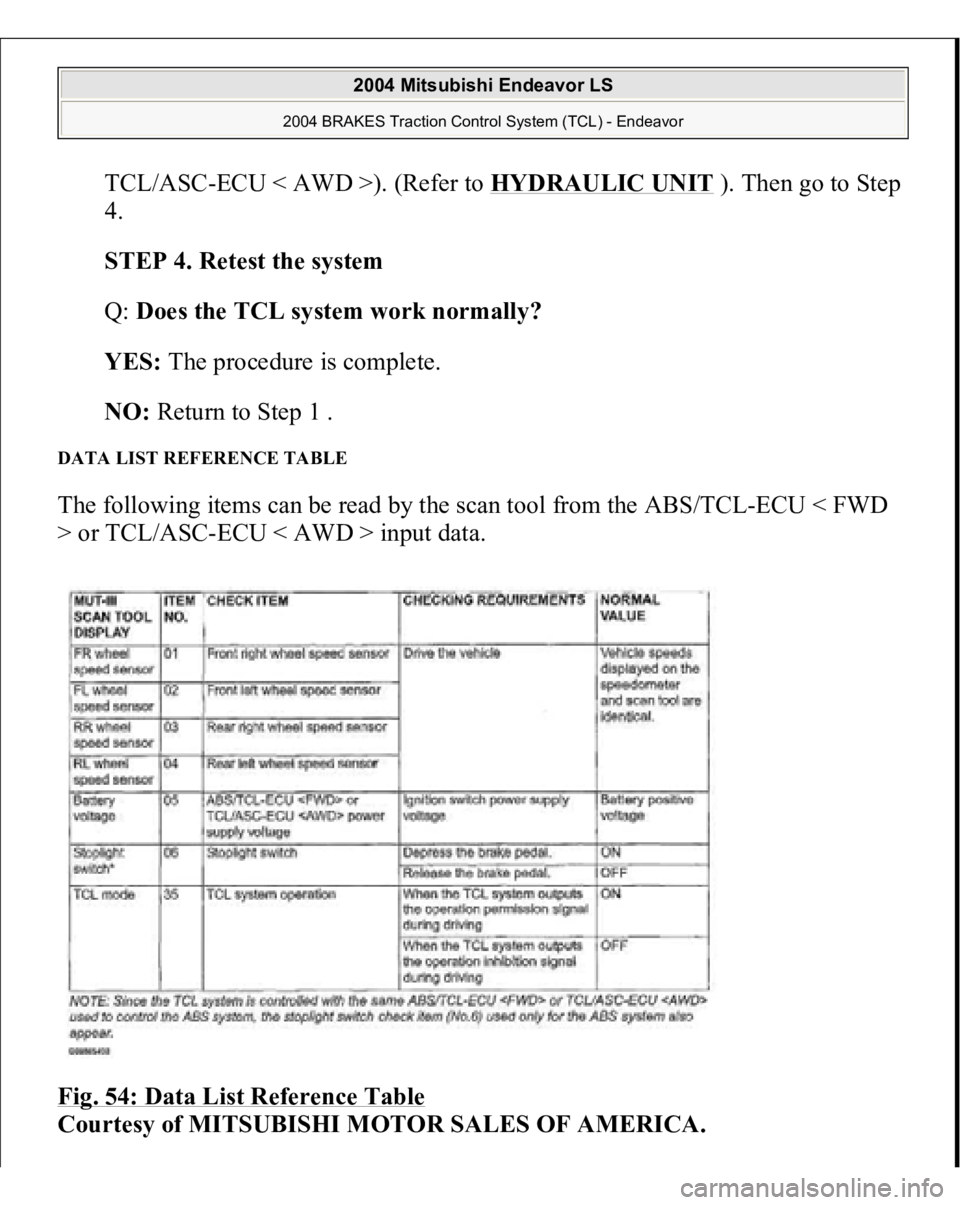

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TCL/ASC-ECU < AWD >). (Refer to HYDRAULIC UNIT ). Then go to Step 4. STEP 4. Retest the system Q: Does the TCL system work normally? YES: The procedure is complete. NO: Return to Step 1 . DATA

Page 3690 of 3870

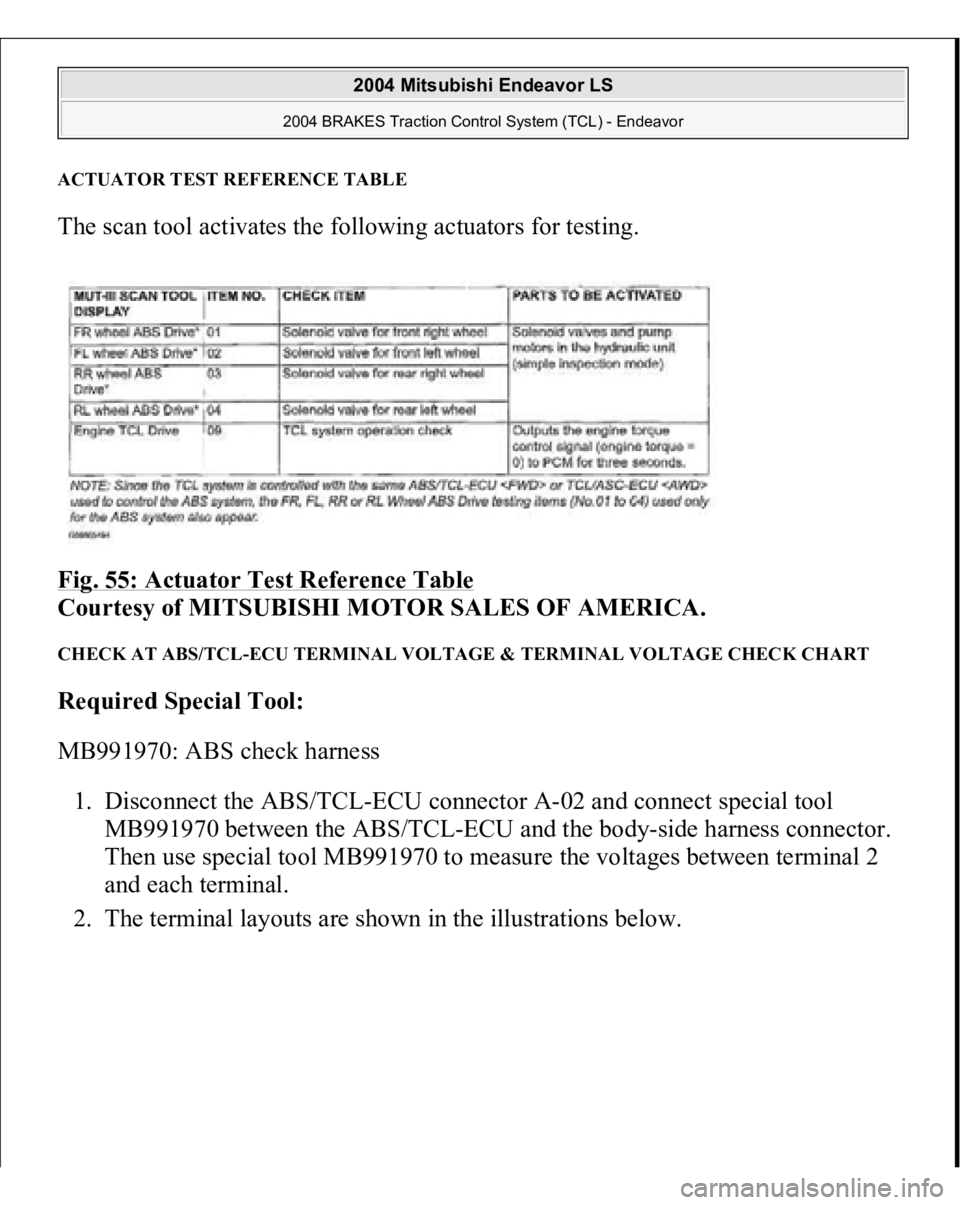

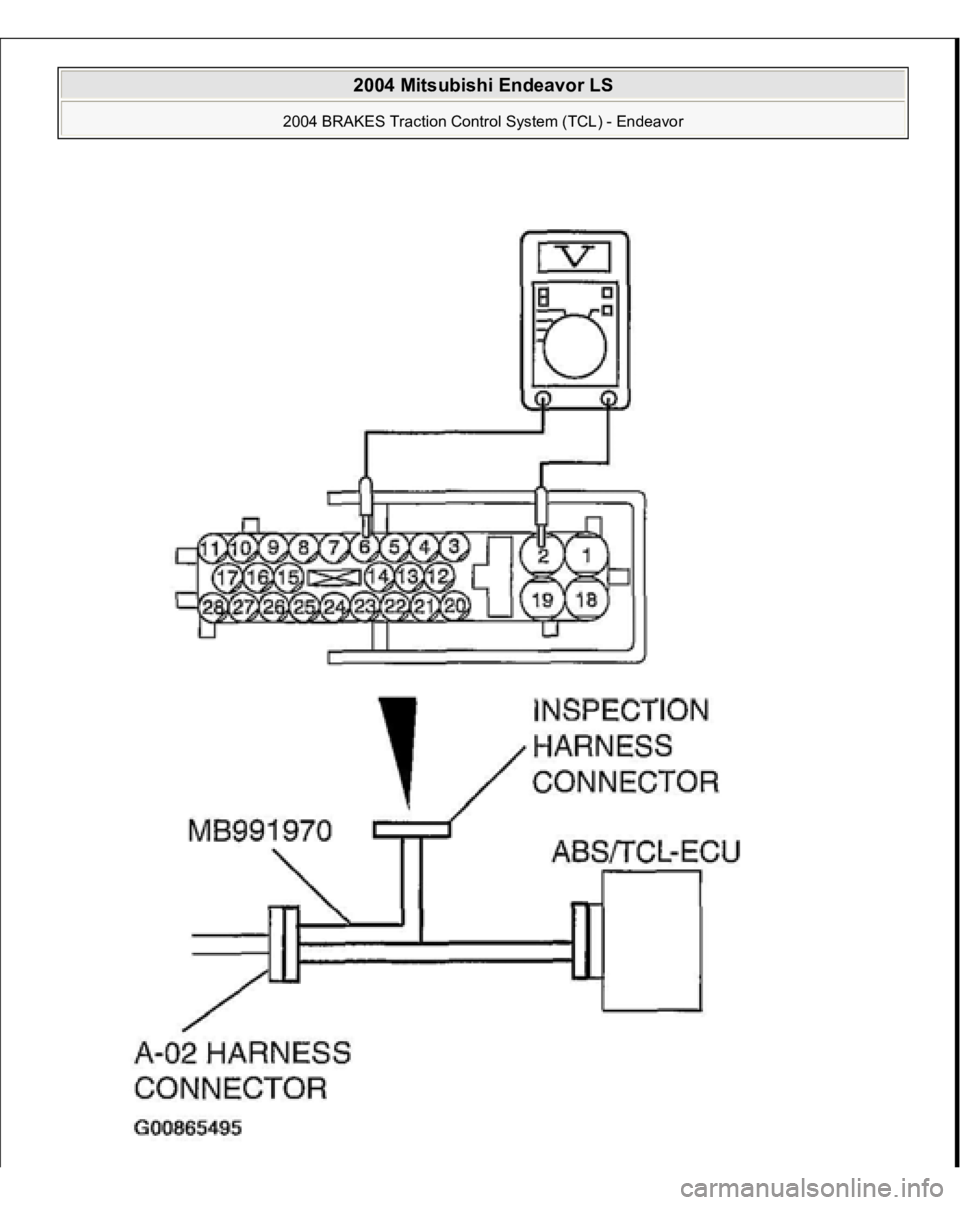

MITSUBISHI ENDEAVOR 2004 Service Repair Manual ACTUATOR TEST REFERENCE TABLEThe scan tool activates the following actuators for testing. Fig. 55: Actuator Test Reference Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CHECK AT ABS/TCL-ECU

Page 3691 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3692 of 3870

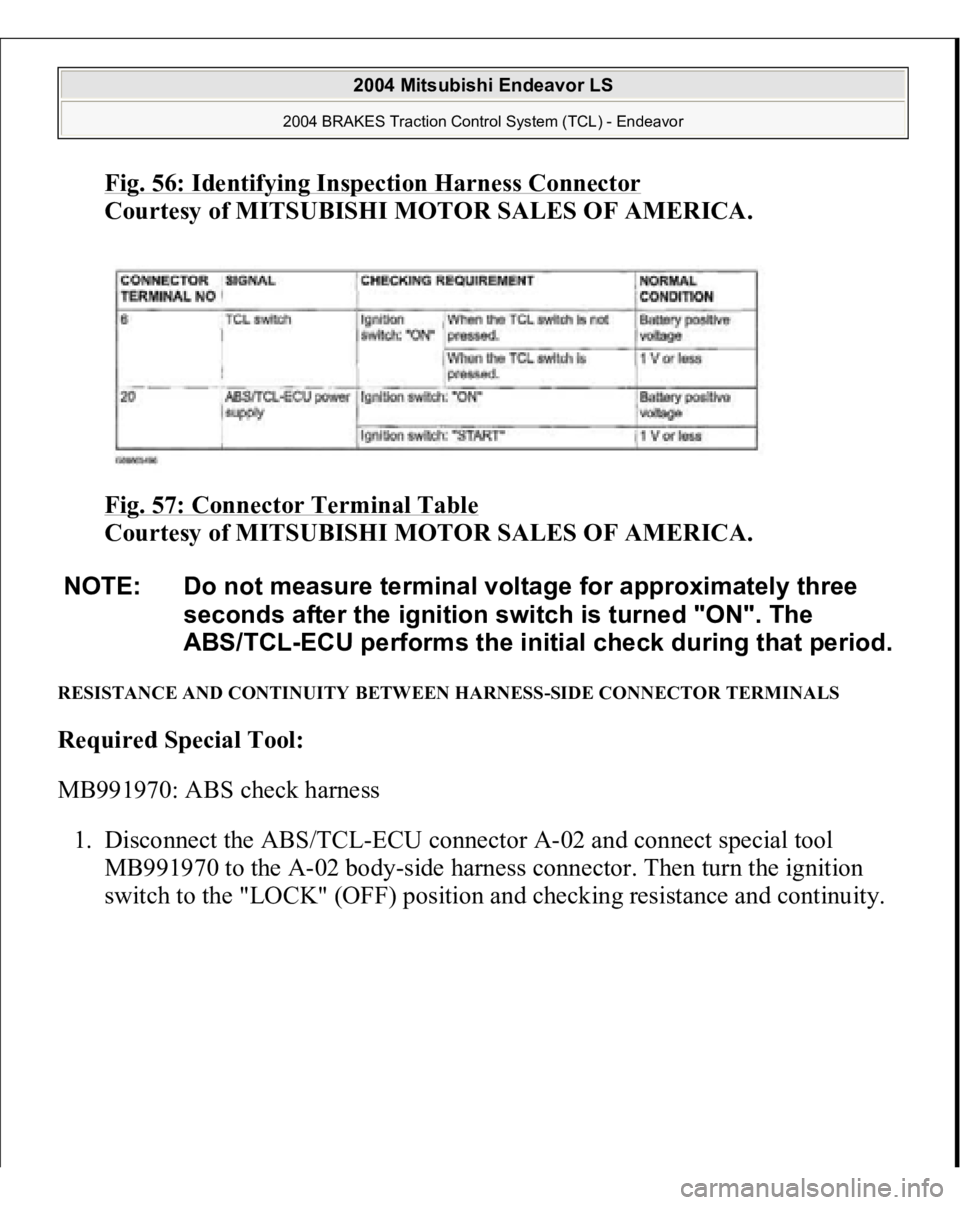

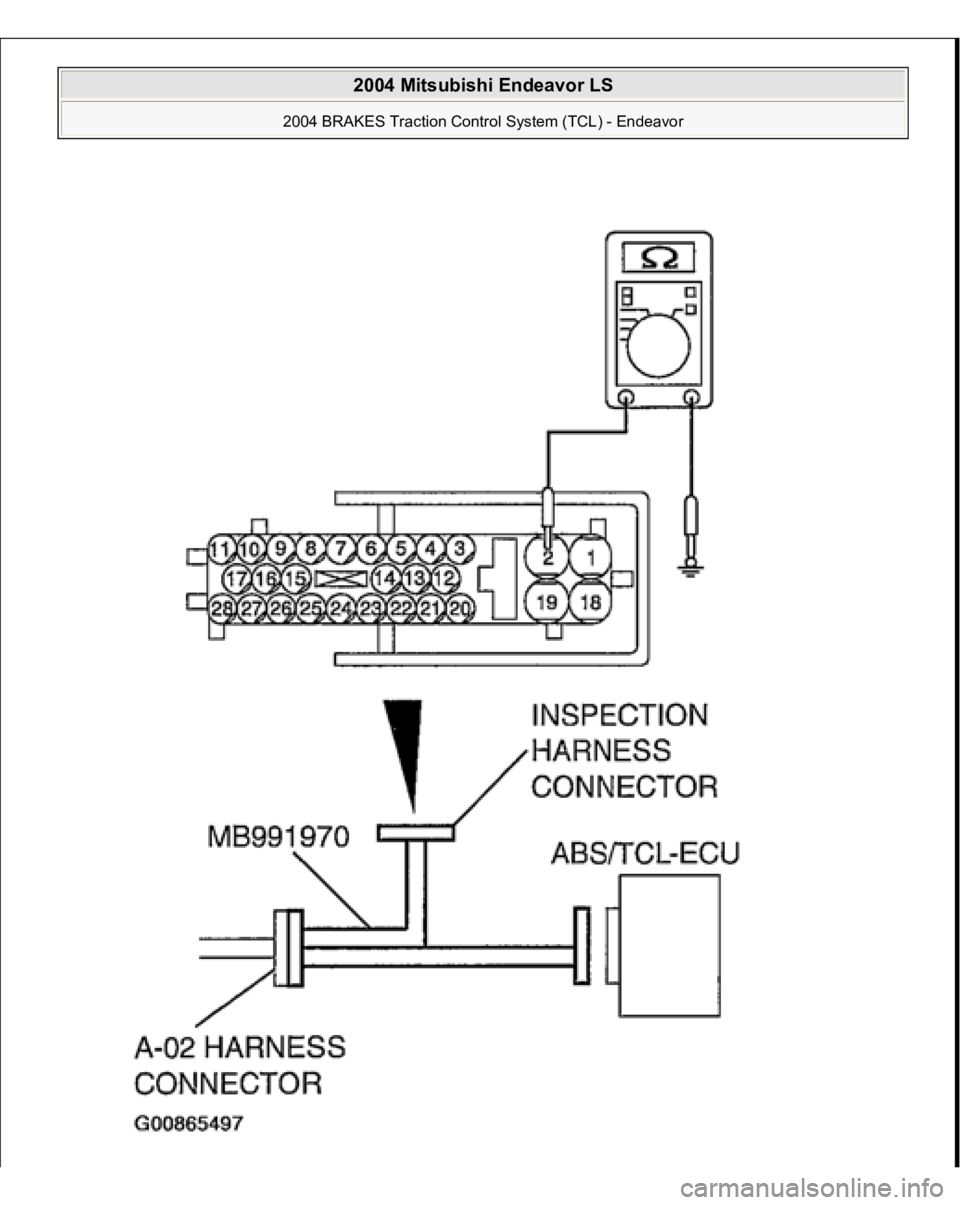

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 56: Identifying Inspection Harness Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 57: Connector Terminal Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. RESISTANCE AND

Page 3693 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3694 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 58: Inspecting Harness Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Check the resistance and continuity between the terminals indicated in the table below. 3. The terminal la

Page 3695 of 3870

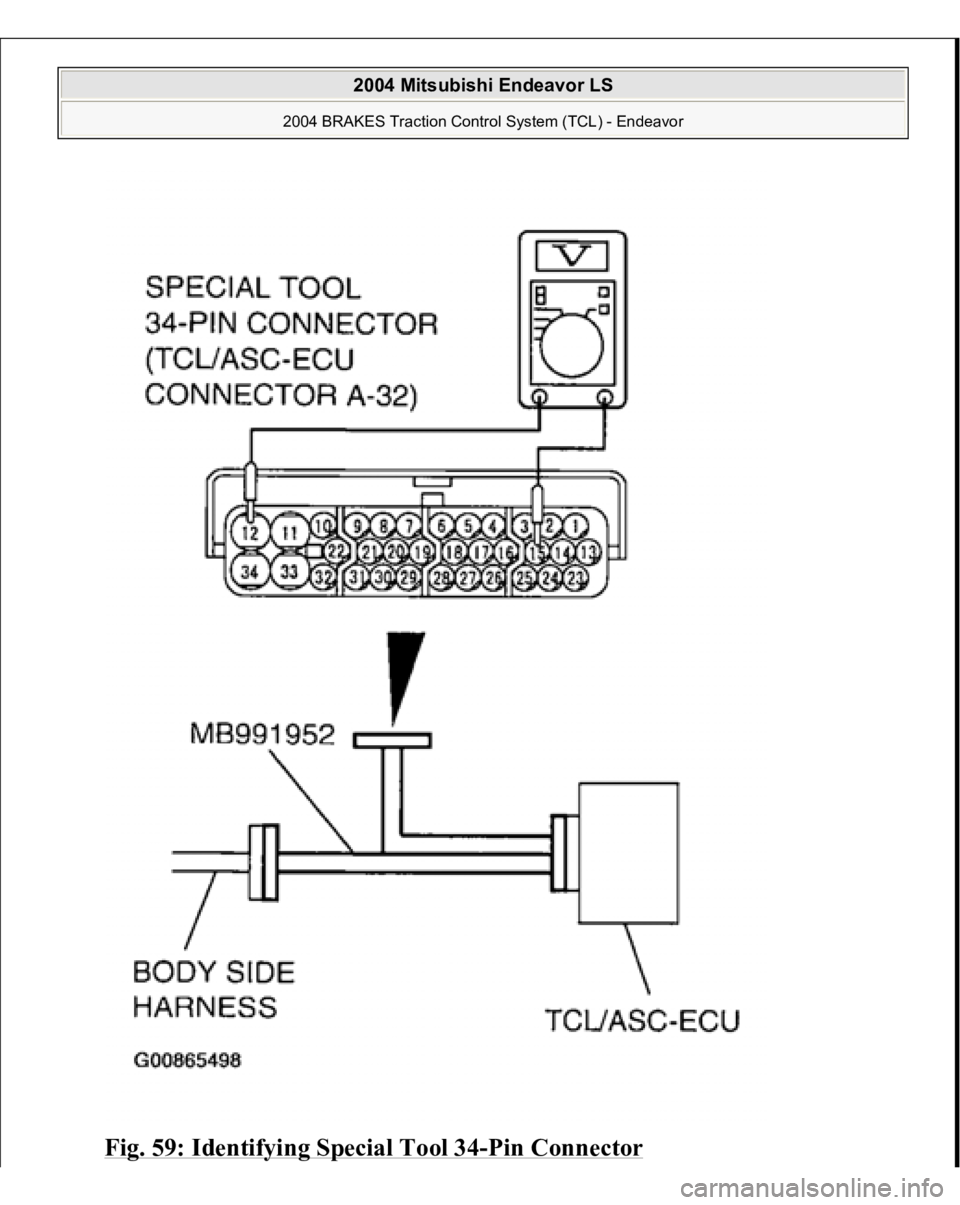

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 59: Identifying Special Tool 34 -Pin Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3696 of 3870

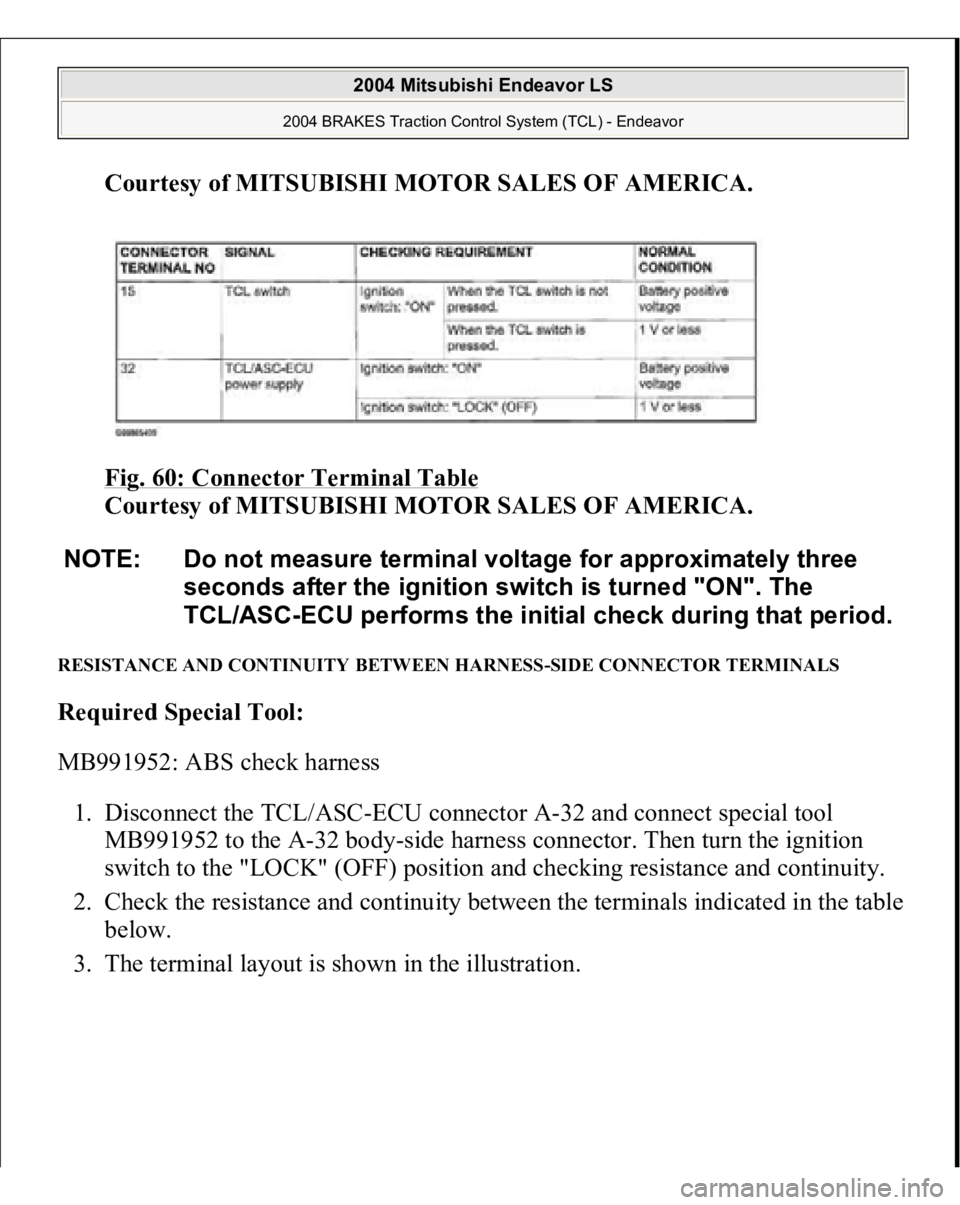

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 60: Connector Terminal Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
