Page 2521 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual means of a forged key or by connecting the ignition wiring directly. The system is significantly safe and reliable against theft. In addition, the driver has only to turn the ignition switch to the

Page 2522 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . CAUTION WHEN REPLACING IMMOBILIZER SYSTEM RELATED PARTS To replace immobilizer system related parts, refer to the table below. When the ignition key i

Page 2523 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual components may be defective. If the immobilizer system has immobilized the engine, MFI system DTC P0513 will be output. In this case, observe the immobilizer system troubleshooting. INTRODUCTION TO

Page 2524 of 3870

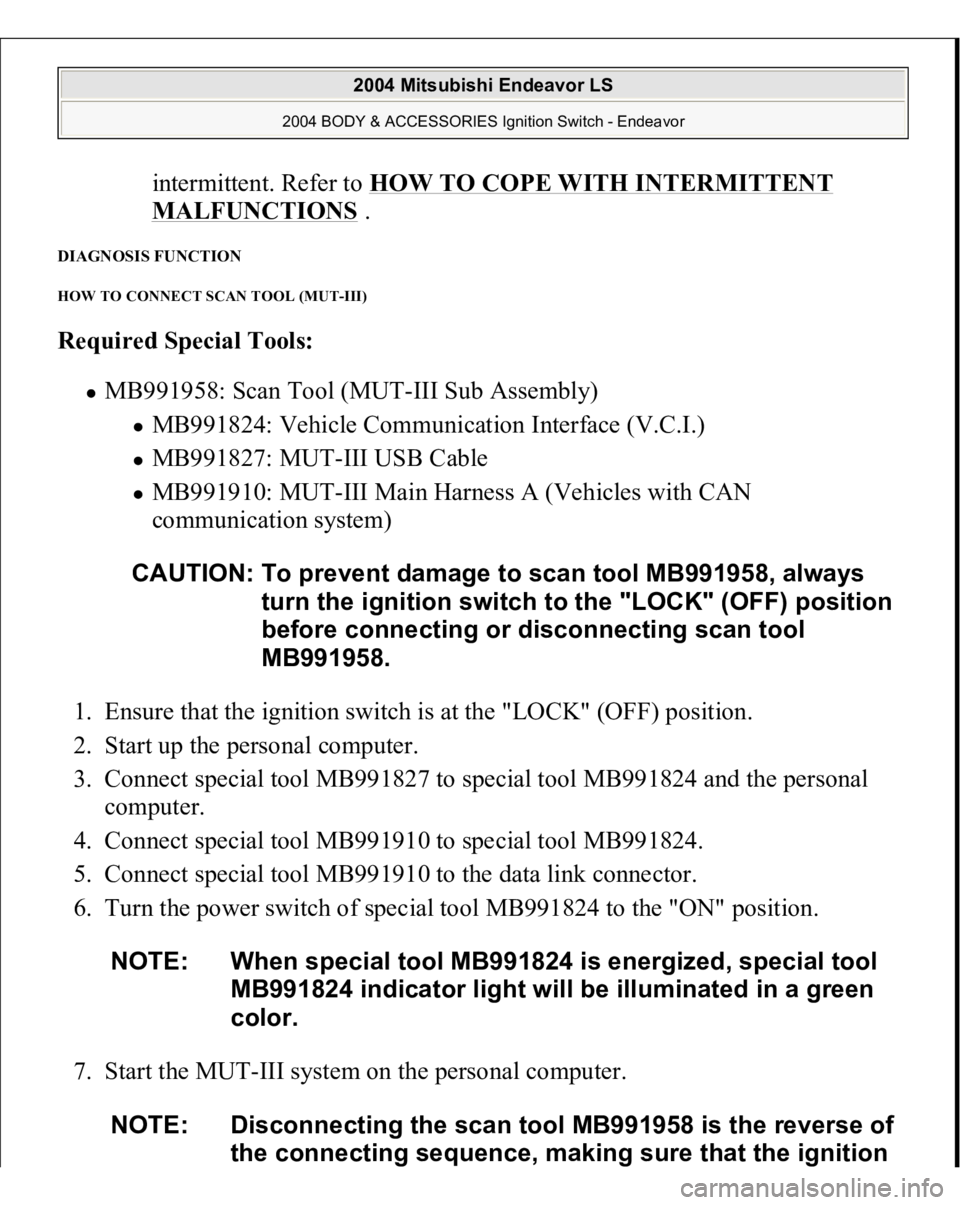

MITSUBISHI ENDEAVOR 2004 Service Repair Manual intermittent. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS . DIAGNOSIS FUNCTION HOW TO CONNECT SCAN TOOL (MUT-III) Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991

Page 2525 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual switch is at the "LOCK" (OFF) position. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2526 of 3870

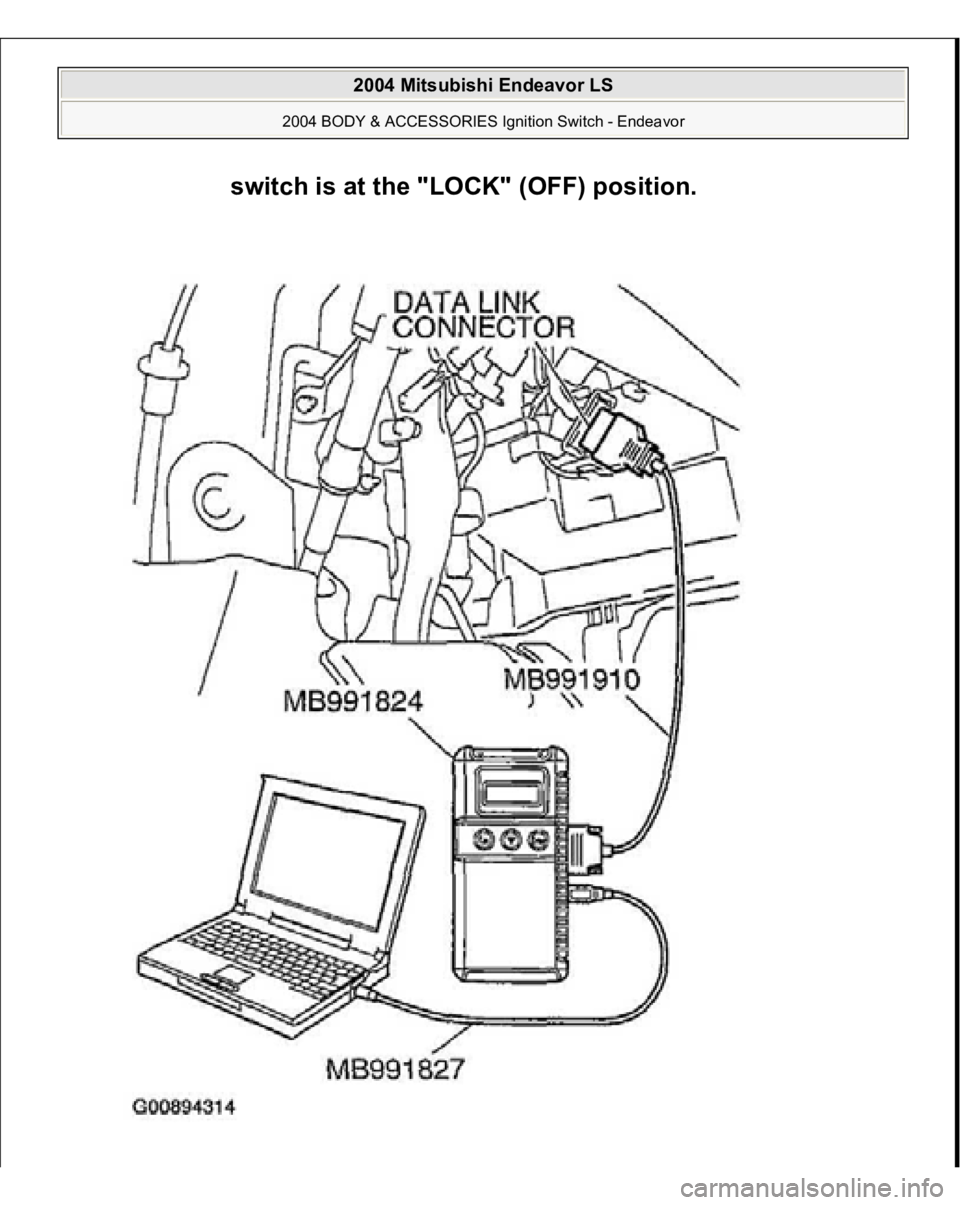

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Connecting Special Tool MB991827 To Special Tool MB991824 And Personal Computer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES Required Specia

Page 2527 of 3870

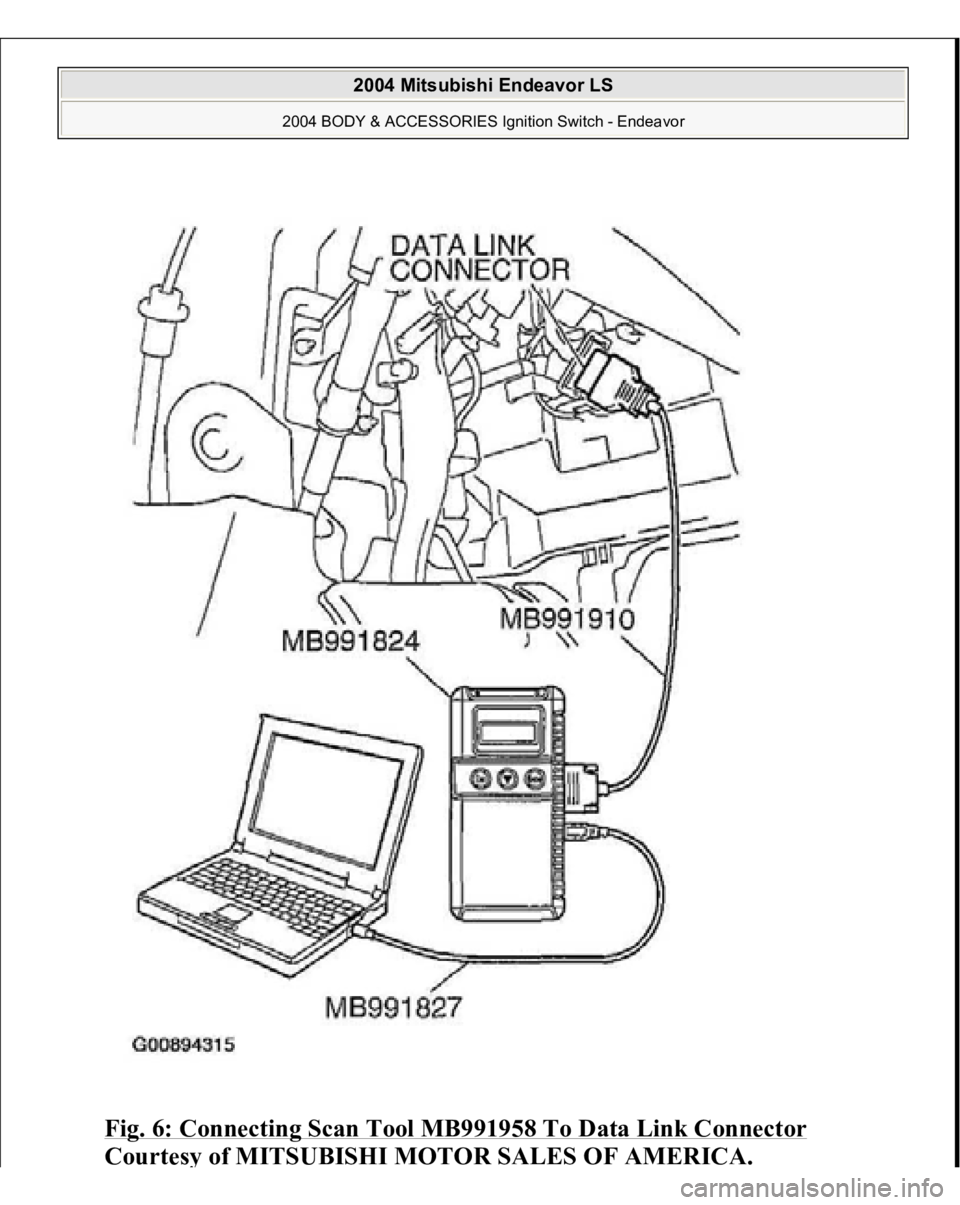

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2528 of 3870

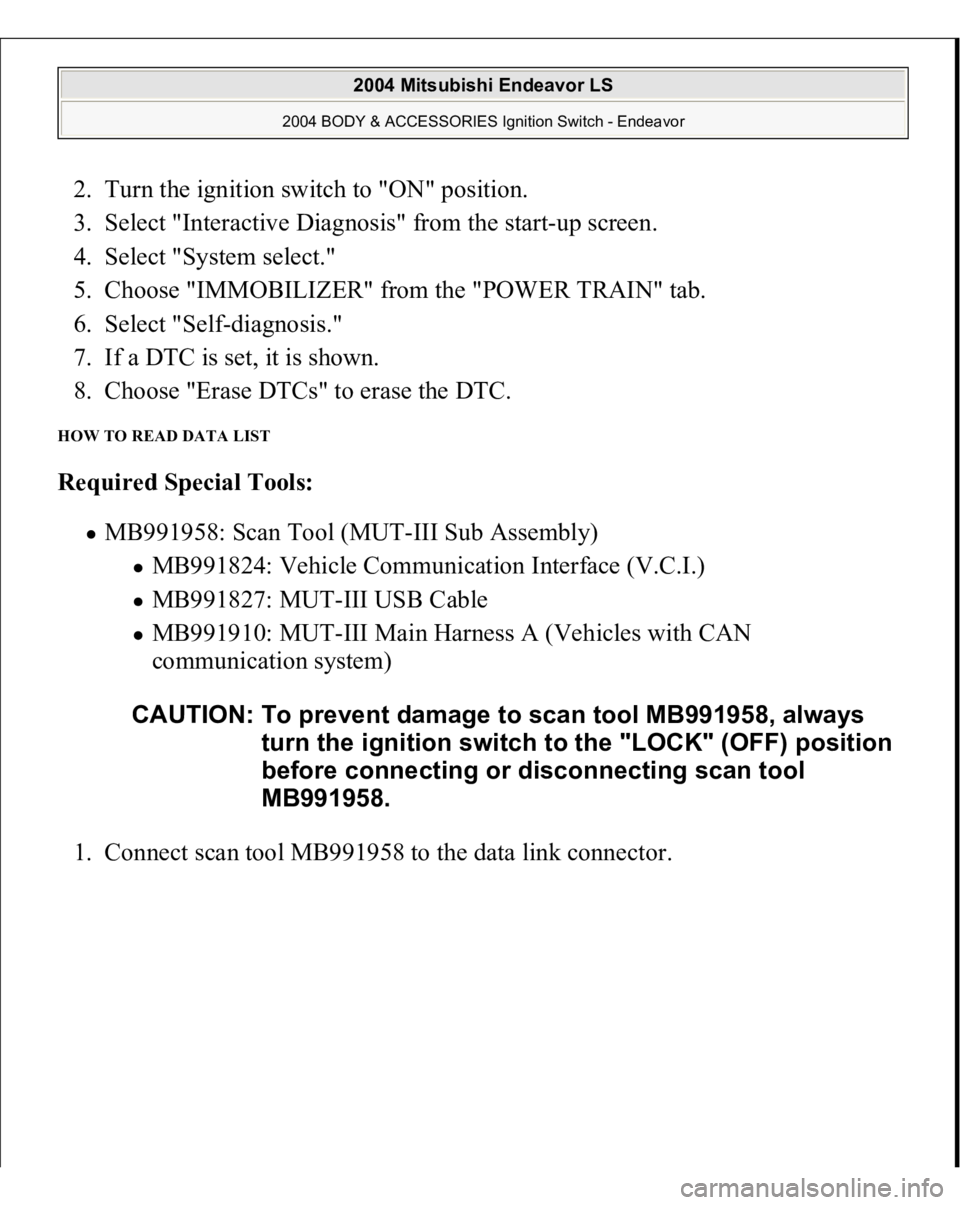

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to "ON" position. 3. Select "Interactive Diagnosis" from the start-up screen. 4. Select "System select." 5. Choose "IMMOBILIZER" from
