Page 209 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC U1073 set? YES: Go to Step 1 . NO: The procedure is complete. SYMPT

Page 210 of 3870

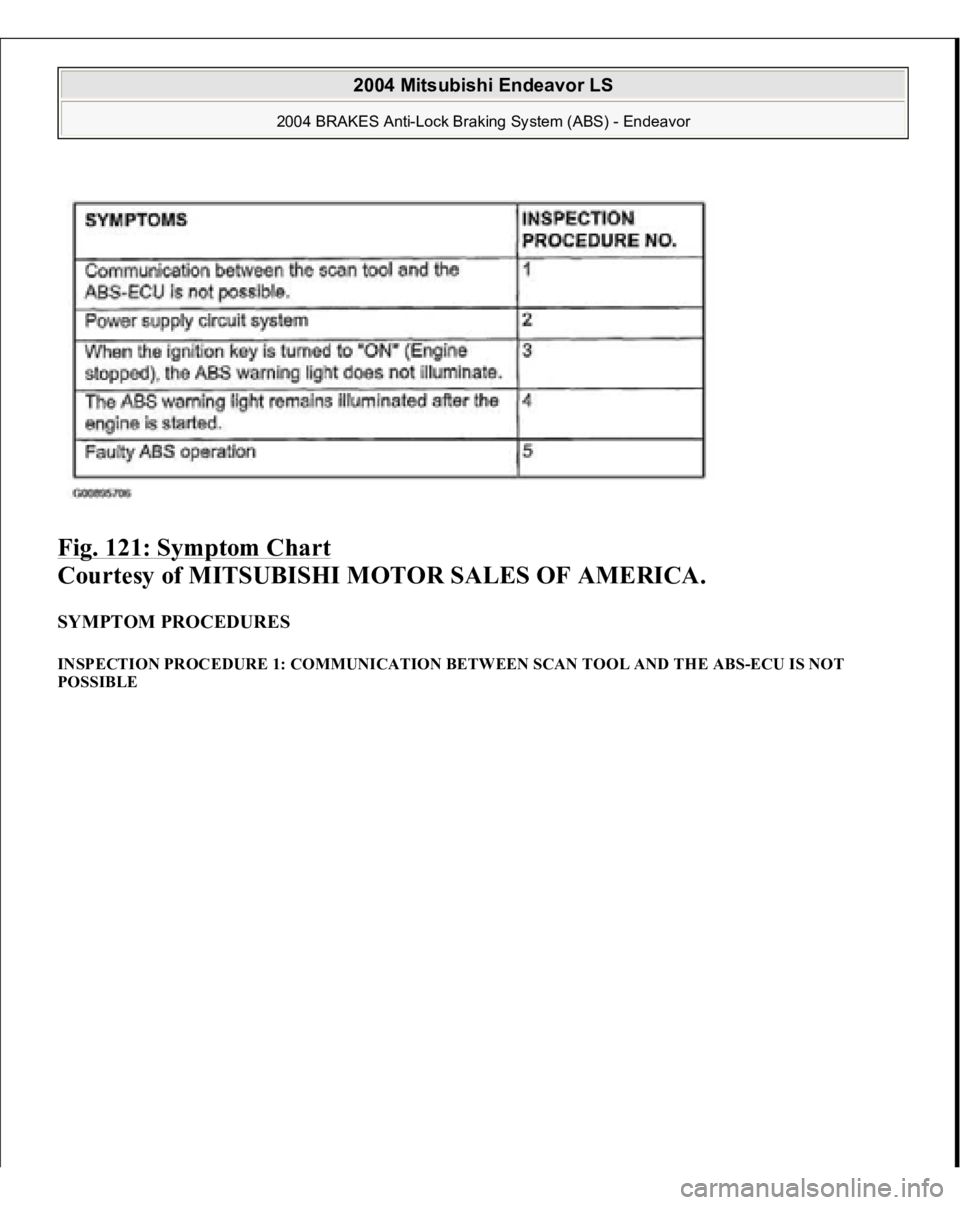

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 121: Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: COMMUNICATION BETWEEN SCAN TOOL AND THE ABS-ECU IS NOT POSSIBLE 2004 Mitsubishi

Page 211 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 122: Data Link Connector Circuit Diagram & Connector Identification Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) -

Page 212 of 3870

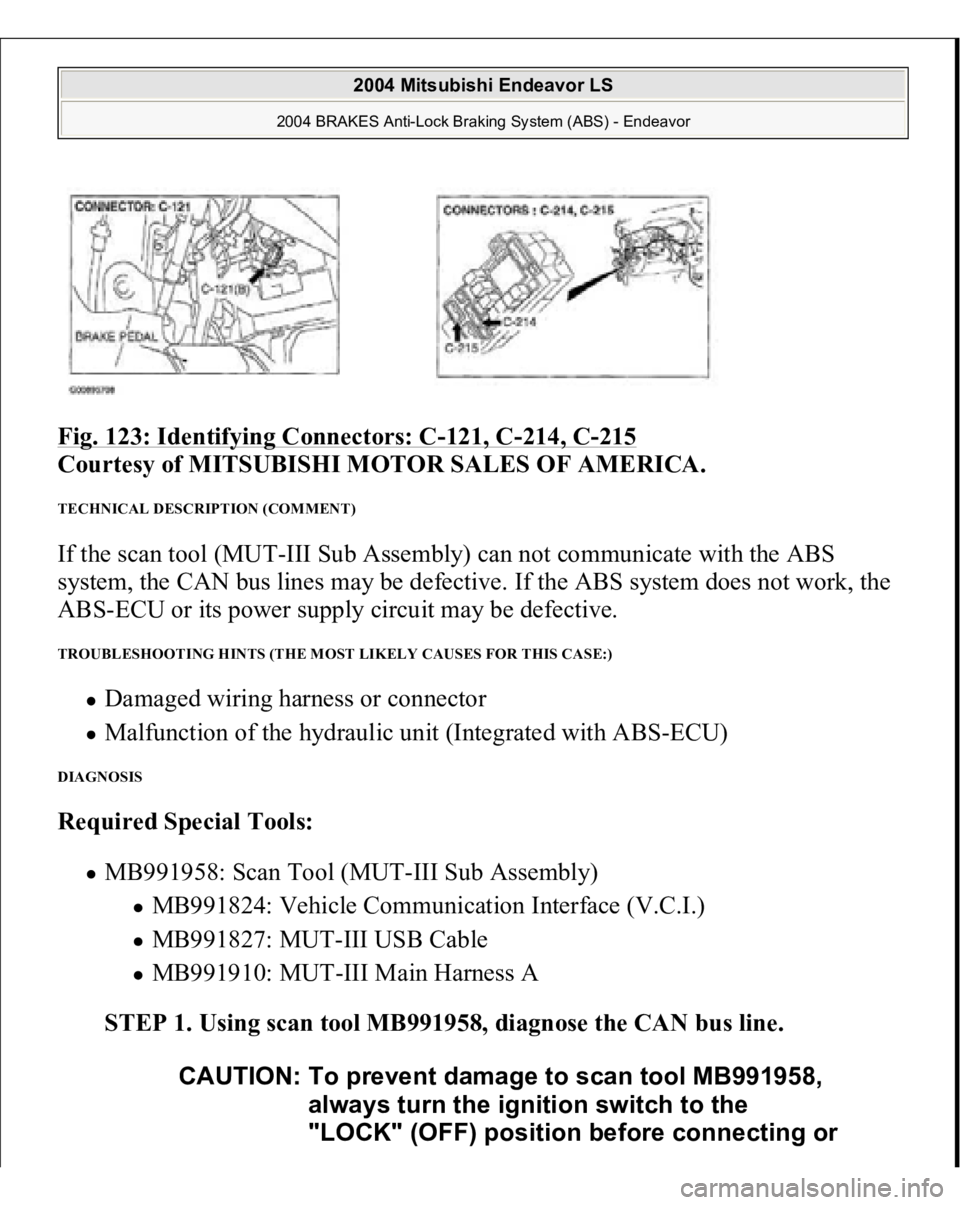

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 123: Identifying Connectors: C -121, C -214, C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate w

Page 213 of 3870

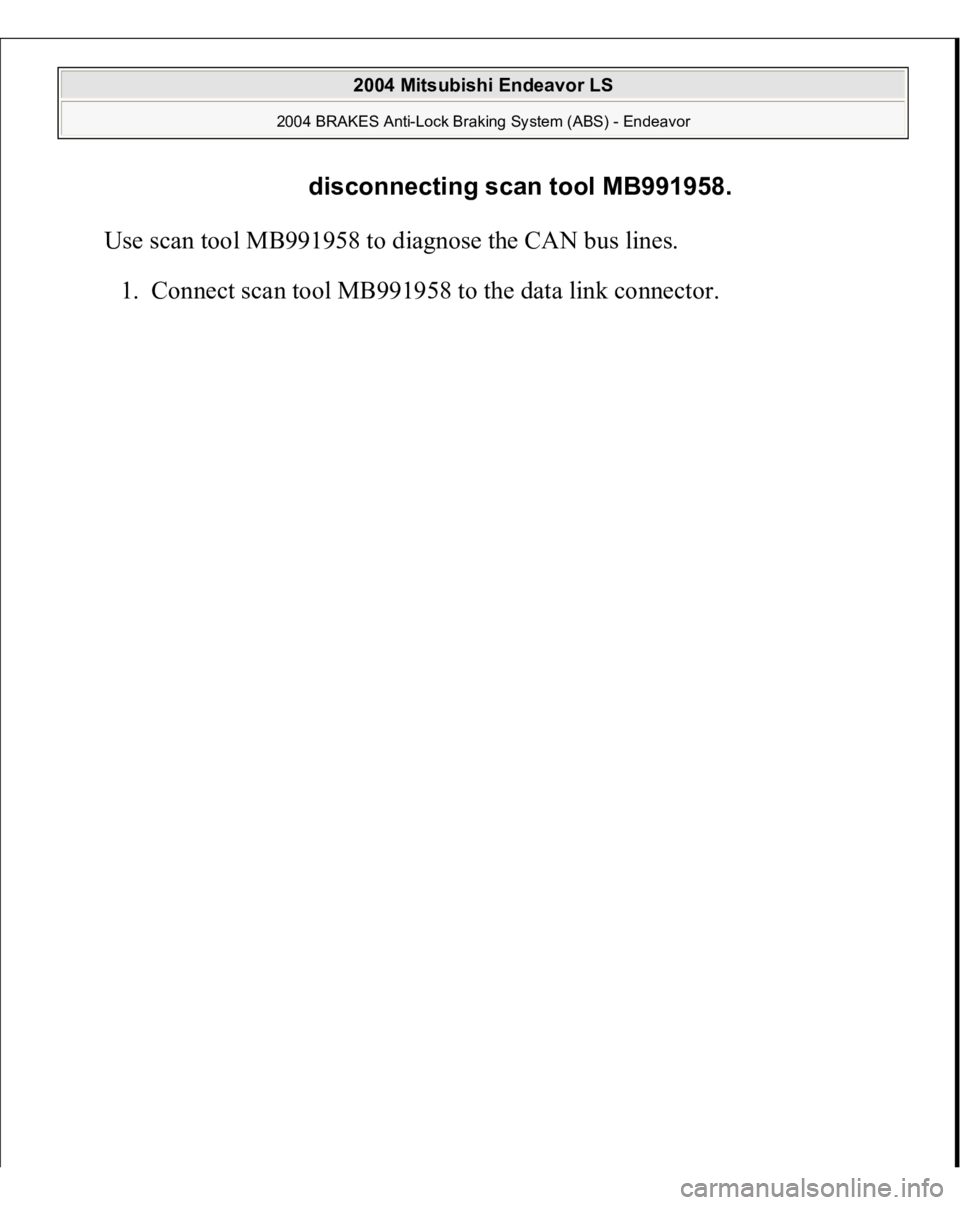

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Use scan tool MB991958 to diagnose the CAN bus lines. 1. Connect scan tool MB991958 to the data link connec tor. disconnecting scan tool MB991958. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Loc

Page 214 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 124: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 215 of 3870

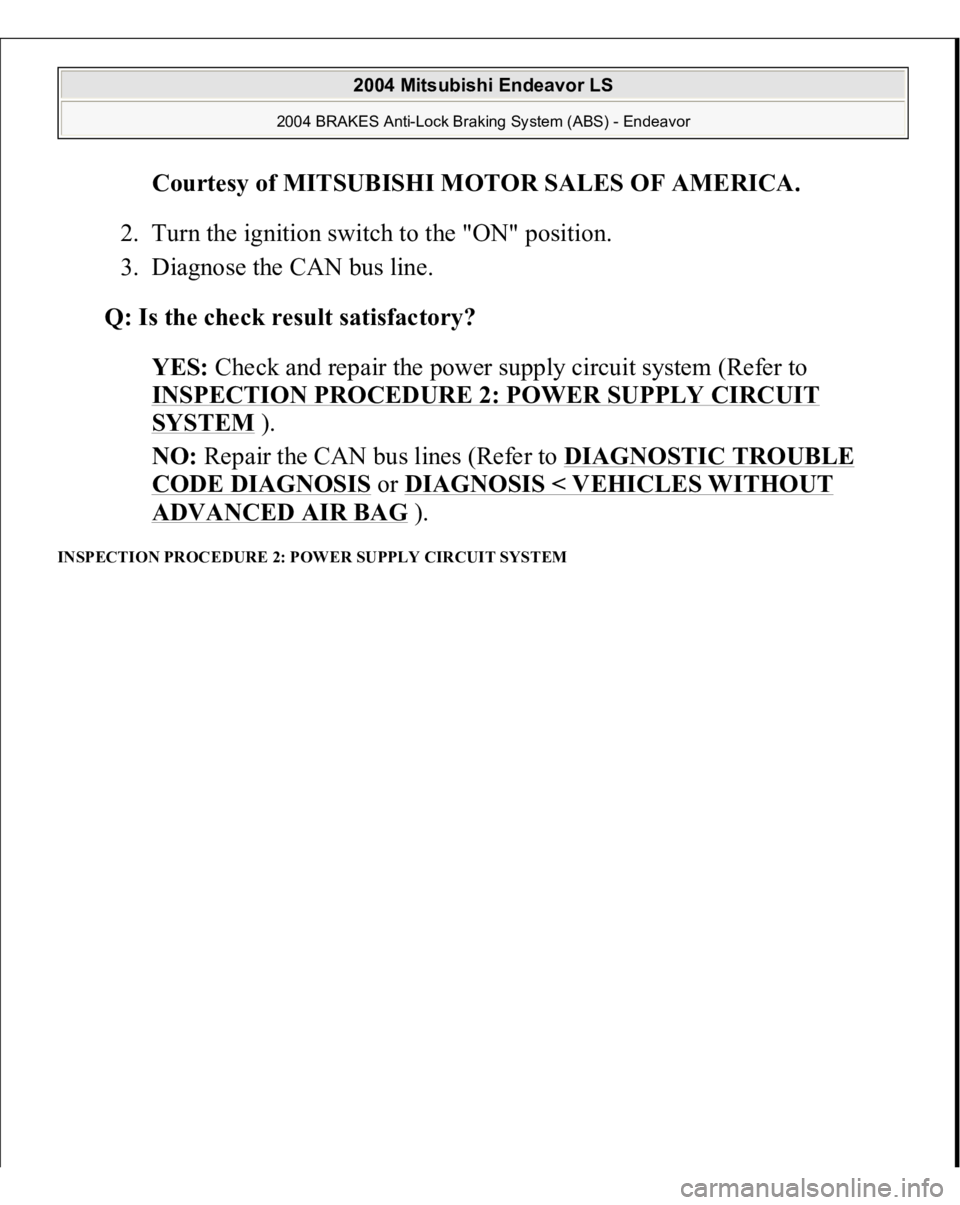

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. Q: Is the check result satisfactory? YES: Check and repai

Page 216 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 125: ABS -ECU Power Supply And Ground Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking Sys
