Page 2665 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 115: Displaying "Immobilizer" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Select "Data List." 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - En

Page 2666 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 116: Displaying "Data List" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. The multi-center display shows whether the ignition key, which has been inserted in the switch, can be re

Page 2667 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 117: Displaying "Multi -Center Display" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2668 of 3870

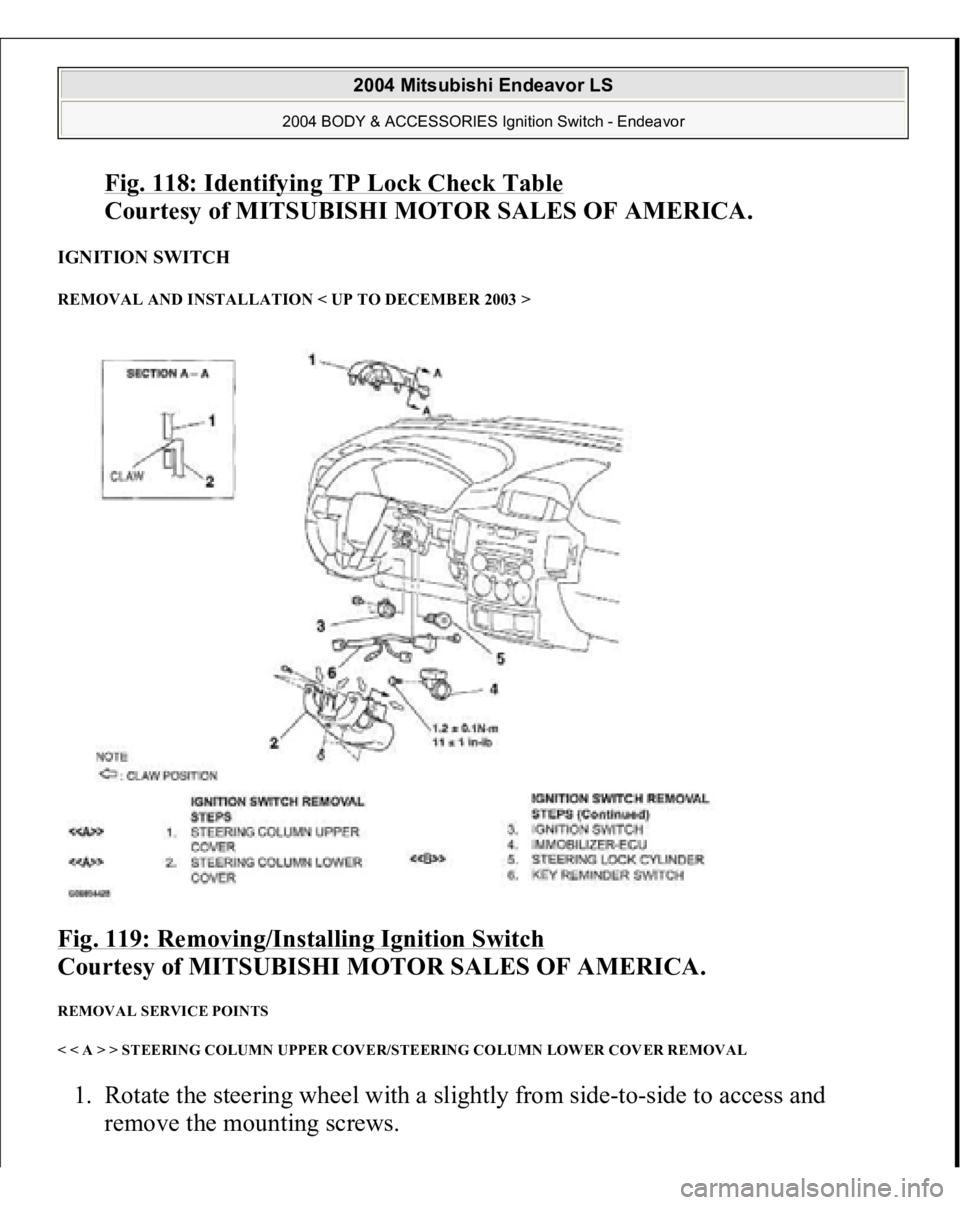

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 118: Identifying TP Lock Check Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. IGNITION SWITCH REMOVAL AND INSTALLATION < UP TO DECEMBER 2003 > Fig. 119: Removing/Installing Ignition Swit

Page 2669 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2670 of 3870

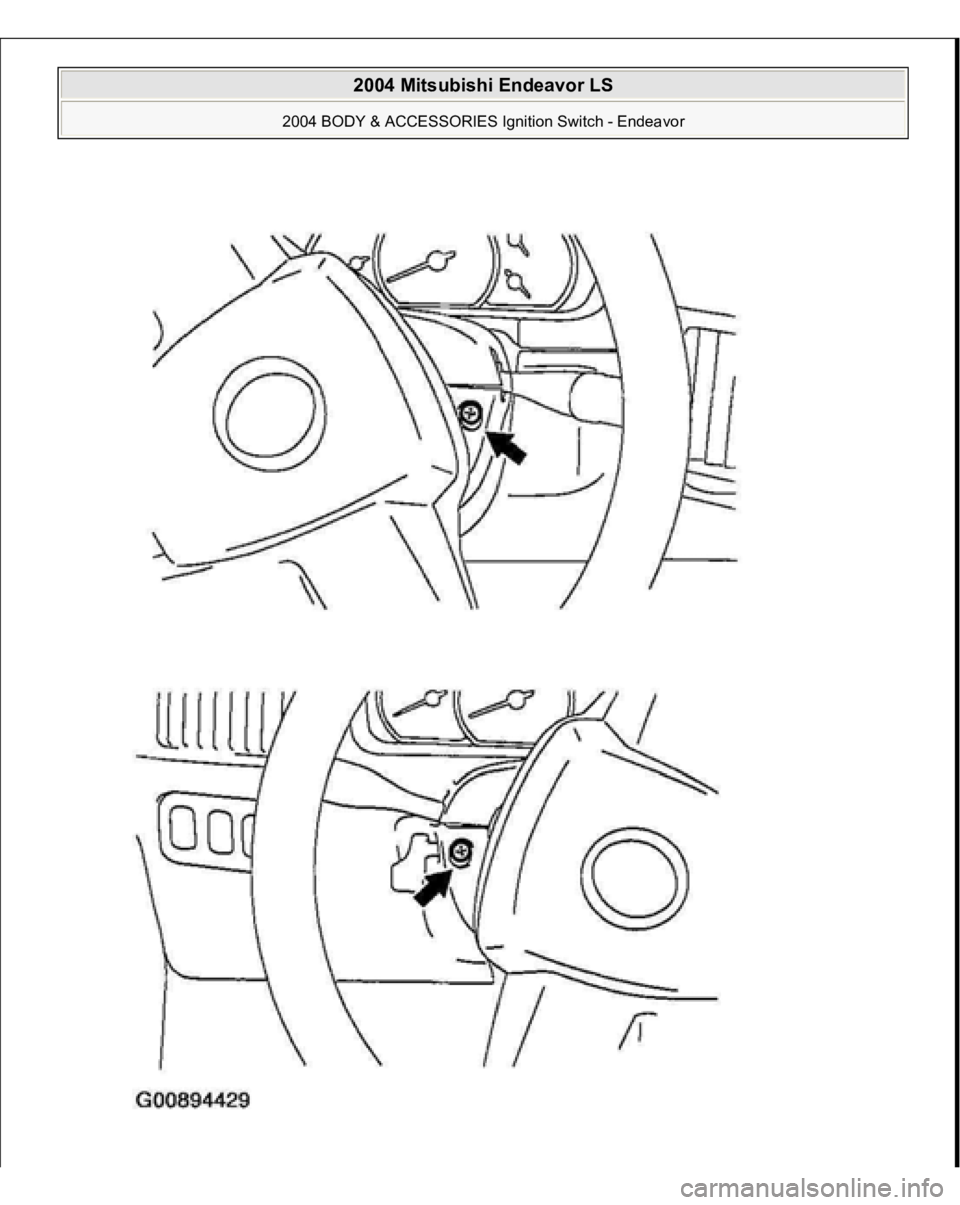

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 120: Removing Steering Column Upper/Lower Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. < < B > > STEERING LOCK CYLINDER REMOVAL 1. Insert the key in the steering lock cylinder and turn

Page 2671 of 3870

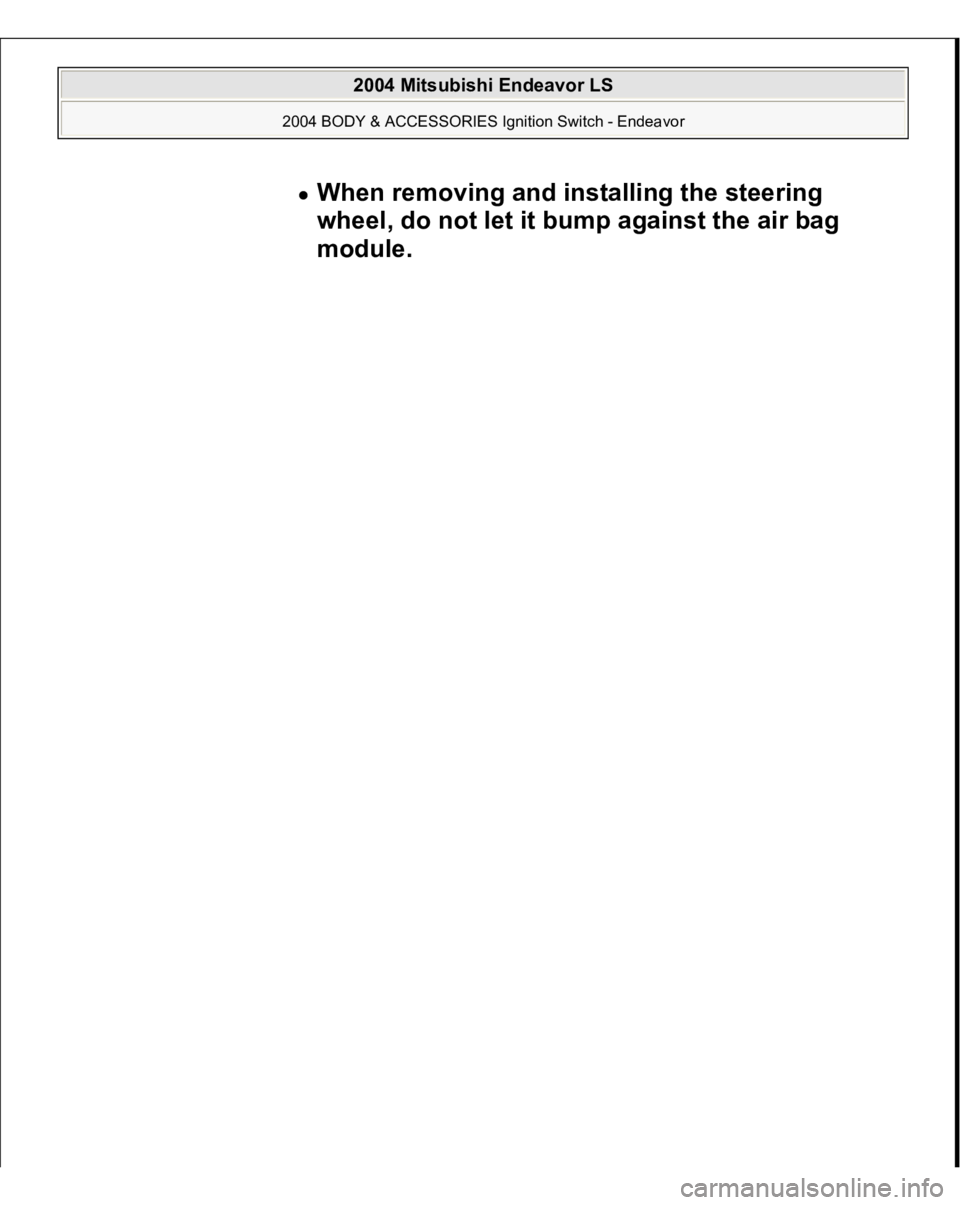

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When removing and installing the steering wheel, do not let it bump against the air bag module. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2672 of 3870

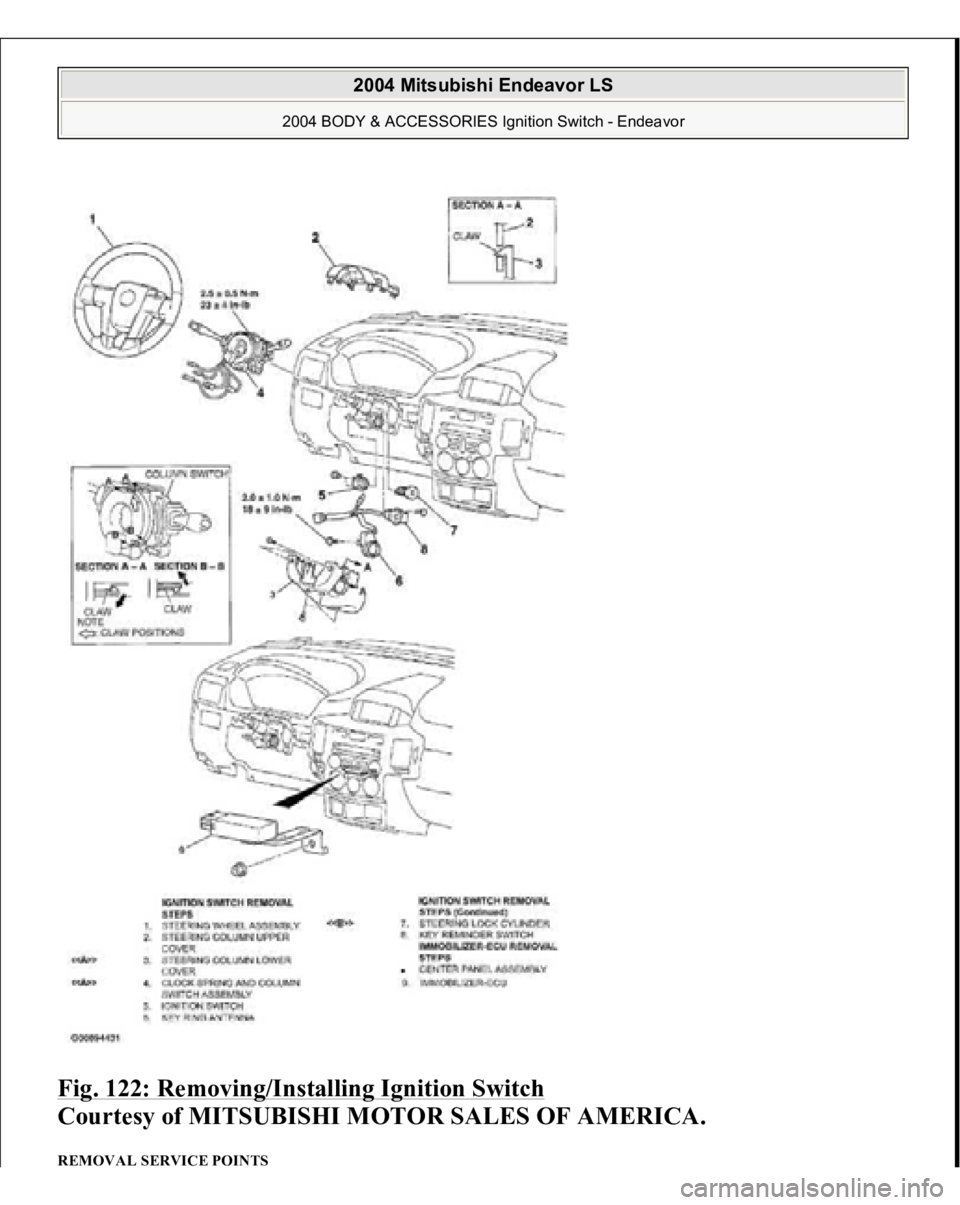

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 122: Removing/Installing Ignition Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor
