Page 1009 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. If the door is stiff to lock and unlock: 1. Adjustment by using the striker (toward the inside of the vehicle and vertical direction) Install an a ppropriate bolt instead of the striker mountin

Page 1010 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual special tool MB990939 and a hammer to tap the bolt in the desired direction. Fig. 9: Adjusting Lock Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Adjustment by using the striker (toward the o

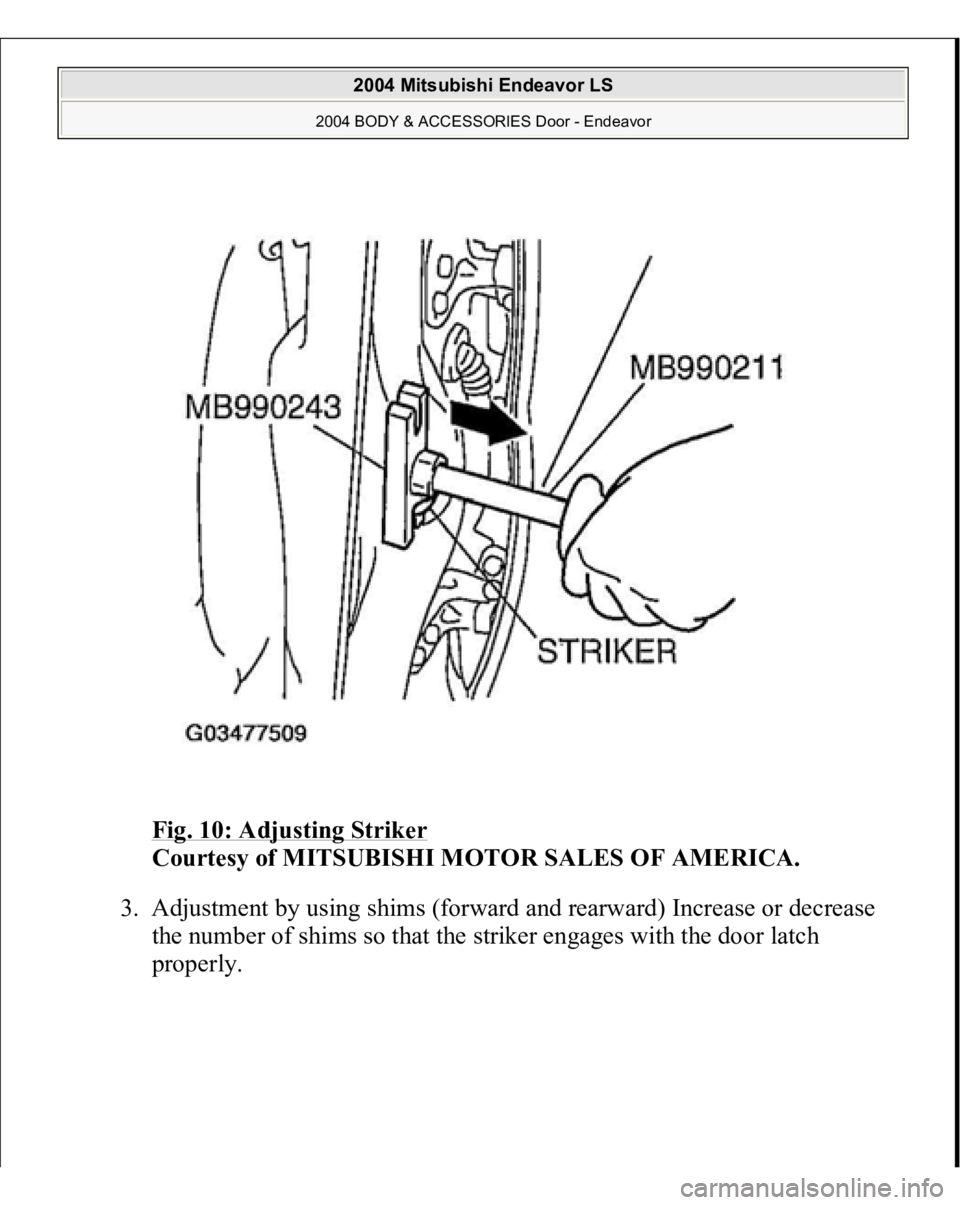

Page 1011 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Adjusting Striker Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Adjustment by using shims (forward and rearward) Increase or decrease the number of shims so that the striker engages w

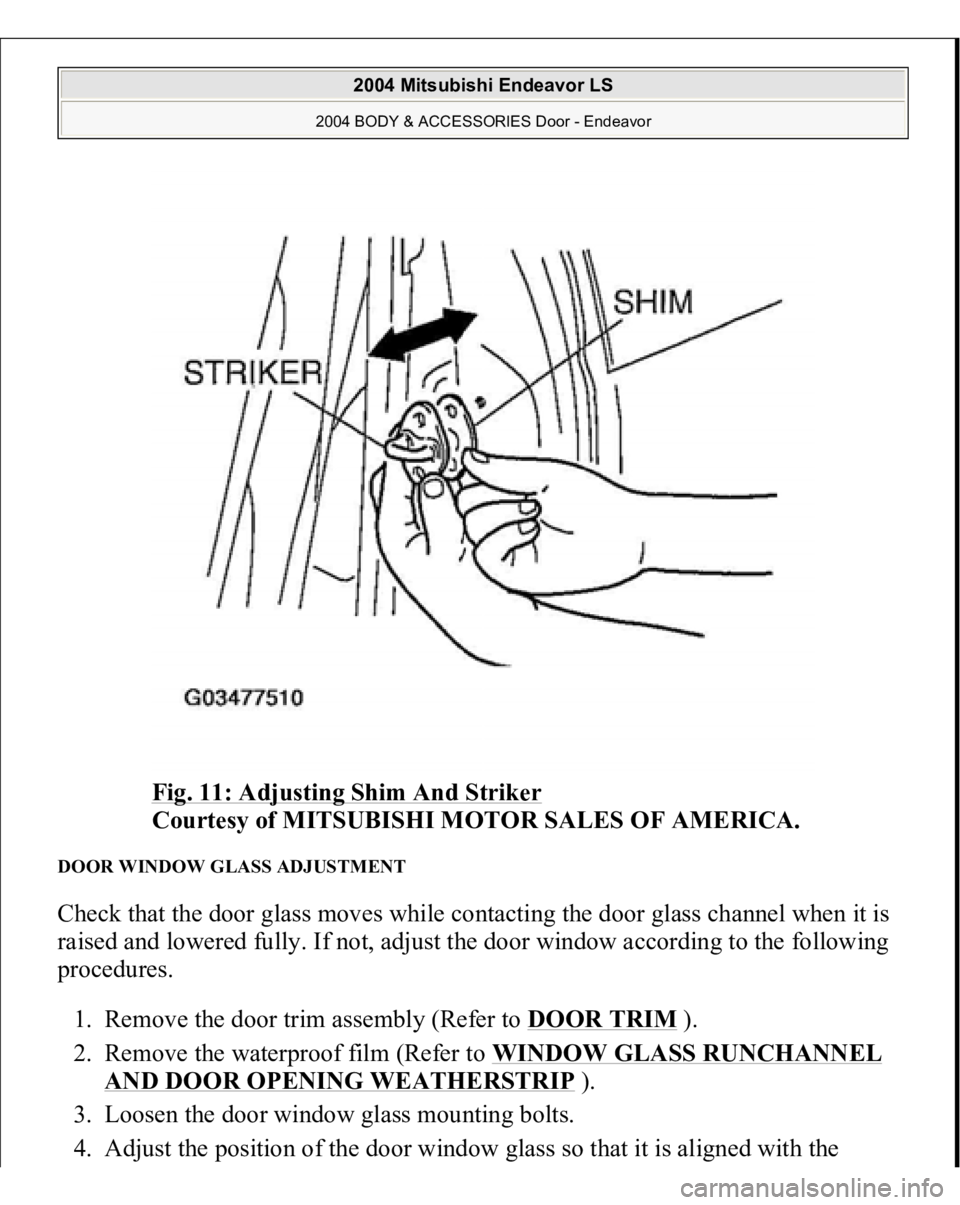

Page 1012 of 3870

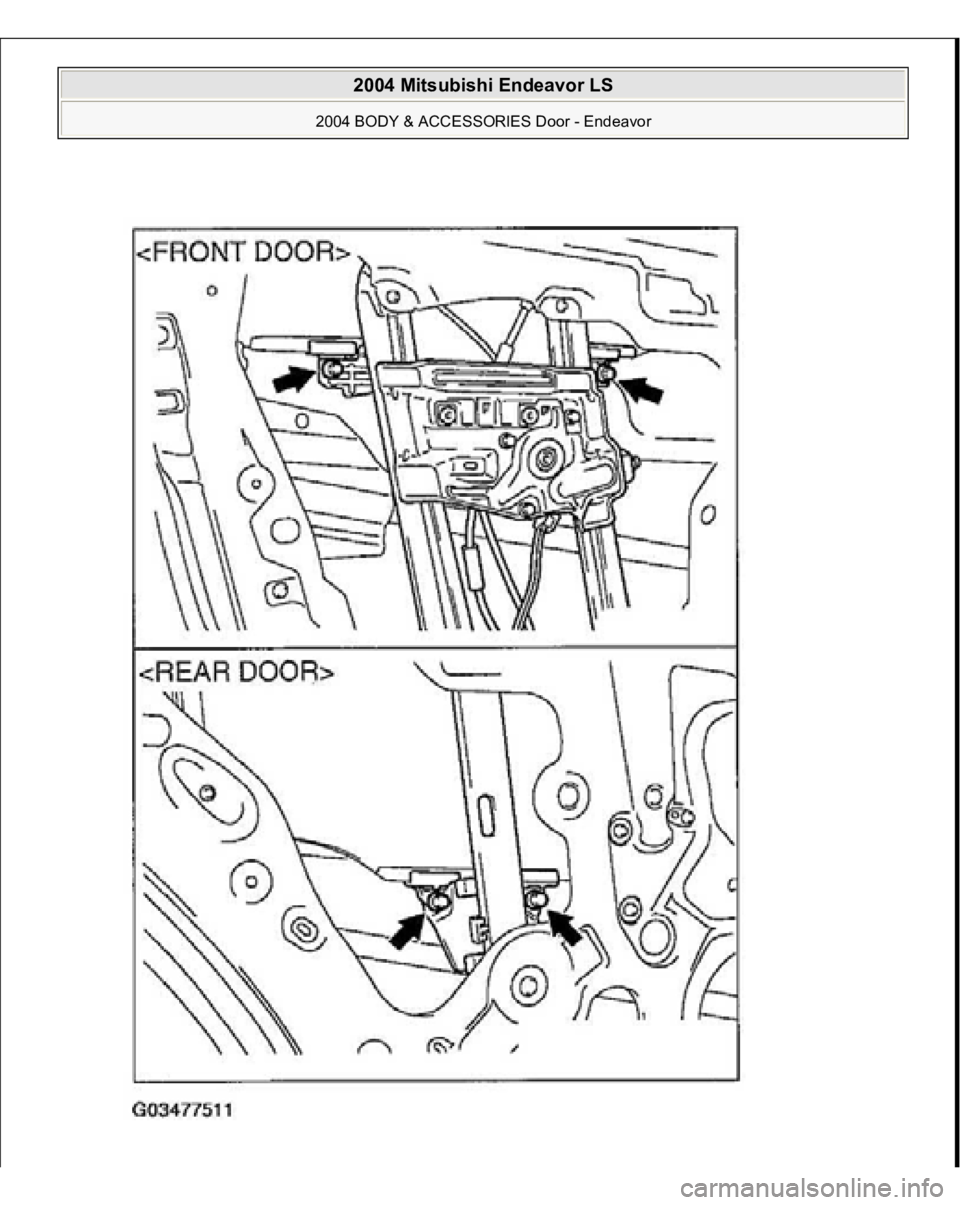

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Adjusting Shim And Striker Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DOOR WINDOW GLASS ADJUSTMENT Check that the door glass moves while contacting the door glass channel when it is r

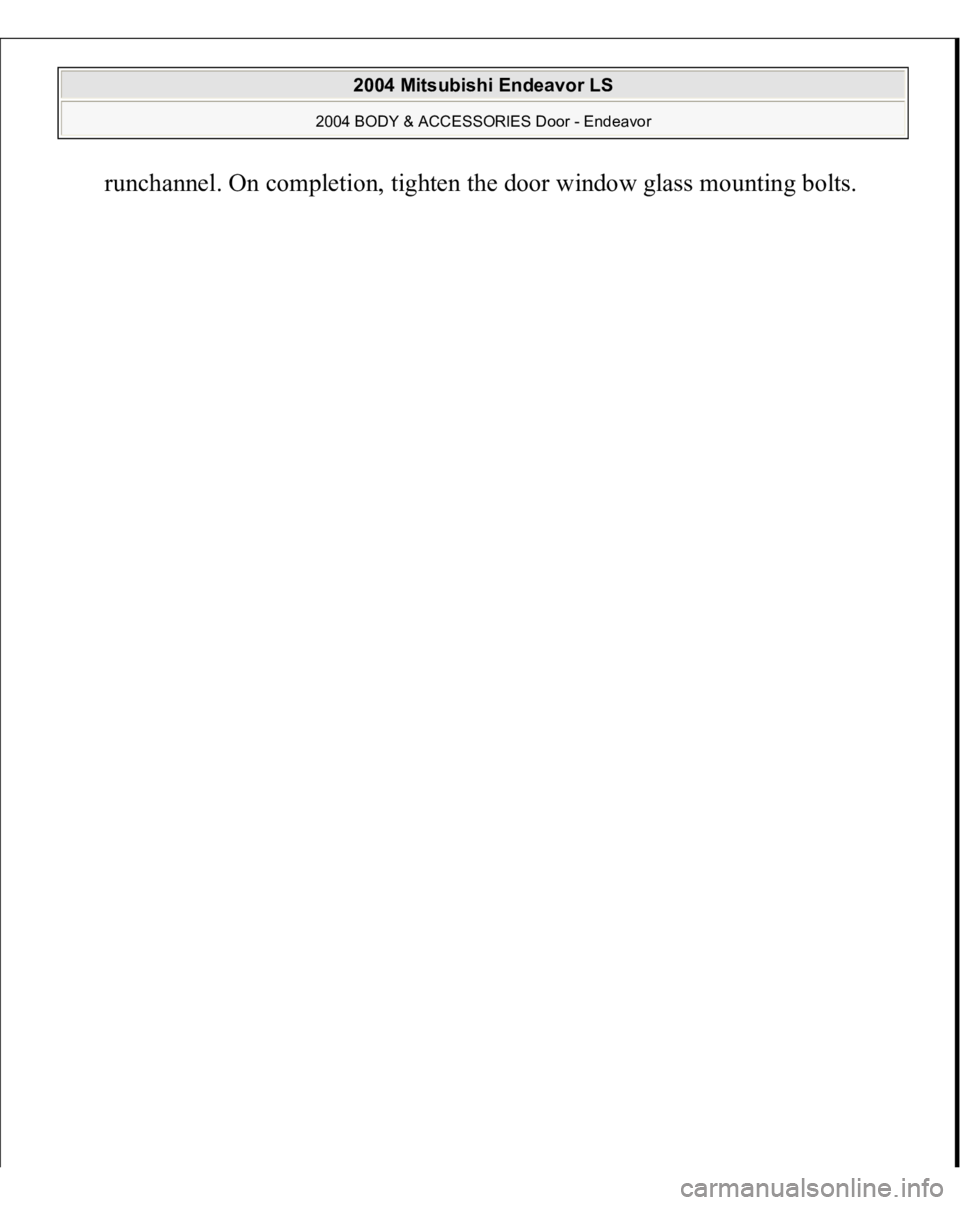

Page 1013 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual runchannel. On com pletion, ti ghten the door window glass mountin g bolts. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1014 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

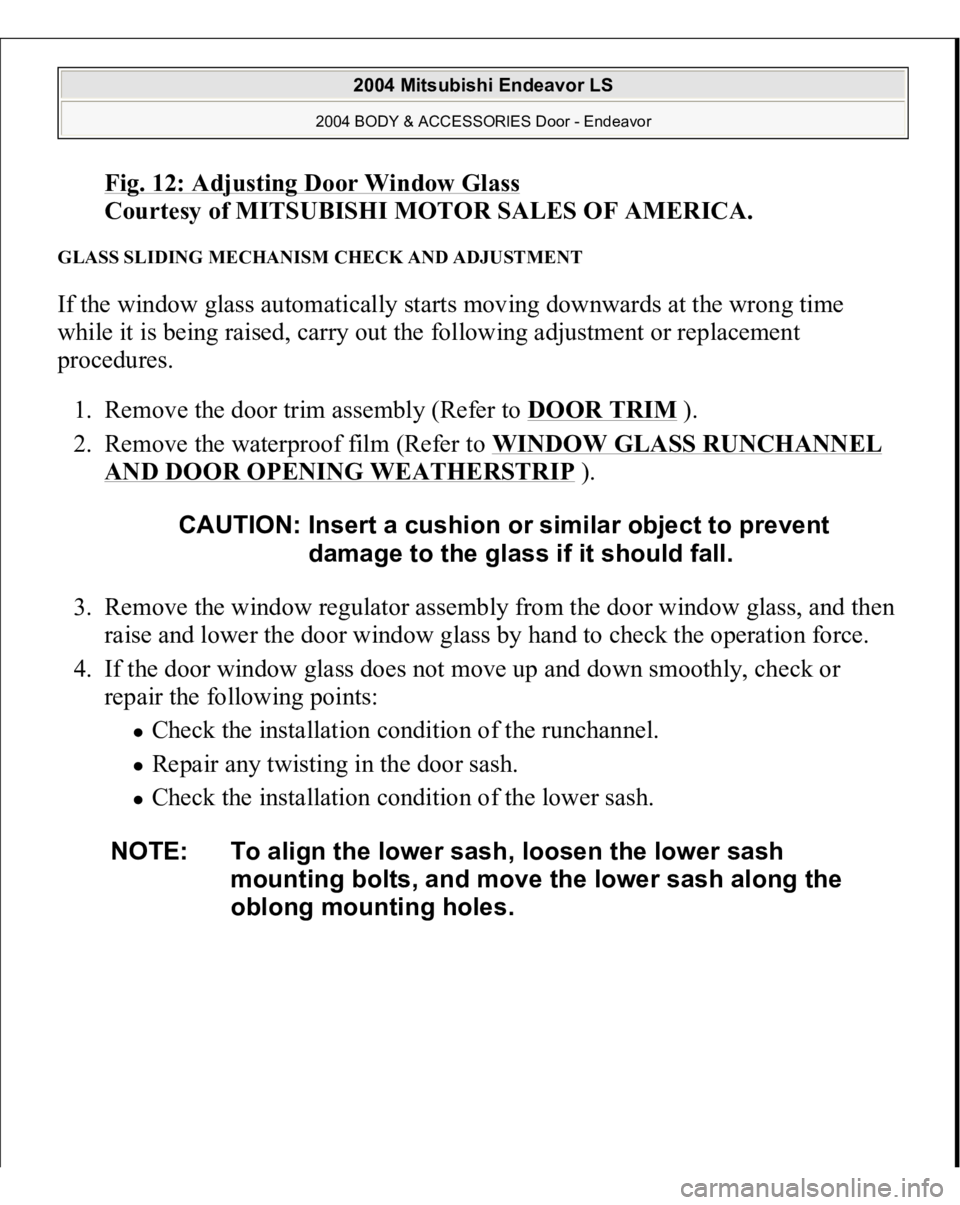

Page 1015 of 3870

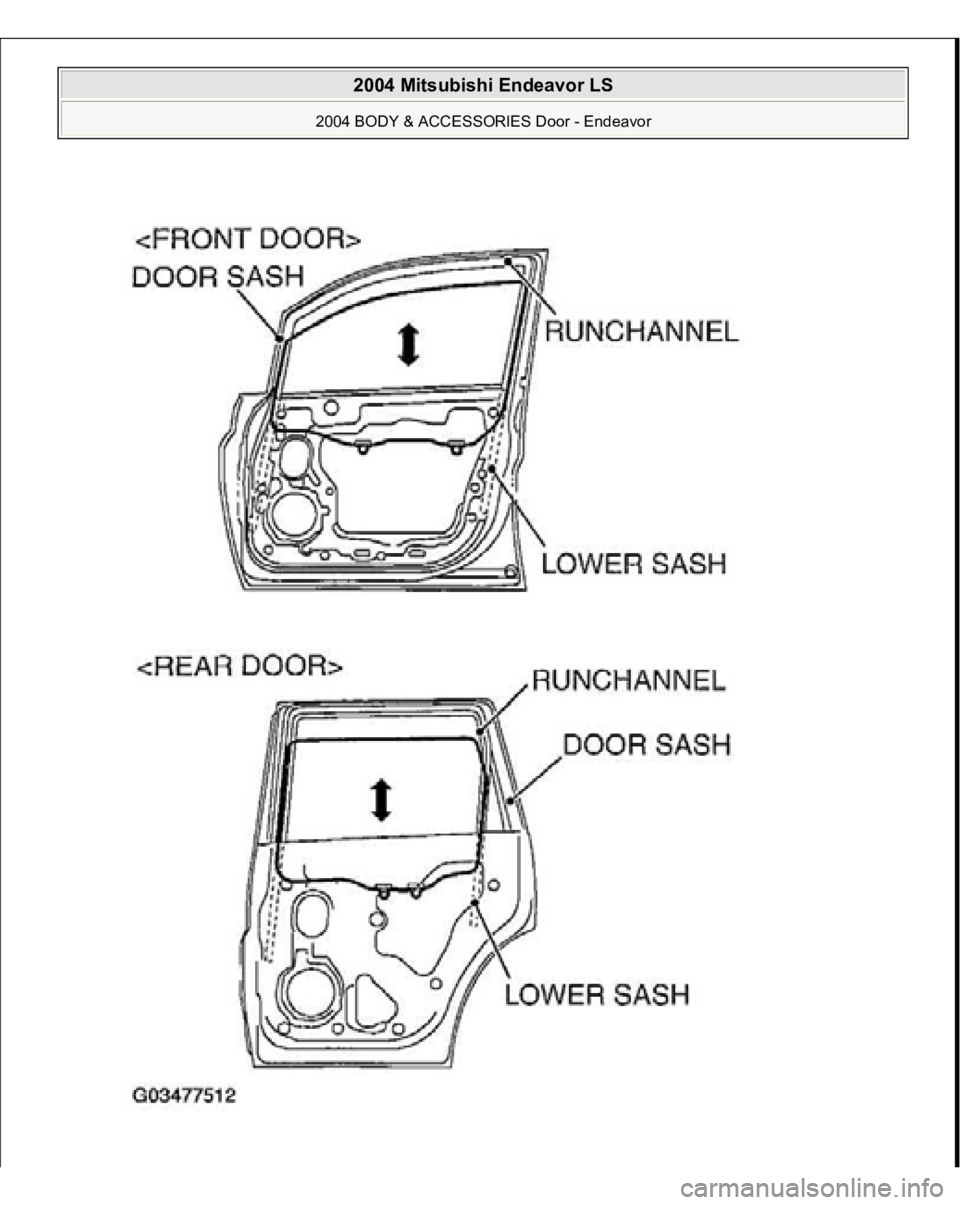

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Adjusting Door Window Glas s Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GLASS SLIDING MECHANISM CHECK AND ADJUSTMENT If the window glass automatically starts moving downwards at the wro

Page 1016 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor
