Page 2657 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the ignition switch to "ON" position. 3. Carry out steps 3 to 6 of the sub-section "Registration with scan tool."

Page 2658 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. Enter the vehicles password (secret code) on the "Transponder ID addition" screen, and then click the check mark icon. Fig. 109: Displaying Transponder ID Addition (2 Of 3) Courtesy of

Page 2659 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 110: Displaying "Transponder ID Addition" (3 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 8. This completes the registration operation. Turn the ignition switch "LOCK"

Page 2660 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual If the scan tool is not available, new key(s) can be registered by operating two keys which have been registered to the vehicle (A maximum of eight keys can be registered to one vehicle). Follow the

Page 2661 of 3870

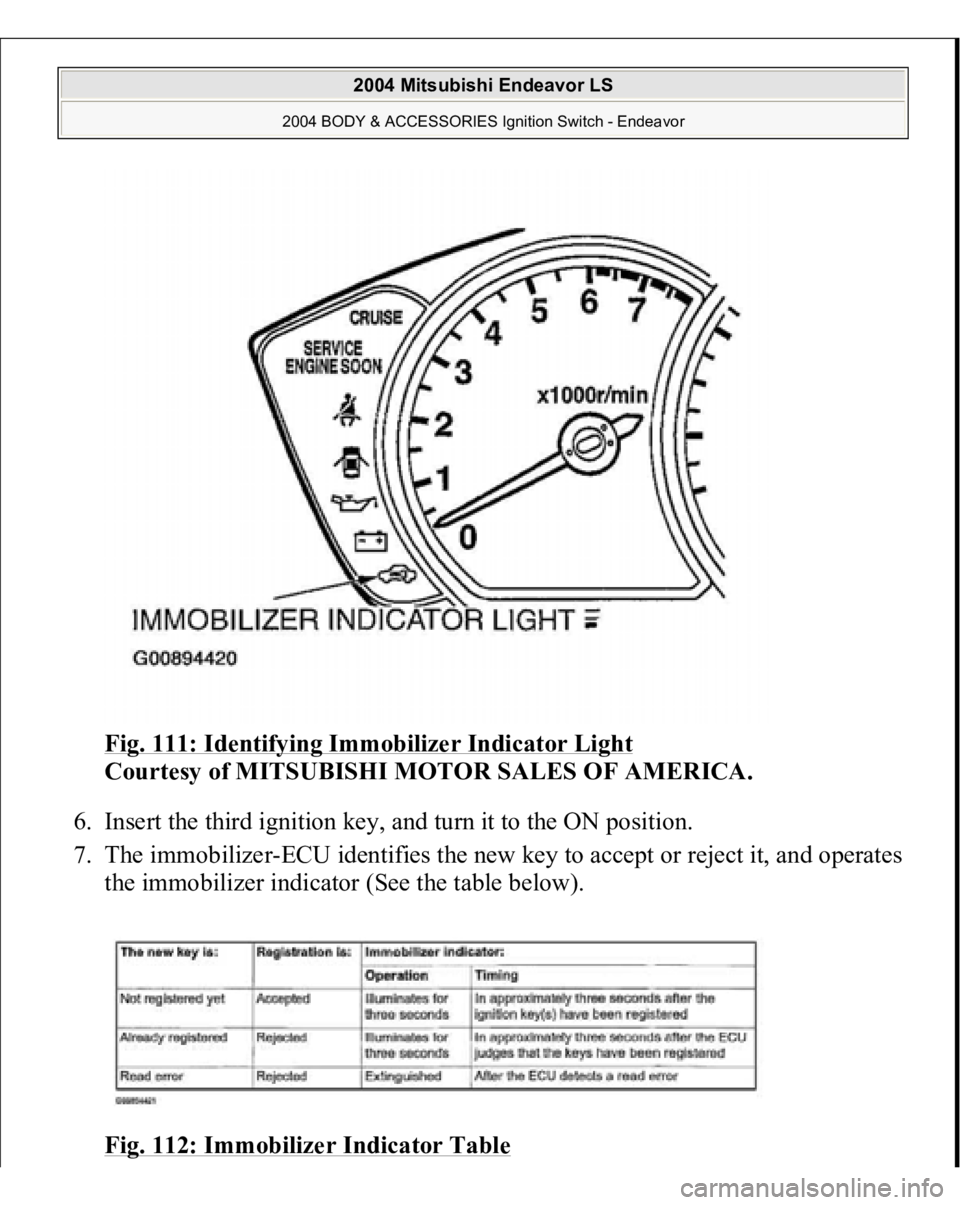

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 111: Identifying Immobilizer Indicator Light Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Insert the third ignition key, and turn it to the ON position. 7. The immobilizer-ECU identifie

Page 2662 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 8. If a new ignition key is registered further, repeat steps 1 to 7 above. A maximum of eight ignition keys can be registered to one vehicle (If you

Page 2663 of 3870

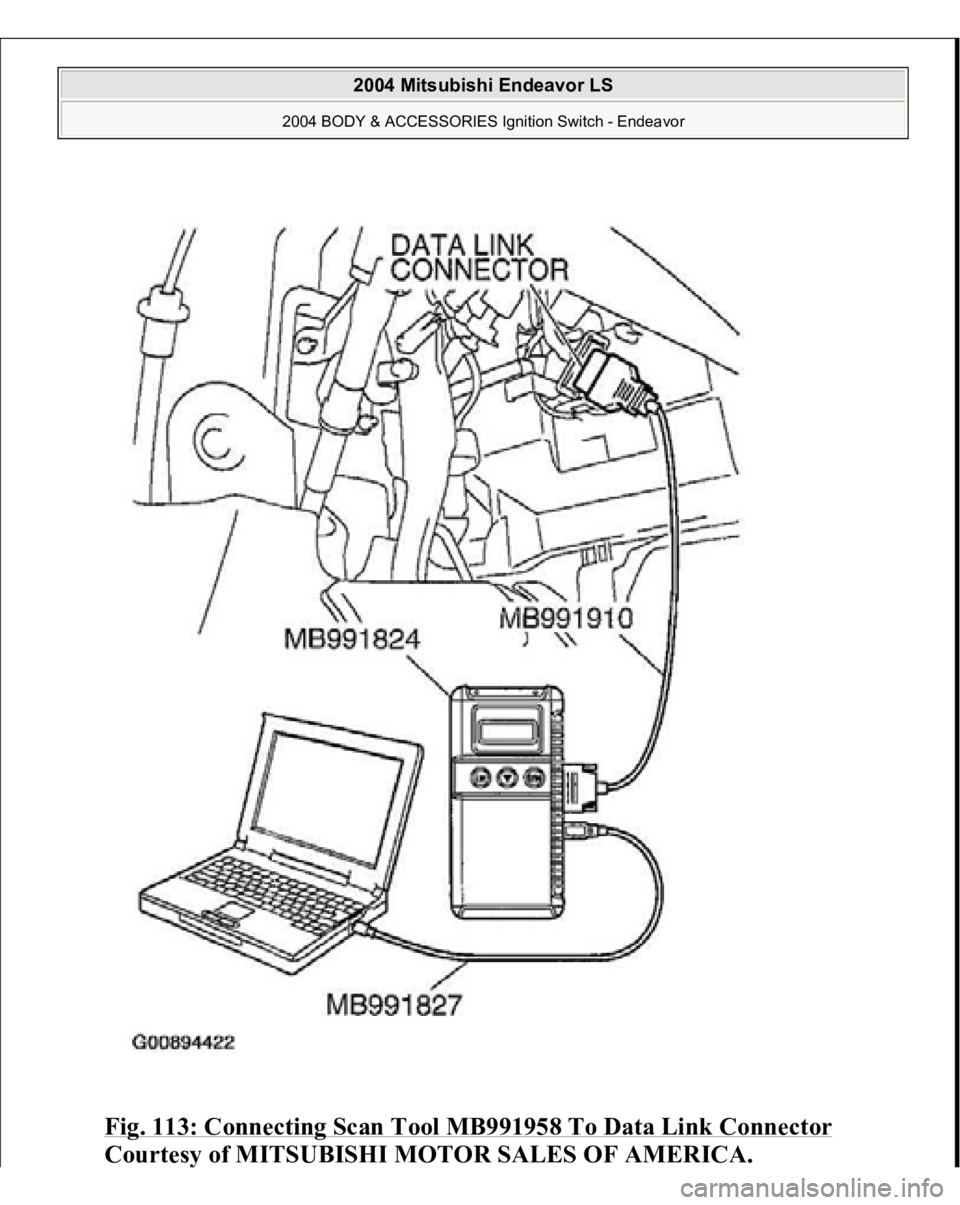

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 113: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2664 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to "ON" position. 3. Select "Interactive Diagnosis" from the start-up screen. 4. Select "System select." Fig. 114: Displaying "Select Syste
