MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be norma

Page 3442 of 3870

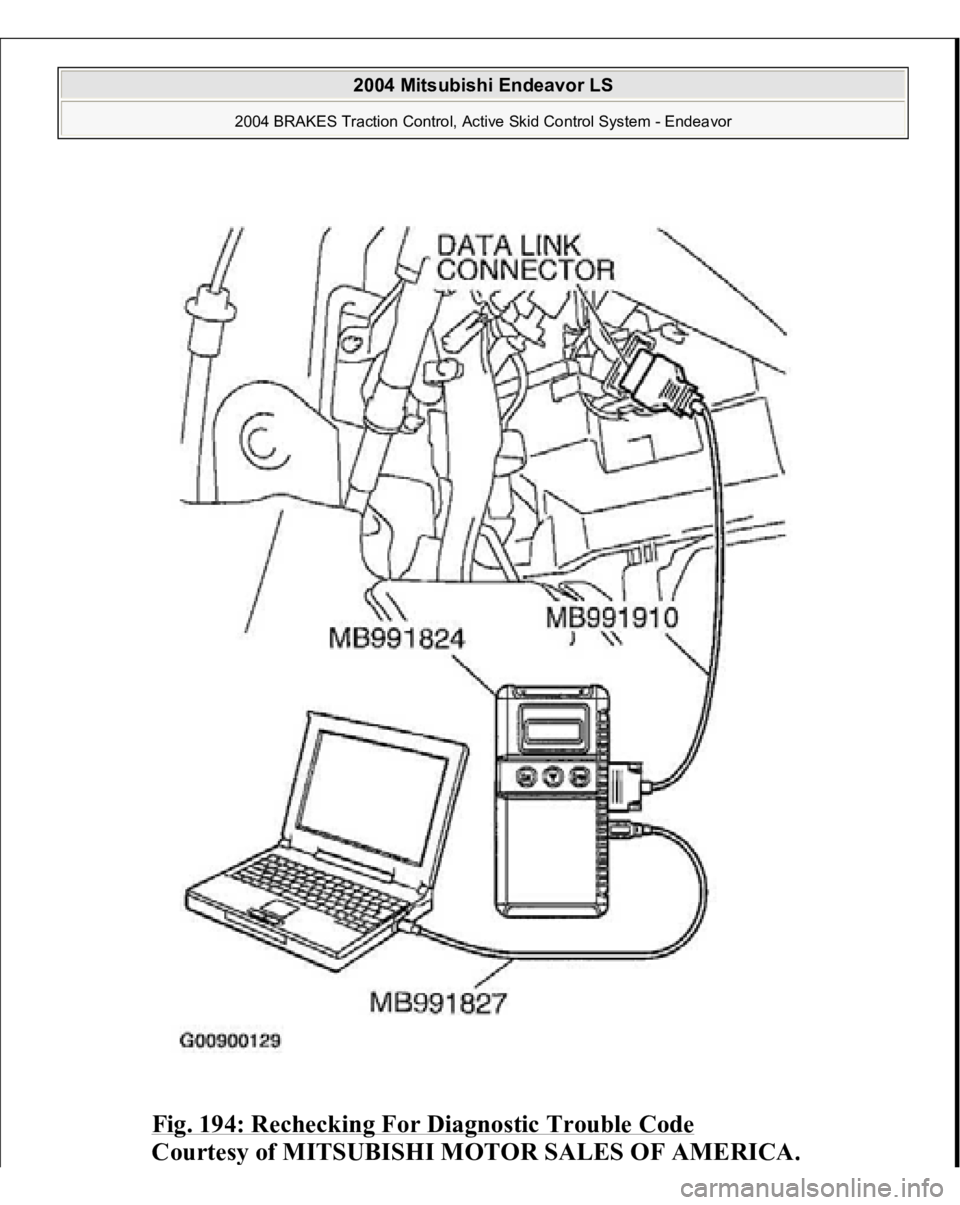

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 194: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3443 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC U1073 set? YES: Replace the steering wheel sensor. Then go to Step 3. NO: It can be assumed that this malfunction is i

Page 3444 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 195: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3445 of 3870

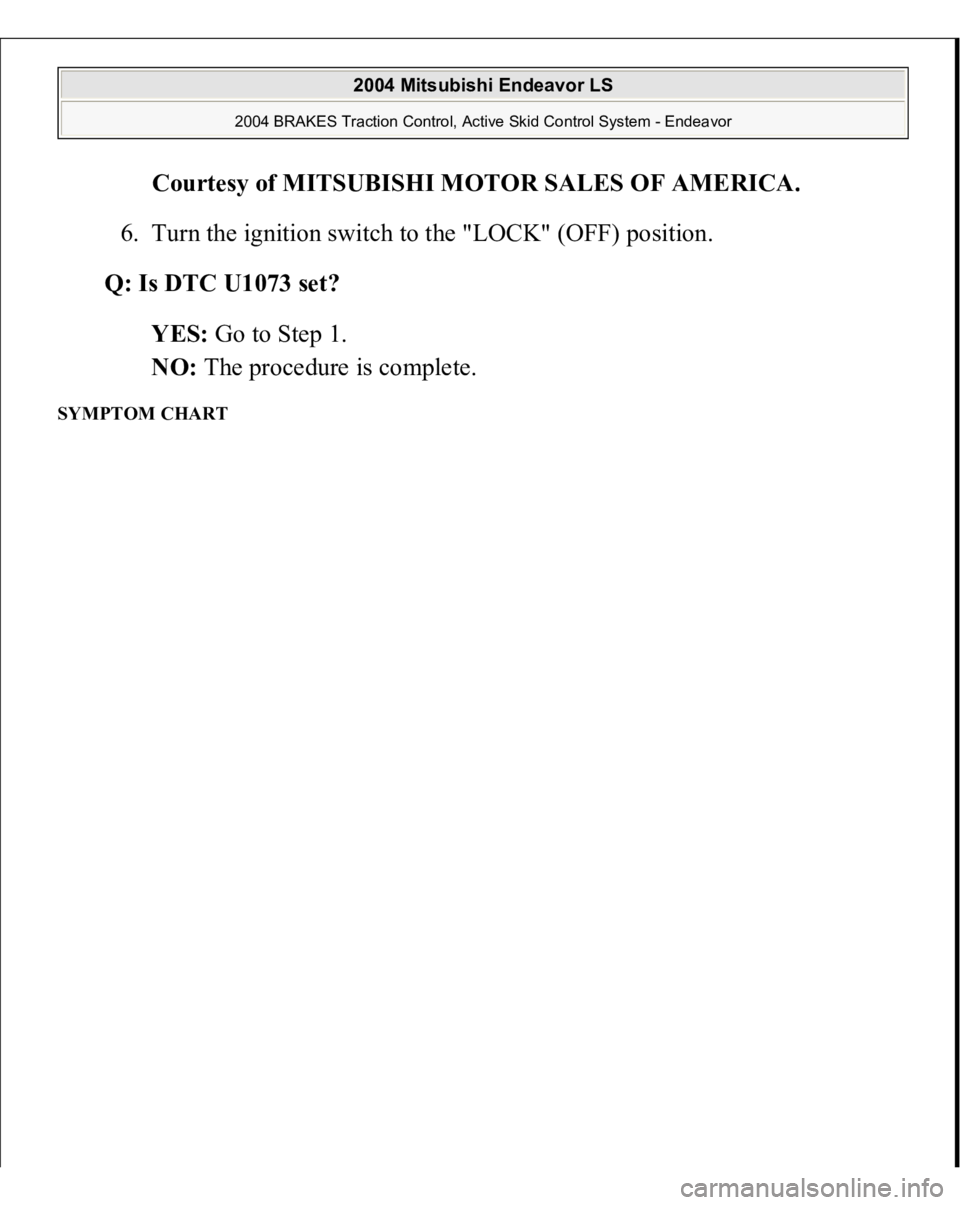

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC U1073 set? YES: Go to Step 1. NO: The procedure is complete. SYMPTO

Page 3446 of 3870

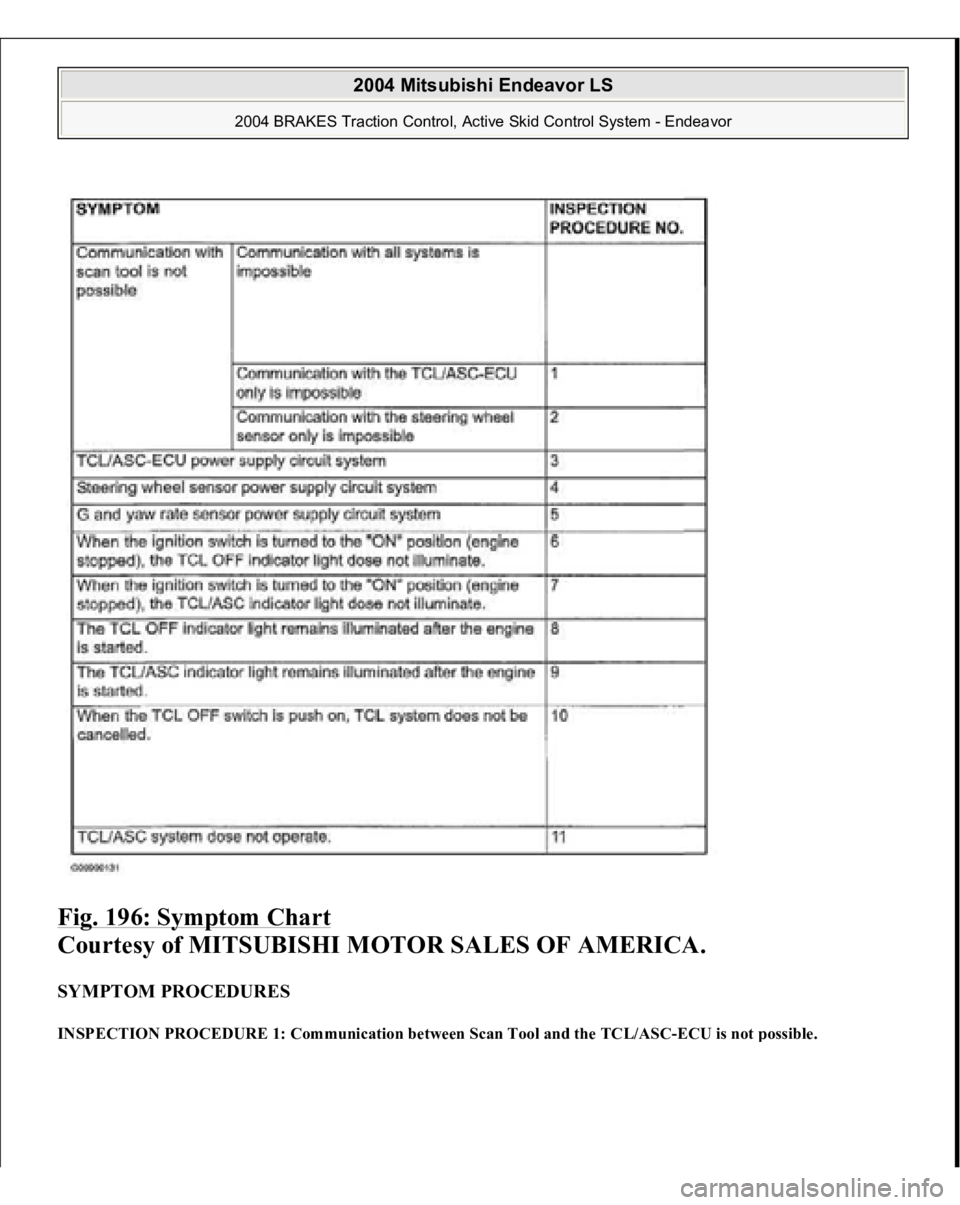

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 196: Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Communication between Scan Tool and the TCL/ASC-ECU is not possible . 2004 Mitsu

Page 3447 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 197: Data Link Connector Circuit Diagram & Connector Identification Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Con

Page 3448 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 198: Identifying Connectors: C -214, C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate with the
