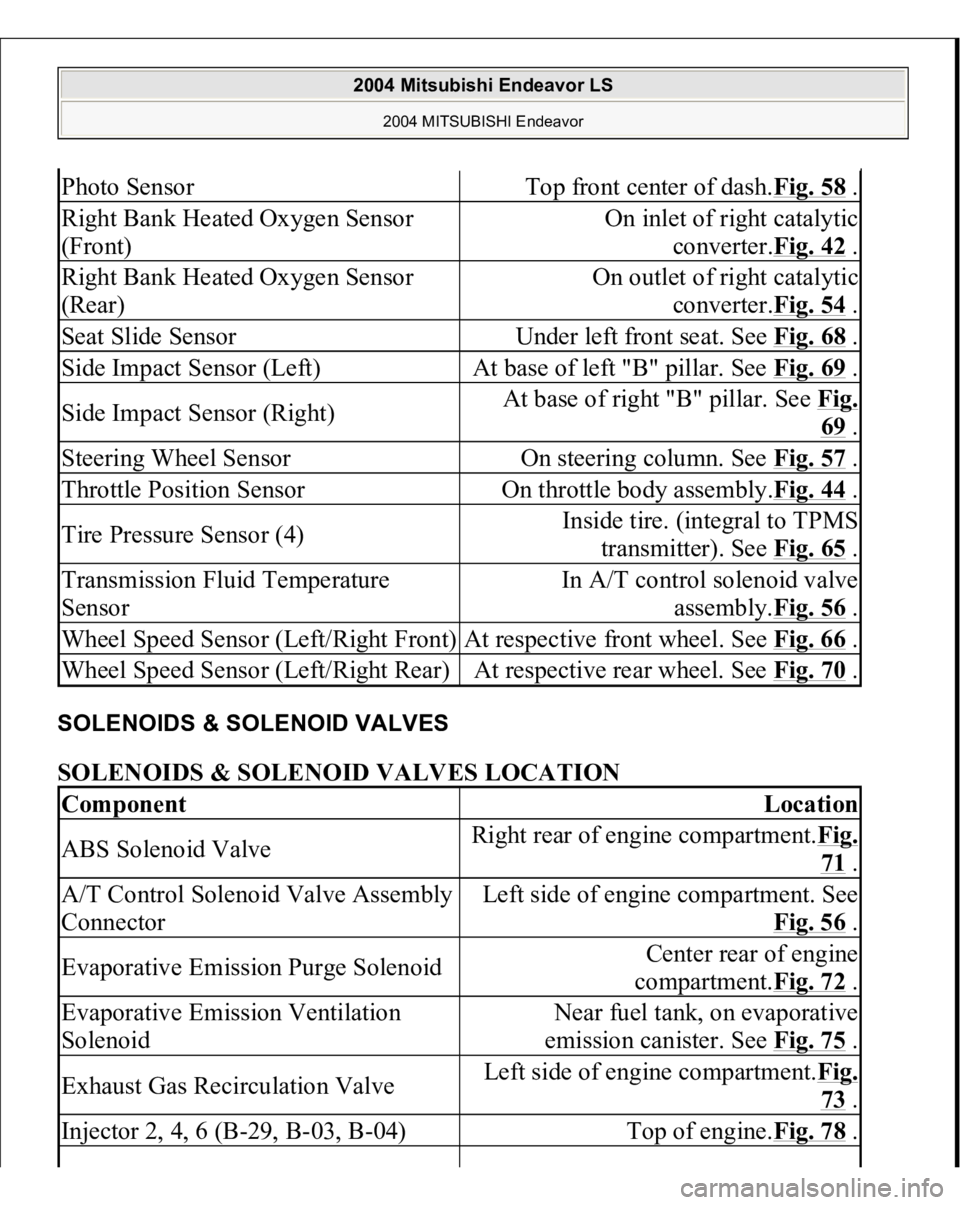

SOLENOIDS & SOLENOID VALVES SOLENOIDS & SOLENOID VALVES LOCATION Photo Sensor
Top front center of dash.Fig. 58
.
Right Bank Heated Oxygen Sensor
(Front)
On inlet of right catalytic
converter.Fig. 42
.
Right Bank Heated Oxygen Sensor
(Rear)
On outlet of right catalytic
converter.Fig. 54
.
Seat Slide Sensor
Under left front seat. See Fig. 68
.
Side Impact Sensor (Left)
At base of left "B" pillar. See Fig. 69
.
Side Impact Sensor (Right)
At base of right "B" pillar. See Fig.
69 .
Steering Wheel Sensor
On steering column. See Fig. 57
.
Throttle Position Sensor
On throttle body assembly.Fig. 44
.
Tire Pressure Sensor (4)
Inside tire. (integral to TPMS
transmitter). See Fig. 65
.
Transmission Fluid Temperature
Sensor
In A/T control solenoid valve
assembly.Fig. 56
.
Wheel Speed Sensor (Left/Right Front)
At respective front wheel. See Fig. 66
.
Wheel Speed Sensor (Left/Right Rear)
At respective rear wheel. See Fig. 70
.
Component
Location
ABS Solenoid Valve
Right rear of engine compartment.Fig.
71 .
A/T Control Solenoid Valve Assembly
Connector
Left side of engine compartment. See
Fig. 56
.
Evaporative Emission Purge Solenoid
Center rear of engine
compartment.Fig. 72
.
Evaporative Emission Ventilation
Solenoid
Near fuel tank, on evaporative
emission canister. See Fig. 75
.
Exhaust Gas Recirculation Valve
Left side of engine compartment.Fig.
73 .
Injector 2, 4, 6 (B-29, B-03, B-04)
Top of engine.Fig. 78
.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

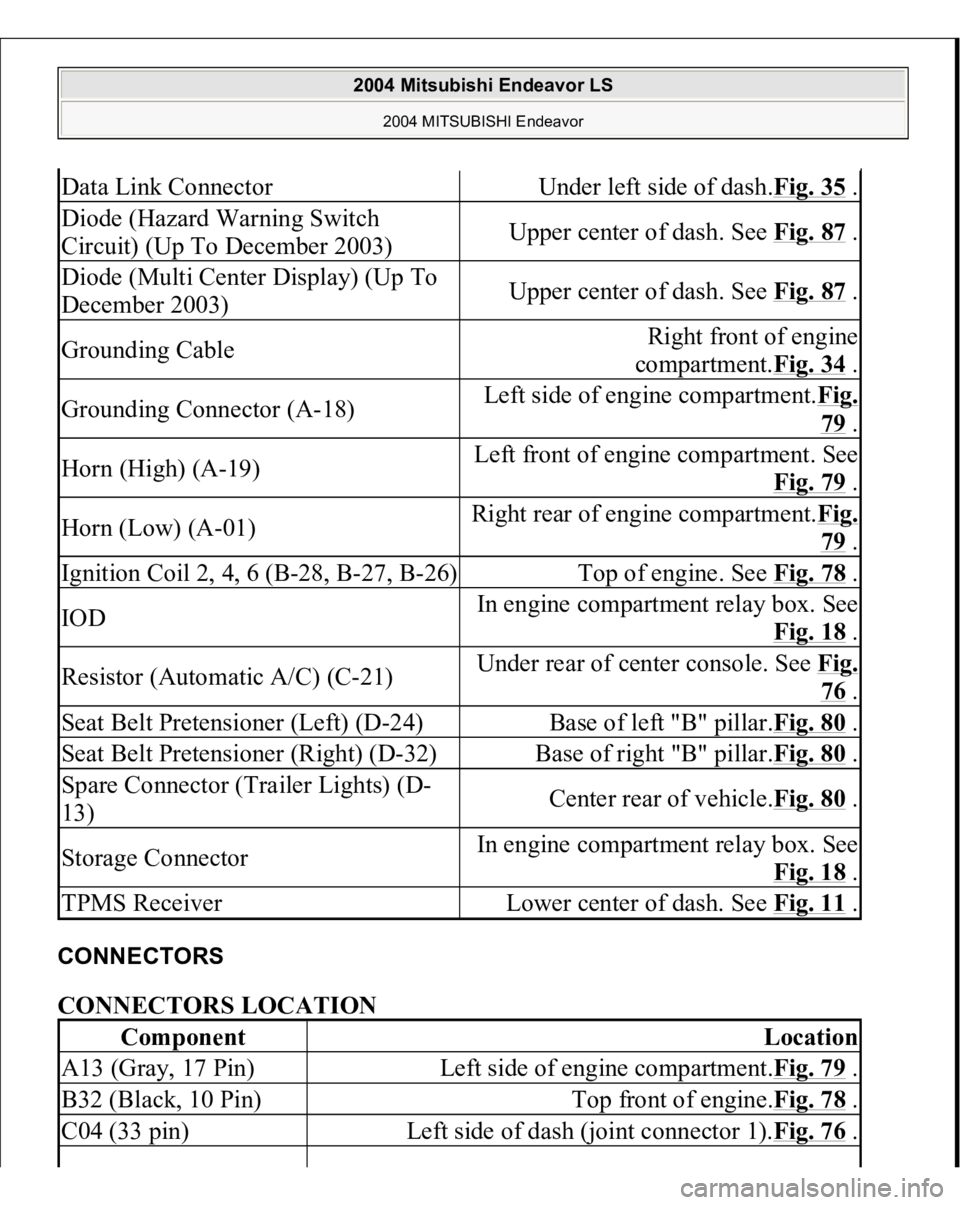

CONNECTORS CONNECTORS LOCATION Data Link Connector
Under left side of dash.Fig. 35
.
Diode (Hazard Warning Switch
Circuit) (Up To December 2003)
Upper center of dash. See Fig. 87
.
Diode (Multi Center Display) (Up To
December 2003)
Upper center of dash. See Fig. 87
.
Grounding Cable
Right front of engine
compartment.Fig. 34
.
Grounding Connector (A-18)
Left side of engine compartment.Fig.
79 .
Horn (High) (A-19)
Left front of engine compartment. See
Fig. 79
.
Horn (Low) (A-01)
Right rear of engine compartment.Fi
g.
79 .
Ignition Coil 2, 4, 6 (B-28, B-27, B-26)
Top of engine. See Fig. 78
.
IOD
In engine compartment relay box. See
Fig. 18
.
Resistor (Automatic A/C) (C-21)
Under rear of center console. See Fi
g.
76 .
Seat Belt Pretensioner (Left) (D-24)
Base of left "B" pillar.Fig. 80
.
Seat Belt Pretensioner (Right) (D-32)
Base of right "B" pillar.Fig. 80
.
Spare Connector (Trailer Lights) (D-
13)
Center rear of vehicle.Fig. 80
.
Storage Connector
In engine compartment relay box. See
Fig. 18
.
TPMS Receiver
Lower center of dash. See Fig. 11
.
Component
Location
A13 (Gray, 17 Pin)
Left side of engine compartment.Fig. 79
.
B32 (Black, 10 Pin)
Top front of engine.Fig. 78
.
C04 (33 pin)
Left side of dash (joint connector 1).Fig. 76
.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: wind deflector installation to reduce wind turbulence inside the vehicle when
driving with the sunroof open. *tt

2004 Mitsubishi ENDEAVOR 04 - Radio CD Player > EQUIPMENT : ELECTRICAL :
RADIO/TAPE DECK/CD ETC. [Part 353400 ]
TSB No: 0354005 NHTSA ID: , May 01, 2003 : Replacement:
Summary: improper alignment between the cd player and the cd opening on the center
instrument panel may cause difficulty ejecting cds. *tt

2004 Mitsubishi ENDEAVOR 04 - Tires > TIRES [Part 190000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: tire pressure monitoring system (tpms). *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: undercoating appearance. *tt

2004 Mitsubishi ENDEAVOR 04 - Trailer Hitch > TRAILER HITCHES [Part 210000 ]
TSB No: 0300009 NHTSA ID: , May 01, 2003 : Replacement:
Summary: tow hitch torque specification. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical System > ELECTRICAL SYSTEM [Part
110000 ]
TSB No: 0352A002 NHTSA ID: , May 01, 2003 : Replacement:
Summary: center instrument panel removal. *tt

2004 Mitsubishi ENDEAVOR 04 - Labels > EQUIPMENT : OTHER : LABELS [Part
355100 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: immobilizer engine control unit (ecu) serial number sticker. *tt
