2004 MITSUBISHI ENDEAVOR key

YES: The procedure is complete.
NO: Go to Step 1 .
INSPECTION PROCEDURE 3: WHEN THE IGNITION KEY IS TURNED TO ON (ENGINE STOPPED), THE
BRAKE/ABS WARNING LIGHT DOES NOT ILLUMINATE, INSPECTION PROCEDURE 4: THE BRAKE/ABS
WARNING LIGHT REMAINS ILLUMINATED AFTER THE ENGINE IS STARTED
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 16: Checking Clearance Between Stop Light Switch And Stopper

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Check that the clearance between the stop light switch and the stopper is
as shown.
8. Connect the connector at the stop light switch.
4. Check the key interlock and shift lock mechanisms. (Refer to KEY
INTERLOCK AND SHIFT LOCK MECHANISM CHECK
).
5. Return the carpet, etc. to its original position.
BRAKE PEDAL FREE PLAY
CAUTION: Check that the stop light does not illuminate
when the brake pedal is not depressed.

2004 Mitsubishi Endeavor LS
2004 BRAKES Basic Brake System - Endeavor

2004 BODY & ACCESSORIES
Door - Endeavor
GENERAL DESCRIPTION OPERATION CENTRAL DOOR LOCKING SYSTEM The central door locking system operates the door lock actuator to lock or unlock
the doors and liftgate using the door lock switch built into the front power window
(main or sub) switch or key built into the driver's side door outside handle. The
system has the following operations and features:
All doors and liftgate can be locked using the door lock switch built into the
front power window (main or sub) switch. Insert the key into the driver's key cylinder and turn once to the unlock side to
unlock the driver's door. Turn the key once again to the unlock side to unlock
all doors and the liftgate. The key reminder function automatically unlocks all doors and liftgate when
door lock operation is performed and the front doors are opened while the key
is inserted into the ignition switch.
POWER WINDOWS When the power window (main or sub) switch is operated, the door windows will
open or close. This system has the following operations and features:
A power window lock switch on the power window main switch prevents the
door window glass from opening/closing with the front passenger's and rear
power window sub switch. The power window of the door window glass can be opened/closed for 30
seconds with the timer function after the ignition switch is turned OFF. (The
timer expires if the front door < LH or RH> is opened when the timer is in
operation). The power window main switch contains a one-touch down switch that will
automatically open the driver's side door window only.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

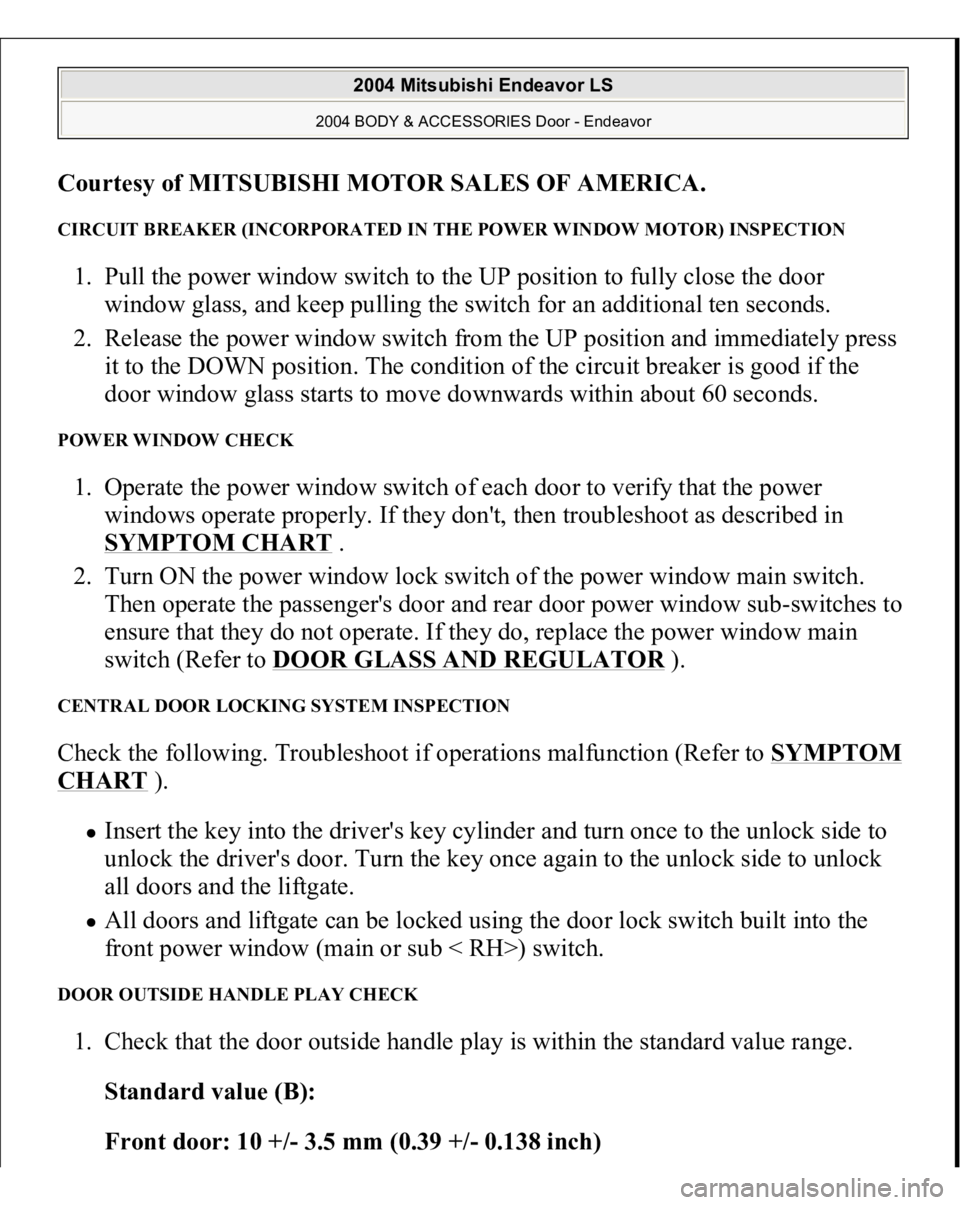

CIRCUIT BREAKER (INCORPORATED IN THE POWER WINDOW MOTOR) INSPECTION 1. Pull the power window switch to the UP position to fully close the door
window glass, and keep pulling the switch for an additional ten seconds.
2. Release the power window switch from the UP position and immediately press
it to the DOWN position. The condition of the circuit breaker is good if the
door window glass starts to move downwards within about 60 seconds. POWER WINDOW CHECK 1. Operate the power window switch of each door to verify that the power
windows operate properly. If they don't, then troubleshoot as described in
SYMPTOM CHART
.
2. Turn ON the power window lock switch of the power window main switch.
Then operate the passenger's door and rear door power window sub-switches to
ensure that they do not operate. If they do, replace the power window main
switch (Refer to DOOR GLASS AND REGULATOR
).
CENTRAL DOOR LOCKING SYSTEM INSPECTION Check the following. Troubleshoot if operations malfunction (Refer to SYMPTOM CHART
).
Insert the key into the driver's key cylinder and turn once to the unlock side to
unlock the driver's door. Turn the key once again to the unlock side to unlock
all doors and the liftgate. All doors and liftgate can be locked using the door lock switch built into the
front power window (main or sub < RH>) switch.
DOOR OUTSIDE HANDLE PLAY CHECK 1. Check that the door outside handle play is within the standard value range.
Standard value (B):
Front door: 10 +/- 3.5 mm (0.39 +/- 0.138 inch)
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

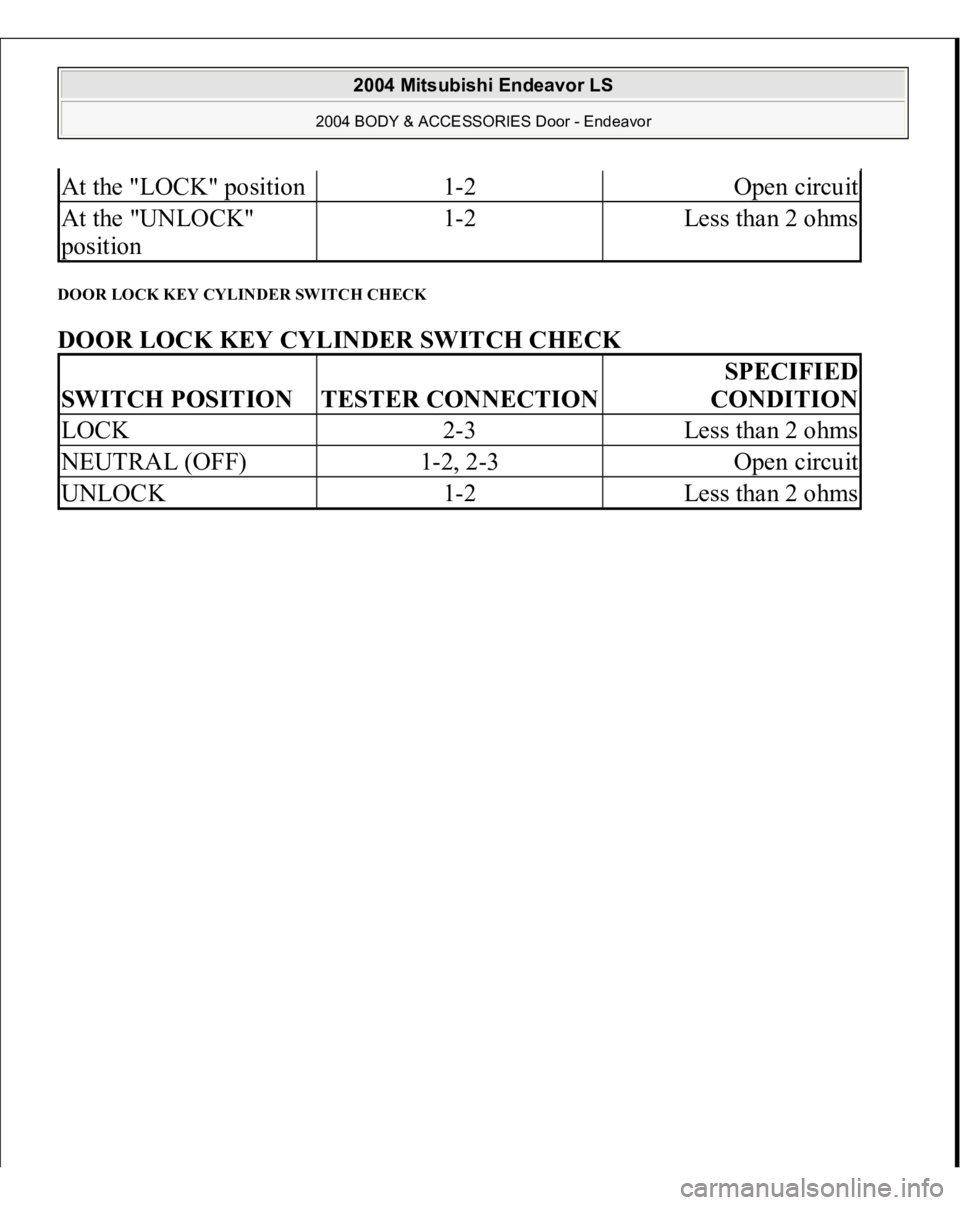

DOOR LOCK KEY CYLINDER SWITCH CHECK DOOR LOCK KEY CYLINDER SWITCH CHECK At the "LOCK" position
1-2
Open circuit
At the "UNLOCK"
position
1-2
Less than 2 ohms
SWITCH POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
LOCK
2-3
Less than 2 ohms
NEUTRAL (OFF)
1-2, 2-3
Open circuit
UNLOCK
1-2
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

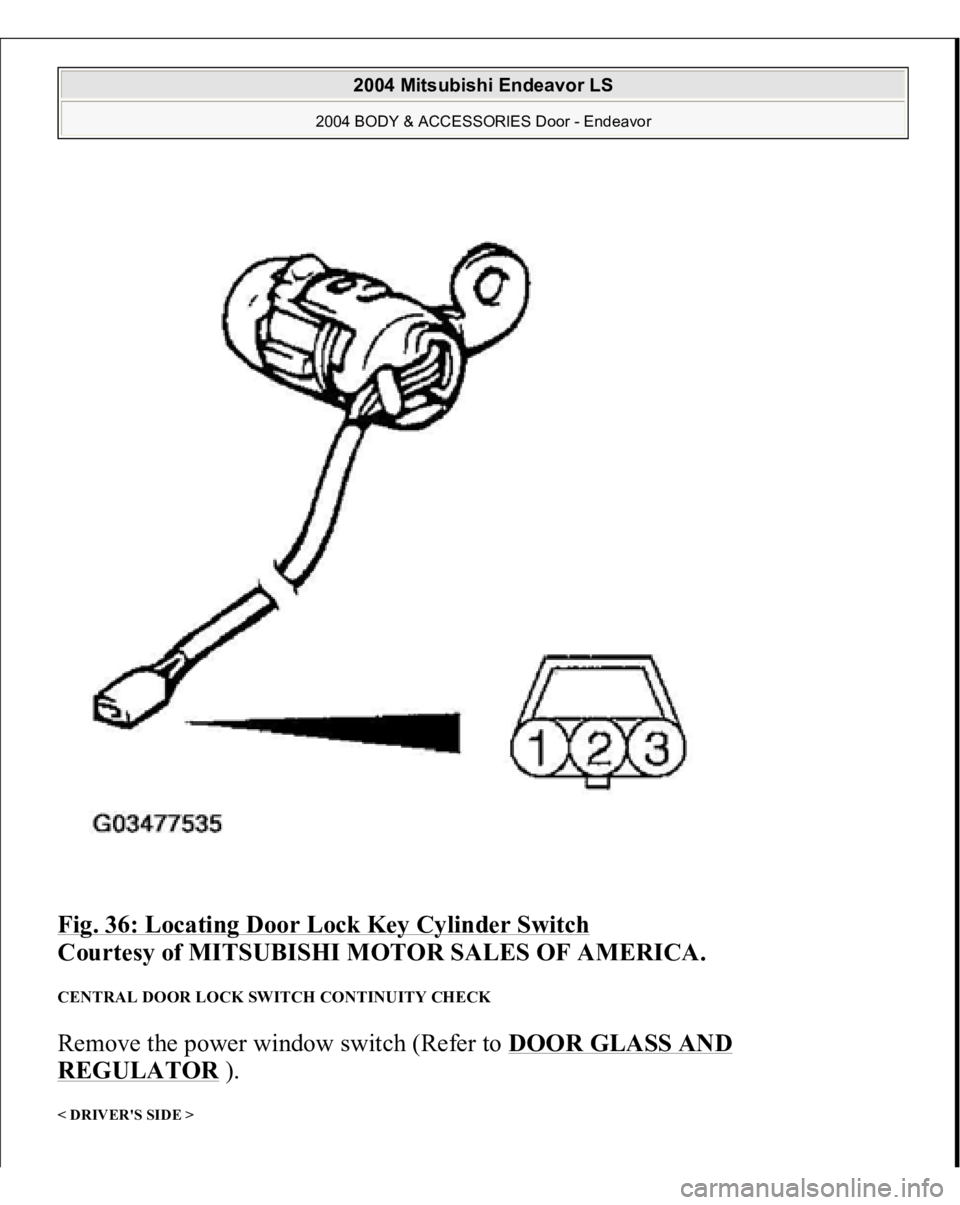

Fig. 36: Locating Door Lock Key Cylinder Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK Remove the power window switch (Refer to DOOR GLASS AND REGULATOR
).
< DRIVER'S SIDE >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door - Endeavor

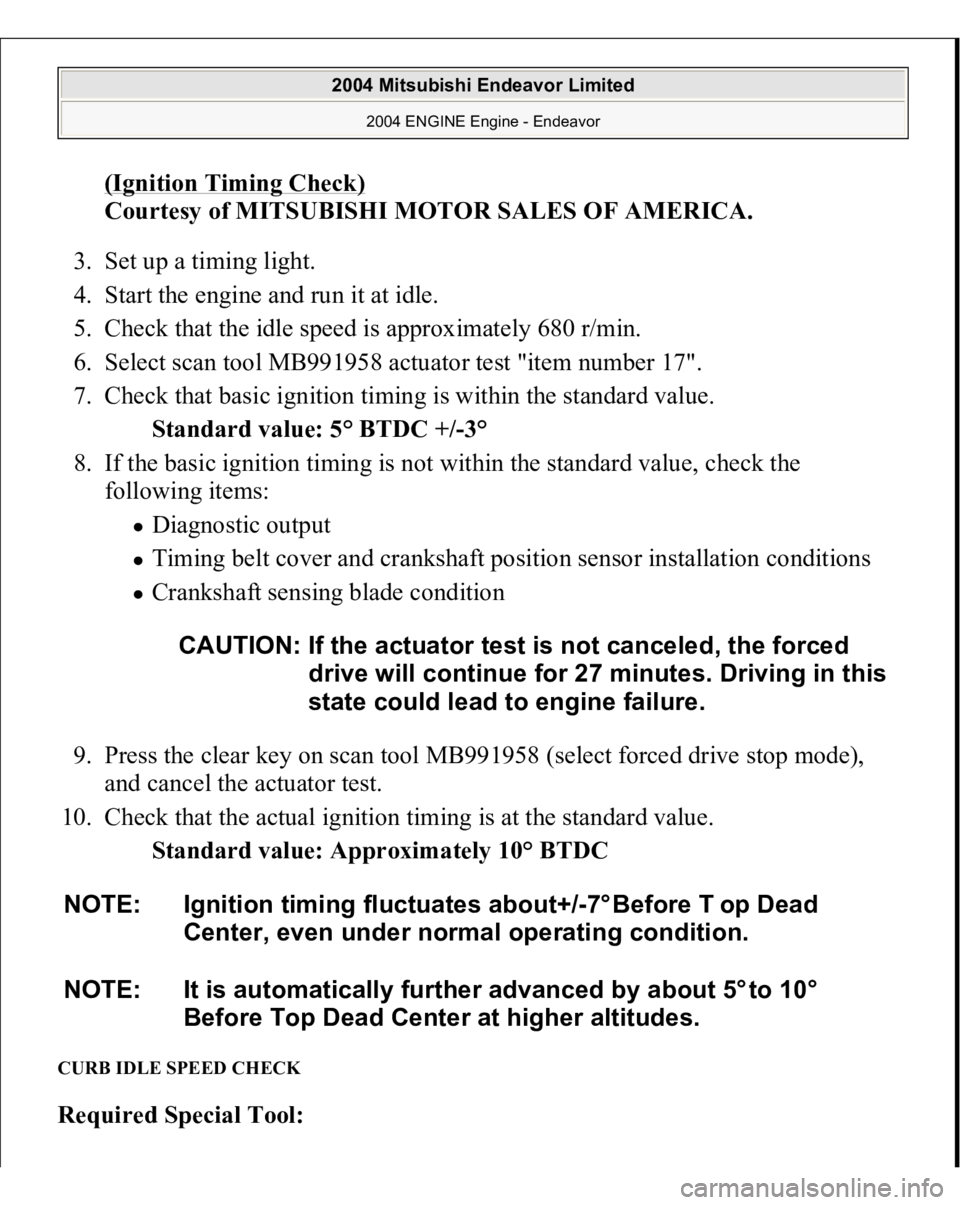

(Ignition Timing Check)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Set up a timing light.
4. Start the engine and run it at idle.
5. Check that the idle speed is approximately 680 r/min.
6. Select scan tool MB991958 actuator test "item number 17".
7. Check that basic ignition timing is within the standard value.
Standard value: 5° BTDC +/-3°
8. If the basic ignition timing is not within the standard value, check the
following items:
Diagnostic output Timing belt cover and crankshaft position sensor installation conditions Crankshaft sensing blade condition
9. Press the clear key on scan tool MB991958 (select forced drive stop mode),
and cancel the actuator test.
10. Check that the actual ignition timing is at the standard value.
Standard value: Approximately 10° BTDC
CURB IDLE SPEED CHECK Required Special Tool:
CAUTION: If the actuator test is not canceled, the forced
drive will continue for 27 minutes. Driving in this
state could lead to engine failure.
NOTE: Ignition timing fluctuates about+/-7° Before T op Dead
Center, even under normal operating condition.
NOTE: It is automatically further advanced by about 5° to 10°
Before Top Dead Center at higher altitudes.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

2004 ELECTRICAL
Fuses & Circuit Breakers - Endeavor

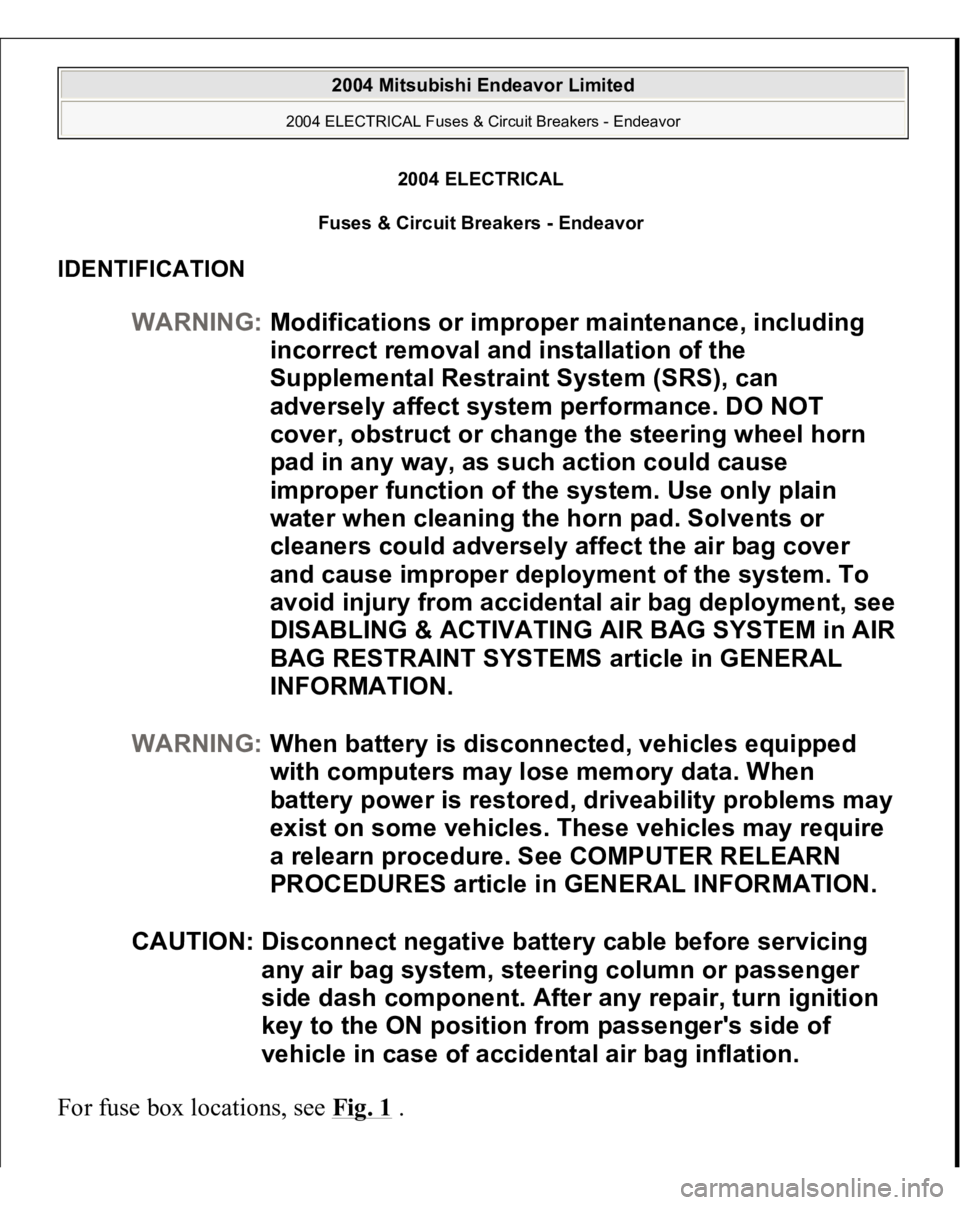

IDENTIFICATION For fuse box locations, see Fig. 1
.
WARNING:Modifications or improper maintenance, including
incorrect removal and installation of the
Supplemental Restraint System (SRS), can
adversely affect system performance. DO NOT
cover, obstruct or change the steering wheel horn
pad in any way, as such action could cause
improper function of the system. Use only plain
water when cleaning the horn pad. Solvents or
cleaners could adversely affect the air bag cover
and cause improper deployment of the system. To
avoid injury from accidental air bag deployment, see
DISABLING & ACTIVATING AIR BAG SYSTEM in AIR
BAG RESTRAINT SYSTEMS article in GENERAL
INFORMATION.
WARNING:When battery is disconnected, vehicles equipped
with computers may lose memory data. When
battery power is restored, driveability problems may
exist on some vehicles. These vehicles may require
a relearn procedure. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION.
CAUTION: Disconnect negative battery cable before servicing
any air bag system, steering column or passenger
side dash component. After any repair, turn ignition
key to the ON position from passenger's side of
vehicle in case of accidental air bag inflation.

2004 Mitsubishi Endeavor Limited
2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor


2004 Mitsubishi Endeavor Limited
2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor
