Page 1497 of 3870

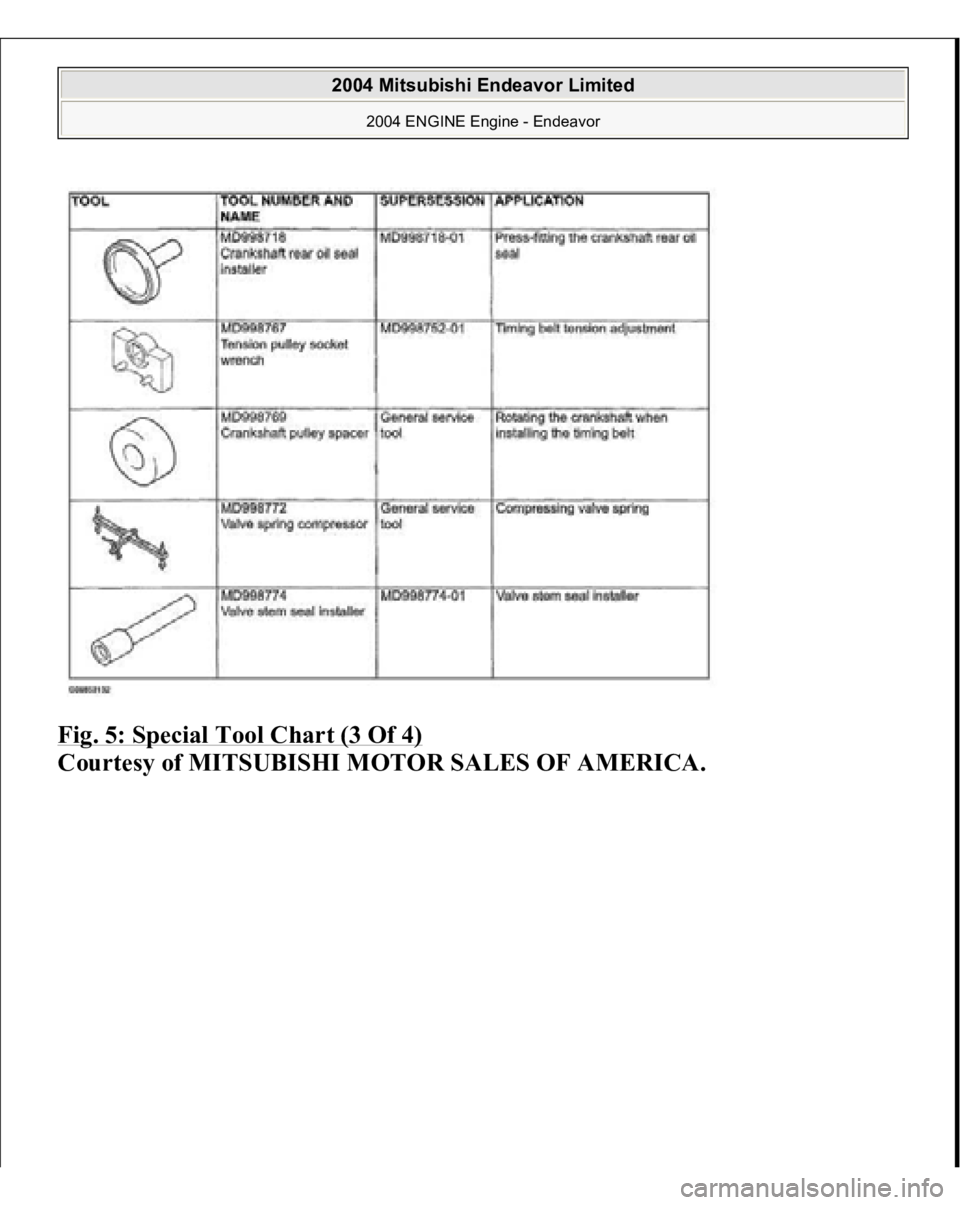

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Special Tool Chart (3 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1498 of 3870

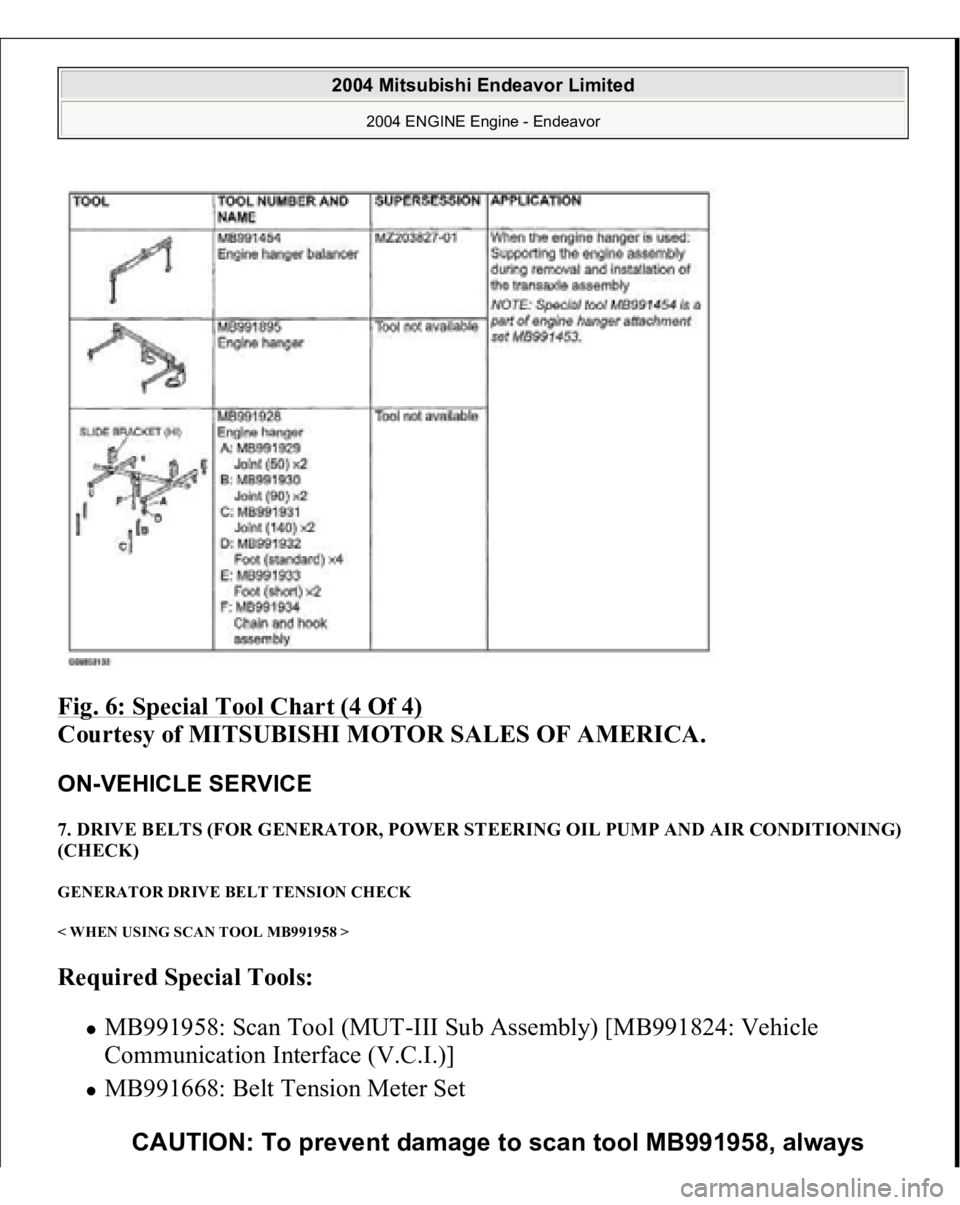

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Special Tool Chart (4 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ON-VEHICLE SERVICE 7. DRIVE BELTS (FOR GENERATOR, POWER STEERING OIL PUMP AND AIR CONDITIONING) (CHECK) GENERATOR

Page 1499 of 3870

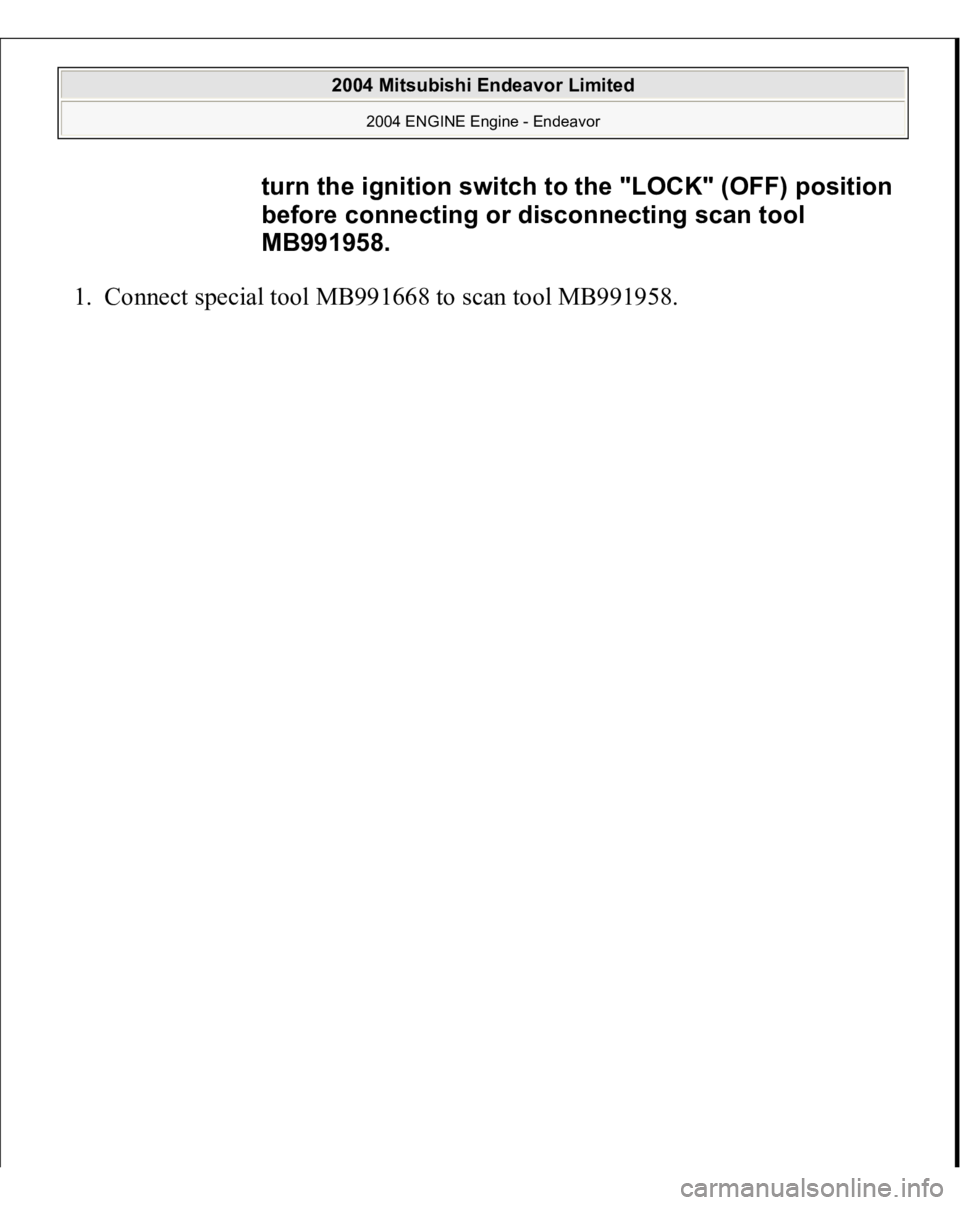

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect s pecial tool MB991668 to scan tool MB991958. turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. 2004 Mitsubishi Endea

Page 1500 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Connecting Scan Tool Mb991958 To Data Link Connector 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1501 of 3870

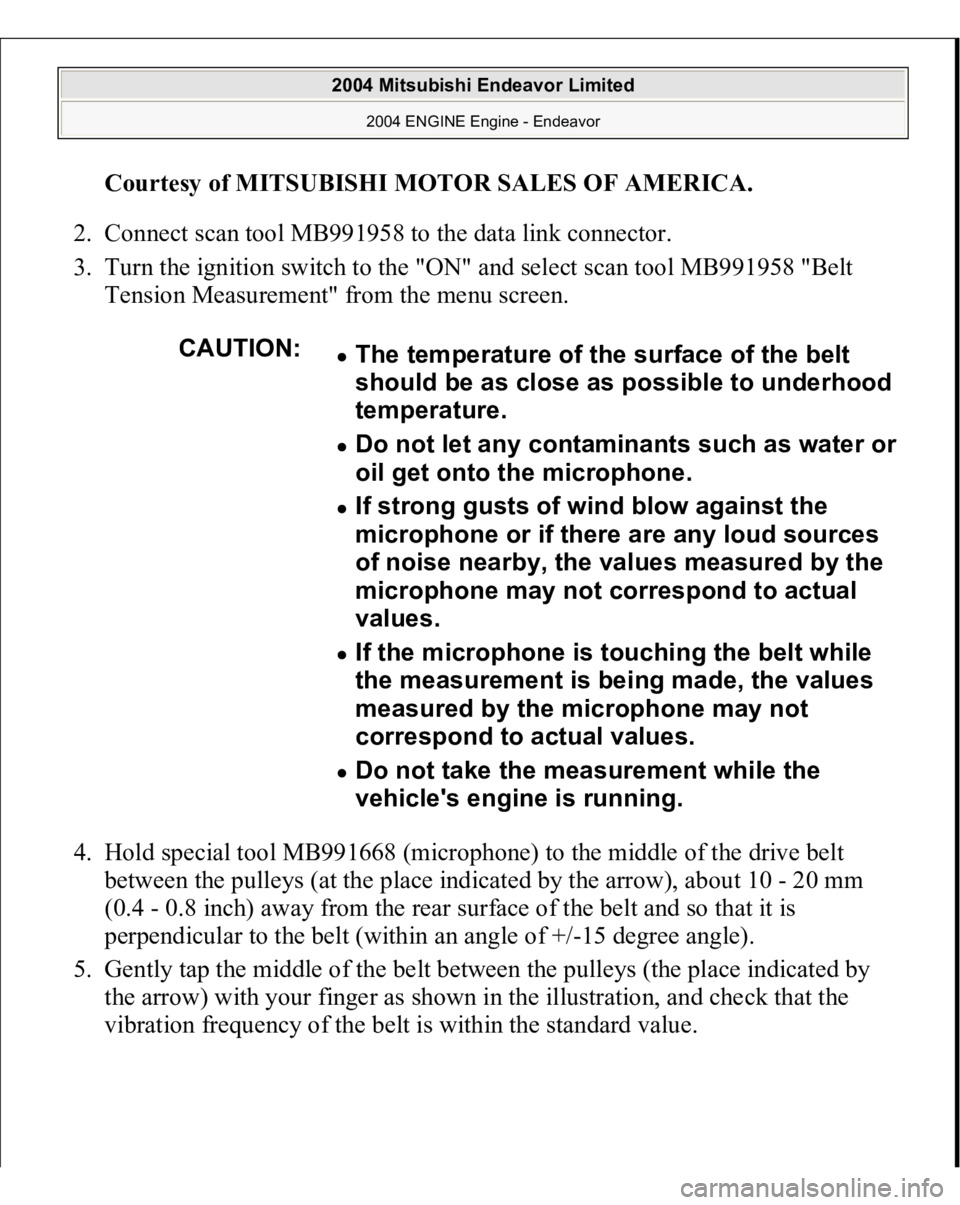

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Connect scan tool MB991958 to the data link connector. 3. Turn the ignition switch to the "ON" and select scan tool MB991958 "Belt Te

Page 1502 of 3870

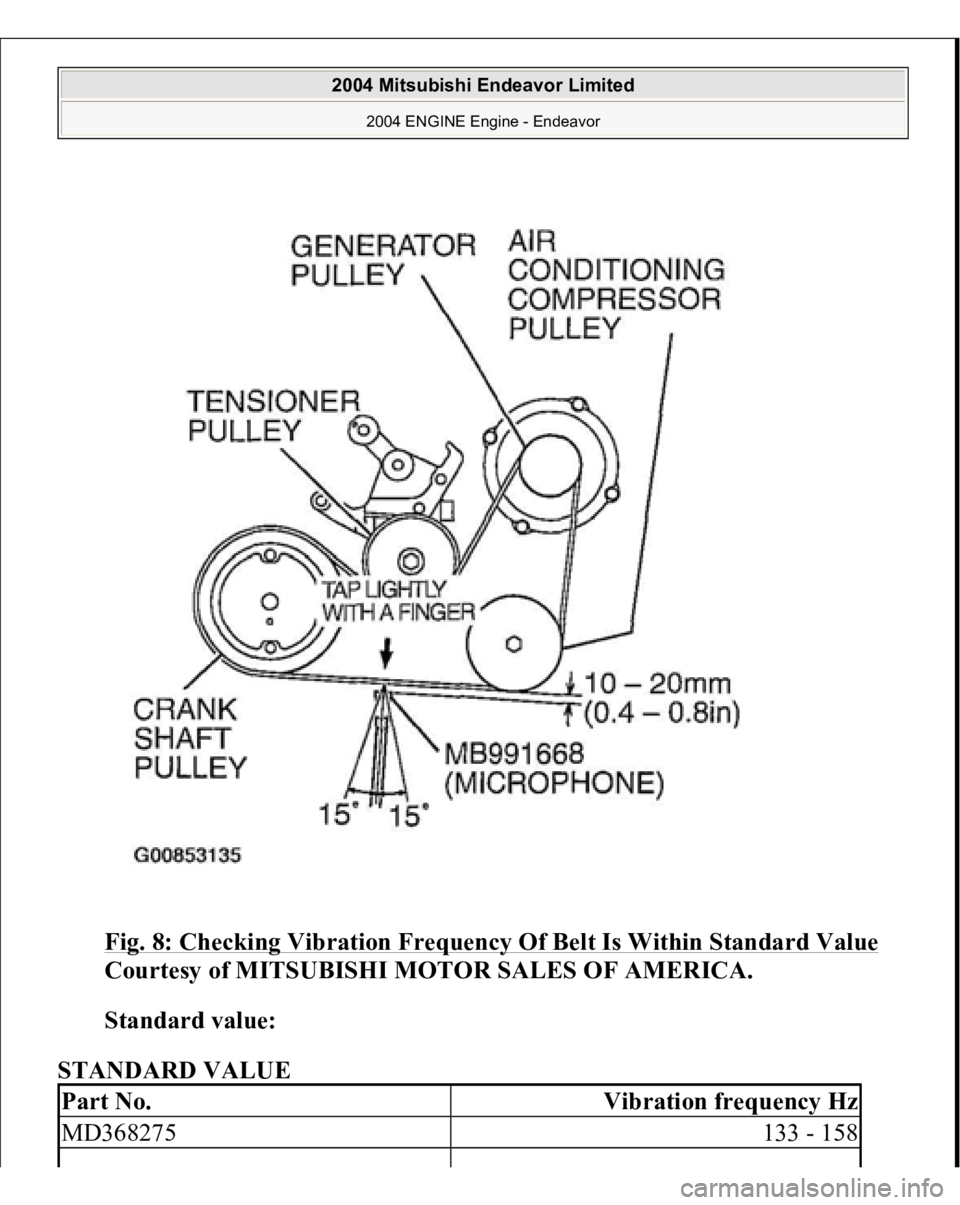

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Checking Vibration Frequency Of Belt Is Within Standard Value Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Standard value: STANDARD VALUE Part No. Vibration frequency Hz MD368275 133 -

Page 1503 of 3870

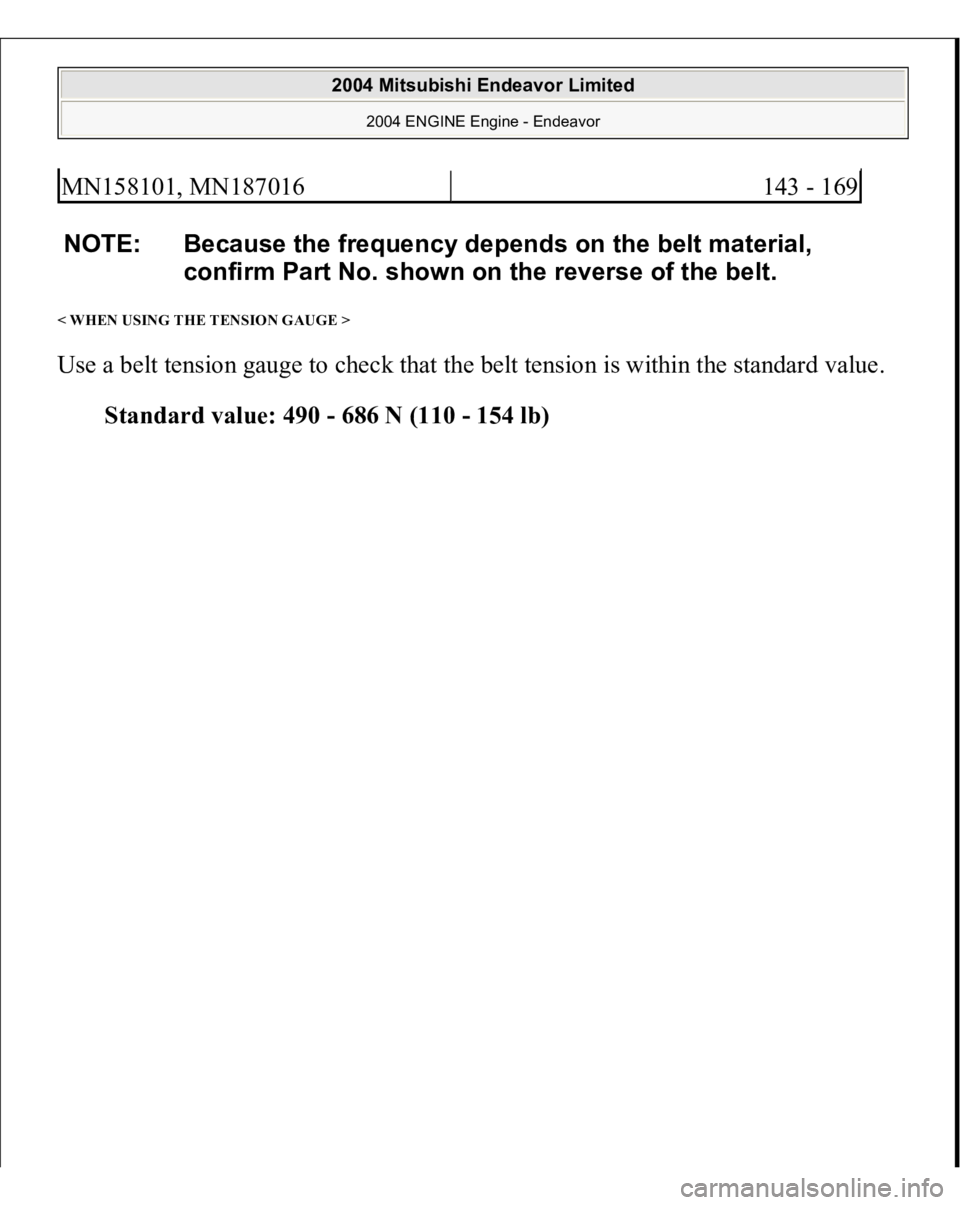

MITSUBISHI ENDEAVOR 2004 Service Repair Manual < WHEN USING THE TENSION GAUGE > Use a belt tension gauge to check that the belt tension is within the standard value. Standard value: 490 - 686 N (110 - 154 lb)MN158101, MN187016 143 - 169 NOTE: Bec

Page 1504 of 3870

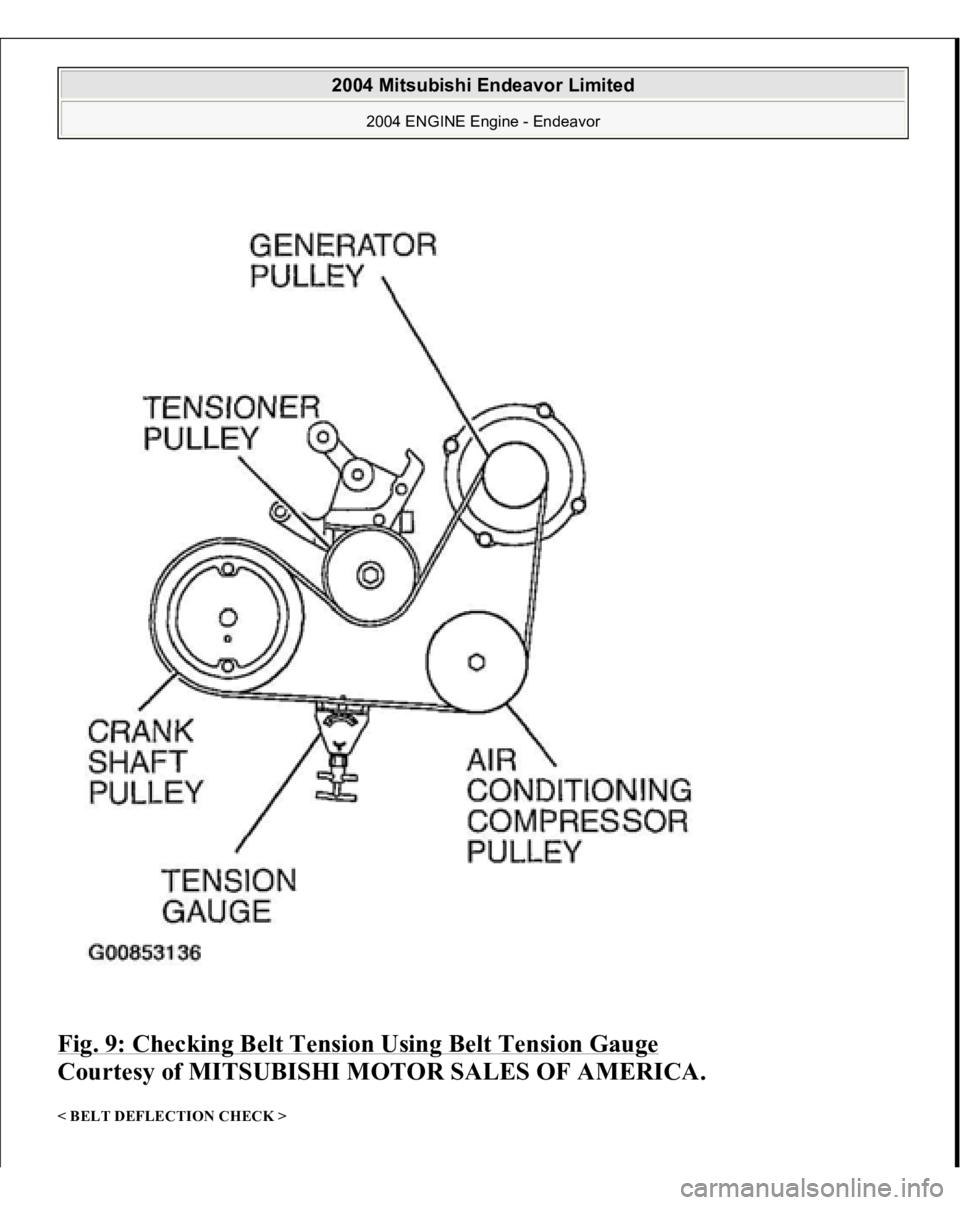

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Checking Belt Tension Using Belt Tension Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. < BELT DEFLECTION CHECK > 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor
