Page 25 of 3870
Fig. 13: Identifying Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 26 of 3870
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1200, C1205, C1210 or C1215 set?
YES: Go to Step 3
NO: The procedure is complete.
STEP 3. Using scan tool MB991958, check data list.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 27 of 3870
Fig. 14: Connecting Scan Tool MB991958 To The Data Link
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 28 of 3870

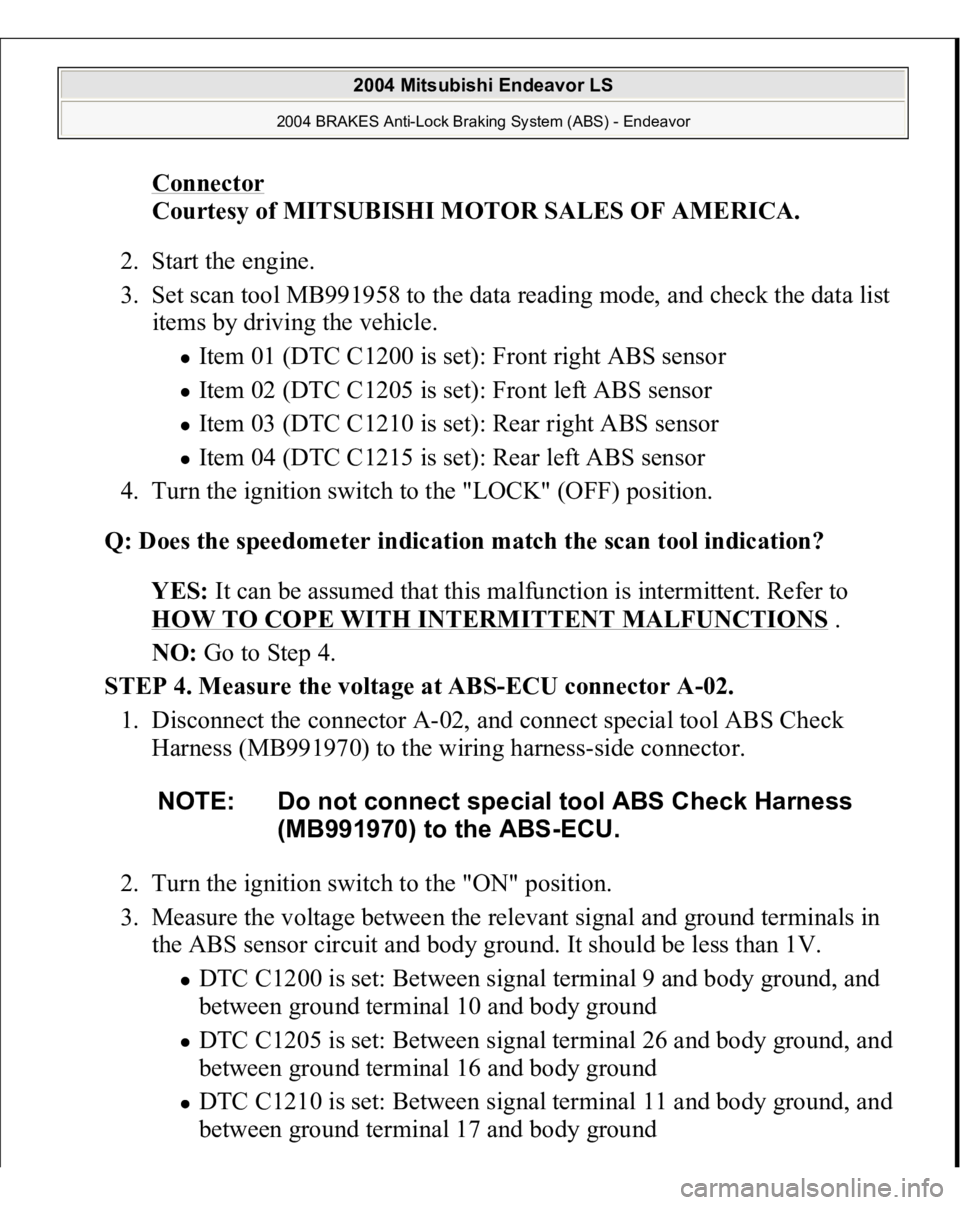

Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Start the engine.
3. Set scan tool MB991958 to the data reading mode, and check the data list
items by driving the vehicle.
Item 01 (DTC C1200 is set): Front right ABS sensor Item 02 (DTC C1205 is set): Front left ABS sensor Item 03 (DTC C1210 is set): Rear right ABS sensor Item 04 (DTC C1215 is set): Rear left ABS sensor
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the speedometer indication match the scan tool indication?
YES: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
NO: Go to Step 4.
STEP 4. Measure the voltage at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between the relevant signal and ground terminals in
the ABS sensor circuit and body ground. It should be less than 1V.
DTC C1200 is set: Between signal terminal 9 and body ground, and
between ground terminal 10 and body ground DTC C1205 is set: Between signal terminal 26 and body ground, and
between ground terminal 16 and body ground DTC C1210 is set: Between signal terminal 11 and body ground, and between
ground terminal 17 and bod
y ground NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 29 of 3870
DTC C1215 is set: Between signal terminal 28 and body ground, and
between ground terminal 27 and body ground
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 30 of 3870

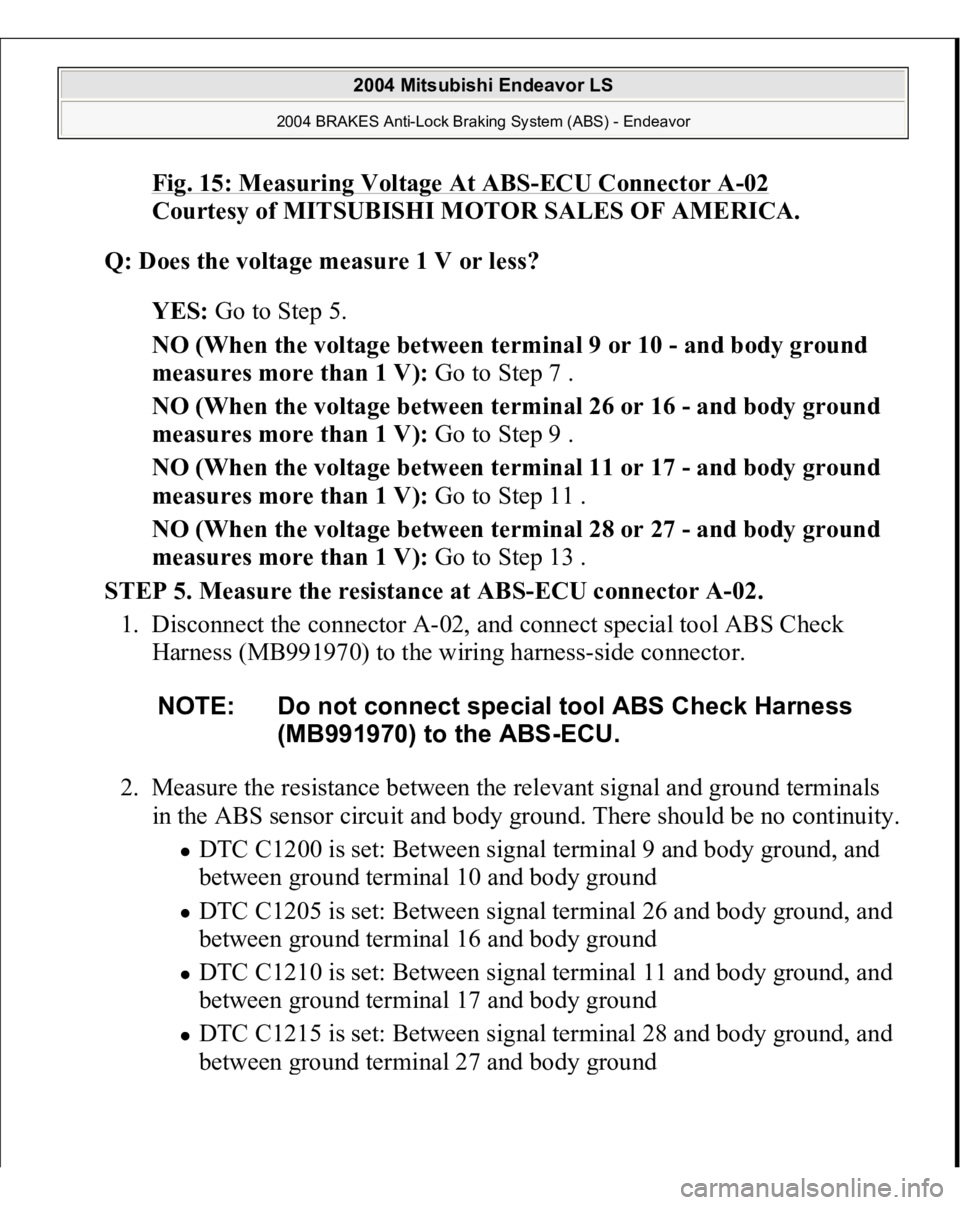

Fig. 15: Measuring Voltage At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does the voltage measure 1 V or less?
YES: Go to Step 5.
NO (When the voltage between terminal 9 or 10 - and body ground
measures more than 1 V): Go to Step 7 .
NO (When the voltage between terminal 26 or 16 - and body ground
measures more than 1 V): Go to Step 9 .
NO (When the voltage between terminal 11 or 17 - and body ground
measures more than 1 V): Go to Step 11 .
NO (When the voltage between terminal 28 or 27 - and body ground
measures more than 1 V): Go to Step 13 .
STEP 5. Measure the resistance at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between the relevant signal and ground terminals
in the ABS sensor circuit and body ground. There should be no continuity.
DTC C1200 is set: Between signal terminal 9 and body ground, and
between ground terminal 10 and body ground DTC C1205 is set: Between signal terminal 26 and body ground, and
between ground terminal 16 and body ground DTC C1210 is set: Between signal terminal 11 and body ground, and
between ground terminal 17 and body ground DTC C1215 is set: Between signal terminal 28 and body ground, and between
ground terminal 27 and bod
y ground NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 31 of 3870
Fig. 16: Measuring Resistance At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 32 of 3870

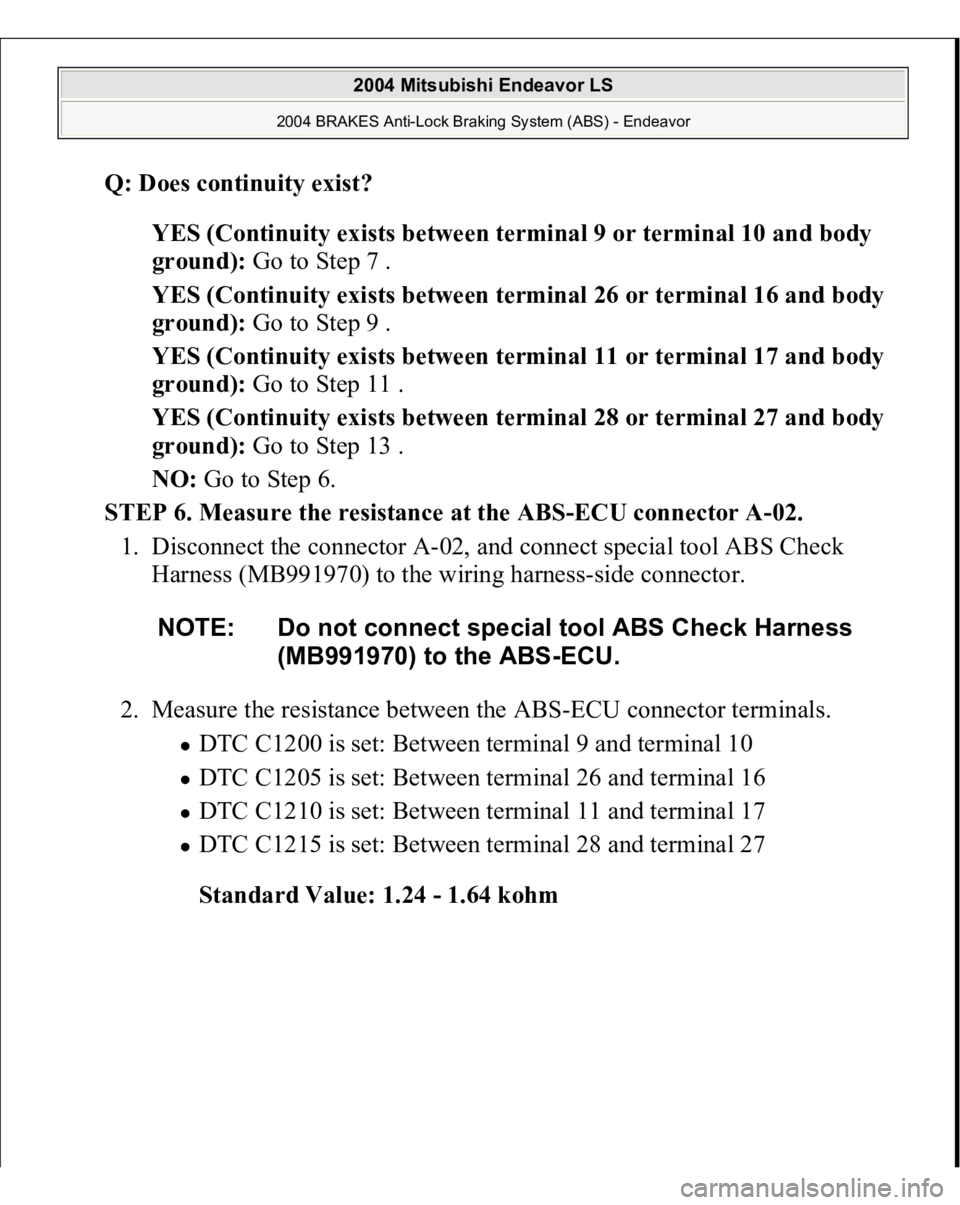

Q: Does continuity exist?
YES (Continuity exists between terminal 9 or terminal 10 and body
ground): Go to Step 7 .
YES (Continuity exists between terminal 26 or terminal 16 and body
ground): Go to Step 9 .
YES (Continuity exists between terminal 11 or terminal 17 and body
ground): Go to Step 11 .
YES (Continuity exists between terminal 28 or terminal 27 and body
ground): Go to Step 13 .
NO: Go to Step 6.
STEP 6. Measure the resistance at the ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between the ABS-ECU connector terminals.
DTC C1200 is set: Between terminal 9 and terminal 10 DTC C1205 is set: Between terminal 26 and terminal 16 DTC C1210 is set: Between terminal 11 and terminal 17 DTC C1215 is set: Between terminal 28 and terminal 27
Standard Value: 1.24 - 1.64 kohm NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
