Page 681 of 3870

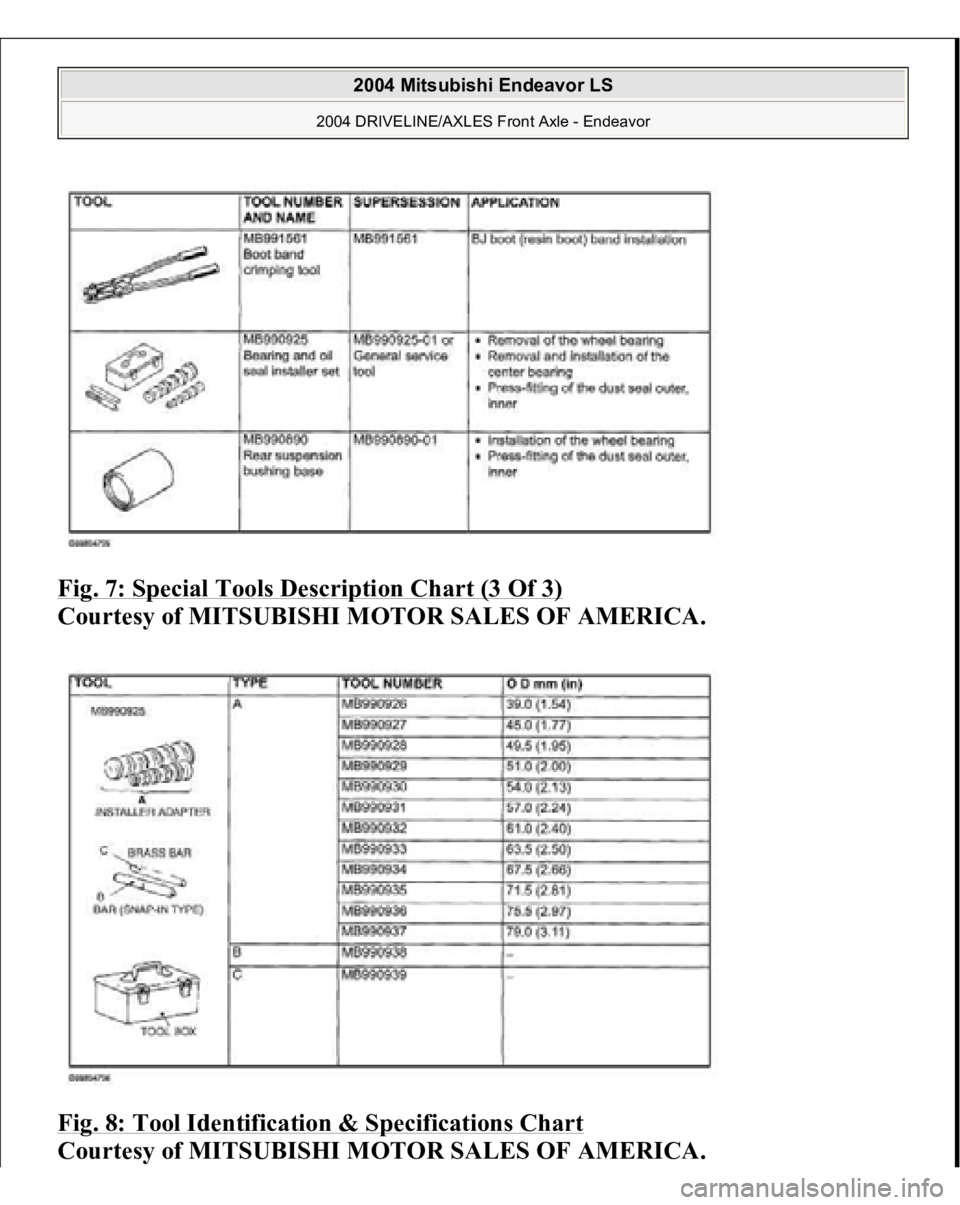

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Special Tools Description Chart (3 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 8: Tool Identification & Specifications Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Page 682 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual ON -VEHICLE SERVIC E WHEEL BEARING END PLAY CHECK 1. Remove the caliper assembly and suspend it with a wire. 2. Remove the brake disc from the front hub. 3. Attach a dial gauge as shown in the il

Page 683 of 3870

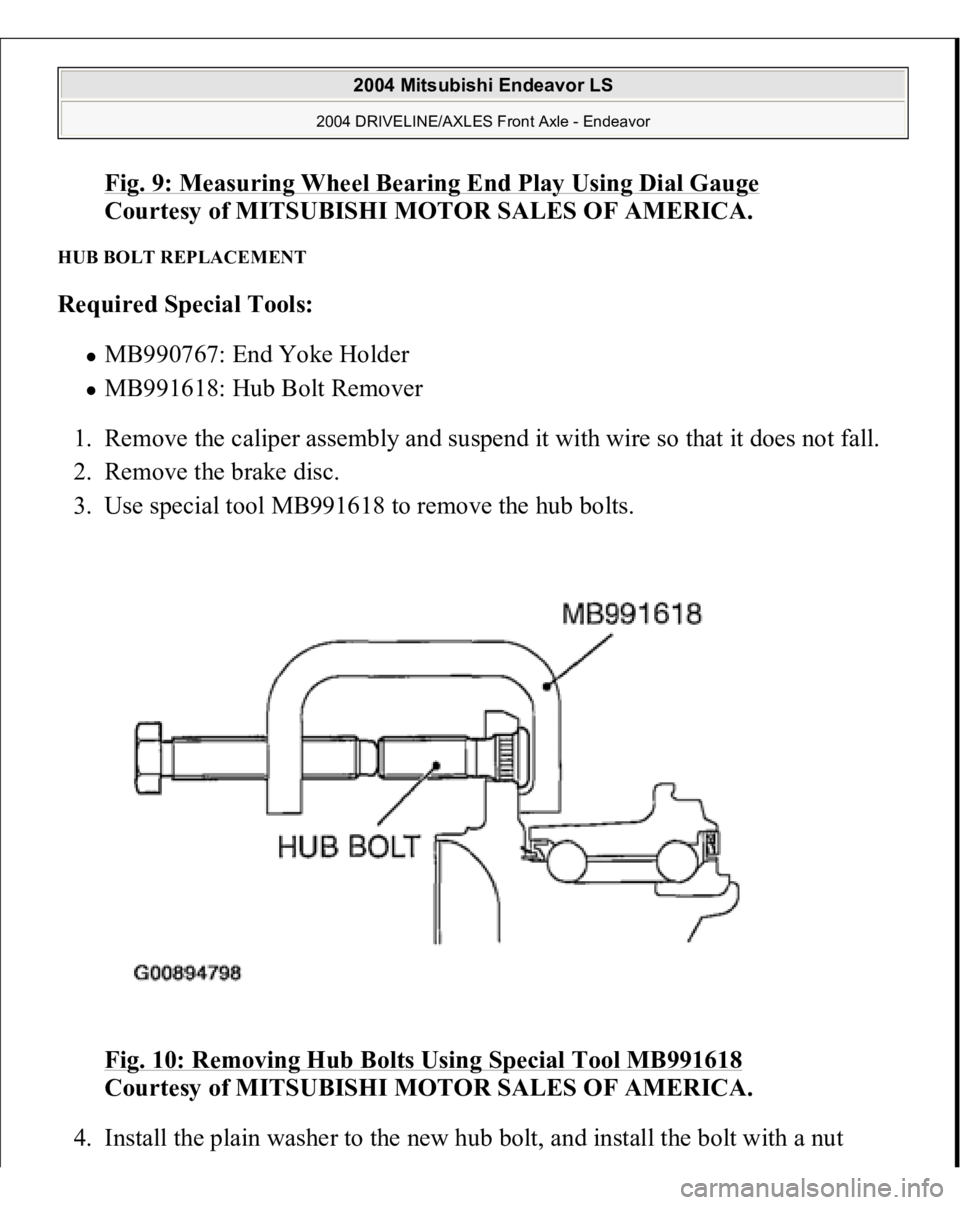

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Measuring Wheel Bearing End Play Using Dial Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. HUB BOLT REPLACEMENT Required Special Tools: MB990767: End Yoke Holder MB991618: Hub Bolt

Page 684 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual while holding the hub with special tool MB990767. 5. Install the brake disc, caliper assembly and tighten the caliper assembly mounting bolts to the specified torque 90 +/- 10 N.m (67 +/- 7 ft-lb).

Page 685 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 DRIVE AXLES Axle Shafts - Rear - Endeavor DESCRIPTION Axle shafts use Birfield Joint (BJ) and Double Offset Joint (DOJ) Constant Velocity (CV) joints combined with solid metal shafts. LUBRICAT

Page 686 of 3870

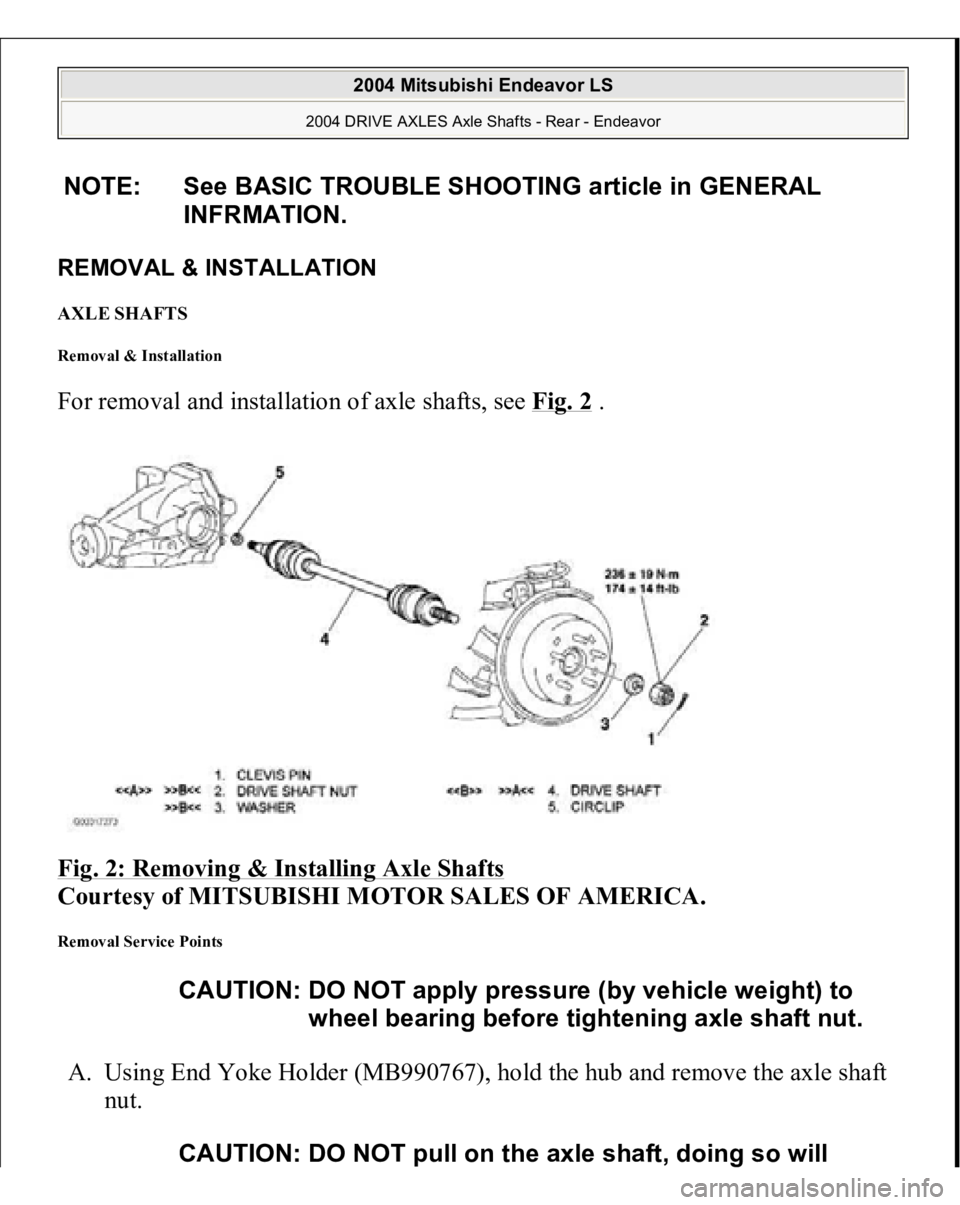

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL & INSTALLATION AXLE SHAFTS Removal & Installation For removal and installation of axle shafts, see Fig. 2 . Fig. 2: Removing & Installing Axle Shafts Courtesy of MITSUBISHI MOTOR SALES OF

Page 687 of 3870

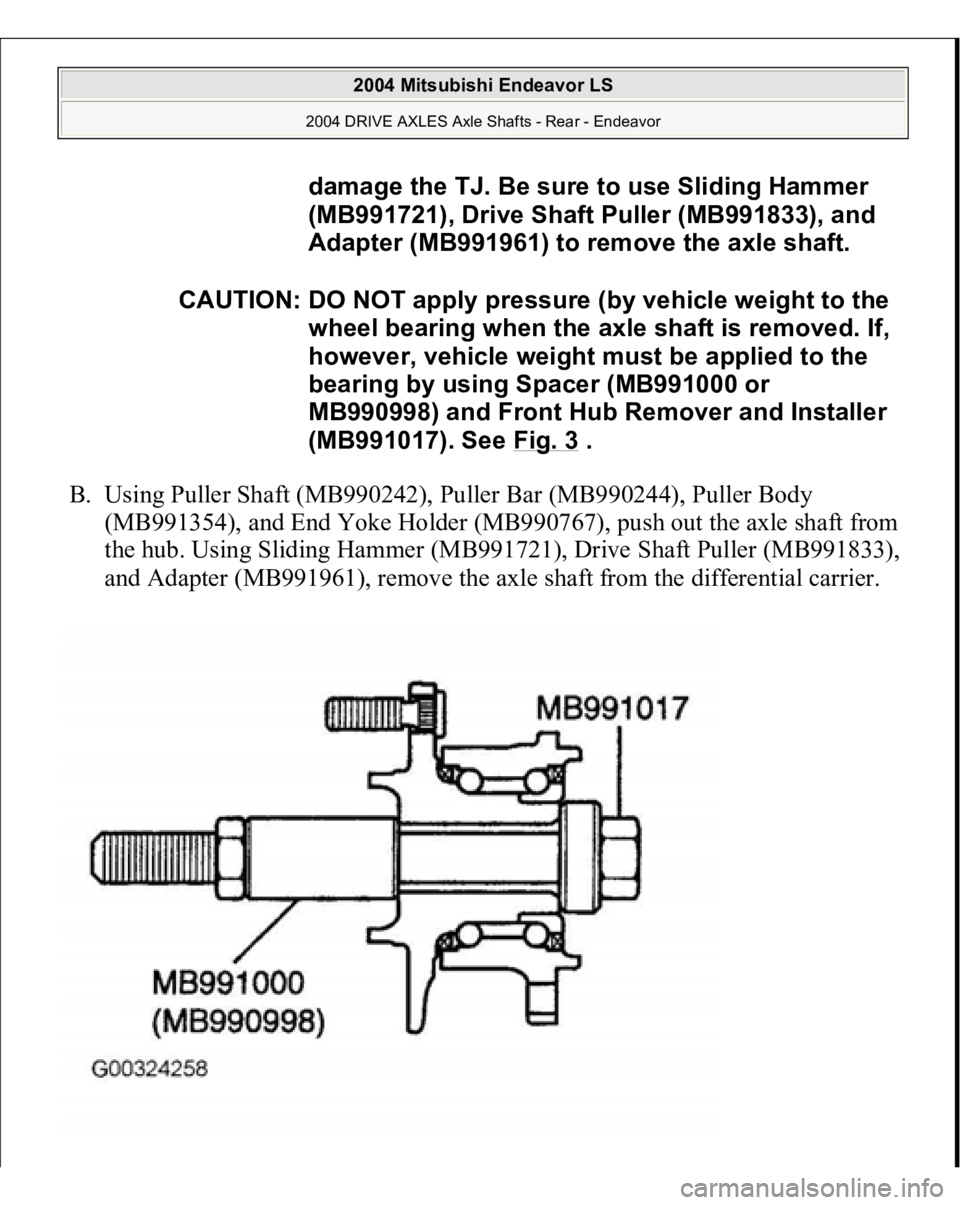

MITSUBISHI ENDEAVOR 2004 Service Repair Manual B. Using Puller Shaft (MB990242), Puller Bar (MB990244), Puller Body (MB991354), and End Yoke Holder (MB990767), push out the axle shaft from the hub. Using Sliding Hammer (MB991721), Drive Shaft Pu

Page 688 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Identifying Spacer (MB991000 Or MB990998) & Front Hub Remover & Installer (MB991017) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Installation Service Points A. When installing the axle s
