Page 2401 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 299: Exploded View Of A/C Compressor Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINT << A >> SELF-LOCKING NUT REMOVAL 2004 Mitsubishi Endeavor LS 2004 H

Page 2402 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 300: Removing Self -Locking Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINTS >> A << FIELD CORE ATTACHMENT Line up the pin hole on the compressor unit with the field

Page 2403 of 3870

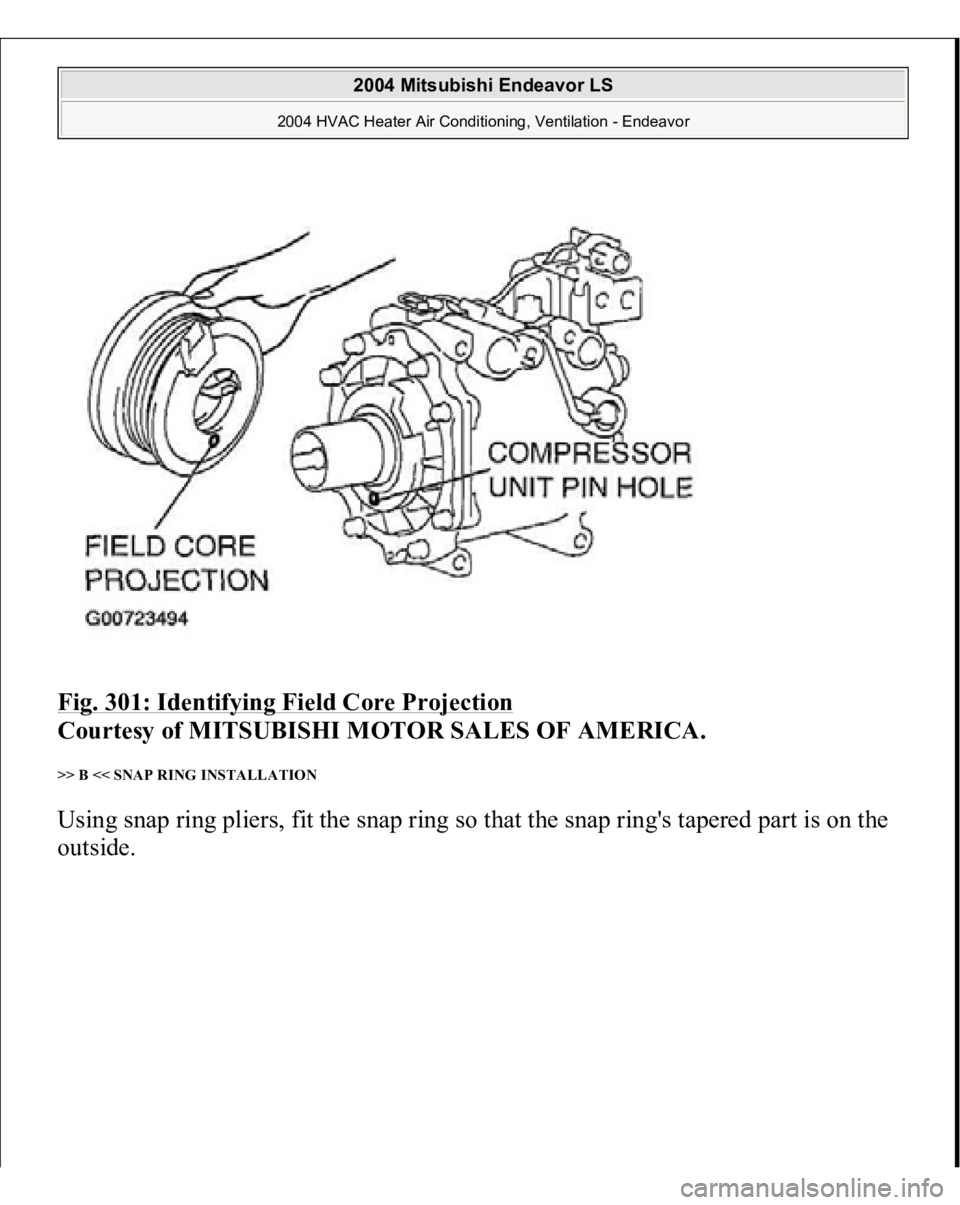

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 301: Identifying Field Core Projection Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >> B << SNAP RING INSTALLATION Using snap ring pliers, fit the snap ring so that the snap ring's tape

Page 2404 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 302: Identifying Snap Ring Tapered Part Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >> C << SELF-LOCKING NUT INSTALLATION Using a special tool, as when removing the nut, secure the armatur

Page 2405 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 303: Adjusting Air Gap Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION COOLING TEMPERATURE SWITCH 1. Dip the metal part of the cooling temperature switch into engine oil and increa

Page 2406 of 3870

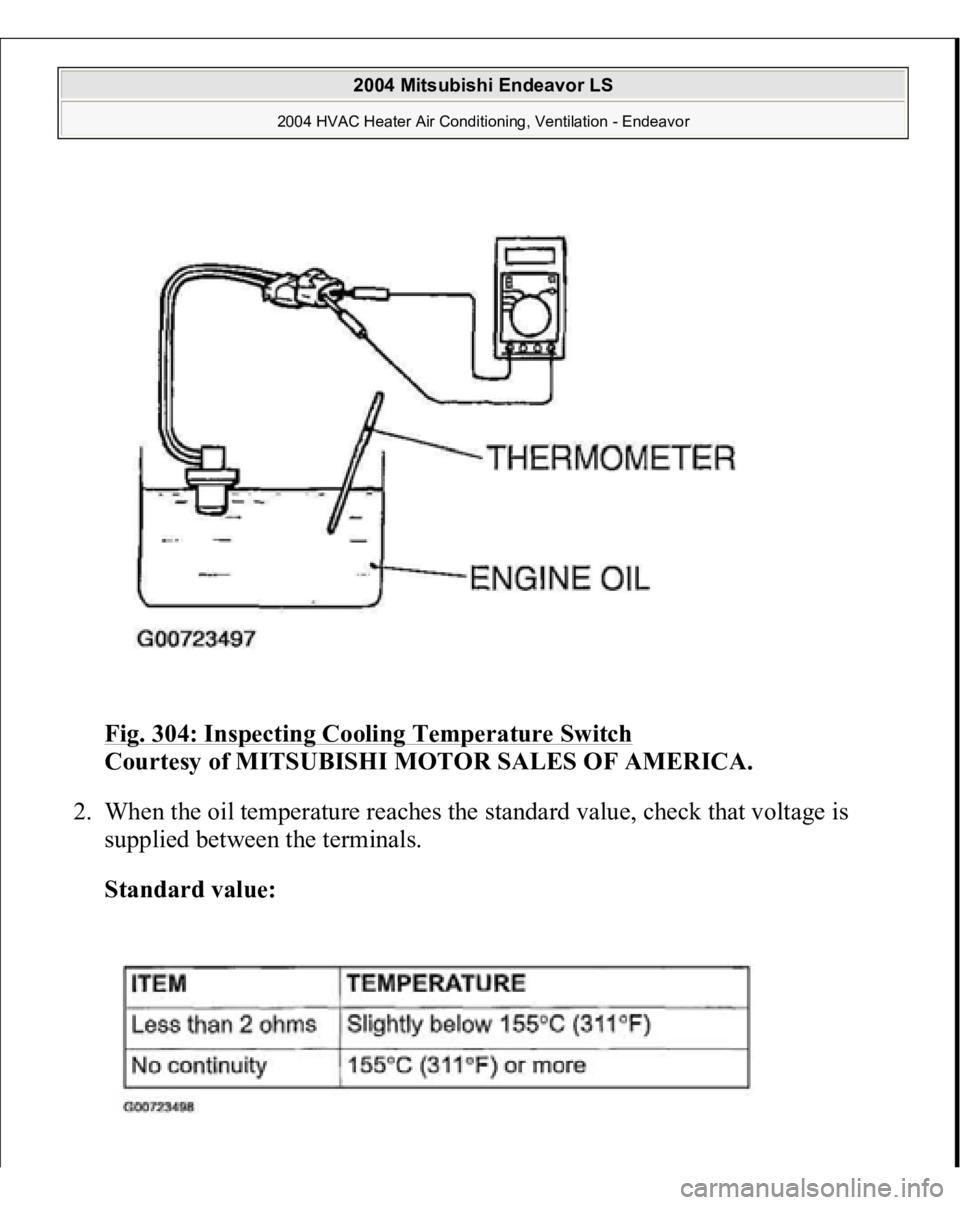

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 304: Inspecting Cooling Temperature Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. When the oil temperature reaches the standard value, check that voltage is supplied between the t

Page 2407 of 3870

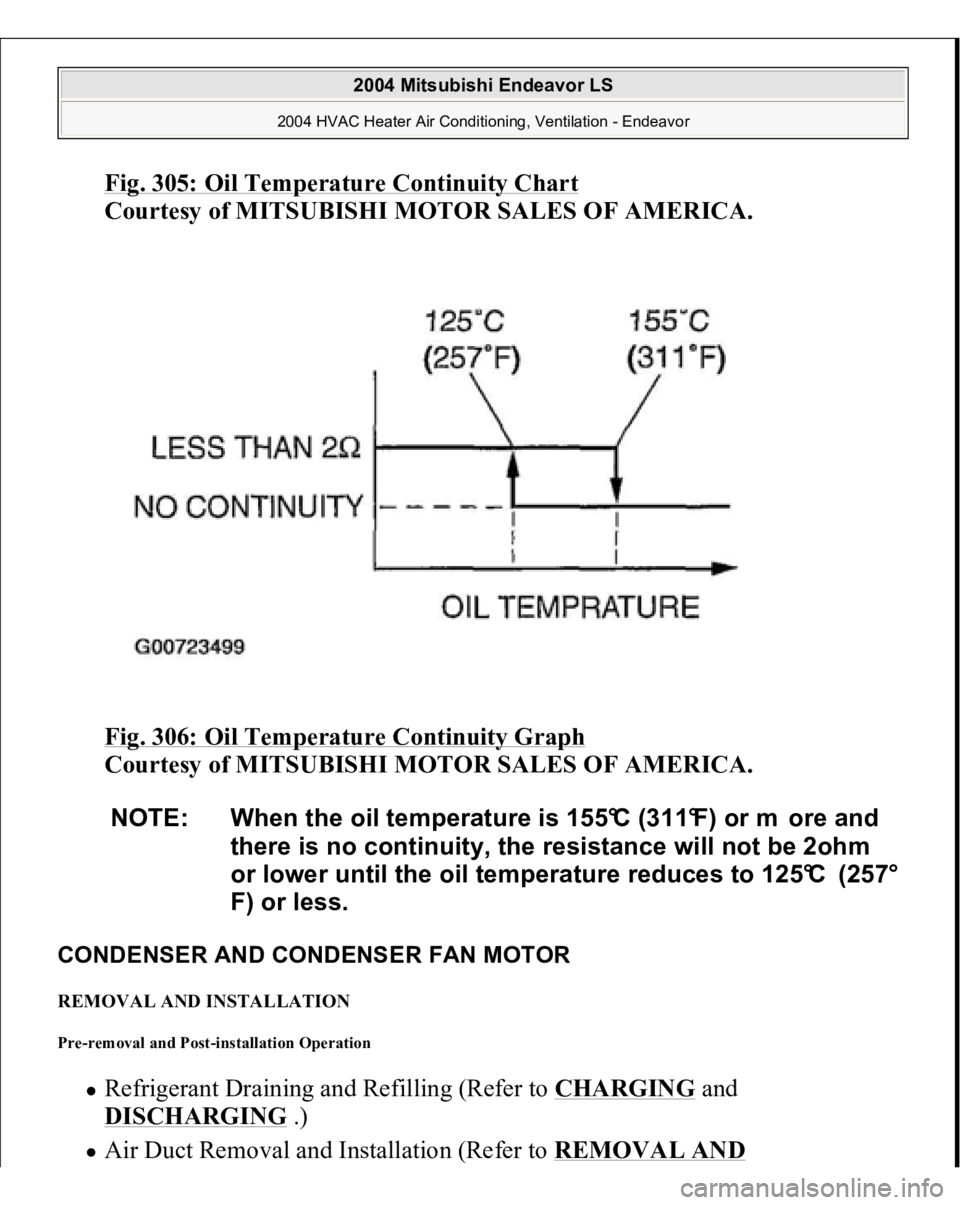

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 305: Oil Temperature Continuity Char t Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 306: Oil Temperature Continuity Graph Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CONDENSER AN

Page 2408 of 3870

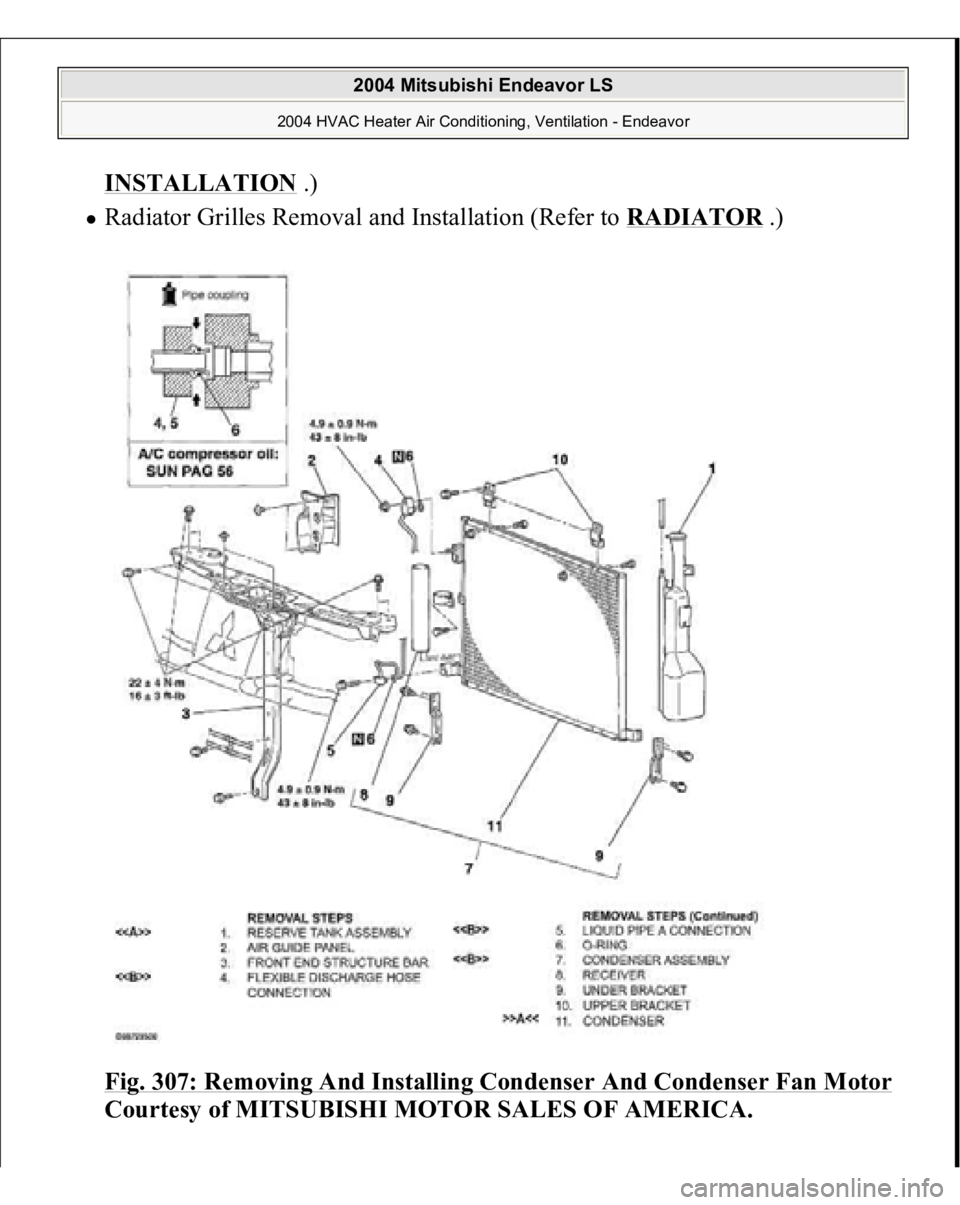

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSTALLATION .) Radiator Grilles Removal and Installation (Refer to RADIATOR .) Fig. 307: Removing And Installing Condenser And Condenser Fan Motor Courtesy of MITSUBISHI MOTOR SALES OF AMERIC
