Page 929 of 3870

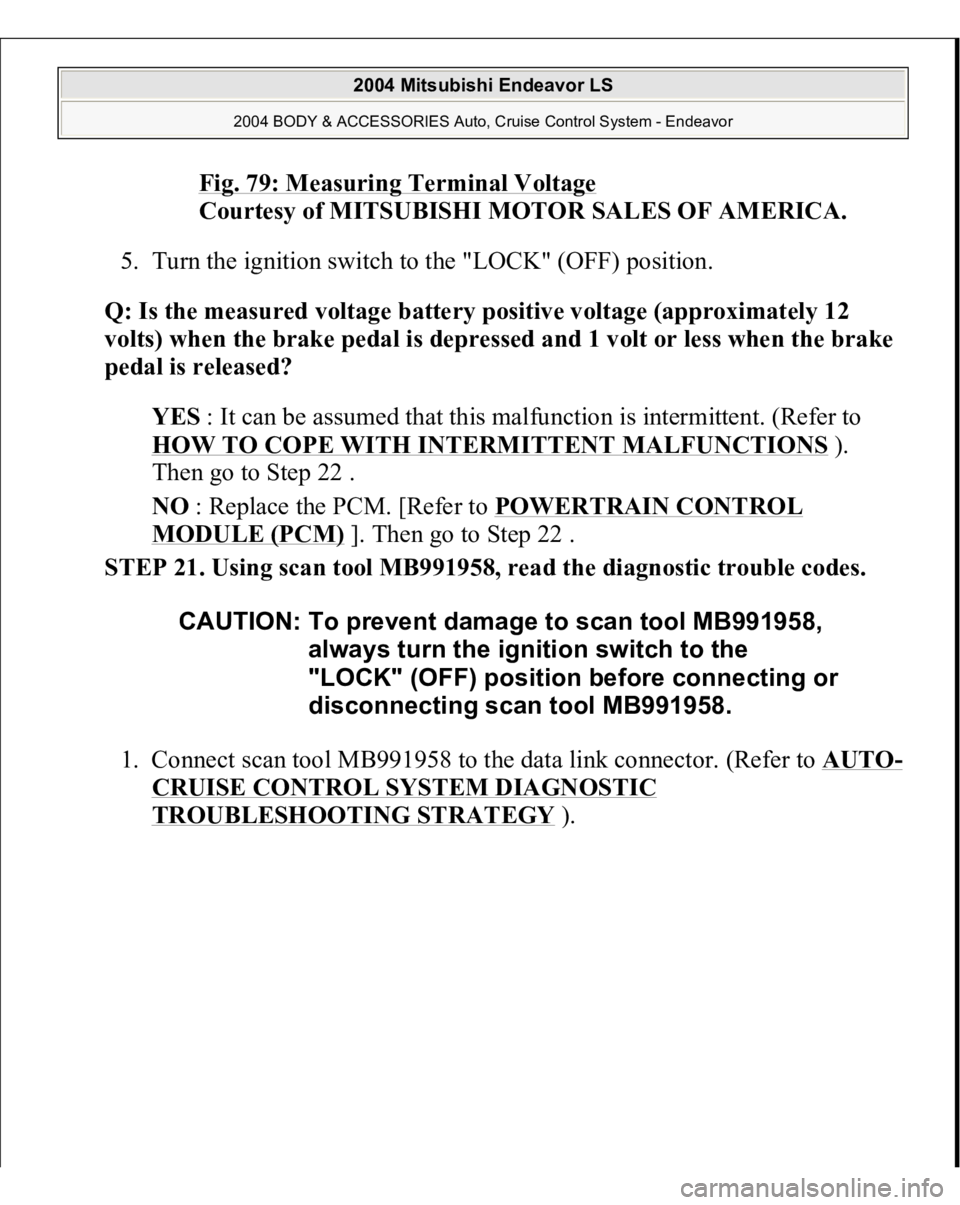

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 79: Measuring Terminal Voltage Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the measured voltage battery positive vo

Page 930 of 3870

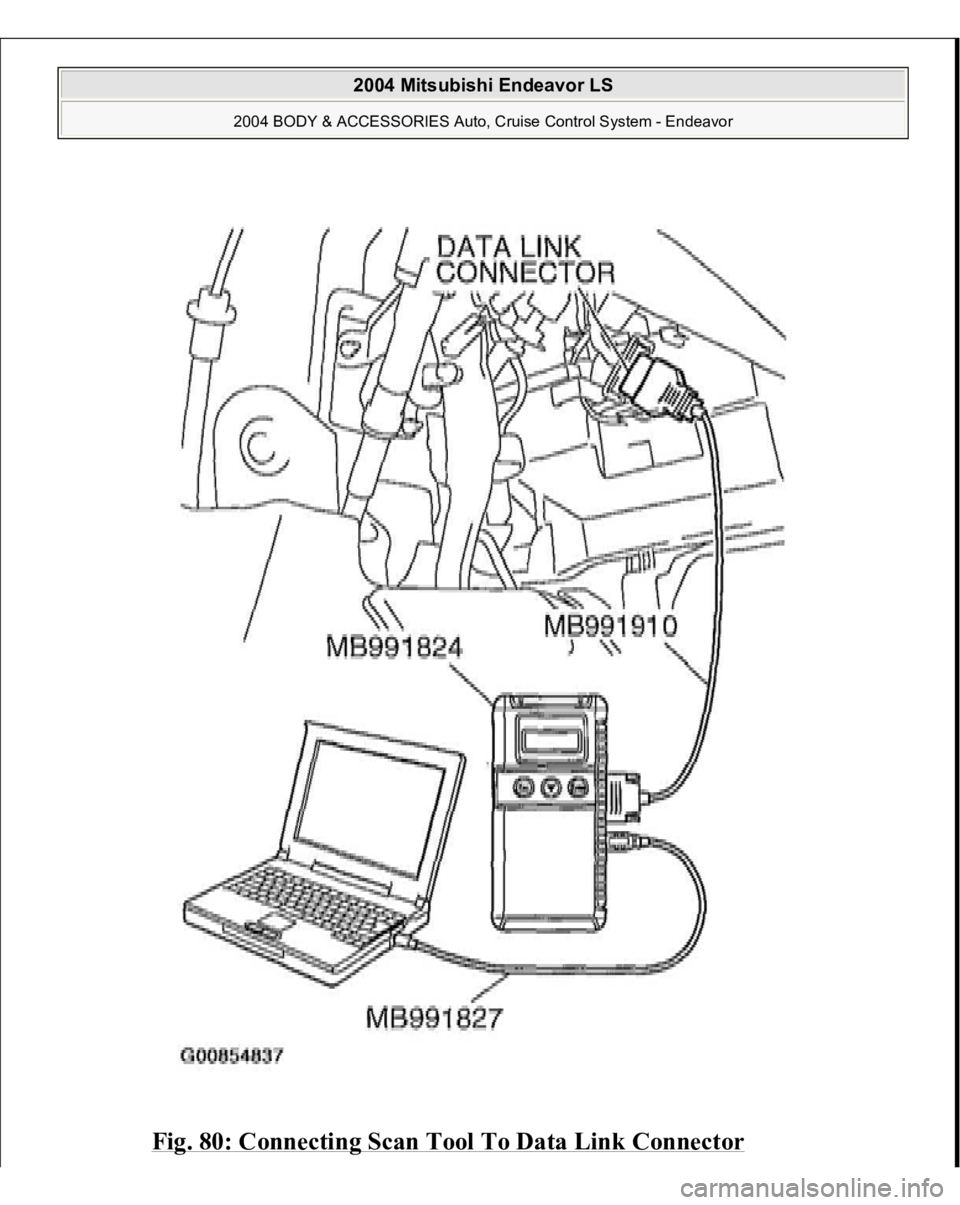

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 80: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 931 of 3870

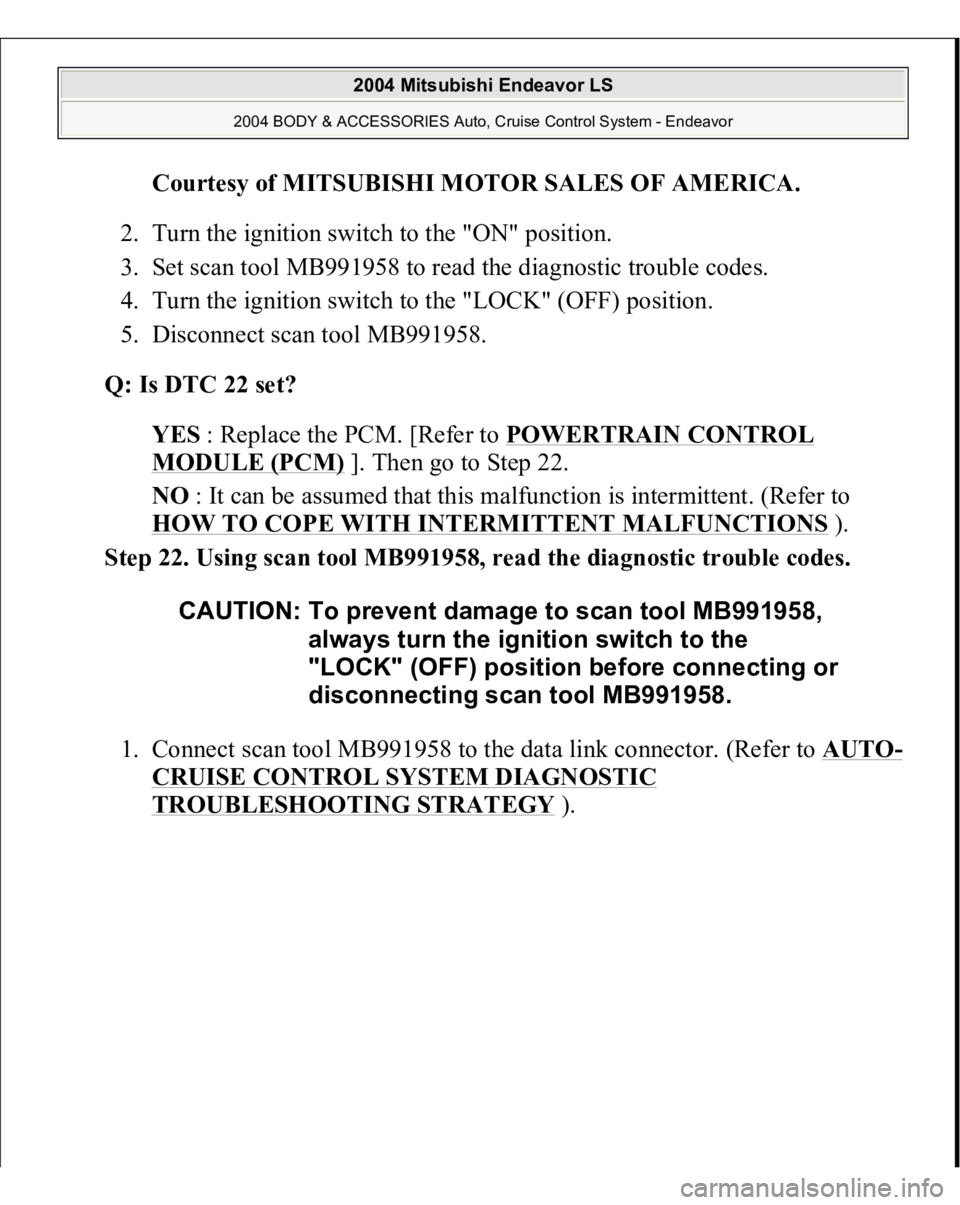

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to read the diagnostic trouble codes. 4. Turn the ignition swit

Page 932 of 3870

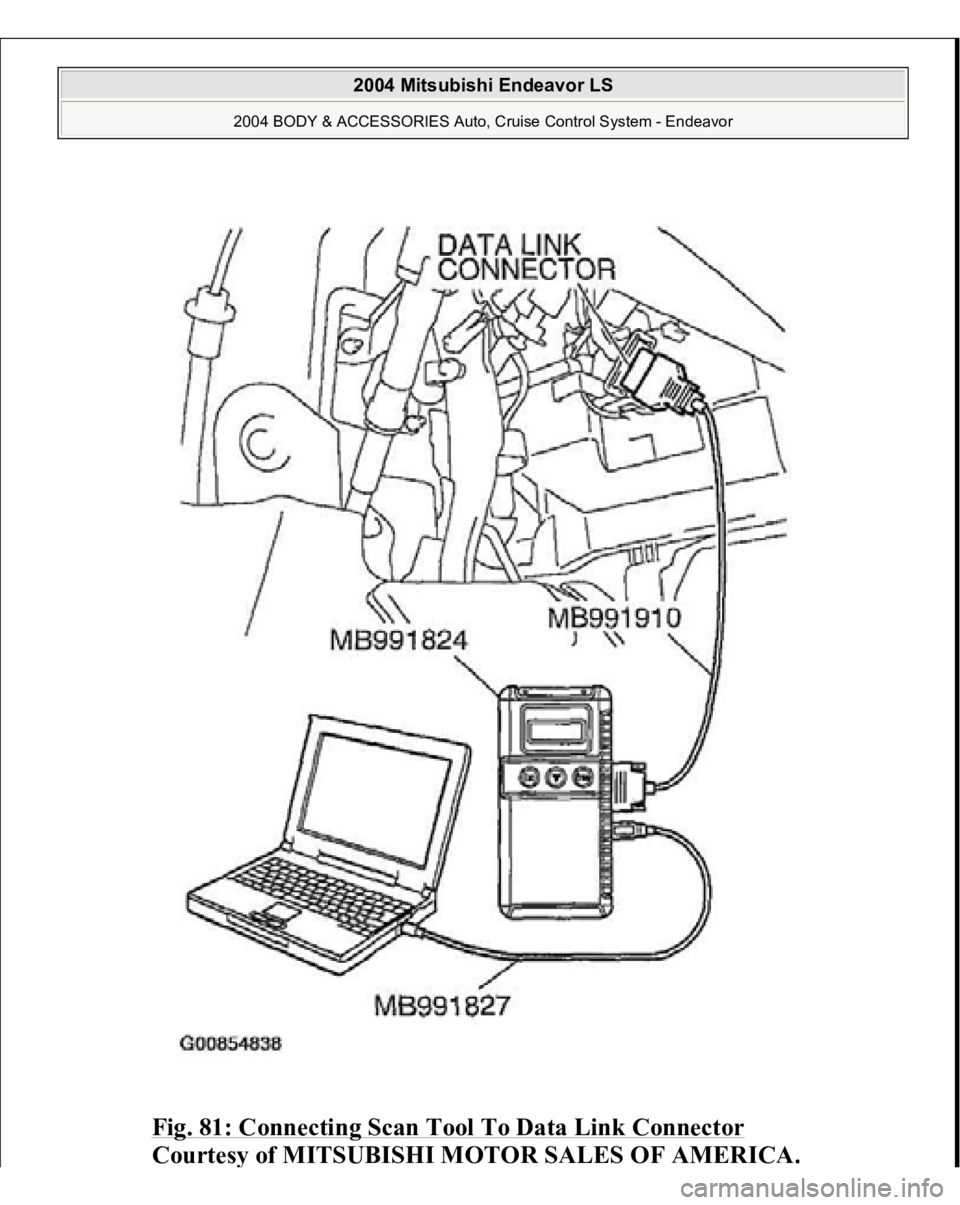

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 81: Connecting Scan Tool To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 933 of 3870

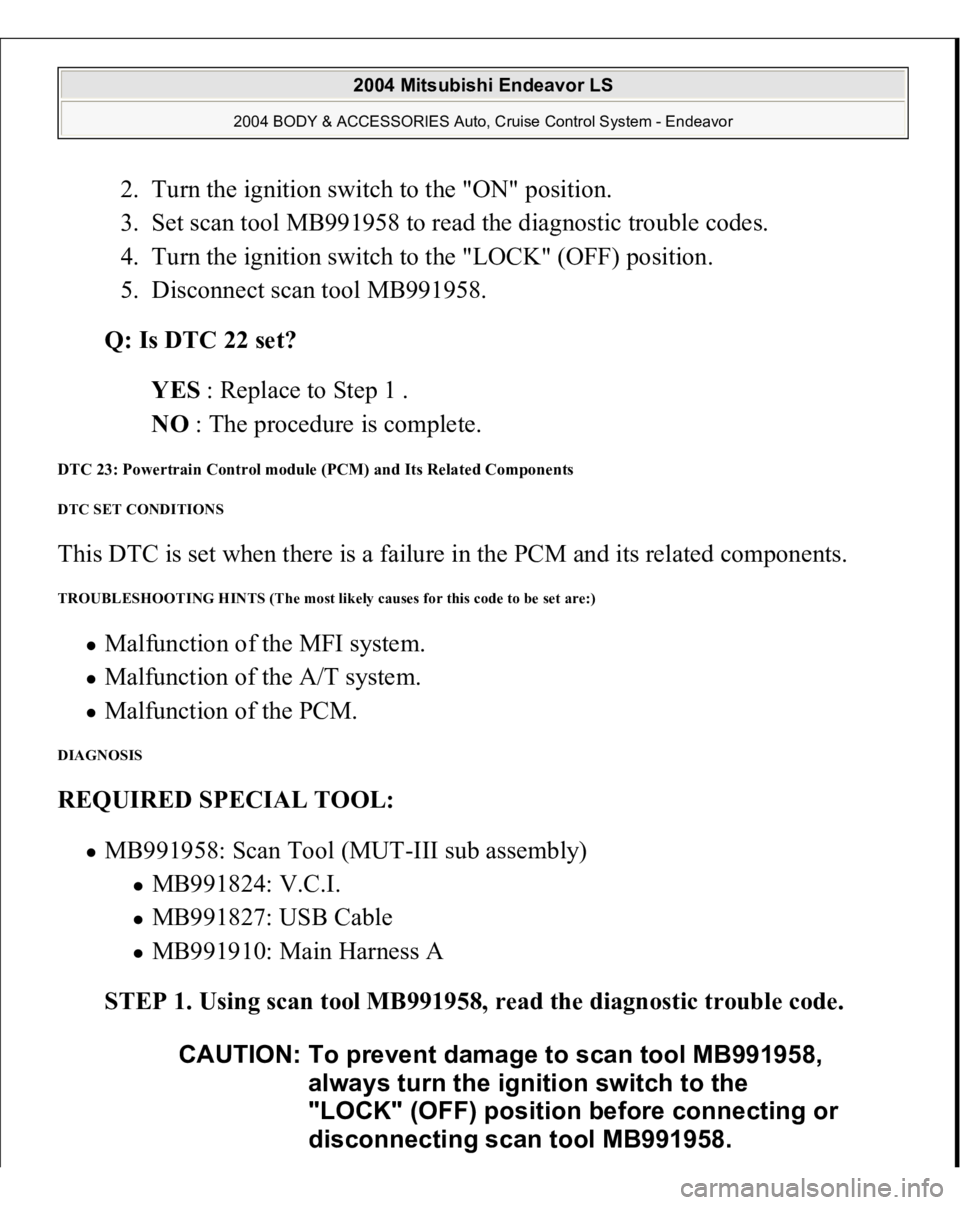

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to read the diagnostic trouble codes. 4. Turn the ignition switch to the "LOCK" (OFF) position. 5. Dis

Page 934 of 3870

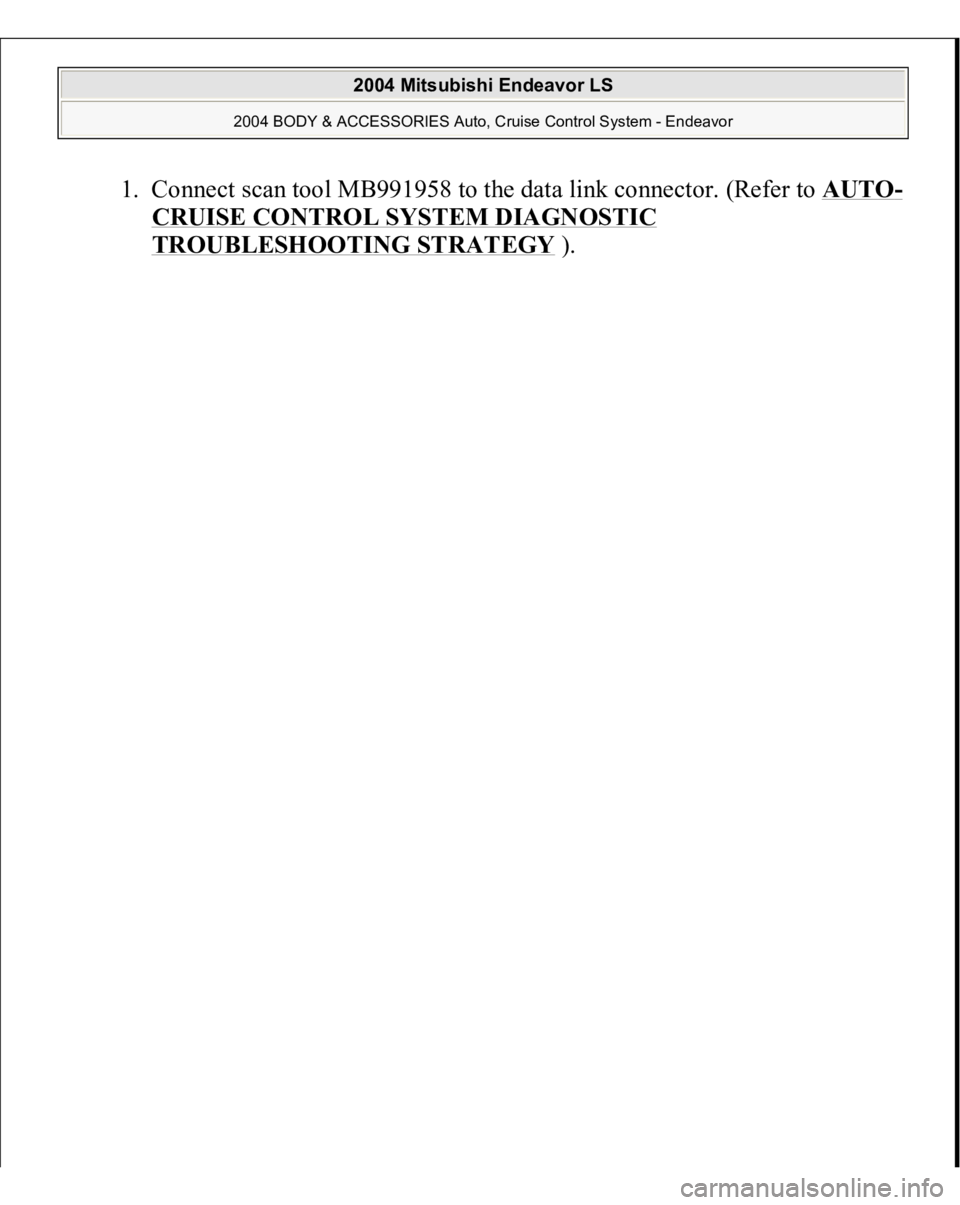

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO - CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY ). 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cr

Page 935 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 82: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 936 of 3870

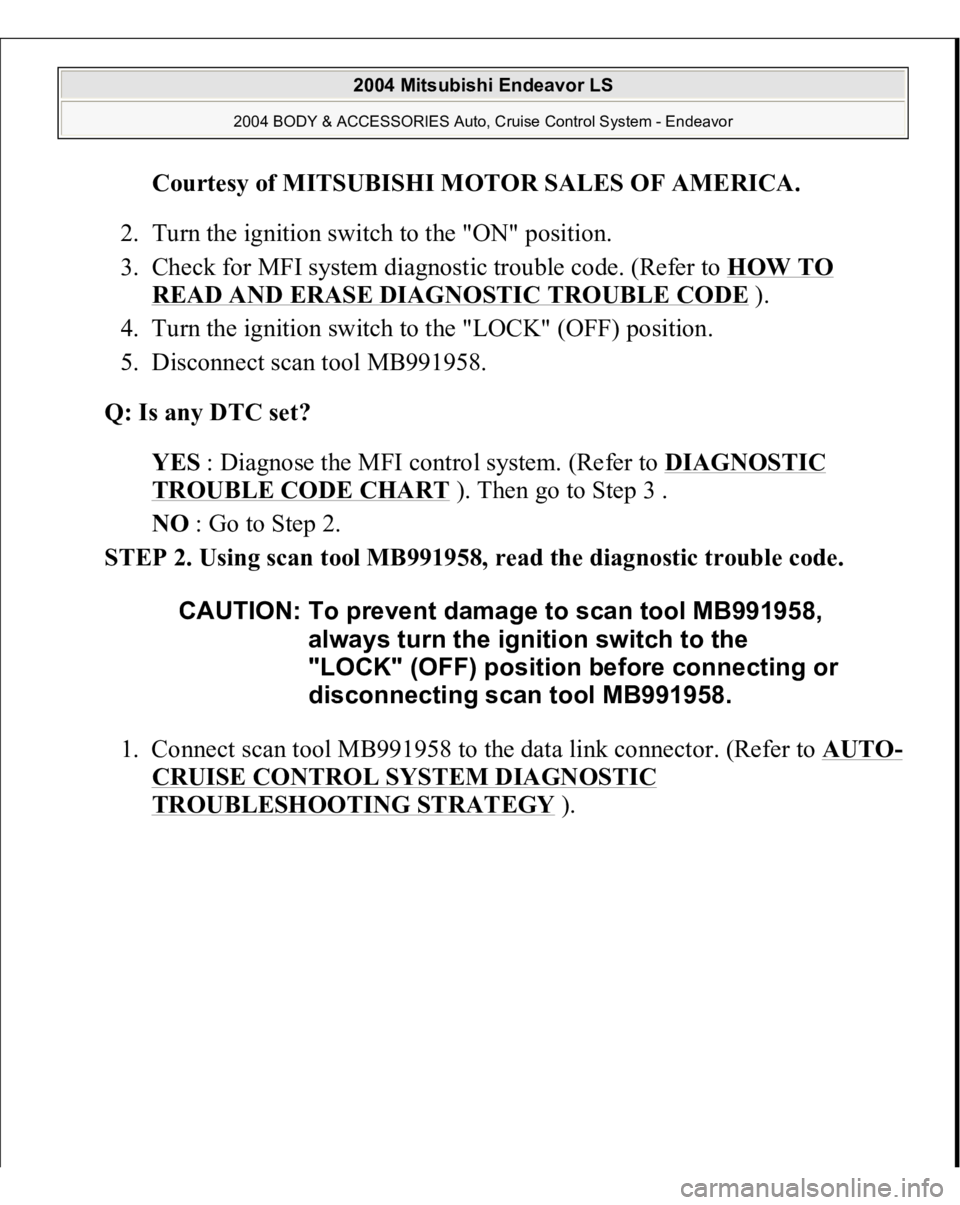

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check for MFI system diagnostic trouble code. (Refer to HOW TO READ AND ERASE DIAGNOSTI
