Page 2609 of 3870

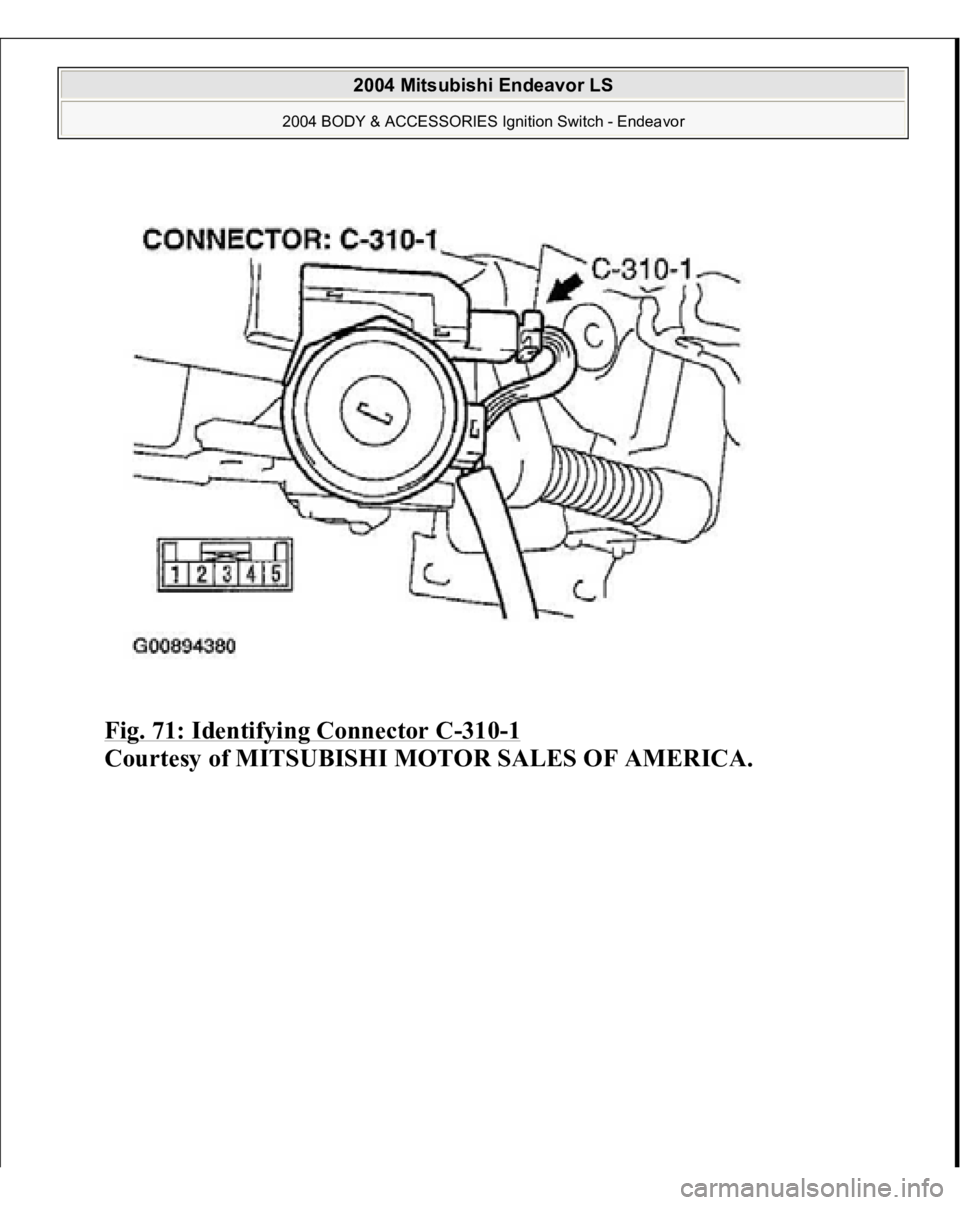

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 71: Identifying Connector C -310 -1 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2610 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2611 of 3870

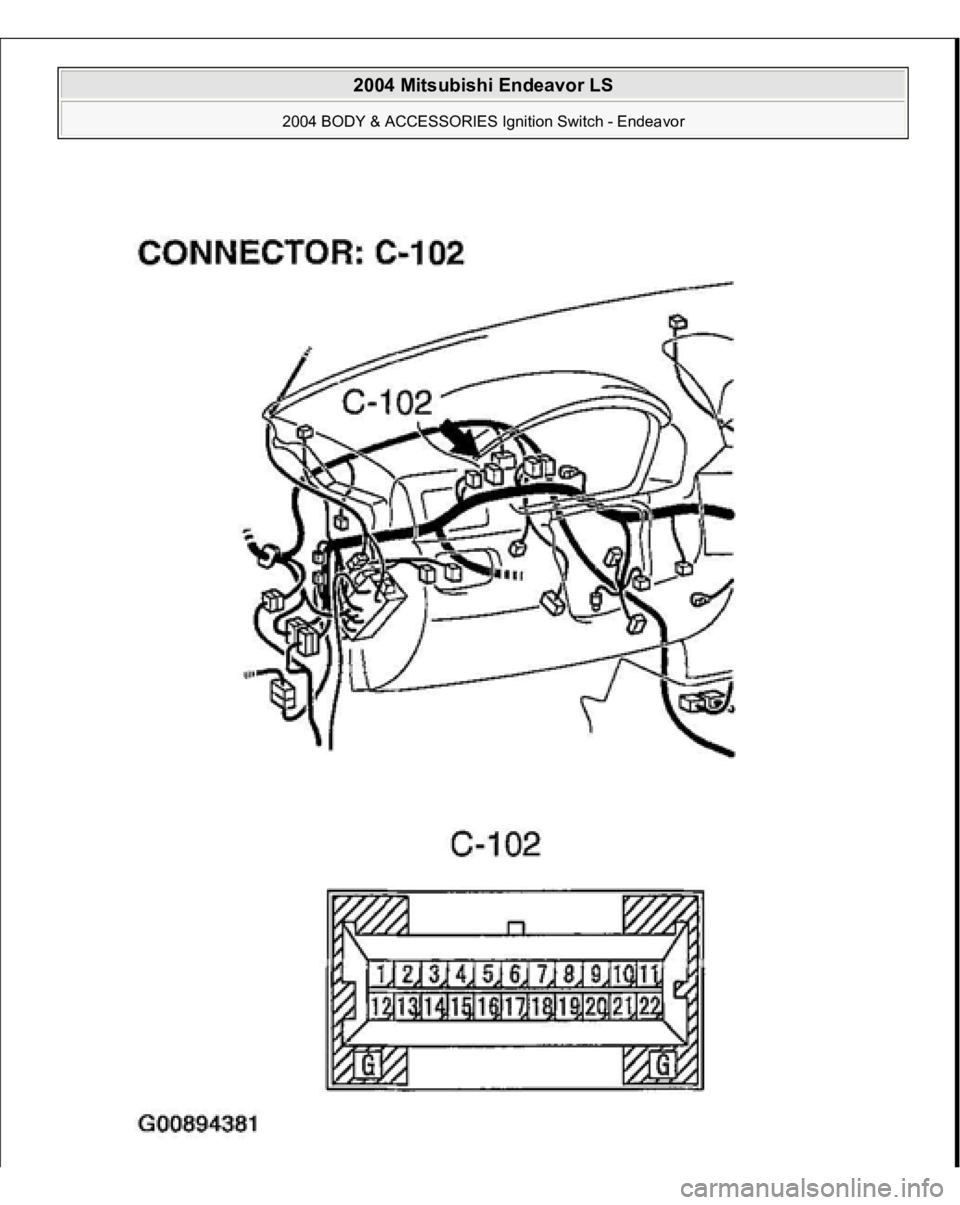

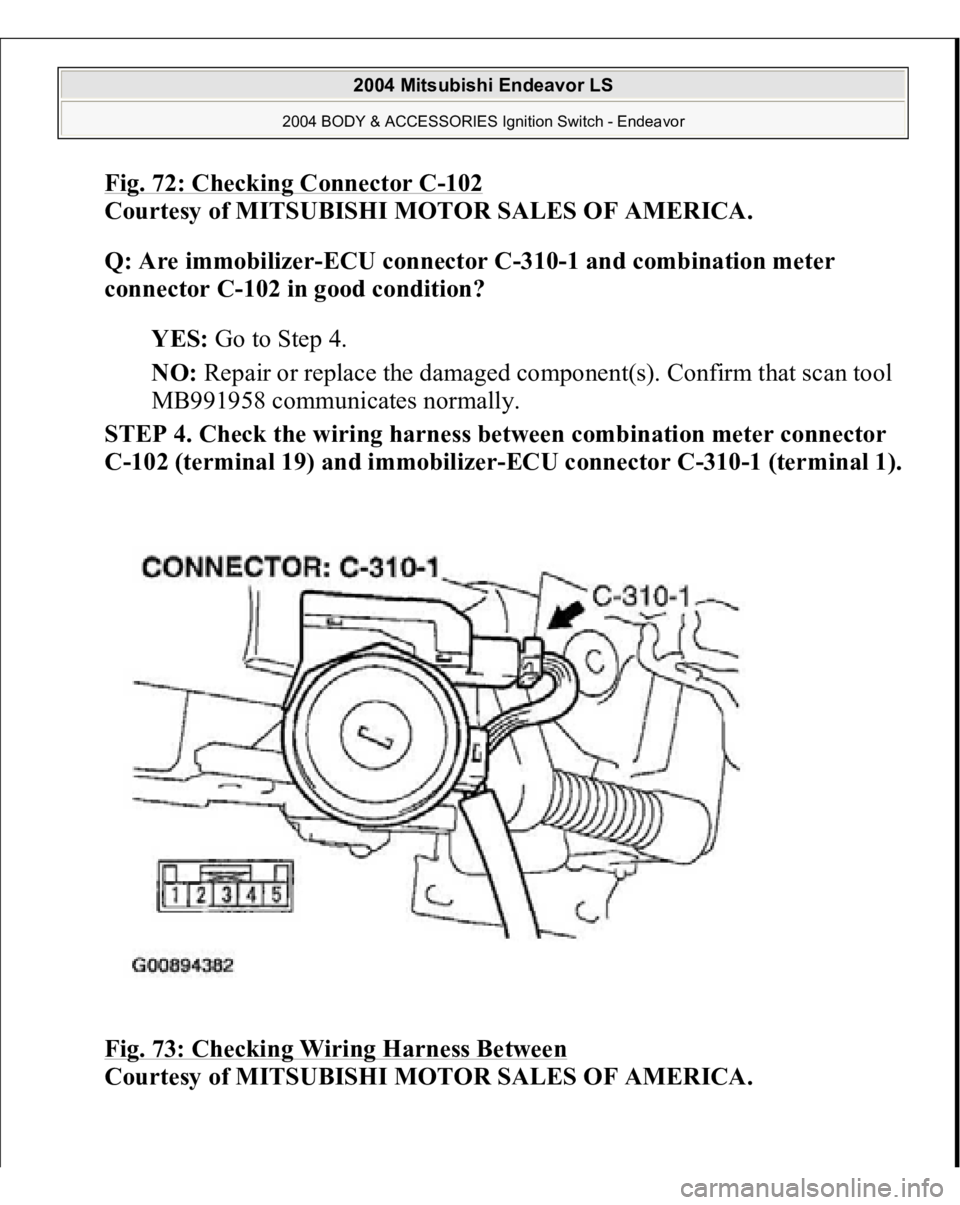

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 72: Checking Connector C -102 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are immobilizer-ECU connector C-310-1 and combination meter connector C-102 in good condition? YES: Go to Ste

Page 2612 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2613 of 3870

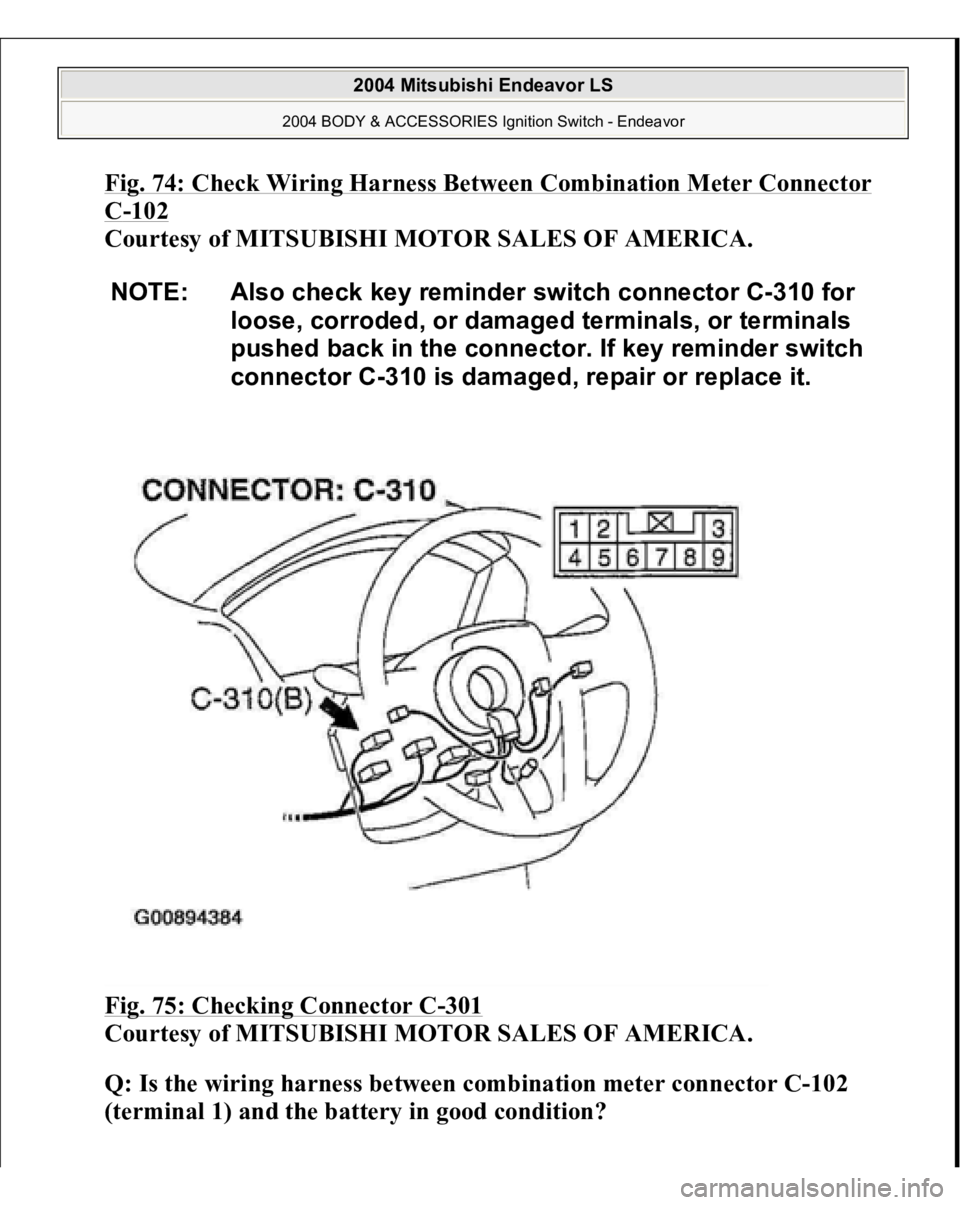

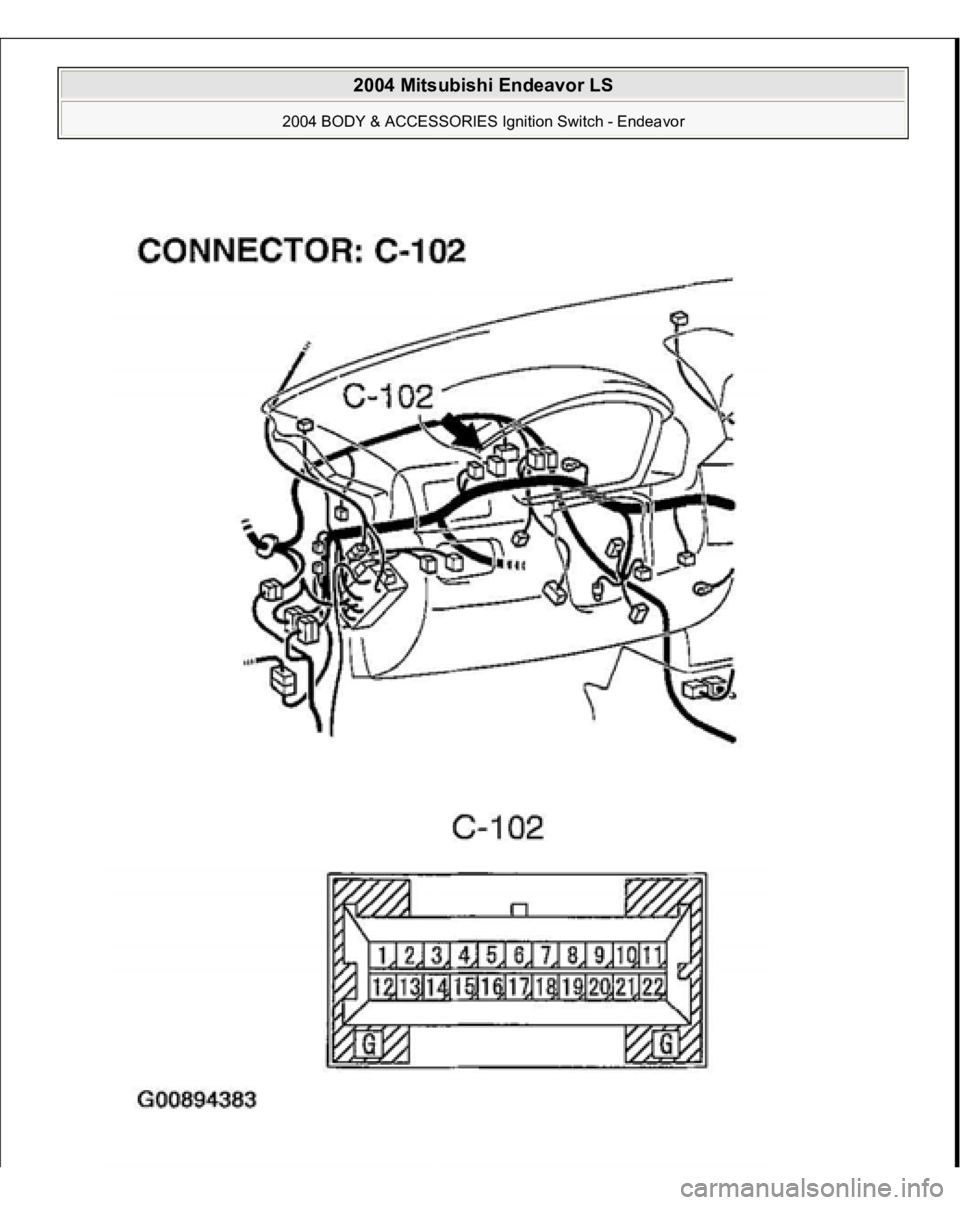

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 74: Check Wiring Harness Between Combination Meter Connector C-102 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 75: Checking Connector C -301 Courtesy of MITSUBISHI MOTOR SALES OF AME

Page 2614 of 3870

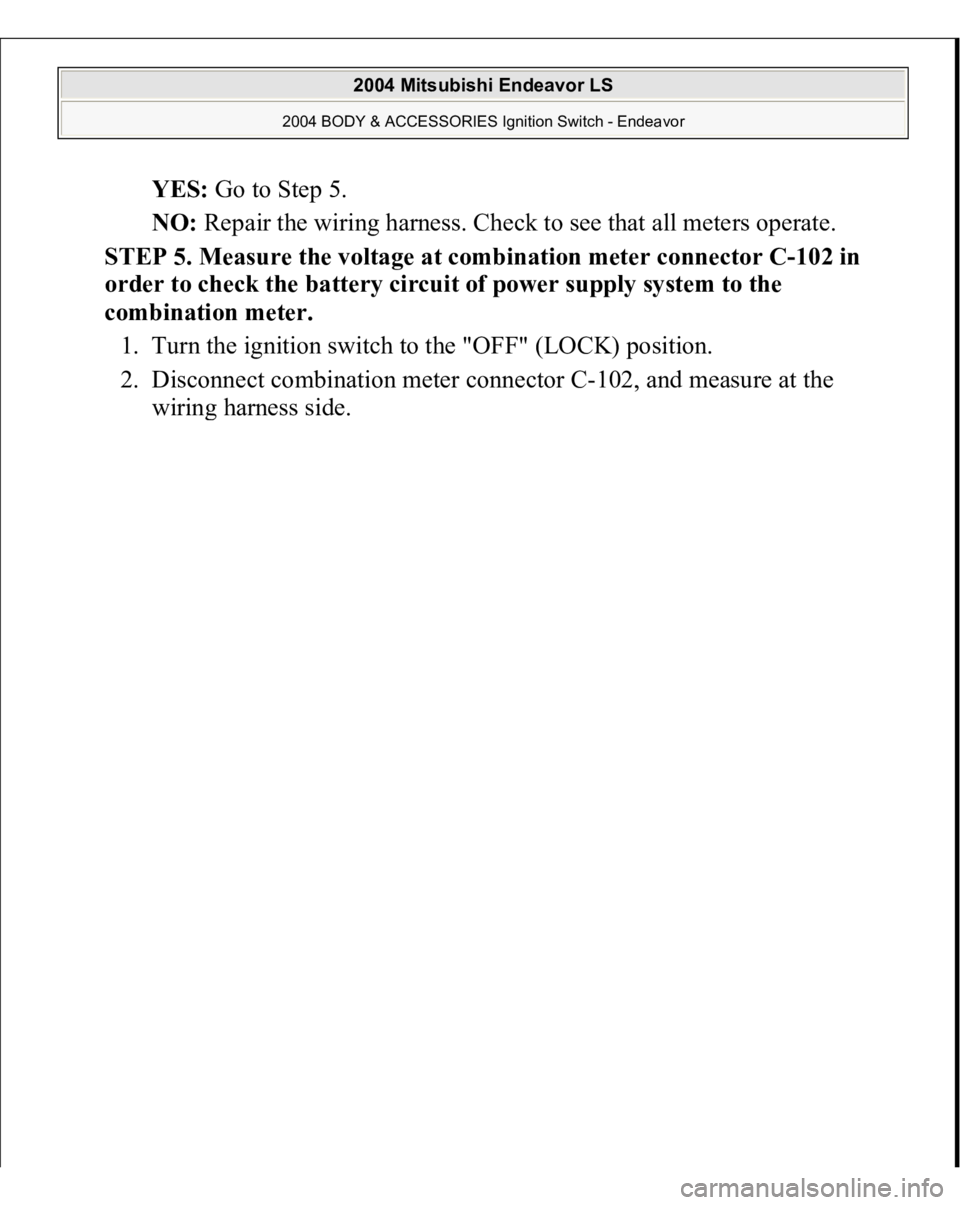

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 5. NO: Repair the wiring harness. Check to see that all meters operate. STEP 5. Measure the voltage at combination meter connector C-102 in order to check the battery circuit of p

Page 2615 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2616 of 3870

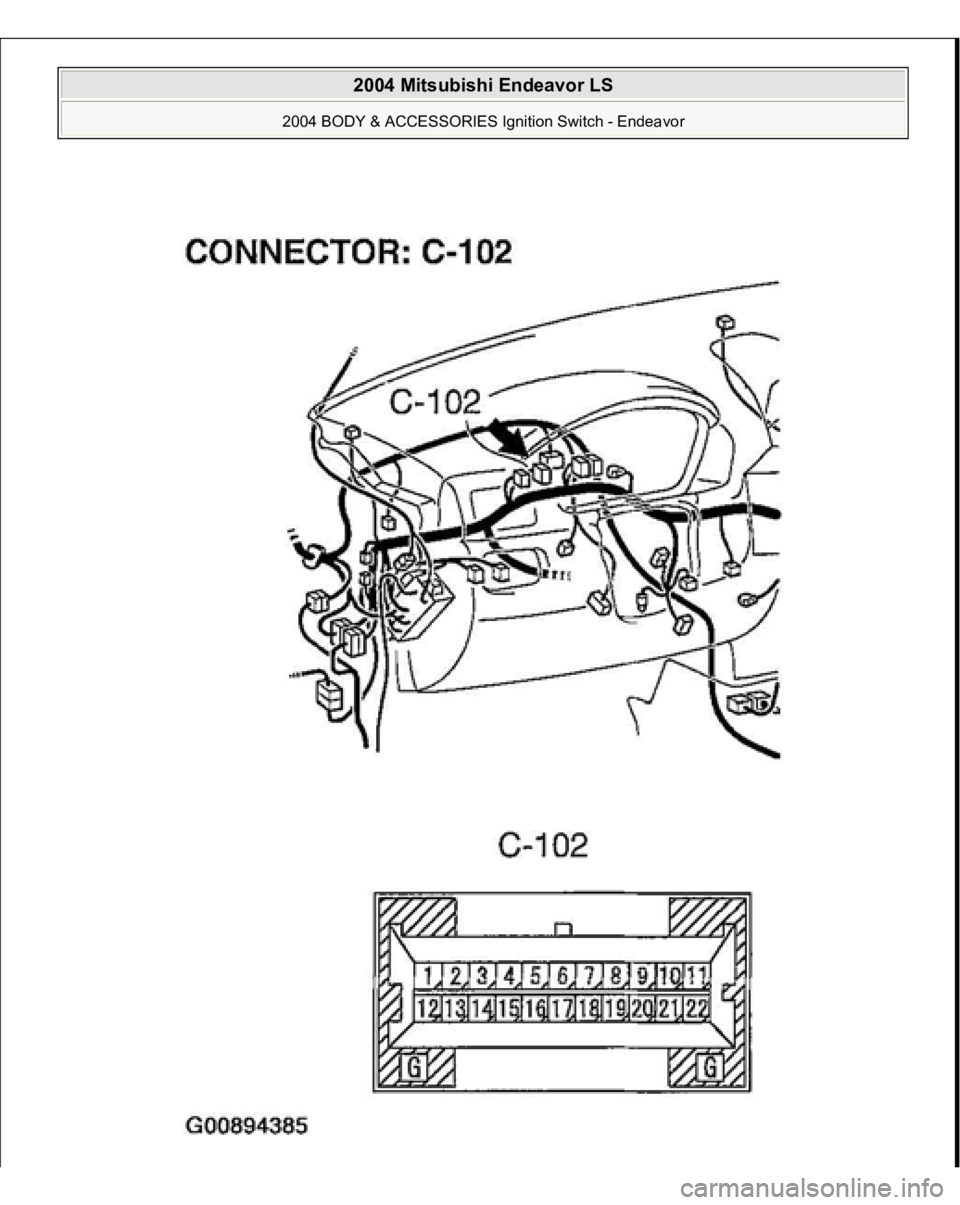

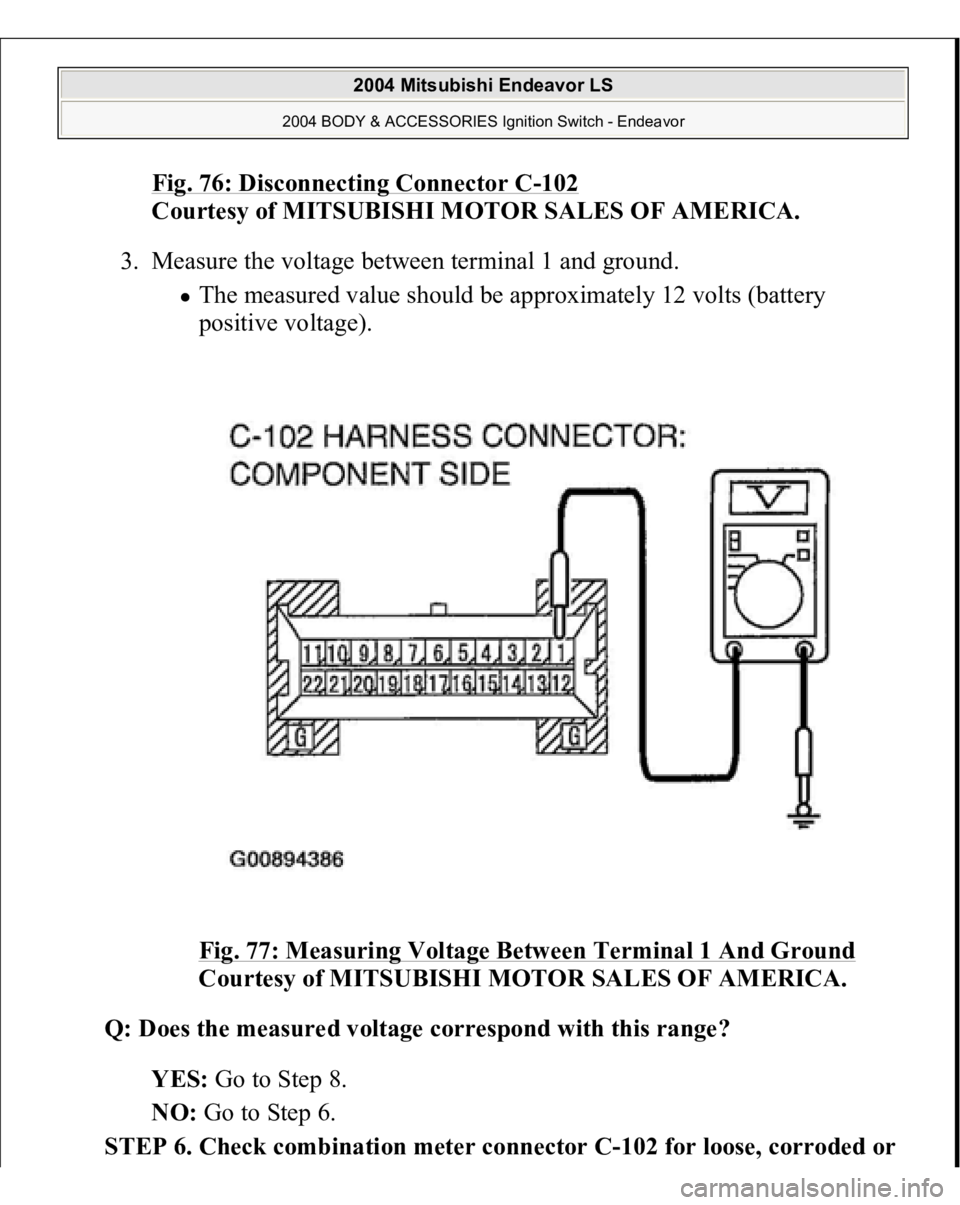

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 76: Disconnecting Connector C -102 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Measure the voltage between terminal 1 and ground. The measured value should be approximately 12 volts (ba
