Page 281 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When a vehicle has been involved in a collision, certain components of the passive restraint system must be inspected or replaced. See AIR BAG/SRS COMPONENT INSPECTION & REPLACEMENT TABLES article

Page 282 of 3870

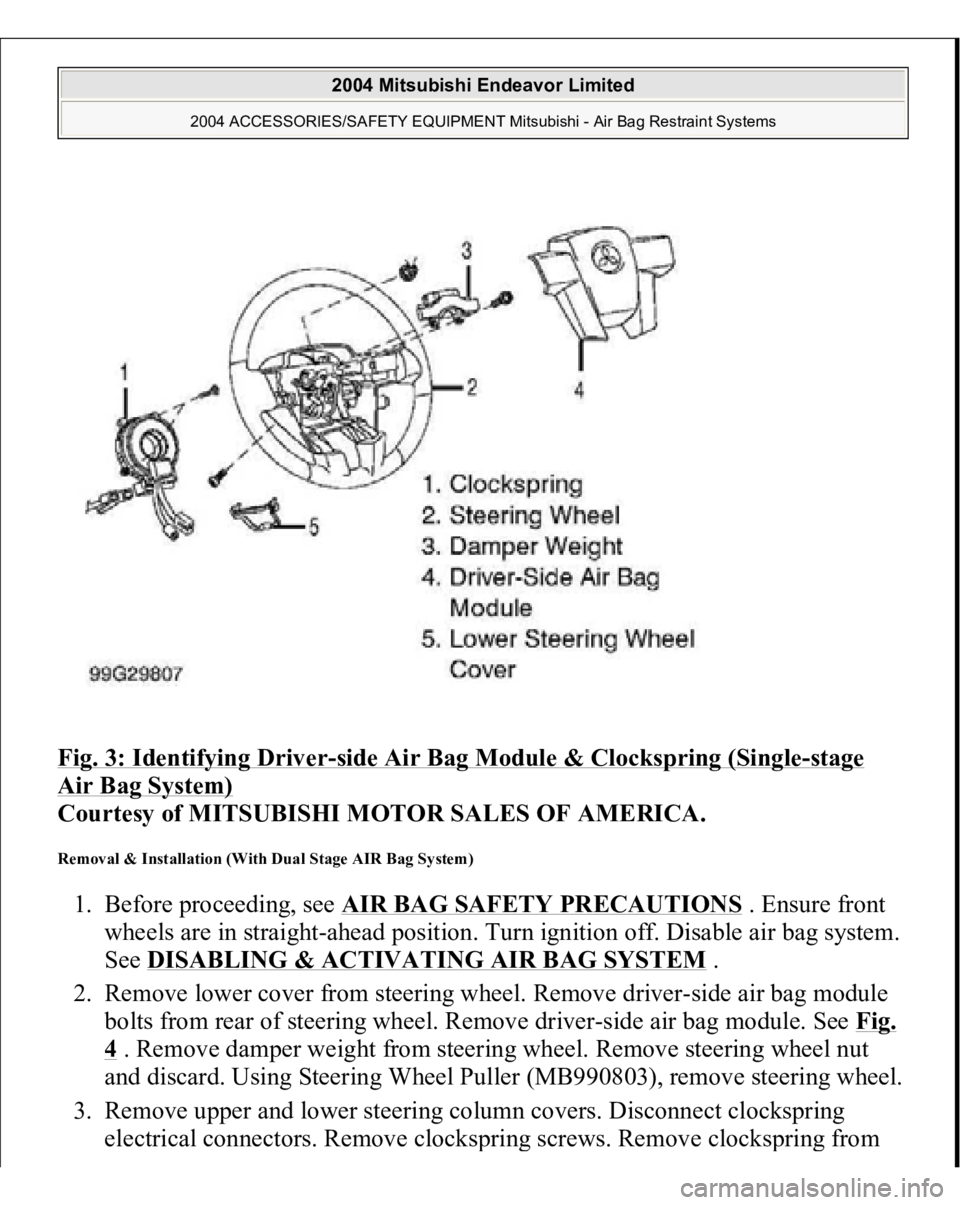

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Identifying Driver -side Air Bag Module & Clockspring (Single -stage Air Bag System) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Removal & Installation (With Dual Stage AIR Bag System)

Page 283 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual steering column. 4. To install, reverse removal procedure. If necessary, center clockspring. See CENTERING CLOCKSPRING under ADJUSTMENTS. Tighten clockspring screws, NEW steering wheel nut and dr

Page 284 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. To install, reverse removal procedure. Activate air bag system. Fig. 5: Identifying Floor Console Assembly Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. FRONT IMPACT SENSOR Removal

Page 285 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Disconnect appropriate front impact sensor connector. Disconnect electrical sensor. Remove front impact sensor nuts. Remove front impact sensor. See Fig. 6 or Fig. 7 . 3. To install, reverse

Page 286 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Identifying Front Impact Sensor (Dual -stage Air Bag System) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTRUMENT PANEL Removal & Installation 1. Before proceeding, see AIR BAG SAFETY

Page 287 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CONSOLE ASSEMBL Y . Remove left and right A-pillar trim panels. Remove hood lock release handle. 3. Remove end panel. See Fig. 8 . Remove driver-side knee bolster. Remove fog light switch. Remove

Page 288 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Identifying Instrument Panel Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. OCCUPANT CLASSIFICATION SENSOR 2004 Mitsubishi Endeavor Limited 2004 ACCESSORIES/SAFETY EQUIPMENT Mi
