Page 3473 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 213: Identifying Connectors: C -211, C -215, C -312 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The steering wheel sensor is energized by the ignition switch (IG2) throug

Page 3474 of 3870

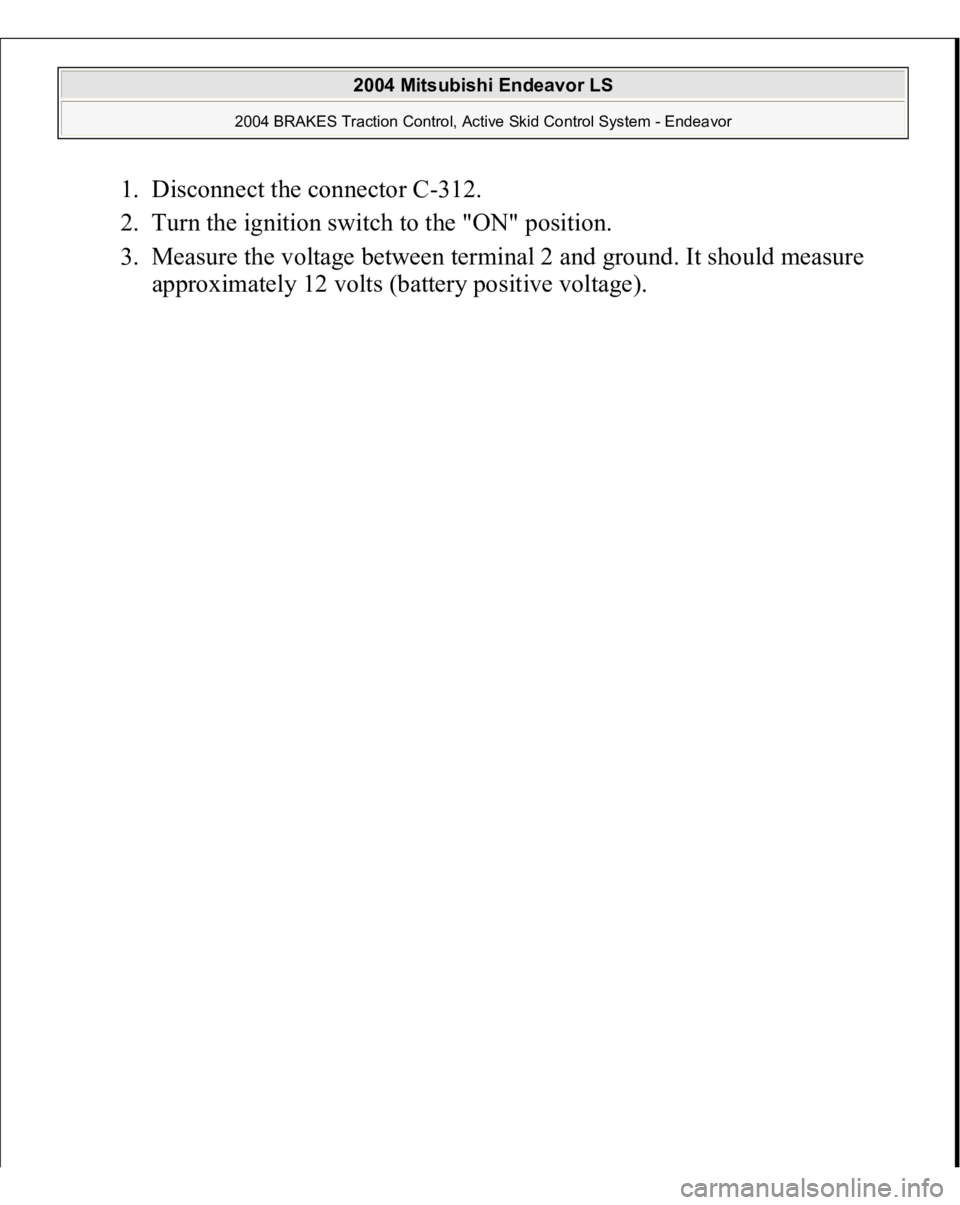

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Disconnect the connector C-312. 2. Turn the ignition switch to the "ON" position. 3. Measure the voltage between terminal 2 and ground. It should measure approximately 12 volts (batter

Page 3475 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3476 of 3870

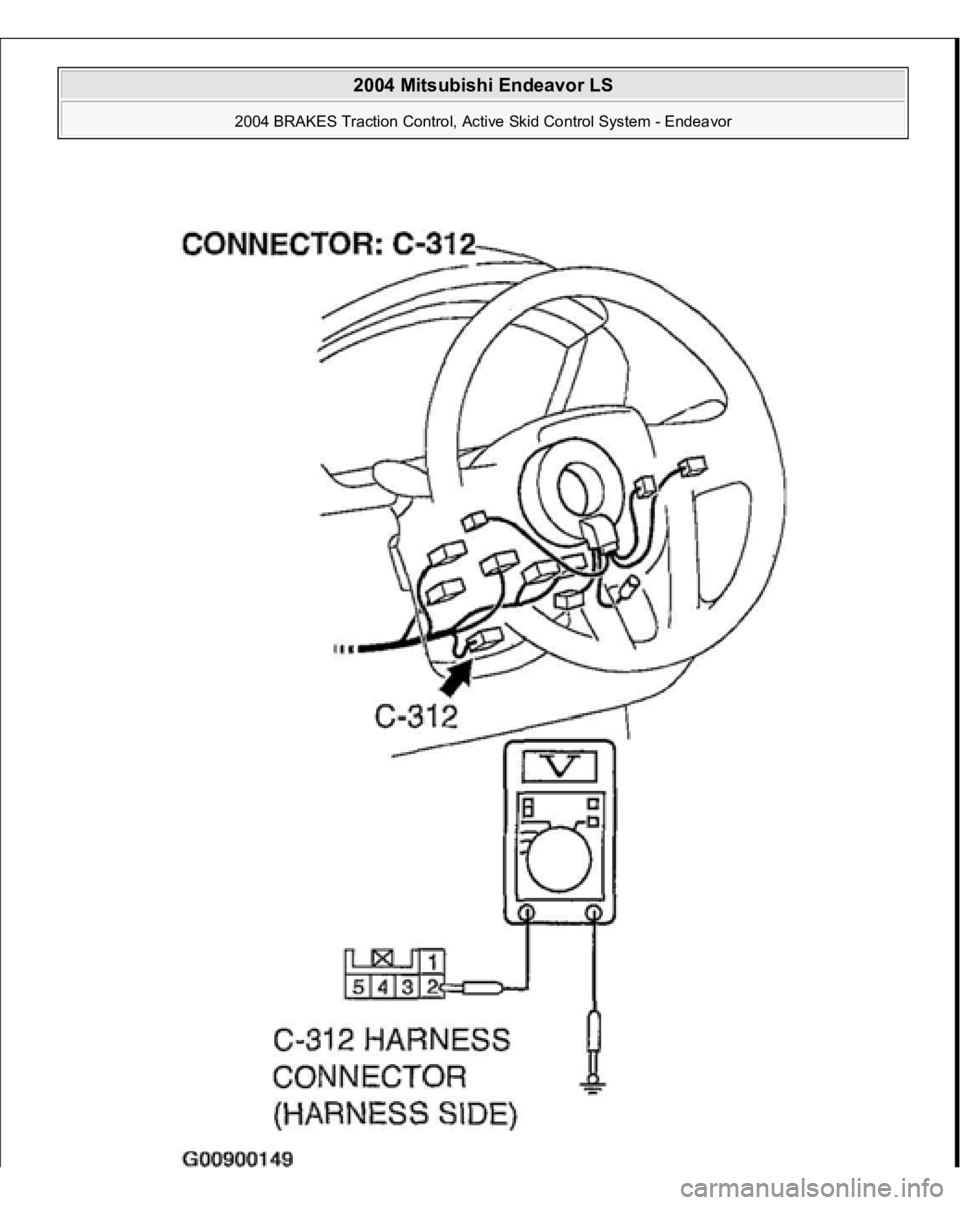

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 214: Measuring Voltage At Steering Wheel Sensor Connector C - 312 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is battery positive voltage (approximately 12 volts) present? YES: Go to S

Page 3477 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3478 of 3870

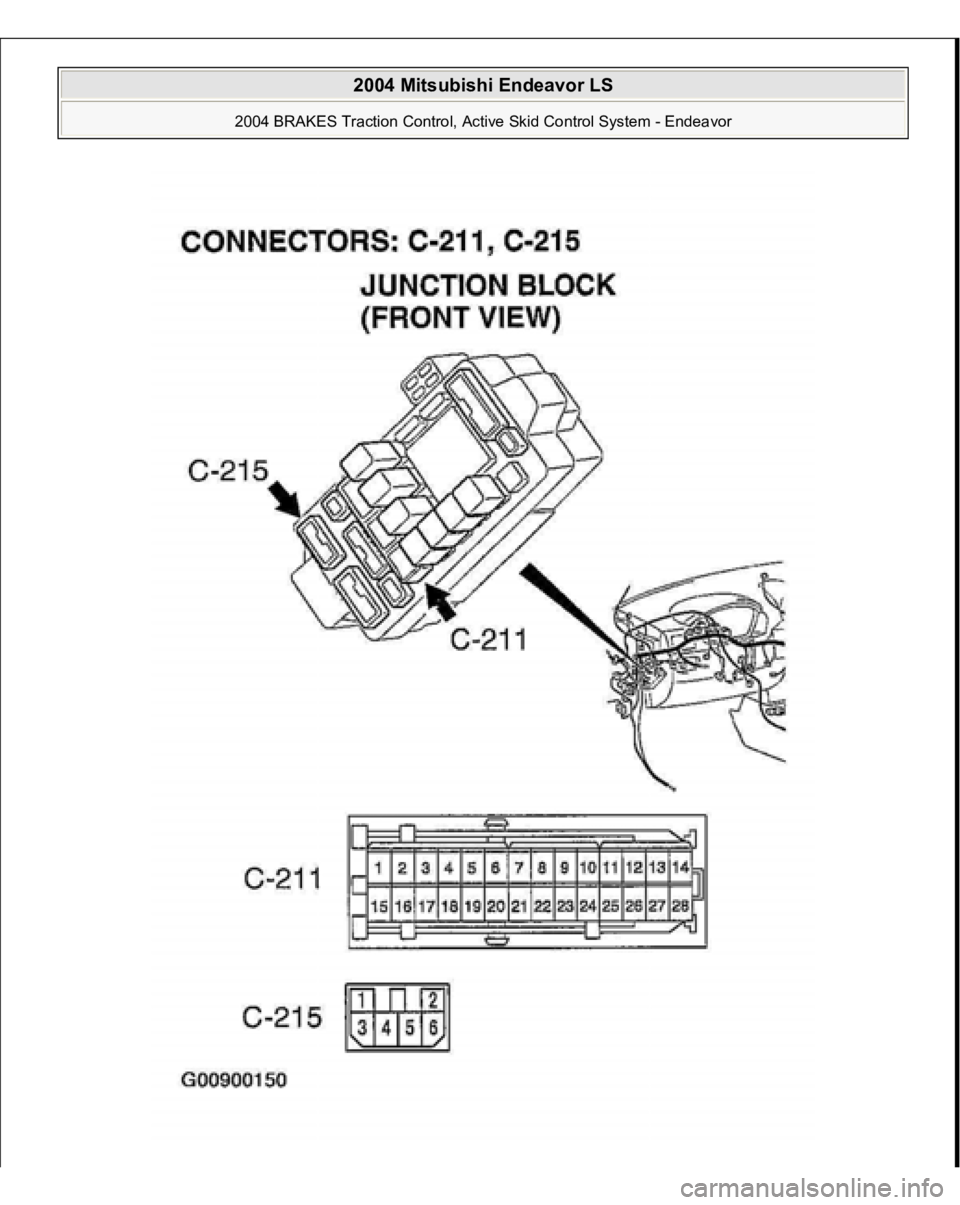

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 215: Checking Junction block connector C -211 and C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Ignition switch connector C-308 Fig. 216: Checking Ignition switch connector C -308 C

Page 3479 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 217: Checking Steering Wheel Sensor Connector C -312 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Check the connectors, for loose, corroded or damaged terminals, or terminals pushed back in

Page 3480 of 3870

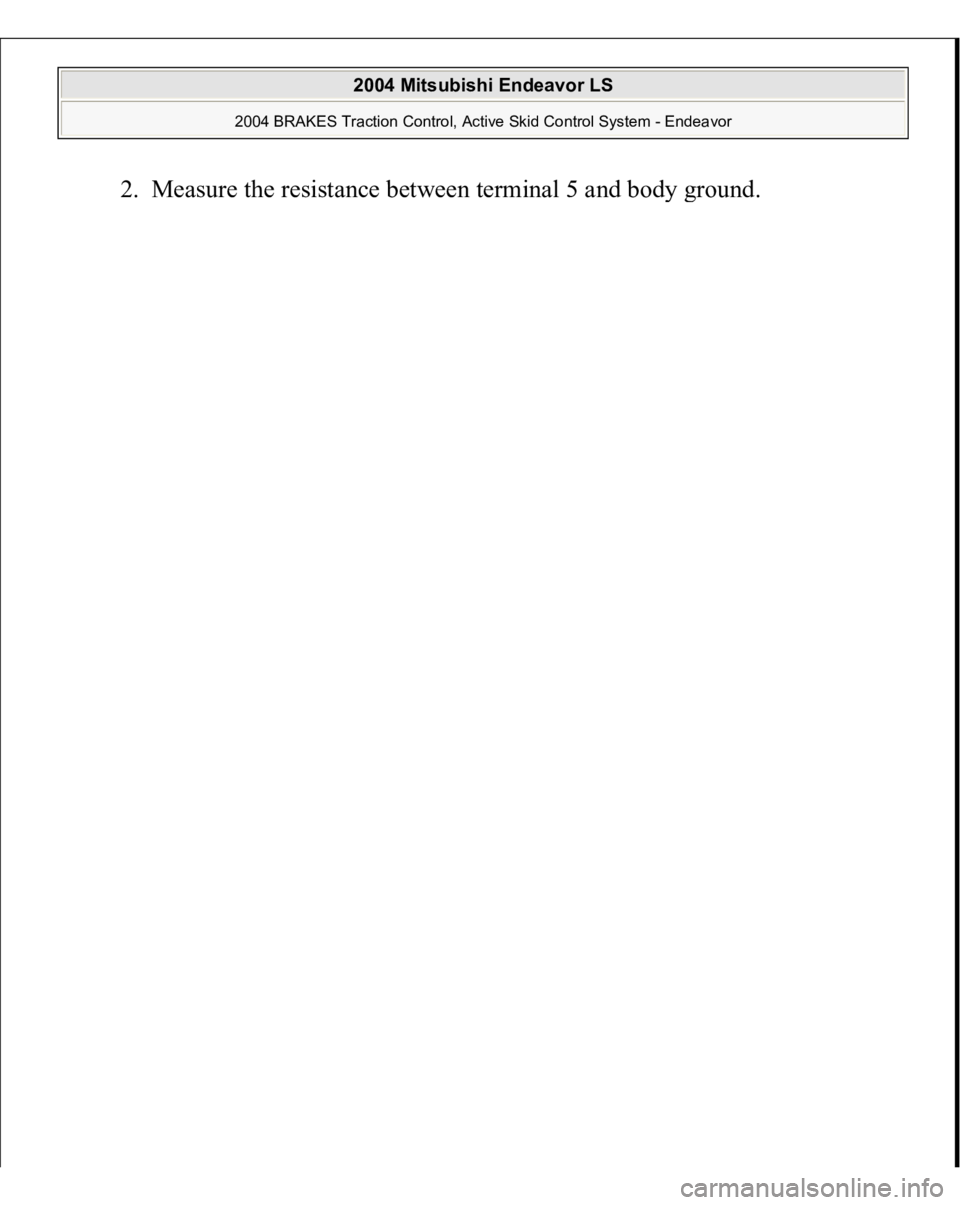

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Measure the resistance between terminal 5 and bod y ground. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
