Page 49 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 32: Checking ABS Sensor Connector D -15 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 50 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Checking Intermediate Connector C -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are ABS-ECU connector A-02, intermediate connector C-32 and ABS sensor < rear: LH > connector D-15 d

Page 51 of 3870

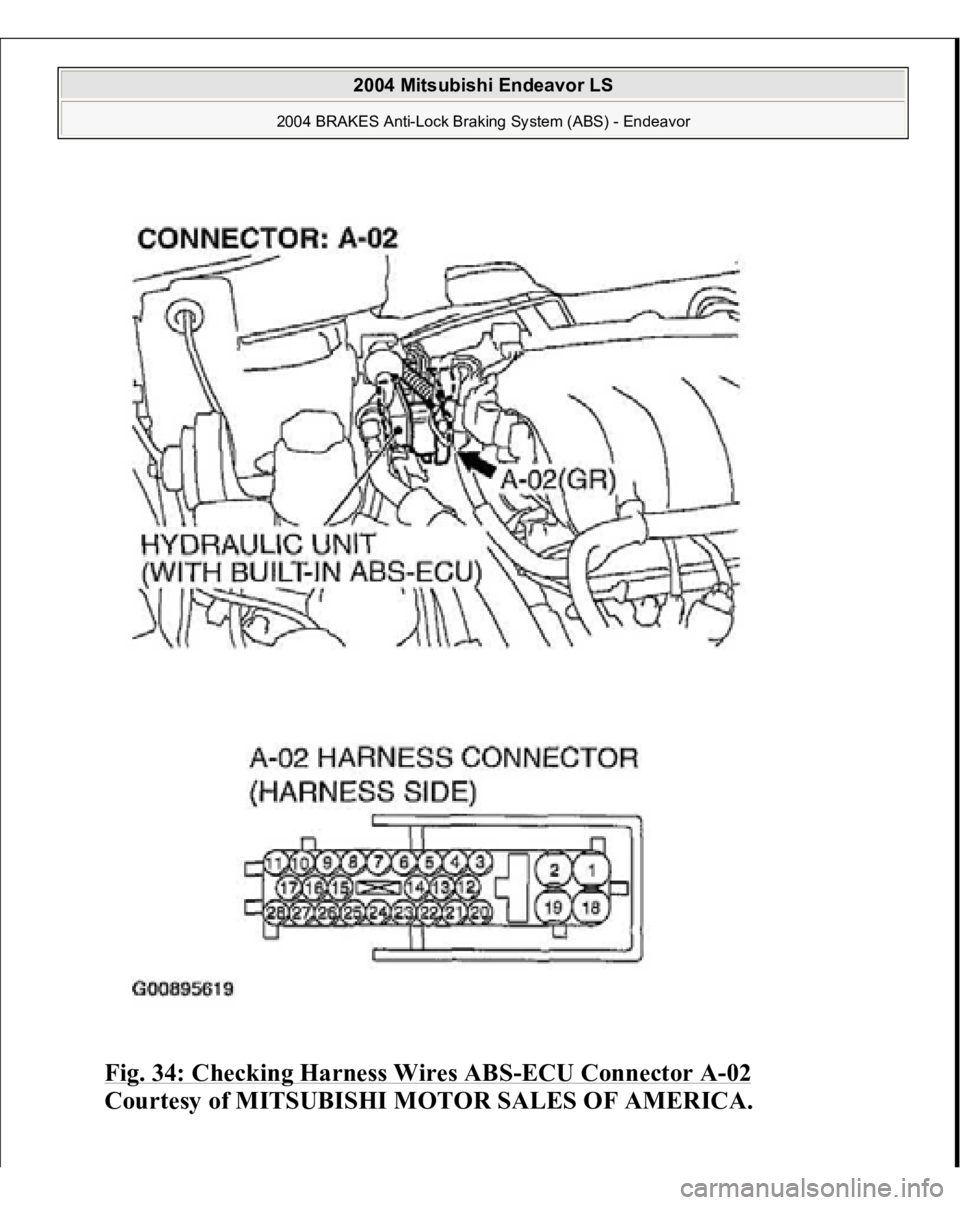

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 34: Checking Harness Wires ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 52 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 35: Checking ABS Sensor Connector D -15 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the harness wire between ABS-ECU connector A-02 (terminal 28, 27) and ABS sensor < rear: LH > conne

Page 53 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When DTC code C1215 is set: Rear left ABS sensor Q: Is the ABS sensor damaged? YES: Replace the ABS sensor. Then go to Step 17 . NO: It can be assumed that this malfunction is intermittent. Refe

Page 54 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 36: Recheckin g For Dia gnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 55 of 3870

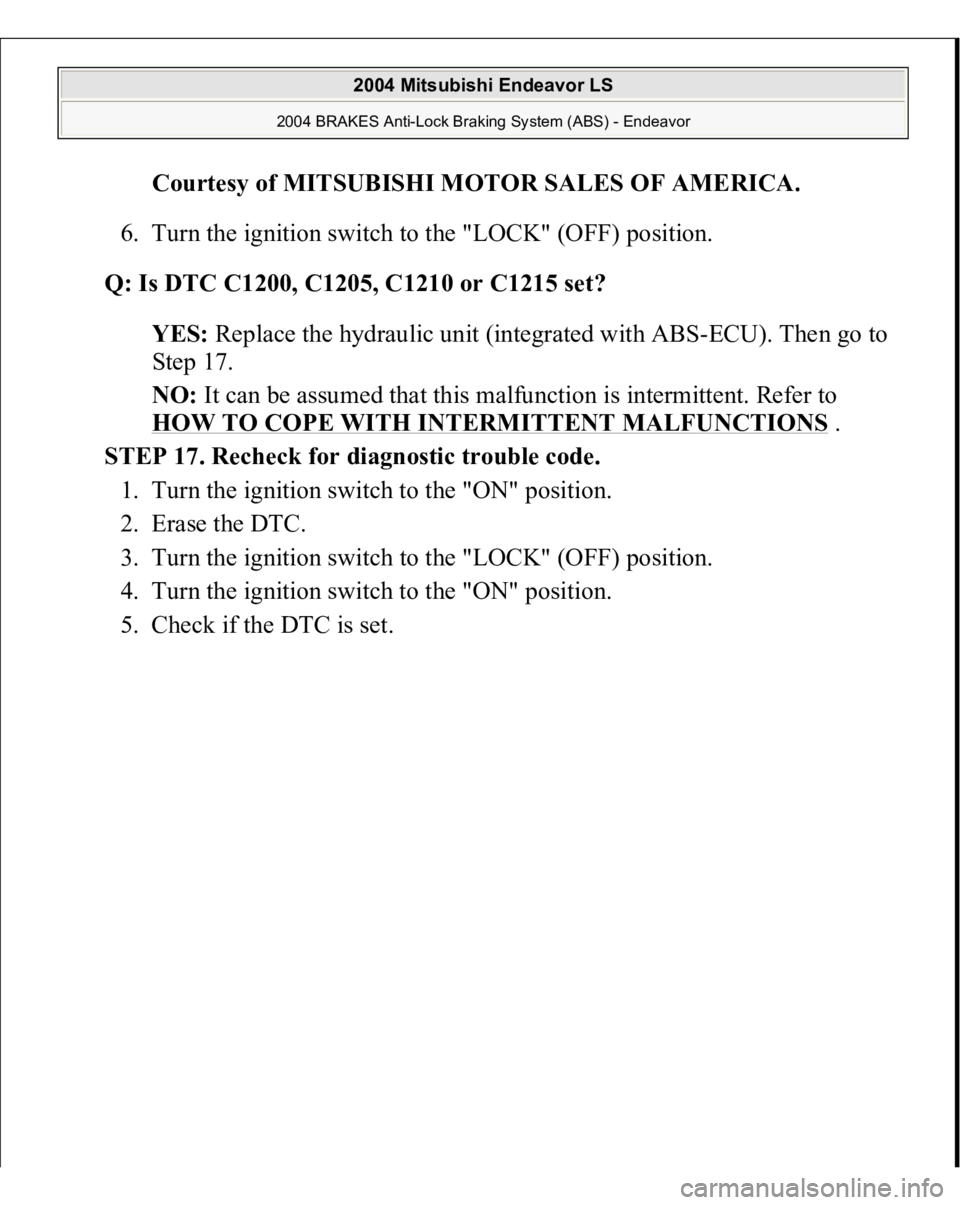

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1200, C1205, C1210 or C1215 set? YES: Replace the hydraulic unit (inte

Page 56 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
