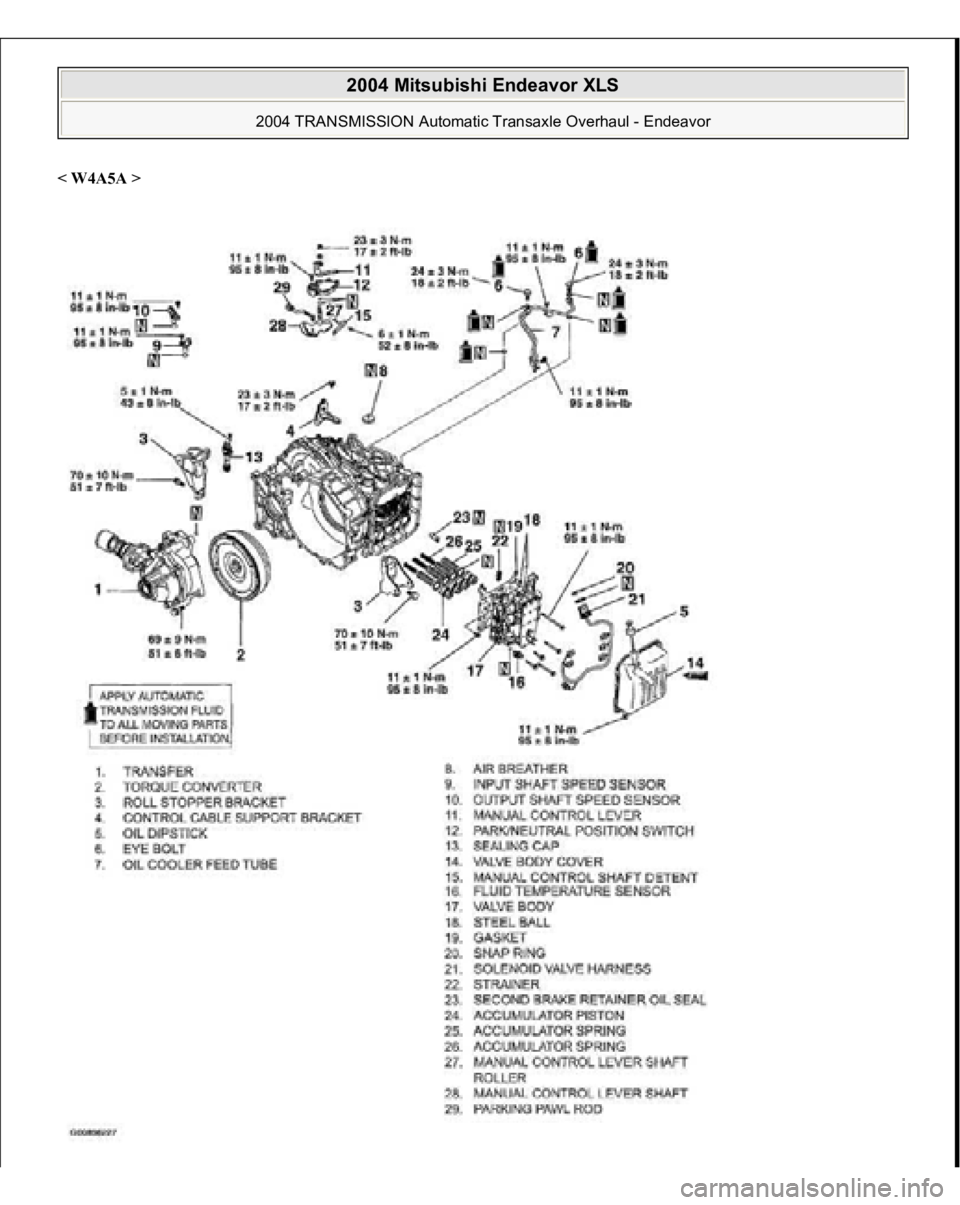

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Exploded View And Torque Specification Automatic Transaxle System (2 Of 5) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxl

Page 466 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual < W4A5A > 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 467 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Exploded View And Torque Specification Automatic Transaxle System (3 Of 5) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 11: Exploded View And Torque Specification Automatic Transaxl

Page 468 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Exploded View And Torque Specification Automatic Transaxle System (5 Of 5) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transax

Page 469 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB990607: Torque Wrench Socket MB990930: Installer Adapter MB990931: Installer Adapter MB990936: Installer Adapter MB990938: Handle MB991625: Special Socket (41) MB9916

Page 470 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Remove the transfer and O-ring < W4A5A > 2. Use a dial gauge to measure the input shaft end play. 3. Remove the torque converter. 4. Remove each bracket. 5. Remove the dipstick. 6. Remove

Page 471 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 7. Remove the input shaft speed sensor and output shaft speed sensor. Fig. 14: Identifying Input Shaft Speed Sensor And Output Shaft Speed Sensor C

Page 472 of 3870

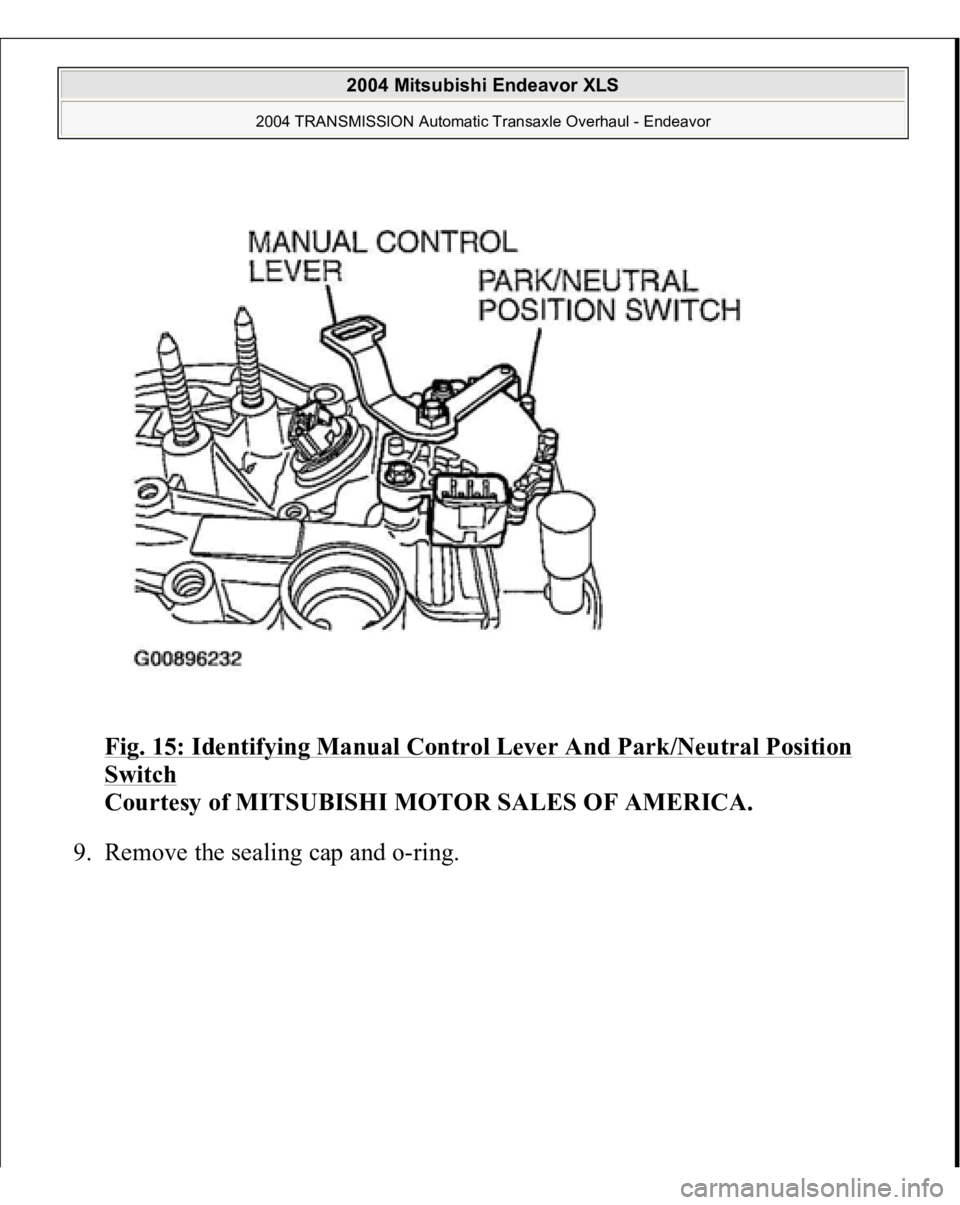

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Identifying Manual Control Lever And Park/Neutral Position Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 9. Remove the sealing cap and o-ring. 2004 Mitsubishi Endeavor XLS 2004
